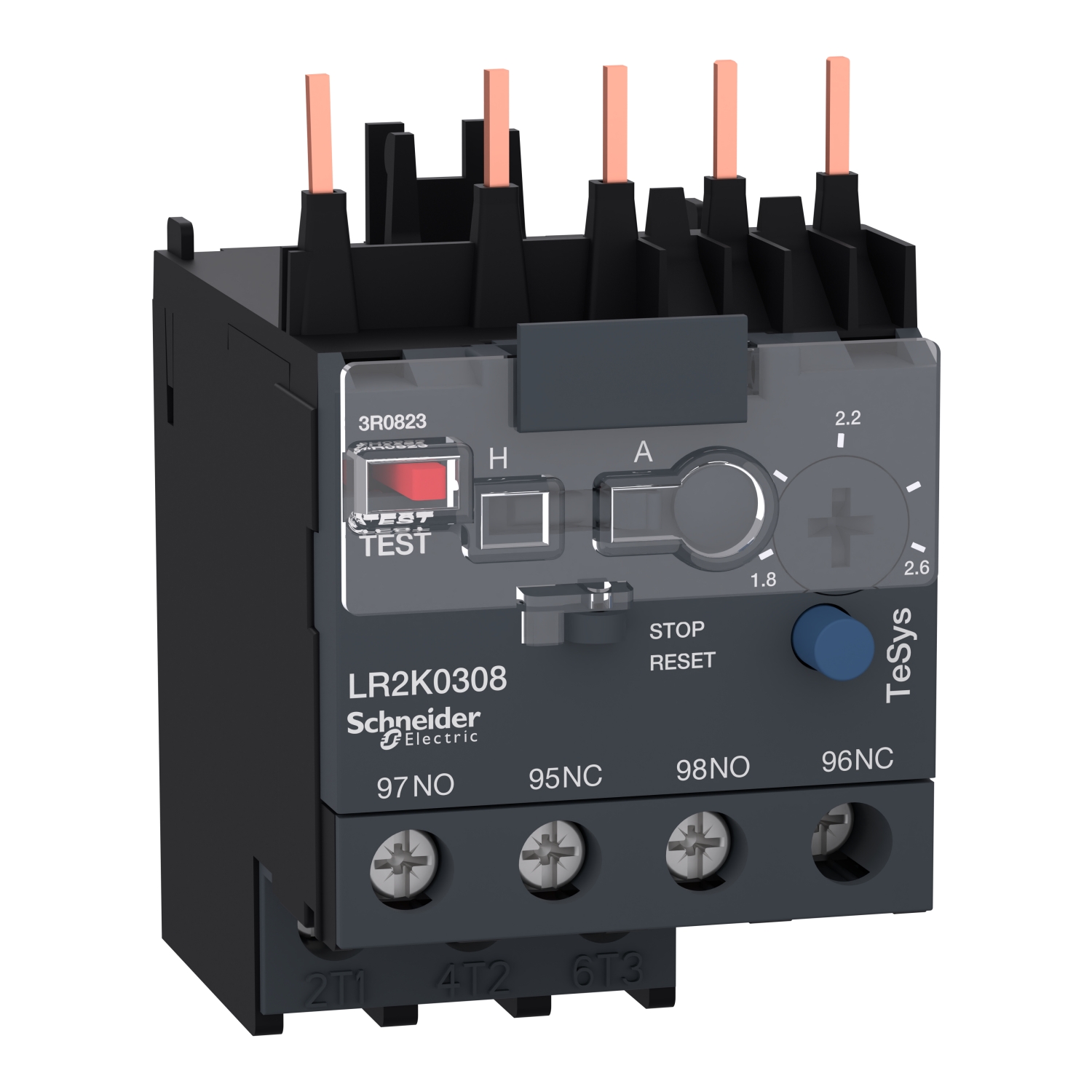

Schneider LR2K0308 | TeSys K – differential thermal overload relays – 1.8…2.6 – class 10A
Technical Specifications
-
Brand: Schneider Electric
-
Series: TeSys K
-
Model: LR2K0308
-
Type: Differential Thermal Overload Relay
-
Adjustable Current Range: 1.8 to 2.6 A
-
Tripping Class: 10A (Fast Motor Protection)
-
Phase Imbalance Detection: Yes
-
Reset Mode: Manual and Automatic Reset
-
Mounting Type: Direct mounting on TeSys K contactors
-
Connection Type: Screw clamp terminals
-
Operating Temperature: -20°C to +60°C
-
Compliance Standards: IEC 60947-4-1, IEC 60947-5-1
Key Features
-
Reliable Motor Protection: Protects against overloads, phase loss, and unbalanced currents.
-
Adjustable Current Settings: Fine-tunes between 1.8 A and 2.6 A for precise protection.
-
Quick Tripping (Class 10A): Ensures rapid response to overload conditions, preventing motor damage.
-
Auto/Manual Reset Options: Provides flexibility in reset operations, improving system reliability.
-
Compact and Space-Saving Design: Directly mounts onto TeSys K contactors for easy installation.
-
Phase Failure Protection: Trips the circuit in case of phase loss, preventing motor overheating.
-
Durable Construction: Designed for industrial environments with high switching durability.
Applications
-
Industrial Motor Protection: Ideal for small three-phase motors in machinery and automation systems.
-
Pumps and Compressors: Ensures safe operation by preventing overheating and overload.
-
HVAC Systems: Protects fans, blowers, and air handling units from excessive loads.
-
Material Handling & Conveyors: Prevents motor failure in automated production lines.
-
Machine Tools: Used in drills, CNC machines, and lathes to prevent damage from excessive loads.
