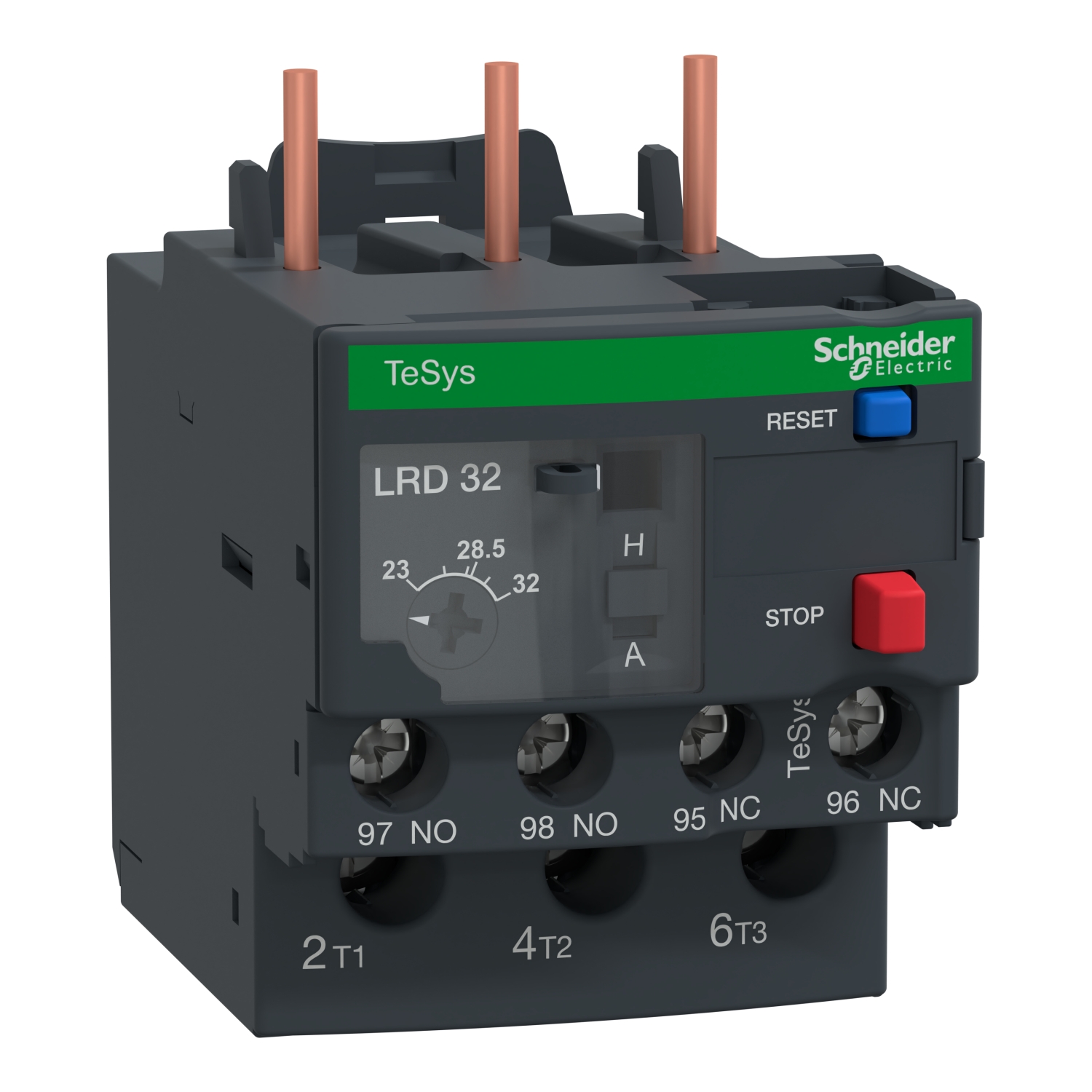

Schneider LRD32 | Thermal overload relay, TeSys LRD, 23…32 A, class 10A

Name: Schneider LRD32 | Thermal overload relay, TeSys LRD, 23...32 A, class 10A
SKU: LRD32
Availability: InStock

Original price was: 5,606.00 EGP.Current price is: 3,027.30 EGP.

LRD32 | Thermal overload relay, TeSys LRD, 23…32 A, class 10A

In stock

SKU: LRD32 Category: TeSys LRD Tags: 23...32 A, class 10A, TeSys LRD, Thermal overload relay Brand: Schneider Electric

Description

Schneider LRD32 | Thermal overload relay, TeSys LRD, 23…32 A, class 10A

<span data-mce-type="bookmark" style="width: 0px;overflow: hidden;line-height: 0" class="mce_SELRES_start"></span>

Schneider LRD32 | Thermal Overload Relay

Overview

The Schneider LRD32 is a thermal overload relay from the TeSys LRD series, designed to provide reliable motor protection against overloads and phase failures. It is commonly used in industrial and commercial applications where motor safety and efficiency are critical.

Technical Specifications

1. General Information

Product Name: Schneider LRD32
Product Type: Thermal Overload Relay
Series: TeSys LRD
Manufacturer: Schneider Electric

Product Range: TeSys LRD

Function: Thermal overload protection
Current Range: 23 – 32 A
Trip Class: 10A
Mounting Compatibility: TeSys LC1D contactors
Reset Mode: Manual and automatic reset
Auxiliary Contacts: 1 NO + 1 NC
Operating Voltage: Up to 690V AC
Certifications: IEC 60947-4-1, CE, UL

2. Design & Build

Compact and lightweight design
Easy-to-adjust current setting dial
Built-in stop/reset and test buttons for quick operation
Auxiliary contacts: 1 NO + 1 NC for control circuit feedback

3. Applications

Motor protection against overload and phase failure
Industrial automation systems
Pumps, fans, conveyors, and compressors
HVAC and process control applications

4. Advantages

Precise thermal protection to prevent motor damage
Quick and easy installation with TeSys D contactors
Reliable performance with high durability
Dual reset options for flexible operation

5. Conclusion

The Schneider LRD32 is a versatile thermal overload relay designed for motor protection in industrial applications. With its adjustable current range (23A–32A), Class 10A tripping, and compatibility with TeSys D contactors, it ensures efficient and reliable performance in various electrical systems.

Additional information

brands	Schneider Electric

Brand

Schneider Electric

leading the digital transformation of energy management and automation. From energy and sustainability consulting to optimizing the lifecycle of your assets, we provide services to meet your needs. Our technologies help you become more efficient, reduce costs, and meet your sustainability goals.

Main documents

Datasheet	Download Datasheet
Product datasheet	Download
User guide	Download
Instruction sheet	Download
Catalogue	Download
CAD Files	Download
Environmental disclosure	Download
