Schneider LRE35 | Thermal Overload Relay, Easy TeSys Protect, 30-38A, Class 10A

1. Introduction

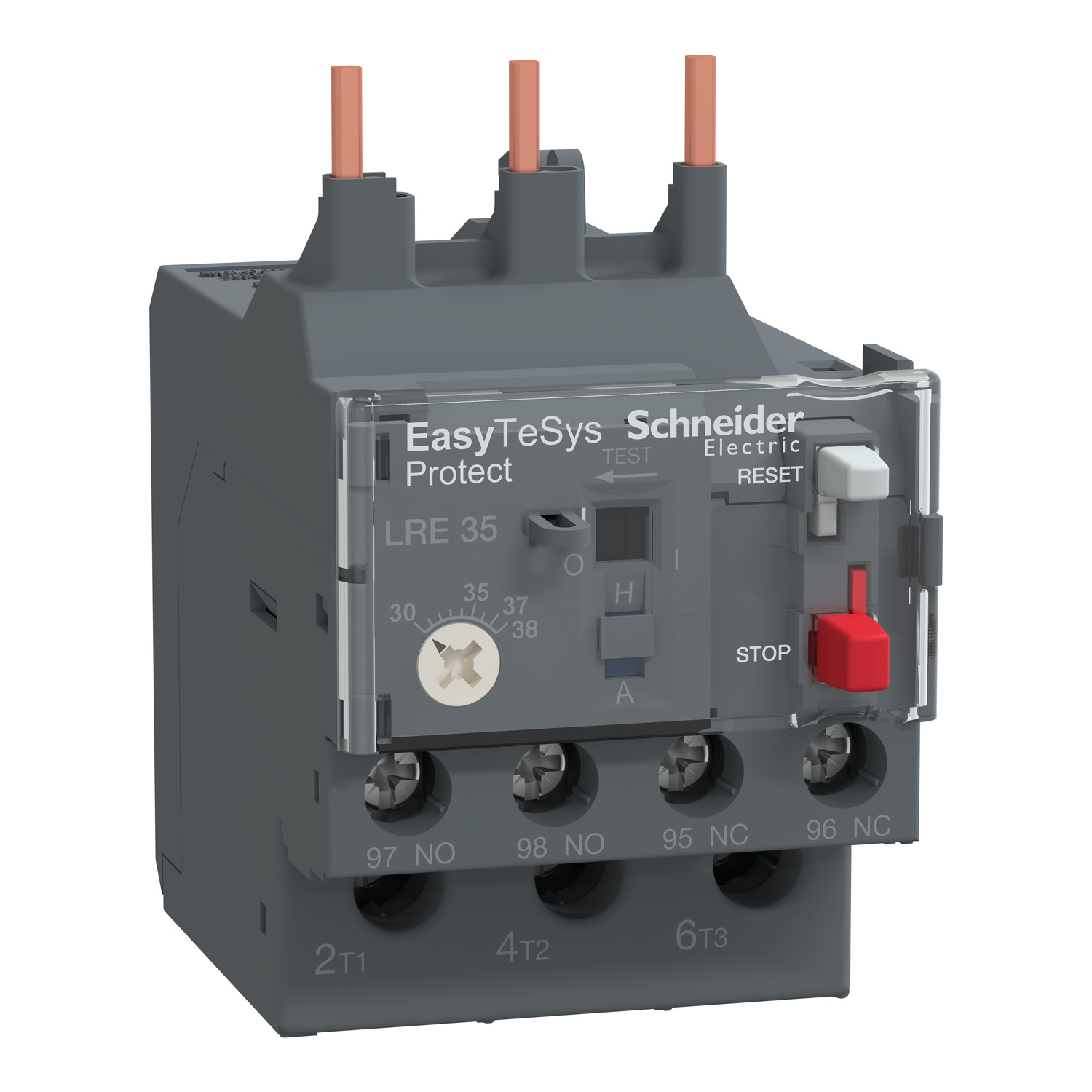

The Schneider LRE35 is a thermal overload relay from the Easy TeSys Protect series, designed to provide reliable motor protection against overloads and phase failures. It operates within a current range of 30-38A and follows the Class 10A tripping curve, ensuring quick and accurate response to overload conditions.

2. Key Features

• Current Range: 30-38A
• Trip Class: 10A (fast response to overloads)
• Reset Mode: Manual and automatic reset options
• Mounting Compatibility: Direct mounting on Easy TeSys contactors
• Phase Failure Protection: Prevents motor damage from unbalanced loads
• Adjustable Settings: Allows fine-tuning of protection level
• Compact & Robust Design

3. Technical Specifications

• Product Type: Thermal Overload Relay
• Series: Easy TeSys Protect (LRE)
• Rated Current Range: 30-38A
• Tripping Class: 10A
• Reset Type: Manual/Automatic
• Mounting Type: Direct attachment to contactors or panel mounting
• Standards Compliance: IEC 60947-4-1

4. Applications

• Motor protection in industrial environments
• Electrical panels and control systems
• HVAC systems and pumps
• Conveyor and manufacturing systems

5. Benefits

• Enhanced Motor Protection: Prevents damage due to overloads and phase imbalance
• Reliable Performance: Ensures stable motor operation
• Easy Installation: Designed for seamless integration with TeSys contactors
• Compact & Space-Saving: Optimized for control panel layouts
• Adjustable Protection: Fine-tuned to match motor requirements

6. Conclusion

The Schneider LRE35 thermal overload relay is a versatile and efficient solution for motor protection in industrial and commercial applications.** With its adjustable 30-38A range and Class 10A tripping, it ensures safe, reliable, and optimized motor performance, reducing downtime and maintenance costs.
