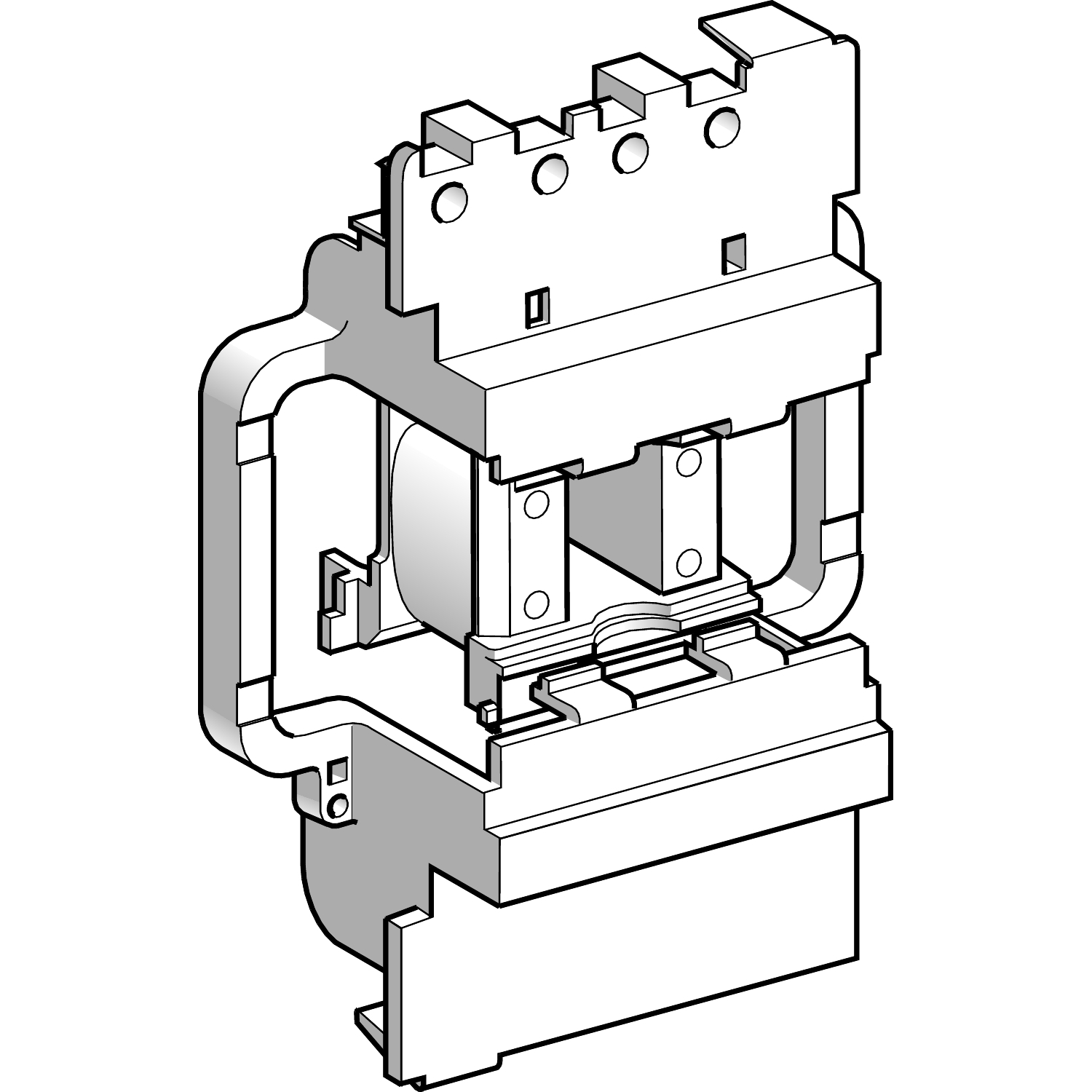

Schneider LX1D8Q7 Contactor: Comprehensive Overview
it is a high-performance contactor from the TeSys D series, designed for reliable motor control and power switching in a variety of industrial and commercial applications. Known for its robust construction and advanced features, the LX1D8Q7 is ideal for applications requiring high switching capacity and enhanced durability.
Key Specifications
- Model: LX1D8Q7
- Series: TeSys D
- Rated Operational Current (AC-3): 80A
- Rated Operational Voltage (Ue): Up to 690V AC
- Control Circuit Voltage: 220V AC (50/60 Hz)
- Number of Poles: 3P (Three Poles)
- Utilization Category: AC-3
- Compliance Standards: IEC 60947, EN 60947
Main Features
- High Durability:
- Designed for heavy-duty applications, it contactor offers exceptional mechanical and electrical endurance, ensuring reliable performance even under demanding conditions.
- Compact and Efficient Design:
- Despite its high current rating, the contactor maintains a compact form factor, making it easy to install in various control panel configurations without occupying excessive space.
- Energy Efficiency:
- it minimizes energy consumption in control circuits, promoting cost savings and eco-friendly operation in industrial automation systems.
- Support for Auxiliary Devices:
- Compatible with a wide range of Schneider Electric accessories such as auxiliary contacts, timers, and surge protection devices, which enhance its functionality and adaptability.
- Advanced Switching Performance:
- With a high rated operational current of 80A, it is ideal for controlling large motors and switching higher loads with ease, providing both power and protection.
Applications
it contactor is well-suited for:
- Motor control and protection in HVAC systems, pumps, and compressors.
- Load switching for industrial automation equipment.
- Power switching applications in manufacturing and processing plants.
- Industrial systems requiring reliable and high-capacity switching of electrical loads.
Installation and Integration
- Mounting Options:
- The LX1D8Q7 contactor can be mounted on DIN rails or directly on panels, offering flexibility in installation.
- Ease of Wiring:
- Clear terminal markings and accessible wiring options ensure a straightforward installation process, reducing setup time and errors.
Benefits of the LX1D8Q7
- Reliability:
- Offers stable operation and long-lasting performance, even in high-demand applications.
- Safety:
- Equipped with advanced protection features to safeguard motors and equipment from electrical faults and overloads.
- Cost-Effective Solution:
- Delivers excellent performance at a competitive price, providing cost savings in both installation and long-term operation.
- Compliance with Global Standards:
- Meets international standards like IEC and EN, ensuring its suitability for a wide range of applications and regions.
