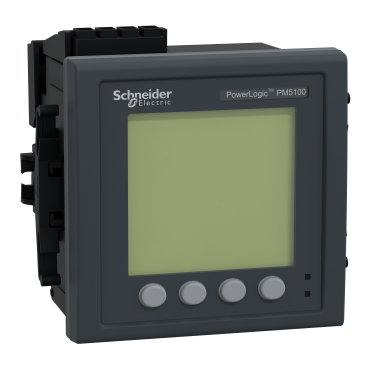

Product Overview: Schneider METSEPM5100 Power Meter – PM5100, No Communication, Harmonics up to 15th, 1DO, 33 Alarms

The Schneider Electric METSEPM5100 is a versatile and compact power meter designed for panel builders and facility managers. It belongs to the PM5000 series, known for providing reliable measurements in electrical distribution systems. This model does not include communication, making it ideal for local display applications with built-in alarming capabilities.

Key Features:

• Brand: Schneider Electric

• Series: PM5000

• Model Number: METSEPM5100

• Type: Power Meter

• Display: Backlit LCD

• Communication: Not included (no RS485 or Ethernet)

• Digital Output: 1 DO (Digital Output)

• Alarms: 33 configurable alarms

• Harmonics Measurement: Up to 15th harmonic

Technical Specifications:

• Voltage Measurement: Phase-to-phase and phase-to-neutral

• Current Inputs: 1 A or 5 A via external CTs

• Frequency Range: 45–65 Hz

• Accuracy Class:
  – Voltage: ±0.5%
  – Current: ±0.5%
  – Power: ±1%

• Mounting: DIN rail or panel flush mount

• Power Supply: 100…277 V AC / 125…250 V DC

• Operating Temperature: -25°C to +70°C

• Compliance: IEC 61010, IEC 61557-12

Functional Features:

• Real-Time Monitoring:
  – Measures voltage, current, power, power factor, frequency, and energy

• Harmonic Analysis:
  – Displays total harmonic distortion (THD) up to the 15th harmonic

• Alarm Management:
  – Supports 33 high/low alarms for quick fault detection

• Digital Output (1 DO):
  – Configurable for alarms or energy pulsing

• User-Friendly Interface:
  – Large, clear LCD display with intuitive navigation buttons

Applications:

• Electrical panels in commercial and industrial buildings

• Local energy monitoring in switchboards

• Power quality assessment (basic level)

• Preventive maintenance planning

• Sub-billing and load monitoring

Benefits:

• Accurate and Reliable:
  – Delivers precise energy readings for informed decision-making

• Compact Design:
  – Easily fits in tight panel spaces

• High Alarm Capacity:
  – Provides 33 configurable alarms for real-time diagnostics

• Cost-Effective:
  – Perfect for applications that don’t require network connectivity

• Plug-and-Play Installation:
  – Simple to mount and set up

Typical Users:

• Facility and energy managers

• Panel builders and OEMs

• Electrical contractors

• Commercial building operators

• Maintenance technicians seeking visual local monitoring
