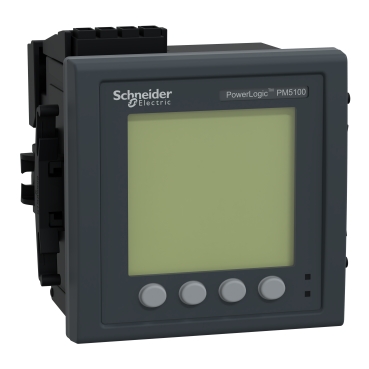

Product Overview: Schneider METSEPM5110 Power Meter – PM5110, Modbus, Harmonics up to 15th, 1DO, 33 Alarms

The Schneider Electric METSEPM5110 is a multifunction power meter from the PM5000 series, designed to offer enhanced visibility into electrical systems. This model features Modbus communication, harmonic analysis up to the 15th harmonic, and 33 configurable alarms, making it ideal for energy management and diagnostics.

Key Features:

• Brand: Schneider Electric

• Series: PM5000

• Model Number: METSEPM5110

• Type: Power and Energy Meter

• Display: Backlit LCD

• Communication: RS-485 (Modbus RTU)

• Digital Output: 1 DO (Digital Output)

• Alarms: 33 programmable alarms

• Harmonics Measurement: Up to 15th harmonic

Technical Specifications:

• Voltage Inputs: Direct or via VT, phase-to-phase & phase-to-neutral

• Current Inputs: 1 A or 5 A (via external CTs)

• Frequency Range: 45–65 Hz

• Accuracy Class:
  – Voltage: ±0.5%
  – Current: ±0.5%
  – Power: ±1%
  – Energy: Class 1 (IEC 62053-21)

• Mounting: DIN rail or flush panel mounting

• Power Supply: 100…277 V AC / 125…250 V DC

• Operating Temp: -25°C to +70°C

• Compliance: IEC 61010-1, IEC 61557-12, IEC 62053 standards

Functional Features:

• Real-Time Electrical Monitoring:
  – Measures voltage, current, active/reactive/apparent power, frequency, energy, and power factor

• Harmonic Analysis:
  – Monitors THD (Total Harmonic Distortion) up to the 15th harmonic

• Modbus RS-485 Communication:
  – Enables remote monitoring and integration with BMS or SCADA

• Alarm Management:
  – 33 customizable alarms for threshold breaches and system faults

• Digital Output (1 DO):
  – For pulse output or alarm signaling

Applications:

• Sub-metering in commercial/industrial buildings

• Power and energy monitoring in LV/MV switchboards

• Integration with building or energy management systems

• Harmonics and power quality diagnostics

• Demand-side energy optimization

Benefits:

• Modbus Ready:
  – Seamless integration with most automation and monitoring systems

• High Accuracy:
  – Reliable measurements for billing and analysis

• Rich Alarm Features:
  – 33 alarms to detect anomalies in real-time

• Harmonics Support:
  – Helps identify distortion in the network

• User-Friendly Interface:
  – Intuitive navigation with a clear backlit screen

Typical Users:

• Energy managers and facility engineers

• Panel builders and OEMs

• System integrators using Modbus protocols

• Commercial and industrial energy monitoring professionals

• Maintenance teams for predictive diagnostics
