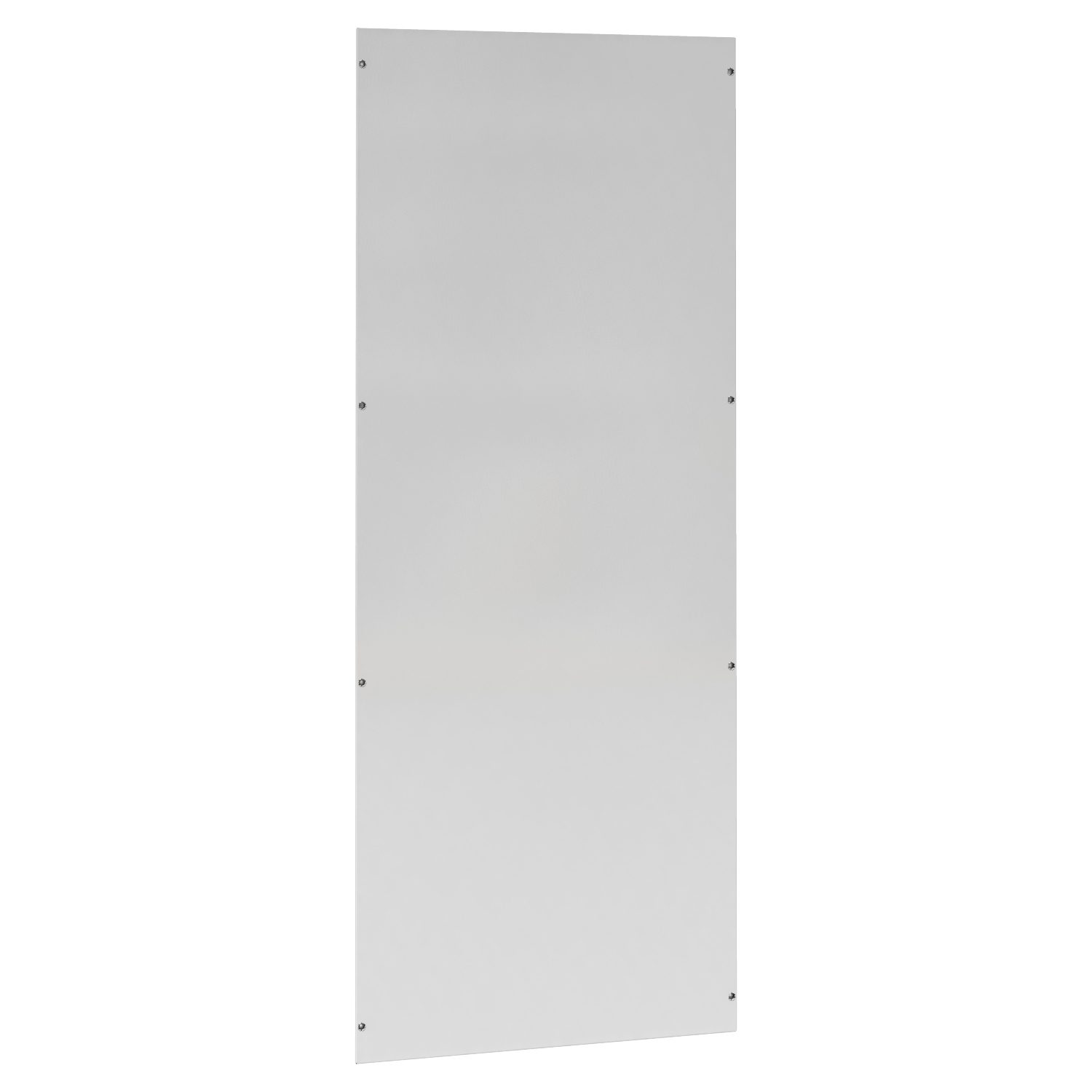

Schneider NSY2SP208 | Spacial SF external fixing side panels – 2000×800 mm

Description

Schneider NSY2SP208 | Spacial SF external fixing side panels – 2000×800 mm

Specifications

The Schneider NSY2SP208 side panels are part of the Spacial SF modular enclosure system. These panels are designed for external fixing, meaning they are mounted from the outside of the enclosure frame using dedicated fixings, offering a secure and efficient installation. This model is suitable for enclosures with a height of 2000 mm and a depth of 800 mm.

• Reference Code: NSY2SP208

• Product Type: Side Panel (external fixing)

• Enclosure Compatibility: Spacial SF modular enclosures

• Dimensions: Height – 2000 mm, Depth – 800 mm

• Material: Sheet steel

• Finish: Epoxy-polyester powder coating or galvanized (depending on version)

• Color: RAL 7035 light grey (standard)

• Fixing Type: External, using bolts or screws

• Protection: Helps maintain the enclosure’s IP and IK ratings (when installed with appropriate sealing)

• Standards: Conforms to IEC standards for industrial enclosures

Features

1. External Fixing Design
   Mounted from the outside for easier access during installation or maintenance, especially useful in restricted spaces.

2. Solid Steel Construction
   Made from durable steel for enhanced mechanical strength and long-lasting protection against environmental factors.

3. Corrosion-Resistant Finish
   Surface coated to resist corrosion, scratches, and wear in industrial settings, extending service life.

4. Easy Removal and Replacement
   Panels can be detached without disturbing internal equipment, providing easy access to internal components.

5. Perfect Fit with Spacial SF System
   Specifically engineered to align perfectly with the frame and other components of the Spacial SF modular system.

6. Contributes to IP and IK Ratings
   When properly installed with seals, the side panels help maintain high levels of ingress and impact protection.

Applications

The Schneider NSY2SP208 side panels are ideal for a wide range of applications where robust and adaptable enclosure systems are required. Typical use cases include:

1. Industrial Automation Panels
   Enclosing programmable logic controllers (PLCs), drives, sensors, and control relays.

2. Electrical Distribution Cabinets
   Used to cover and protect the sides of cabinets housing circuit breakers, switchgear, and power distribution units.

3. Machine Control Systems
   Installed on enclosures mounted to or near industrial machines, ensuring safe housing of control equipment.

4. Data and Communication Racks
   Used in IT environments where side protection is needed for structured cabling and network gear.

5. Process Control and Instrumentation
   Enclosing sensitive electronics and control systems in industries such as oil & gas, water treatment, and food processing.

6. Renewable Energy Installations
   Applied in solar, wind, or battery system cabinets to provide environmental protection and structural integrity.
