Description

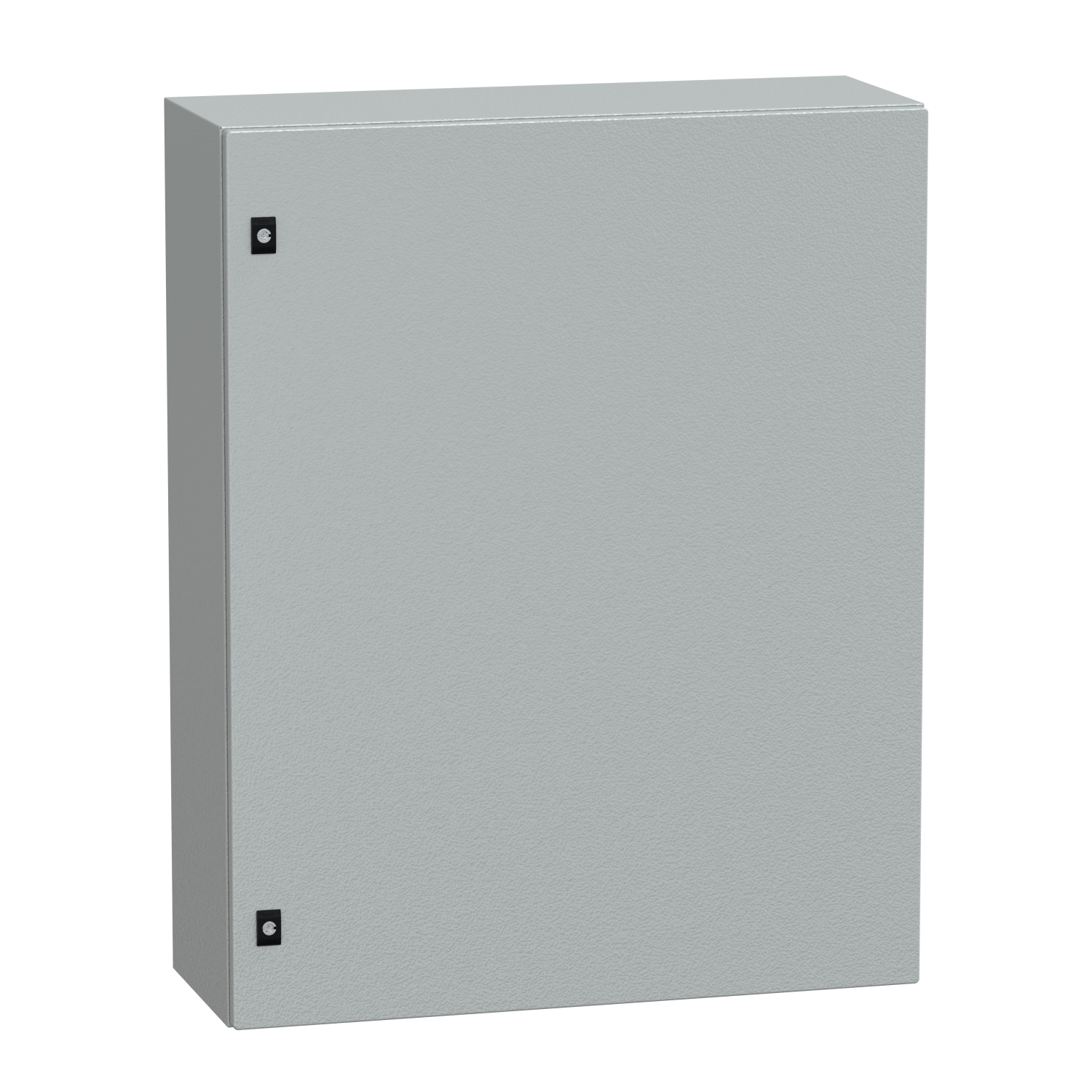

Schneider NSYCRN108300 | Spacial CRN plain door w/o mount.plate. H1000xW800xD300 IP66 IK10 RAL7035..
Technical Specifications NSYCRN108300
-
Model: NSYCRN108300
-
Series: Spacial CRN
-
Enclosure Type: Wall-mounted enclosure with plain door
-
Mounting Plate: Not included (must be ordered separately if needed)
-
External Dimensions:
-
Height: 1000 mm
-
Width: 800 mm
-
Depth: 300 mm
-
-
Material: Sheet steel
-
Surface Finish: Epoxy-polyester powder-coated
-
Color: Light grey, RAL 7035
-
Ingress Protection Rating: IP66 (totally protected against dust and powerful water jets)
-
Impact Resistance Rating: IK10 (resistant to strong mechanical impact)
-
Door Type: Plain (no window), reversible opening, equipped with concealed hinges
-
Locking System: 3-point lock with handle, ready for optional padlock
-
Standards Compliance: IEC 62208, IEC 60529, IEC 62262, RoHS, REACH
-
Internal Equipment Mounting: Compatible with Spacial CRN range accessories
-
Weight: Approx. 45–55 kg (may vary depending on configuration)
Key Features:
-
High Protection (IP66): Provides excellent protection from dust, water jets, and environmental elements
-
Strong Impact Resistance (IK10): Ensures durability in industrial and public environments
-
Flexible Interior Layout: Customizable with mounting accessories such as DIN rails, plates, and cable management
-
No Mounting Plate: Ideal for applications requiring specific or custom internal setups
-
Reversible Door: Allows door opening direction to be changed for flexibility during installation
-
Secure Access: Equipped with a three-point locking system to protect internal components
-
Corrosion-Resistant Coating: Powder-coated surface for high resistance in indoor and semi-outdoor locations
-
Modular Design: Can be easily integrated into larger systems or networked enclosures
Typical Applications:
-
Electrical Distribution Panels: Protecting low-voltage switchgear and distribution equipment
-
Automation Control Systems: Housing for PLCs, controllers, and I/O devices in manufacturing
-
Industrial Equipment Protection: Safeguards sensitive electronics in harsh environments
-
Process Control Panels: Common in oil & gas, water treatment, and food processing facilities
-
Building Management Systems: Used for HVAC, lighting, and access control infrastructure
-
Renewable Energy: Suitable for inverter, battery, or control enclosures in solar/wind installations
-
Telecommunication Infrastructure: Offers protection for equipment in remote or semi-outdoor locations
