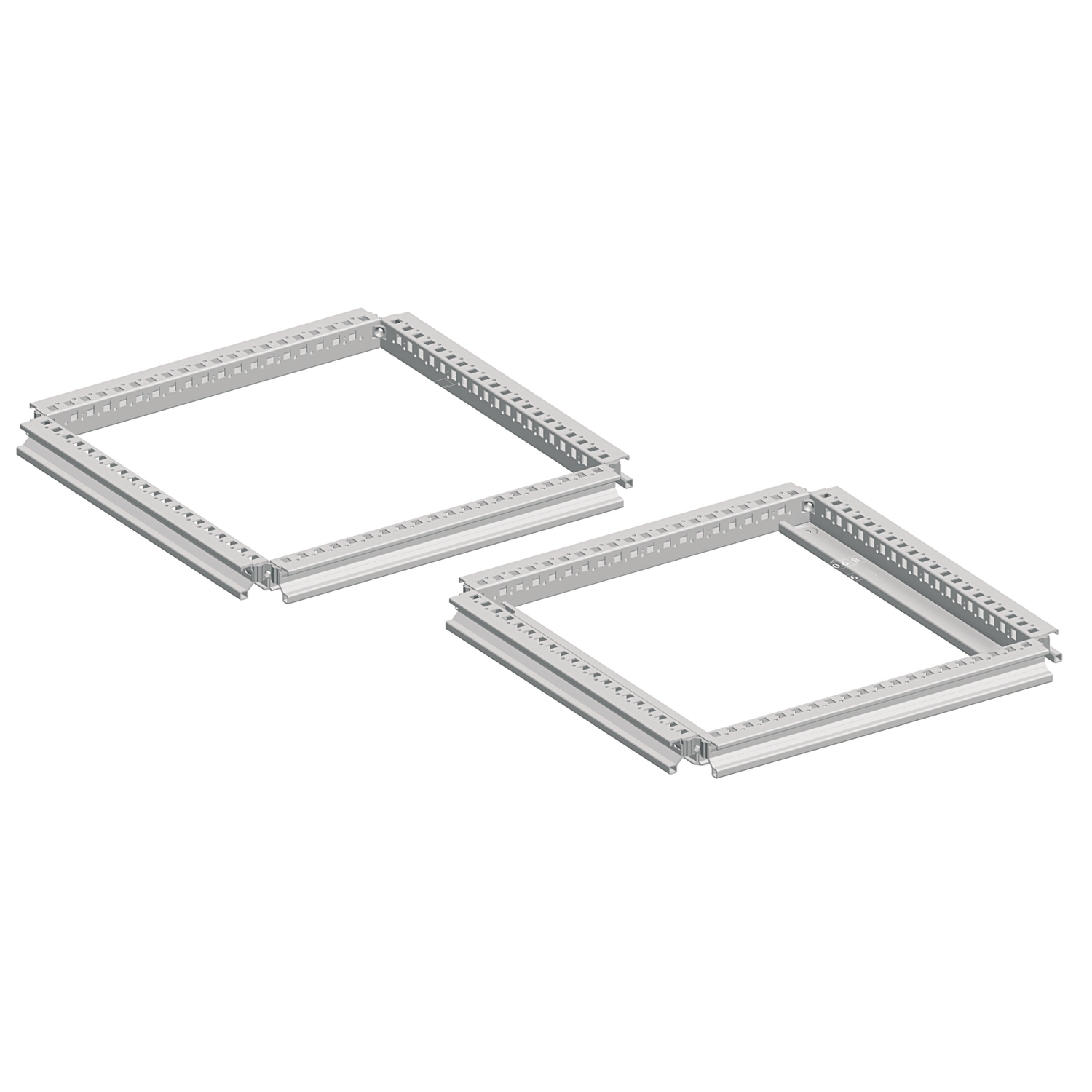

Schneider NSYSFC66 | Spacial SF bottom and top frame – 600×600 mm

Description

Schneider NSYSFC66 | Spacial SF bottom and top frame – 600×600 mm

Technical Specifications NSYSFC66

• Product Code: NSYSFC66

• Product Type: Bottom and top frame set for modular enclosure

• Compatible Series: Schneider Electric Spacial SF

• Dimensions:

  • Width: 600 mm

  • Depth: 600 mm

• Material: Galvanized steel

• Surface Finish: Epoxy-polyester powder coated

• Color: Light grey (RAL 7035)

• Installation Type: For assembly of enclosure top and base frame

• Compliance Standards: Manufactured to meet IEC 62208 and Schneider quality guidelines

Key Features

1. Structural Integrity
The bottom and top frames provide core structural support for the enclosure. They form the enclosure’s top and base outlines, connecting with vertical uprights and reinforcing overall rigidity and load capacity.

2. High-Quality Construction
Made from galvanized steel and coated with a durable epoxy-polyester finish, the frames are corrosion-resistant and suitable for harsh industrial environments.

3. Modular Assembly
Designed for tool-assisted, secure assembly with other SF components such as vertical uprights, side panels, rear doors, and mounting plates. The modular format allows for customized enclosure builds.

4. Precise Fit and Alignment
Engineered to provide accurate alignment for the entire enclosure frame, ensuring smooth panel installation and correct enclosure sealing.

5. Seamless Integration
Fully compatible with Schneider’s ecosystem of Spacial SF accessories and enclosure components. The light grey finish ensures a uniform appearance throughout the system.

Applications

Industrial Control Panels
Used as the top and bottom structural elements in the construction of floor-standing enclosures for housing automation systems, PLCs, and other industrial electronics.

Electrical Switchgear and Distribution
Provides the base framework for cabinets used in low-voltage power distribution systems.

Data and Network Infrastructure
Used in enclosures that house structured cabling systems, network routers, and IT devices.

OEM Cabinet Manufacturing
Ideal for custom enclosure builds by panel builders and original equipment manufacturers requiring robust, flexible design options.

Process and Utility Plants
Suitable for assembling cabinets deployed in demanding sectors such as water treatment, energy, or transportation where structural durability is critical.
