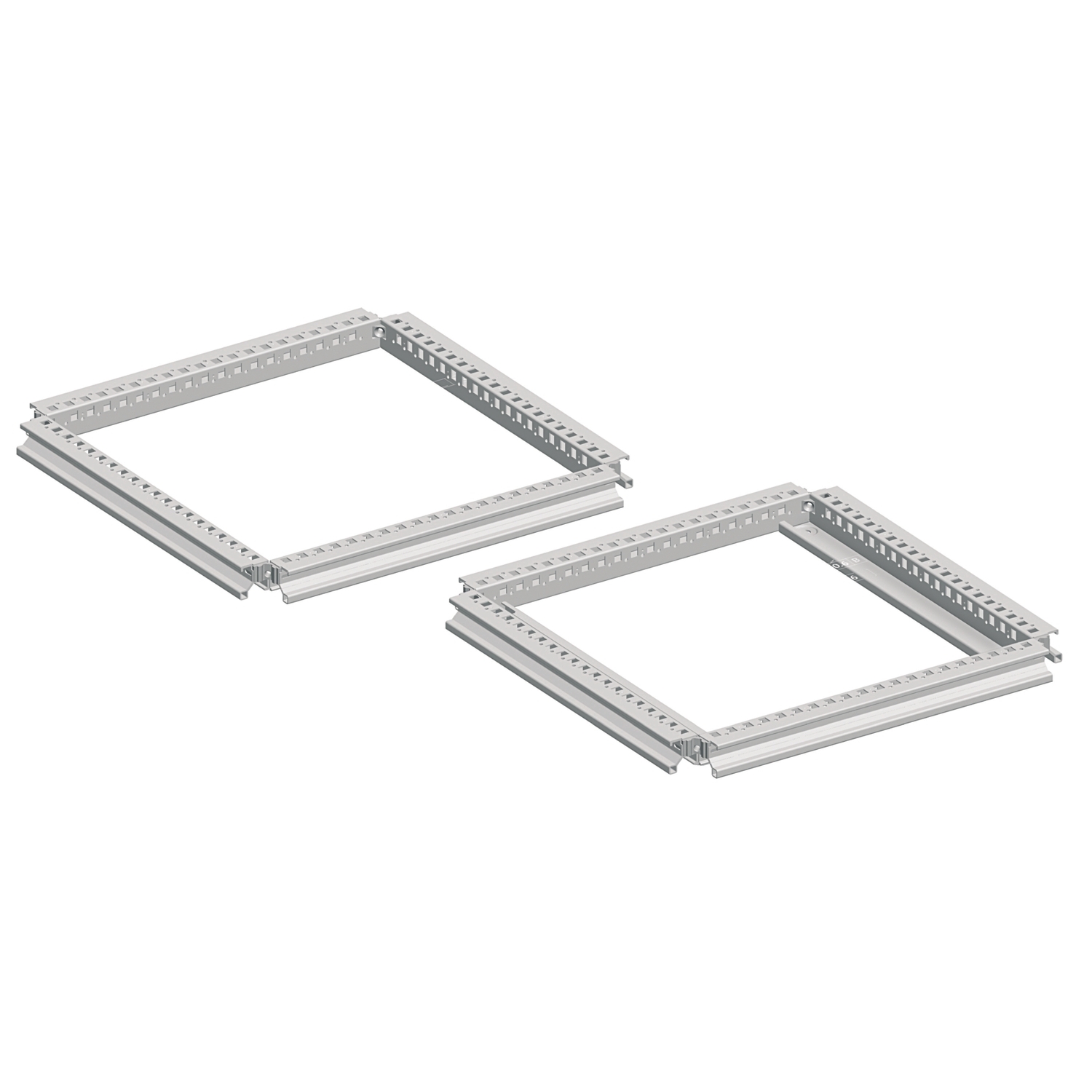

Schneider NSYSFC86 | Spacial SF bottom and top frame – 800×600 mm
Technical Specifications NSYSFC86
-
Product Name: Schneider Electric NSYSFC86
-
Product Type: Bottom and Top Frame
-
Range: Spacial SF
-
Compatibility: Suitable for Spacial SF enclosures
-
Dimensions:
-
Width: 800 mm
-
Depth: 600 mm
-
-
Material: Steel
-
Surface Finish: Epoxy-polyester powder coating
-
Color: RAL 7035 (light grey)
-
Mounting: To be fixed at the top and bottom of the enclosure structure
-
Standards Compliance: IEC 62208
-
Weight: Optimized for structural rigidity without excessive weight
Key Features
-
Structural Reinforcement
Provides solid and stable support for the enclosure by reinforcing both top and bottom sections, ensuring durability under mechanical and environmental stress. -
Precision Fit for Spacial SF Enclosures
Designed specifically for 800×600 mm enclosures, guaranteeing perfect alignment and compatibility without modification. -
Corrosion-Resistant Finish
High-quality epoxy-polyester coating ensures resistance to corrosion, chemicals, and harsh environmental conditions, ideal for industrial settings. -
Easy Installation
Simplified mounting process with pre-engineered slots and guides for quick, secure assembly. -
Enhanced Load Bearing
Supports additional components such as gland plates, cable entries, or internal mounting accessories with improved mechanical strength. -
Professional Aesthetic
RAL 7035 grey finish aligns with modern industrial design standards and matches other enclosure components seamlessly.
Applications
-
Electrical Control Panels
Forms the structural base and top of SF enclosures housing low- and medium-voltage switchgear, PLCs, and automation systems. -
Industrial Automation Systems
Provides robust framework for enclosures used in manufacturing lines, processing plants, and machine control systems. -
Power Distribution Enclosures
Used in cabinets distributing power within factories, commercial buildings, or renewable energy plants. -
Data & Communication Cabinets
Forms part of a sturdy enclosure for networking, telecom, and control systems in IT and utility applications. -
Infrastructure & Transportation
Suitable for enclosures used in public infrastructure projects such as rail, airports, water treatment, and more. -
OEM Panel Builder Projects
Ideal for integrators and panel builders who need a strong, standard-compliant foundation for custom electrical assemblies.
