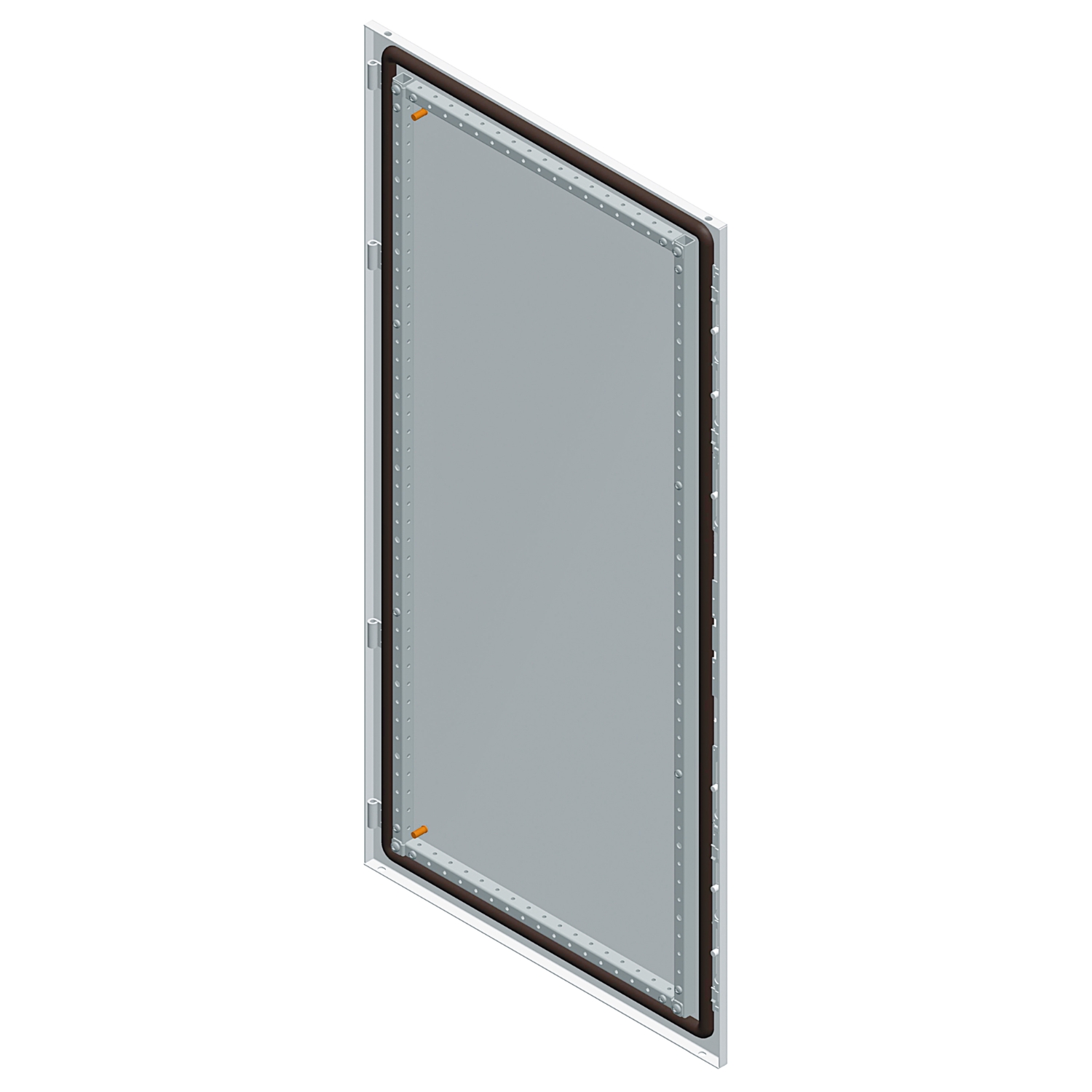

Schneider NSYSFD2010 | Spacial SF plain door – 2000×1000 mm

Description

Schneider NSYSFD2010 | Spacial SF plain door – 2000×1000 mm

1. Technical Specifications NSYSFD2010

1. Product Name:
   Plain Door for Modular Enclosure

2. Model Number:
   NSYSFD2010

3. Product Range:
   Spacial SF – Modular Steel Enclosure System

4. Door Dimensions:

   • Height: 2000 mm

   • Width: 1000 mm

   • Designed for enclosures with 2000×1000 mm frame

5. Material:
   High-quality sheet steel

6. Surface Treatment:

   • Epoxy-polyester powder coated

   • Light grey RAL 7035 finish (standard for industrial enclosures)

   • Anti-corrosion treated (suitable for industrial environments)

7. Mounting Type:
   Hinged mounting with concealed hinges on the right (reversible if needed)

8. Opening Angle:
   Up to 120° for full access to enclosure interior

9. Locking Mechanism:
   Equipped with standard 3-point locking system (handle optional)

10. Protection Rating (with proper sealing):
    Up to IP55/IP66, depending on configuration and gasket application

11. Mechanical Resistance:
    Designed for heavy-duty applications with reinforced design for rigidity and security

12. Standards and Compliance:

• IEC 62208

• CE Marked

• RoHS and REACh Compliant

2. Key Features NSYSFD2010

1. Optimized for Spacial SF Frames:
   Specifically designed to integrate seamlessly with Spacial SF 2000×1000 mm enclosures.

2. High Durability:
   Constructed from robust steel, treated for corrosion resistance and built to withstand demanding industrial environments.

3. Clean, Plain Surface:
   No pre-cut openings – provides a solid, uninterrupted surface for labeling, modifications, or operator interfaces.

4. Secure and Accessible:
   Includes reinforced locking system for safety and protection; door opens up to 120° for unobstructed access.

5. Reversible Hinges:
   Can be installed to open left or right, depending on user needs.

6. Surface Finish and Color Matching:
   Powder-coated in RAL 7035 light grey for a consistent and professional appearance across Spacial SF components.

7. Improved Ergonomics:
   Designed for easy handling and smooth operation, even with large door dimensions.

8. Compatible with Accessories:
   Supports door-mounted accessories such as handles, switches, documentation holders, and more.

9. Weather and Dust Resistant:
   Helps ensure enclosure achieves high IP rating when installed with proper gaskets and sealing components.

10. Modular Integration:
    Works seamlessly with all structural and internal components of the Spacial SF system for versatile panel building.

3. Common Applications

1. Industrial Control Panels:
   Used as the main access door on electrical and automation control cabinets.

2. Power Distribution Enclosures:
   Provides front protection for switchboards and distribution boards in industrial and commercial facilities.

3. Process Control Cabinets:
   Ideal for housing instrumentation and control equipment in oil & gas, water treatment, and factory automation.

4. Telecom and IT Enclosures:
   Secures the front of data cabinets used in network infrastructure and structured cabling systems.

5. Transport and Railway Control Panels:
   Deployed in signaling and communication systems for trackside or tunnel installations.

6. Renewable Energy Cabinets:
   Used in inverter and power management systems for solar and wind energy plants.

7. Machine Panels and OEM Solutions:
   Integrated into custom machinery panels, offering clean aesthetics and strong mechanical protection.
