Description

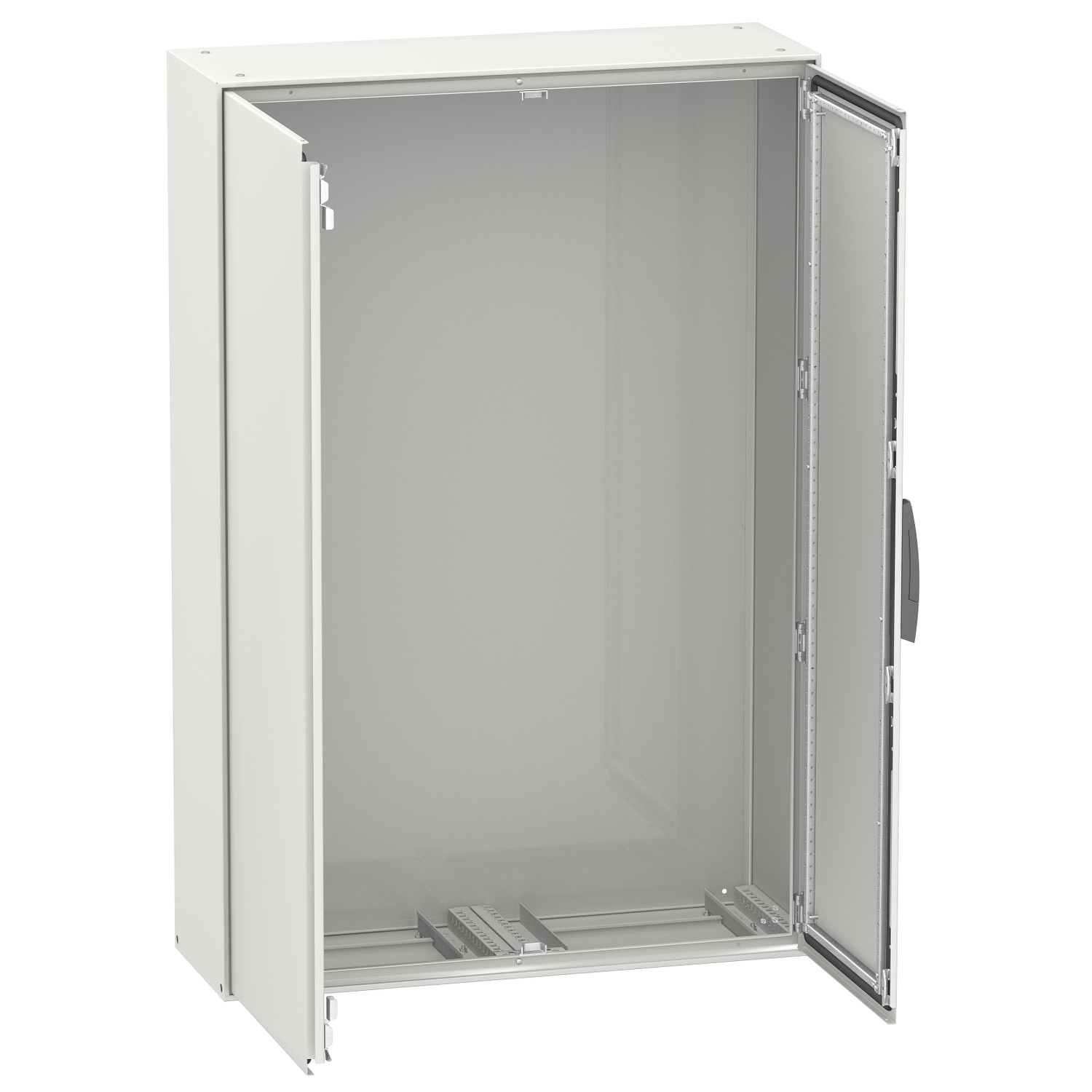

Schneider NSYSM1410402D | Spacial SM compact enclosure without mounting plate – 1400x1000x400 mm
Technical Specifications
-
Product Reference: NSYSM1410402D
-
Series: Spacial SM
-
Enclosure Type: Compact, floor-standing
-
Material: Galvanized steel
-
Finish: Epoxy-polyester powder coated
-
Color: Light grey (RAL 7035)
-
External Dimensions:
-
Height: 1400 mm
-
Width: 1000 mm
-
Depth: 400 mm
-
-
Door Type: Double front doors with concealed hinges
-
Locking Mechanism: 3-point locking system with handle
-
Mounting Plate: Not included (available separately)
-
Protection Rating: IP55 (conforming to IEC 60529)
-
Impact Resistance: IK10 (according to IEC 62262)
-
Cable Entry: Removable bottom gland plate
-
Standards Compliance: IEC 62208, IEC 60529, IEC 62262
Key Features
-
Spacious double-door design allows full access to the enclosure interior, ideal for large assemblies and complex wiring layouts.
-
IP55 ingress protection ensures excellent resistance to dust and water jets, making it suitable for demanding indoor or semi-industrial use.
-
IK10 mechanical impact rating provides high resistance against physical damage, enhancing durability and component protection.
-
Modular and scalable design, ready to be customized with accessories such as mounting plates, chassis, internal doors, or ventilation systems.
-
Steel body with durable powder coating ensures long-term corrosion resistance and mechanical strength.
-
Bottom gland plate allows easy and flexible cable routing with ample space for high-capacity wiring systems.
-
No mounting plate included, offering flexibility for custom setups, third-party configurations, or dedicated mounting solutions.
Applications
The NSYSM1410402D enclosure is ideally suited for various professional and industrial sectors requiring robust, flexible, and high-capacity enclosures:
-
Electrical power distribution
-
Process automation and factory control systems
-
Motor control centers (MCCs)
-
Building management and HVAC systems
-
Data and communication installations
-
Renewable energy and smart grid interfaces
-
Infrastructure and utility control rooms
