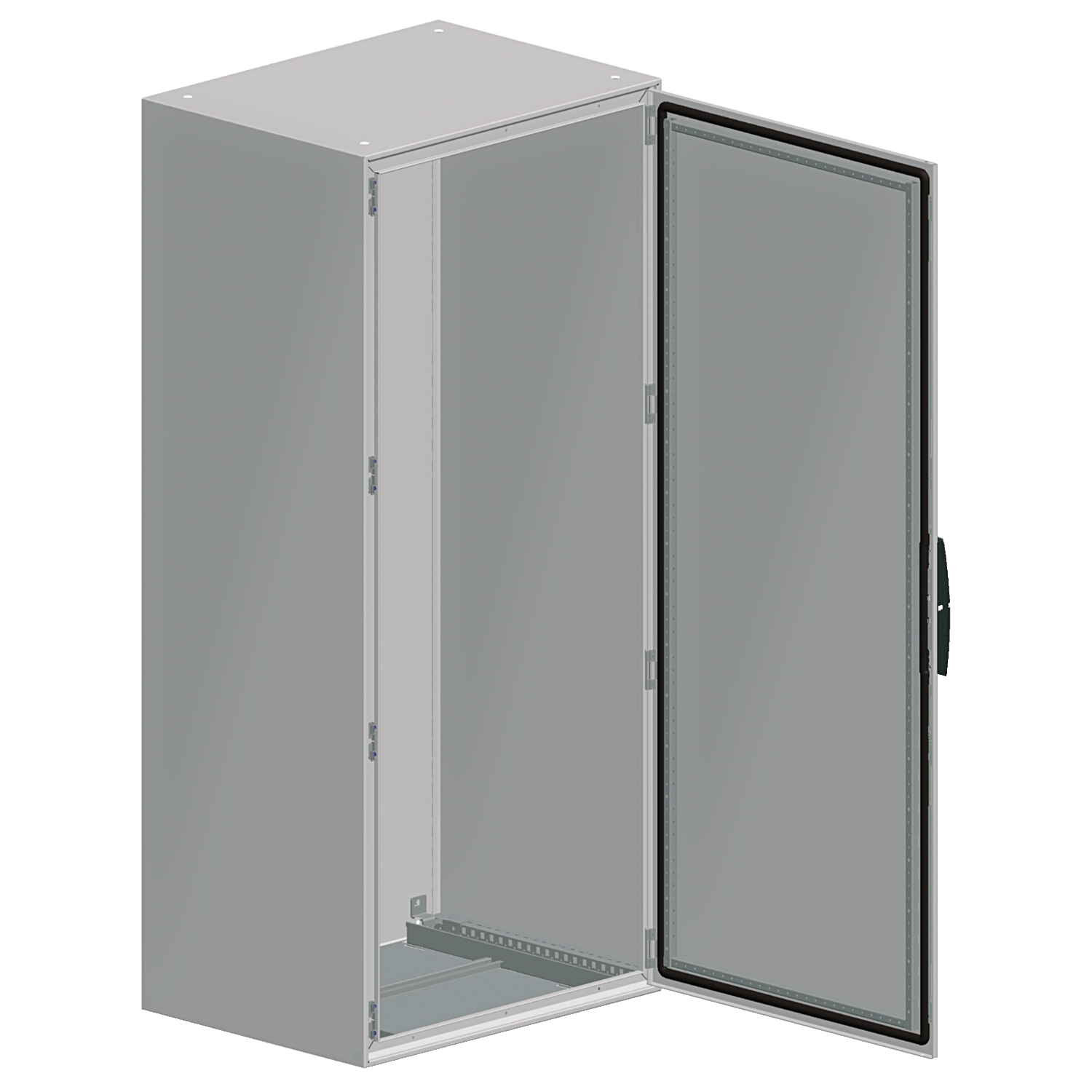

Schneider NSYSM14640 | PanelSeT SM compact enclosure without mounting plate – 1400x600x400 mm
Technical Specifications
-
Product Reference: NSYSM14640
-
Range: PanelSeT (Spacial SM)
-
Enclosure Type: Compact floor-standing steel enclosure
-
Material: Galvanized steel
-
Finish: Epoxy-polyester powder coated
-
Color: Light grey (RAL 7035)
-
External Dimensions:
-
Height: 1400 mm
-
Width: 600 mm
-
Depth: 400 mm
-
-
Mounting Plate: Not included (optional and sold separately)
-
Door Type: Single door with concealed hinges and 3-point locking system
-
Ingress Protection Rating: IP55 (according to IEC 60529)
-
Mechanical Impact Resistance: IK10 (according to IEC 62262)
-
Cable Entry: Removable bottom gland plate
-
Compliance Standards: IEC 62208, IEC 60529, IEC 62262
-
Supplied With:
-
Enclosure body
-
Front door
-
Locking mechanism
-
Gland plate
-
Grounding hardware
-
Key Features
-
IP55 protection ensures resistance to dust and water jets, making the enclosure suitable for indoor and semi-industrial applications.
-
IK10 mechanical strength provides robust protection against mechanical impacts, ensuring safety of internal components.
-
Customizable interior thanks to the absence of a mounting plate, allowing tailored layouts for unique electrical installations.
-
Durable steel construction with corrosion-resistant finish extends lifespan and maintains appearance in demanding environments.
-
Secure door system with a 3-point locking mechanism and concealed hinges enhances security and access control.
-
Flexible cable management with removable gland plates and optional accessories for improved cable routing and sealing.
Applications
The NSYSM14640 is designed for a wide range of applications requiring strong enclosure protection and adaptability, including:
-
Electrical distribution boards
-
Industrial automation and process control panels
-
Machine control cabinets
-
IT and network equipment housing
-
HVAC and building management systems
-
Utility control stations
-
Renewable energy integration panels
