Description

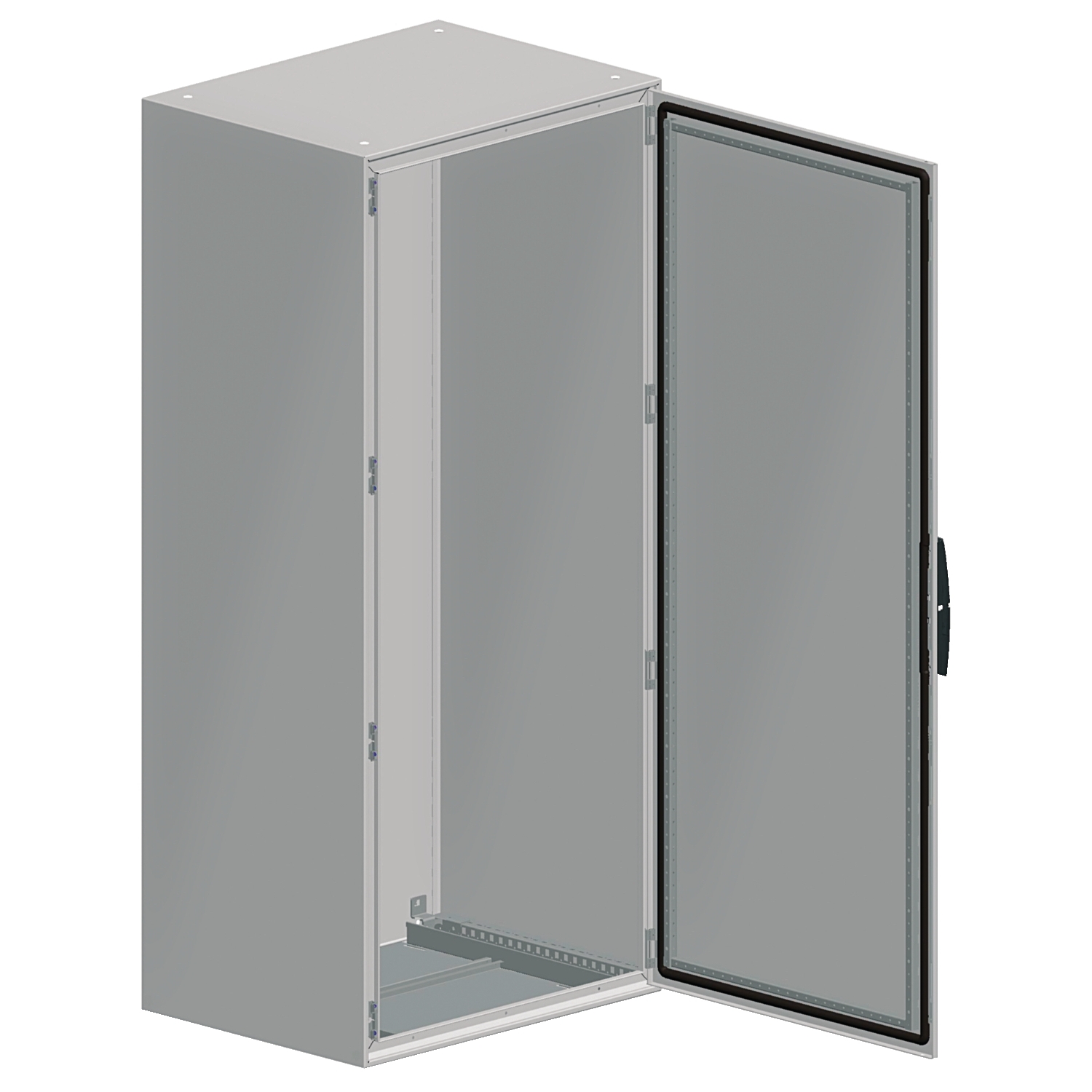

Schneider NSYSM14840 | PanelSeT SM compact enclosure without mounting plate – 1400x800x400 mm
Technical Specifications
-
Product Reference: NSYSM14840
-
Product Range: PanelSeT (Spacial SM)
-
Enclosure Type: Compact, floor-standing steel enclosure
-
Material: Galvanized steel
-
Surface Finish: Epoxy-polyester powder coated
-
Color: Light grey (RAL 7035)
-
External Dimensions:
-
Height: 1400 mm
-
Width: 800 mm
-
Depth: 400 mm
-
-
Door Type: Single front door with concealed hinges
-
Locking System: 3-point locking with key-operated handle
-
Mounting Plate: Not included (available separately)
-
Ingress Protection Rating: IP55 (according to IEC 60529)
-
Impact Resistance: IK10 (according to IEC 62262)
-
Cable Entry: Bottom gland plate, removable for cable access
-
Certifications and Standards: IEC 62208, IEC 60529, IEC 62262
Key Features
-
Spacious internal volume allows installation of large or multiple devices including circuit breakers, PLCs, drives, and relays.
-
IP55 ingress protection ensures the enclosure is sealed against dust and water jets, suitable for indoor and semi-industrial environments.
-
IK10 mechanical strength provides maximum protection against external impacts, enhancing the durability of the enclosure.
-
No mounting plate included, enabling custom installations with optional or pre-drilled back panels or mounting frames.
-
3-point locking system provides secure access control and tight door sealing to protect internal components.
-
Modular and flexible design compatible with a wide range of Schneider Electric accessories including mounting plates, inner doors, ventilation kits, and more.
-
Easy cable management with removable bottom gland plate for convenient routing and installation.
Applications
The NSYSM14840 is suitable for a wide range of applications where high durability, protection, and flexibility are required, including:
-
Industrial automation systems
-
Electrical power distribution panels
-
HVAC and BMS control cabinets
-
Factory and process control systems
-
Renewable energy systems
-
Data and telecom installations
-
Commercial building electrical infrastructure
