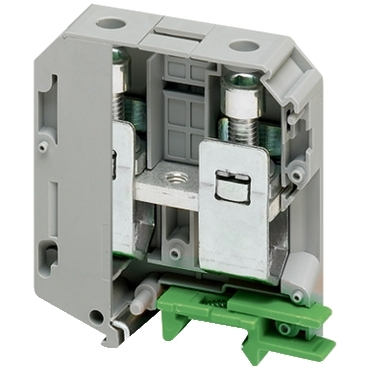

The Schneider NSYTRV702 is a high-capacity terminal block from the Linergy TR range, designed for 70 mm² conductors. Built for robust and safe power distribution, this grey passthrough block features 2 connection points and is ideal for high-current electrical systems. Supplied as a set of 10, it supports efficient installation in control panels and switchgear.
Technical Specifications
-
Product Reference: NSYTRV702
-
Series: Linergy TR
-
Function: Passthrough terminal block
-
Conductor Size: 70 mm²
-
Number of Connection Points: 2
-
Color: Grey
-
Rated Voltage: Up to 1000 V
-
Rated Current: Up to 232 A
-
Mounting Type: DIN rail (35 mm, EN 60715 standard)
-
Material: Flame-retardant thermoplastic housing
-
Compliance: IEC 60947-7-1
-
Sold As: Set of 10 blocks
Key Features
-
Supports high-current applications with 70 mm² capacity
-
Reliable passthrough design for straight connections
-
Quick DIN rail mounting for simplified setup
-
Strong mechanical stability and electrical safety
-
Optimized for industrial and utility-grade systems
Typical Applications
-
Industrial automation and process control
-
Power distribution networks
-
Main switchboards and sub-distribution panels
-
Renewable energy setups (e.g., solar inverters, battery banks)
-
Heavy-duty machinery control panels
The Schneider NSYTRV702 offers the performance and durability needed for demanding electrical environments, making it a preferred solution for panel builders and automation engineers alike.
