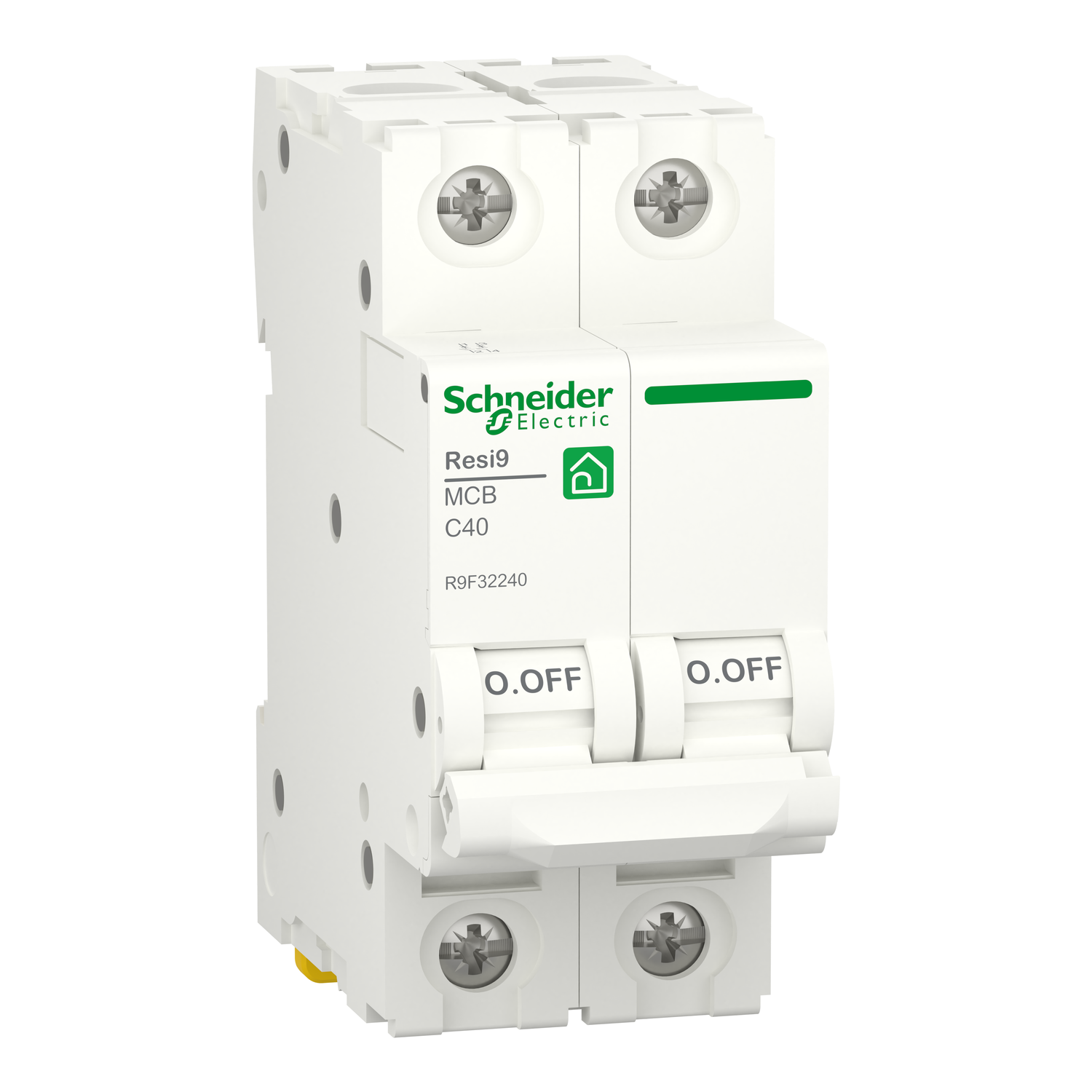

Schneider R9F32240 | Miniature circuit breaker (MCB), Resi9, 2P, 40A, C curve, 4500A (IEC/EN 60898-1)
Technical Specifications
-
Product Type: Miniature Circuit Breaker (MCB)
-
Series: Resi9
-
Model Number: R9F32240
-
Number of Poles: 2P (Double pole – protects both live conductors)
-
Rated Current: 40 A
-
Tripping Curve: C Curve (trips at 5 to 10 times the rated current)
-
Rated Operational Voltage: 230/400 V AC
-
Frequency: 50/60 Hz
-
Breaking Capacity: 4500 A (according to IEC/EN 60898-1)
-
Mounting Type: DIN rail (modular design)
-
Terminal Type: Tunnel terminals
-
Conductor Capacity:
-
Rigid: 1.5 to 25 mm²
-
Flexible: 1.5 to 16 mm²
-
-
IP Degree of Protection: IP20 (up to IP40 in an enclosure)
-
Ambient Operating Temperature: -5°C to +60°C
-
Storage Temperature: -40°C to +85°C
-
Standards: IEC/EN 60898-1
-
Certifications: CE compliant
-
Dimensions (H x W x D): Approx. 82 x 36 x 74 mm
Key Features
-
Dual-Pole Protection: Simultaneously disconnects both live conductors for enhanced safety in residential circuits.
-
C Curve Tripping: Ideal for circuits with moderate inrush current, such as mixed lighting, appliances, and socket outlets.
-
Compact and Modular: Fits easily into standard consumer units and distribution boards.
-
Reliable Fault Protection: Responds quickly to overloads and short circuits to protect wiring and connected equipment.
-
User-Friendly Installation: Wide terminal capacity and intuitive labeling simplify installation and maintenance.
-
High Durability: Designed for long operational life under normal usage conditions.
Applications
The Schneider R9F32240 MCB is ideal for a variety of residential and small commercial applications, such as:
-
Sub-main circuits in homes or apartments
-
Kitchen or laundry room power supply circuits
-
Air conditioning or water heater systems
-
Garage or workshop power outlets
-
Solar inverter output protection
-
Small commercial distribution boards
