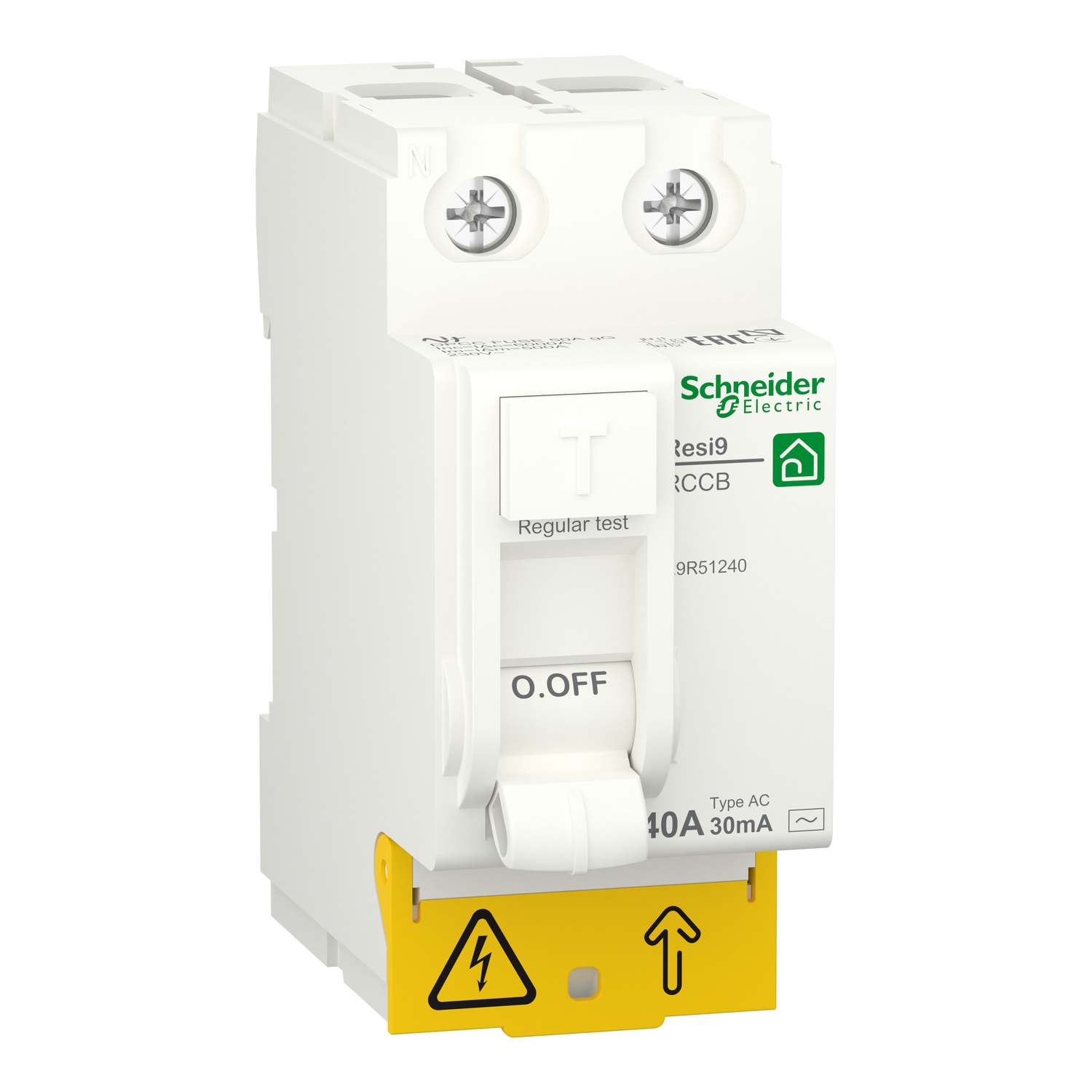

Schneider R9R51240 | Residual current circuit breaker (RCCB), Resi9, 2P, 40A, AC type, 30mA
Technical Specifications
-
Product Code: R9R51240
-
Series: Resi9
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 2P (Phase + Neutral)
-
Rated Current (In): 40 A
-
Residual Current Sensitivity (IΔn): 30 mA
-
RCCB Type: AC (sensitive to sinusoidal AC leakage)
-
Rated Voltage: 230/240 V AC
-
Rated Frequency: 50/60 Hz
-
Tripping Time: ≤ 300 ms (standard), ≤ 40 ms (at higher fault currents)
-
Mounting Method: DIN rail (modular design)
-
Terminal Capacity: Up to 25 mm² (rigid cables)
-
Degree of Protection: IP20 (front face)
-
Compliance Standards: IEC/EN 61008-1
Key Features
-
Human Safety Focused: With a 30mA trip threshold, the RCCB disconnects the power quickly when earth leakage is detected, reducing the risk of fatal electric shocks.
-
2-Pole Protection: Designed for single-phase applications, protecting both line and neutral conductors.
-
Type AC Performance: Suitable for traditional AC applications such as lighting, power sockets, and domestic appliances.
-
Compact Form Factor: Space-saving design fits easily into consumer units or small distribution boards.
-
Manual Test Button: Allows routine testing of RCCB functionality to ensure safety remains effective over time.
-
Reliable Isolation Function: Provides full disconnection of the circuit for safe maintenance or fault handling.
Applications
The R9R51240 RCCB is highly recommended for:
Residential Installations
-
General power circuits and socket outlets
-
Bathrooms, kitchens, and outdoor equipment
-
Appliances like washing machines, dishwashers, and refrigerators
Light Commercial Use
-
Protection in office spaces, clinics, and retail areas
-
Equipment circuits with low-to-moderate earth leakage risk
Upgrades in Electrical Panels
-
Ideal for replacing or adding residual current protection in existing installations without major rewiring
