Schneider RE48ASOC11AR | IP20 socket with screw terminal connections on rear face

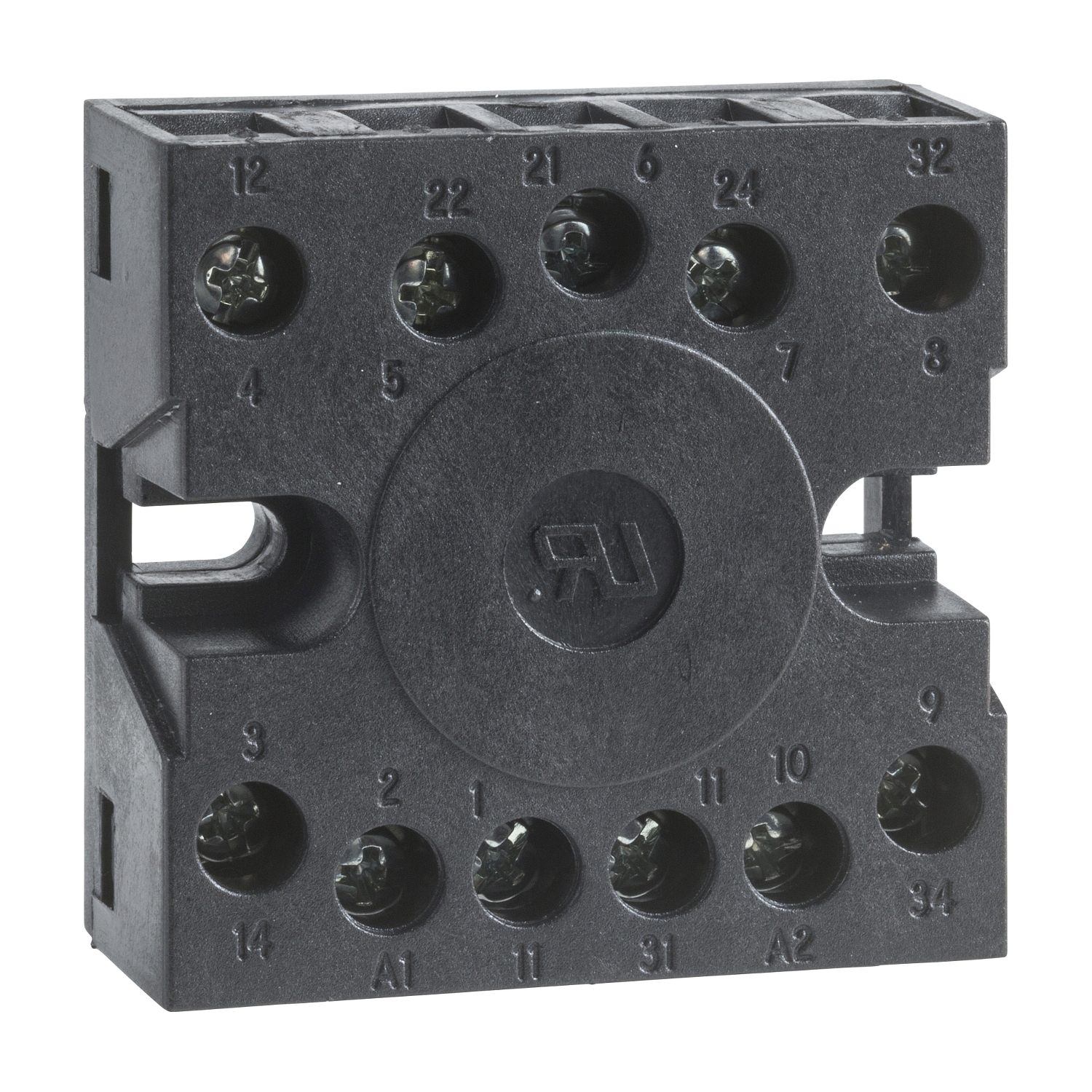

Schneider RE48ASOC11AR – Rear Mounting Socket Base

1. Overview

The Schneider RE48ASOC11AR is a dedicated rear mounting socket designed for use with timing relays in the RE48 series. This socket provides secure electrical connections via screw terminals located at the rear, making it ideal for fixed panel installations and reducing wiring clutter in front-access enclosures.

2. Technical Specifications

• Product Type: Rear mounting socket base

• Compatibility:

  • Suitable for use with Schneider Electric RE48 series timing relays

• Mounting Type:

  • Rear mounting (panel mount)

• Terminal Type:

  • Screw clamp terminals

• Terminal Location:

  • Located on the rear face of the socket

• Protection Rating:

  • IP20 (finger-safe, basic protection against solid objects >12 mm)

• Material:

  • Durable plastic body suitable for industrial environments

• Contact Capacity:

  • Designed to accommodate the contact ratings of RE48 relays (typically 8 A resistive)

• Fixing Method:

  • Snap-in or panel mounting via clips or screws

• Dimensions:

  • Matches standard 48 x 48 mm housing for compatibility with RE48 timers

• Color:

  • Usually black or dark gray for easy identification in panels

3. Applications

The RE48ASOC11AR socket is primarily used in industrial and automation environments where timing relays are installed behind control panels. Applications include:

• Industrial Control Panels

• Motor Starters and Protection Systems

• Lighting Control Systems

• Building Management Systems (BMS)

• Process Automation Cabinets

• Packaging Machinery

• Pumping Stations

It enables fast replacement and wiring of RE48 timing relays, which is especially useful in maintenance-heavy or high-reliability installations.

4. Key Features

• Rear Screw Terminal Design: Offers a clean front-panel appearance and secure rear wiring.

• IP20 Protection: Ensures basic protection against accidental contact with live parts.

• Easy Relay Replacement: Enables quick plug-in and swap of RE48 relays without disturbing the wiring.

• Standardized Dimensions: Compatible with 48 x 48 mm relay format for seamless integration.

• Rugged Build: Designed to handle industrial operating environments.
