Schneider RXM2AB1JD Relay

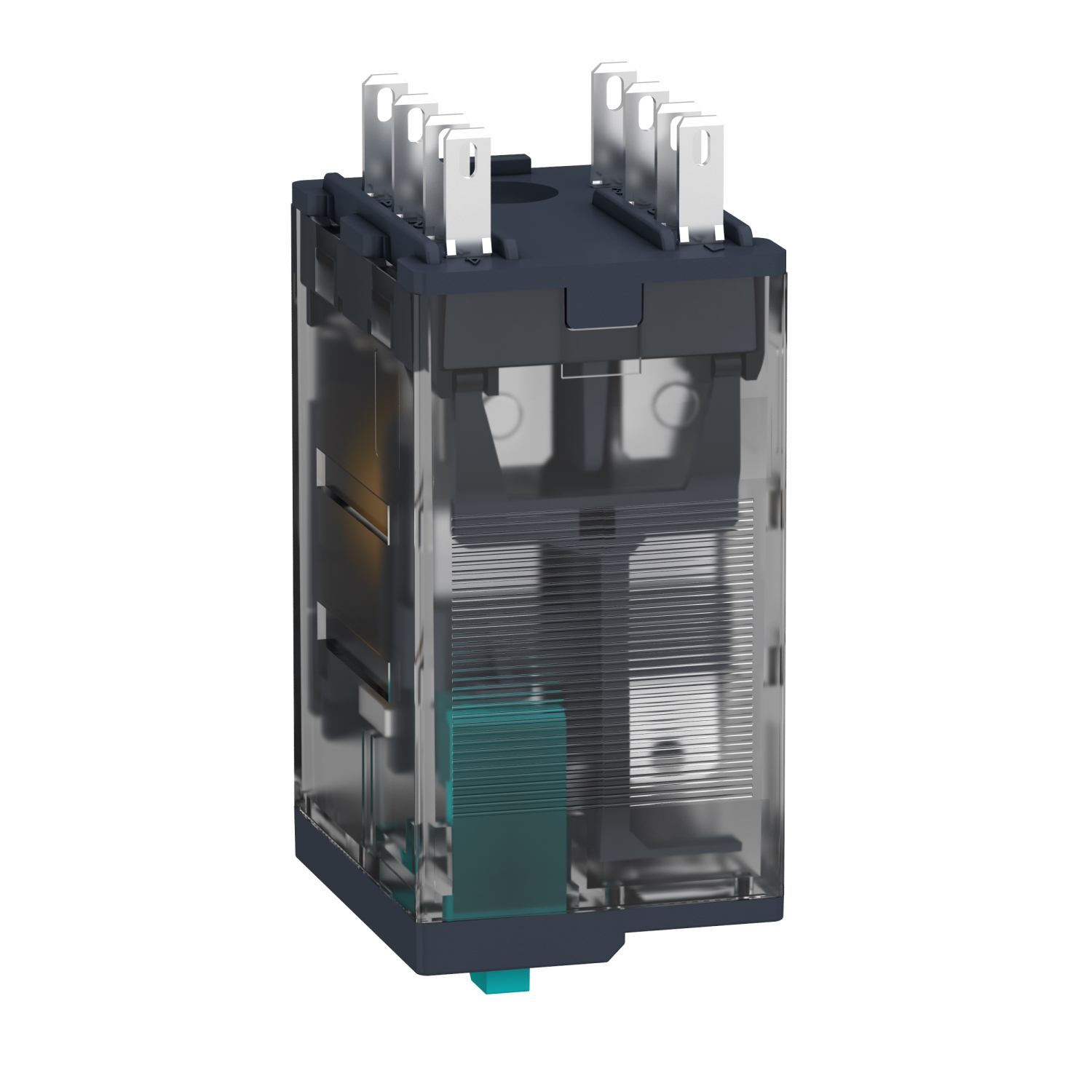

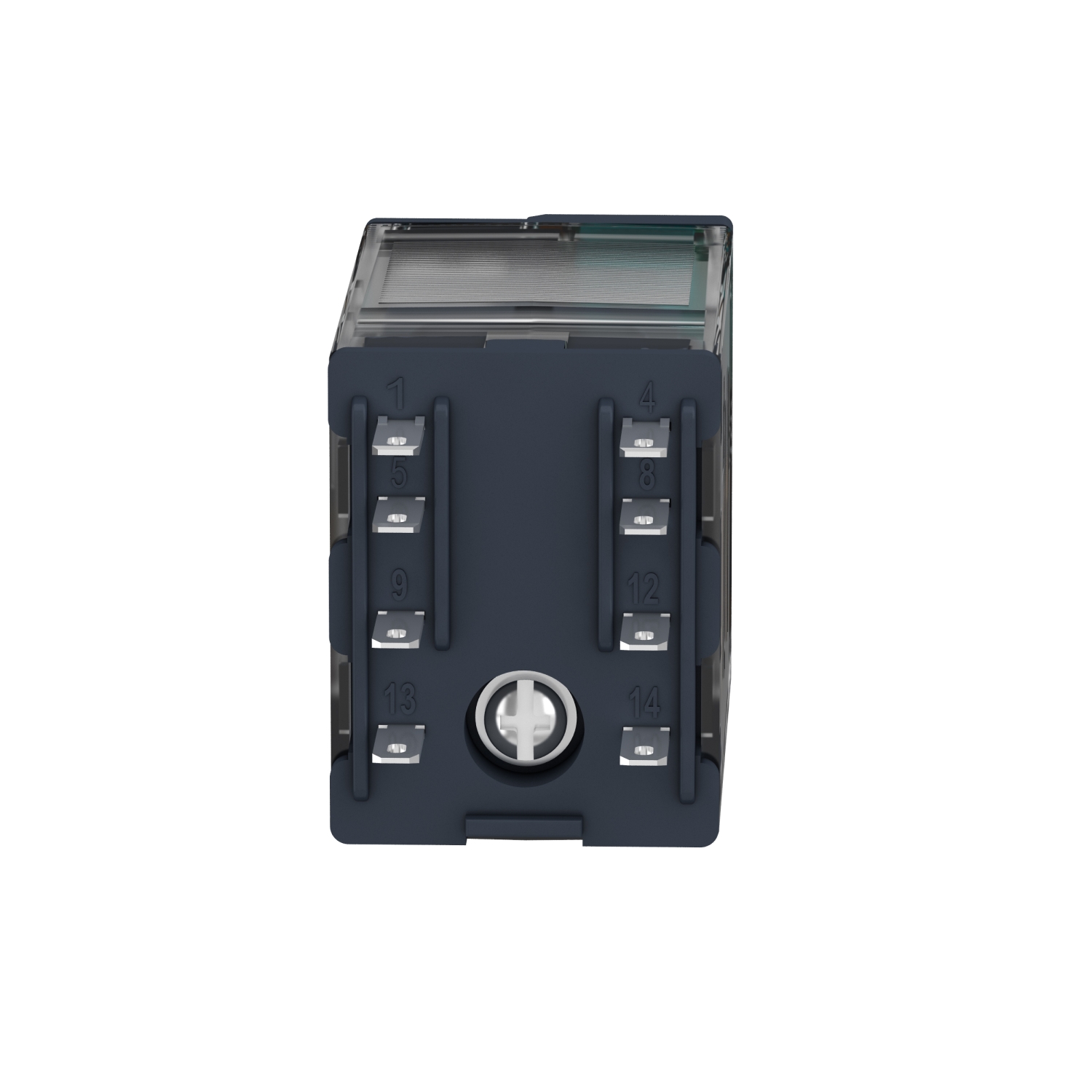

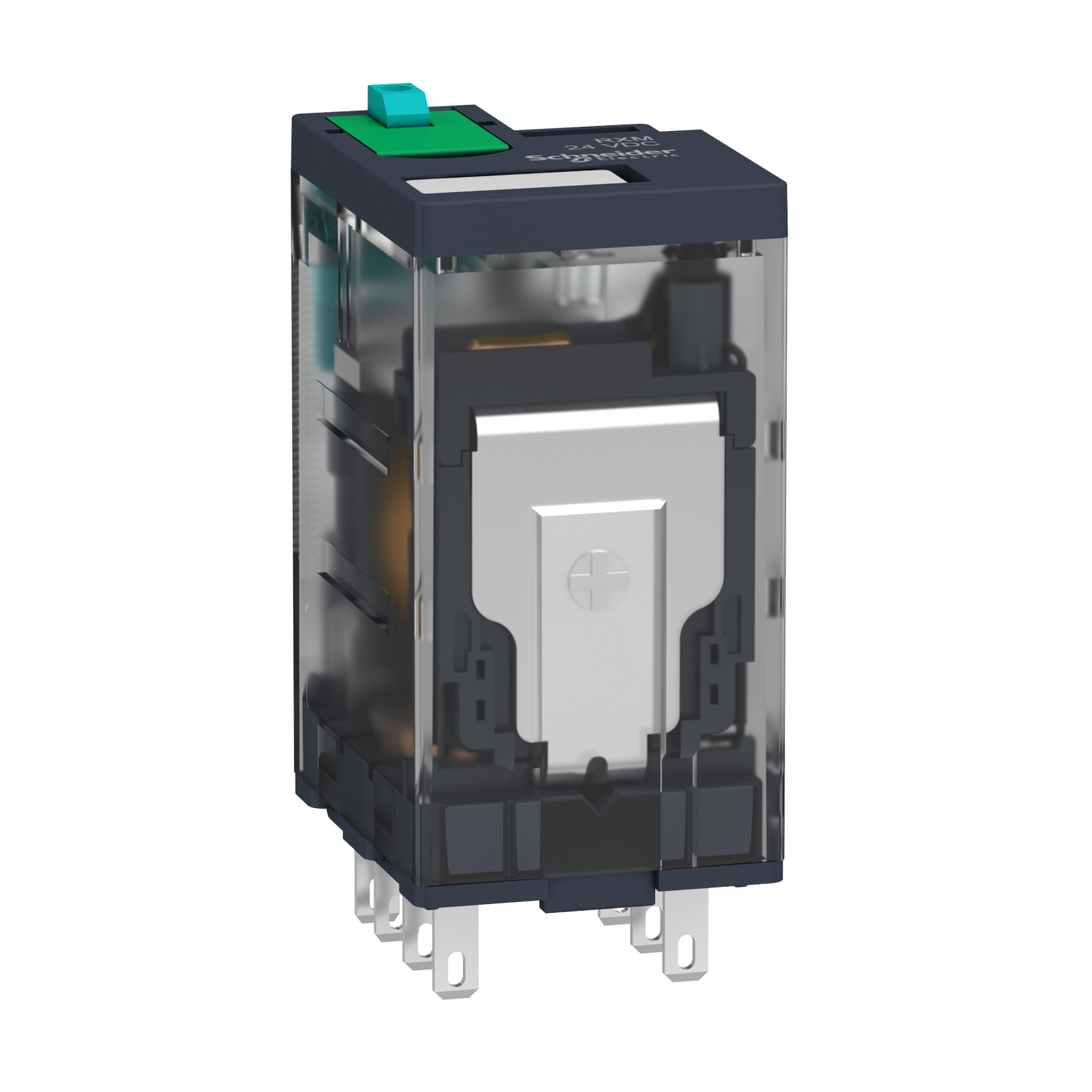

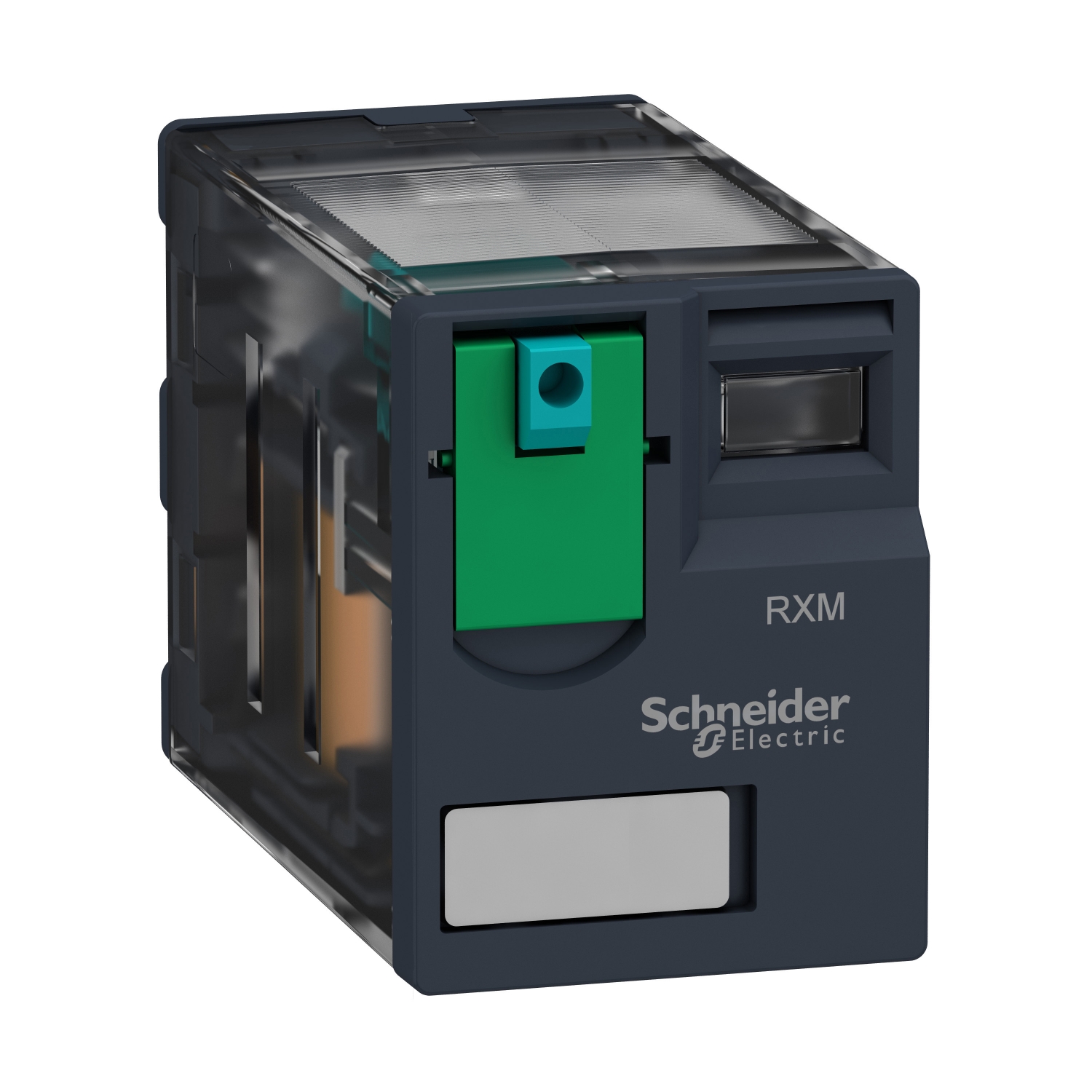

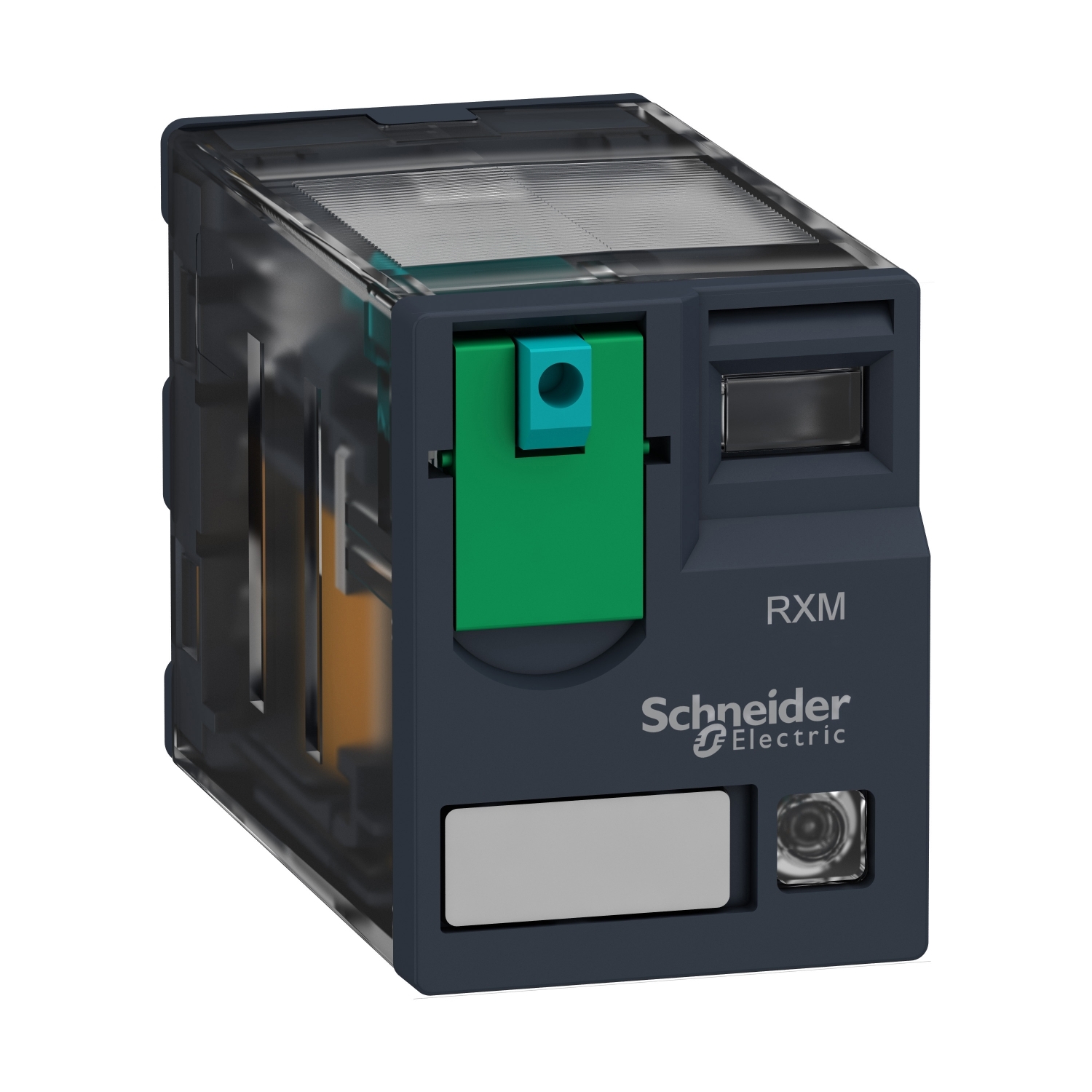

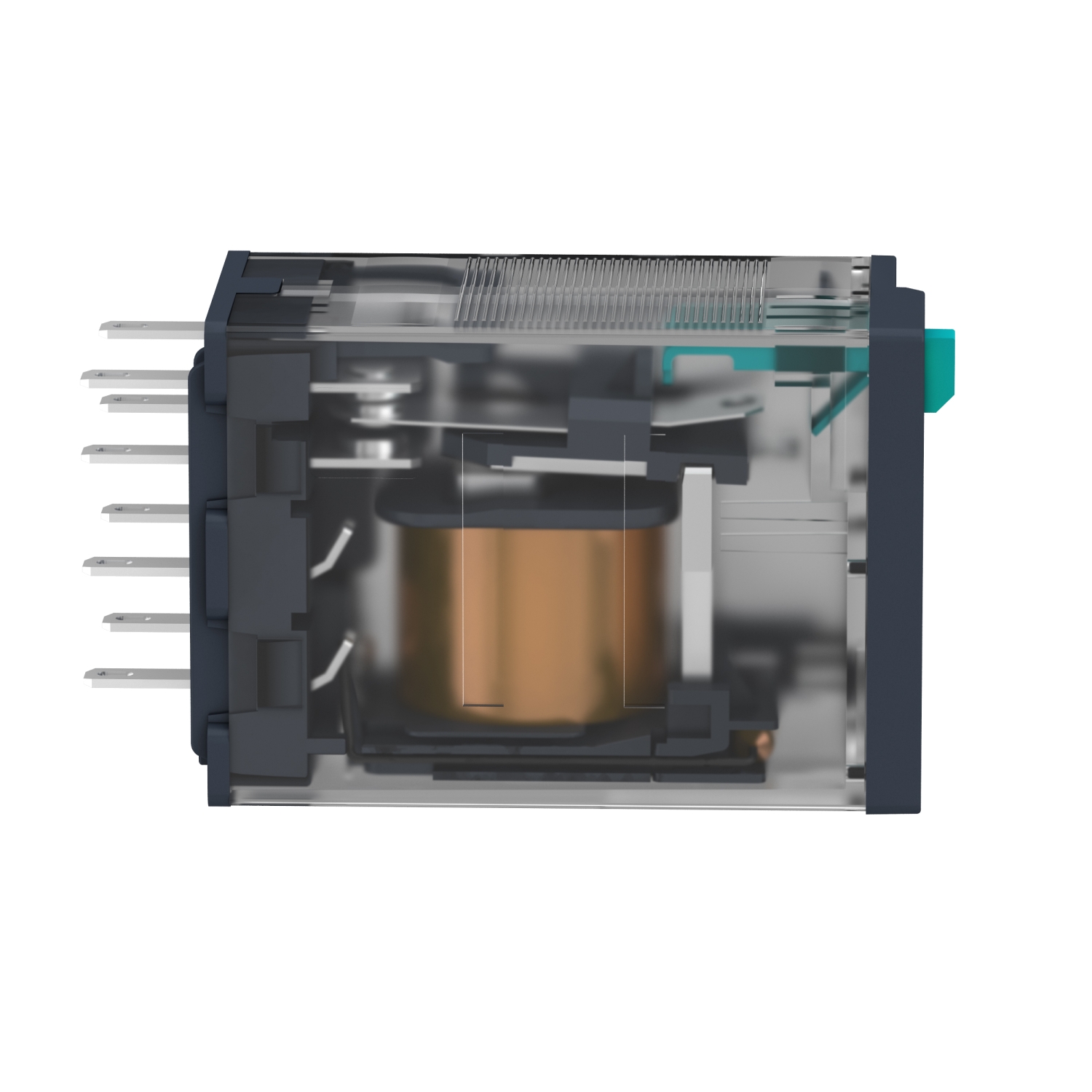

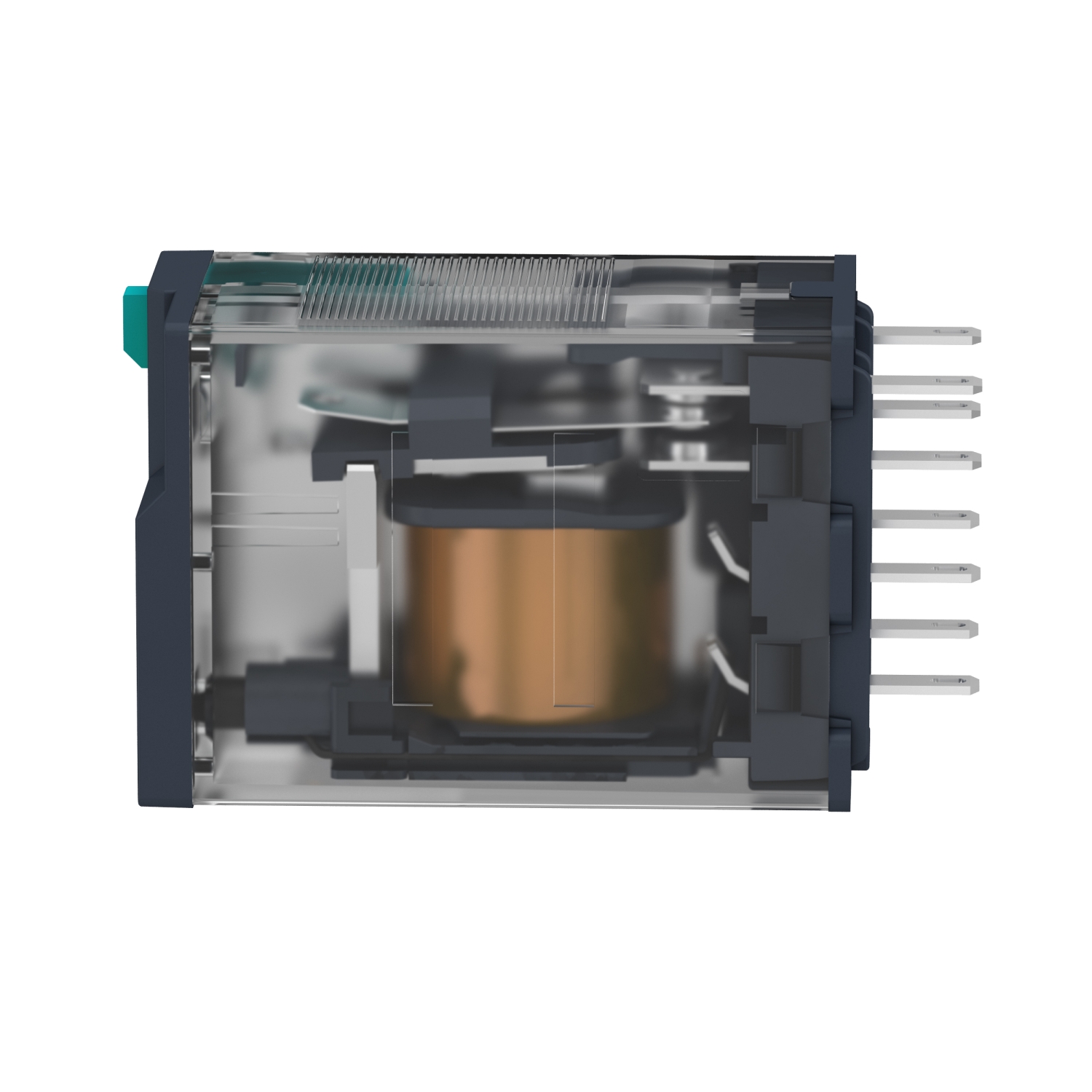

Schneider RXM2AB1JD Miniature Plug-in Relay

1. Overview

The RXM2AB1JD is a high-performance miniature plug-in relay from the Zelio RXM series by Schneider Electric. It features 2 changeover contacts (2 CO) with a high current rating of 12 A, and operates on a 12 V DC coil voltage. This relay is ideal for industrial and commercial automation systems that require robust and compact switching solutions.

2. Technical Specifications

• Product Series: Zelio RXM

• Model: RXM2AB1JD

• Type: Electromechanical plug-in relay

• Number of Contacts:

  • 2 CO (2 changeover contacts)

  • Also referred to as 2PDT (2 pole double throw)

• Contact Rating:

  • 12 A at 250 V AC / 30 V DC (resistive load)

• Coil Voltage:

  • 12 V DC

• Coil Consumption:

  • Approximately 0.9 W

• Dielectric Strength:

  • Coil to contact: 2,000 V AC (50/60 Hz)

• Operate Time:

  • ≤ 15 ms

• Release Time:

  • ≤ 10 ms

• Mounting Type:

  • Plug-in (DIN rail mounting with compatible socket e.g., RXZE2M114)

• Terminals:

  • Plug-in type (sockets with screw or spring clamp)

• Mechanical Durability:

  • 10 million operations

• Electrical Durability:

  • 100,000 cycles at rated load

• Ambient Temperature Range:

  • Operating: -40°C to +55°C

• Protection Class:

  • IP40 (relay body)

• Certifications:

  • CE, UL, CSA, RoHS compliant

3. Applications

The RXM2AB1JD is suitable for a wide range of industrial and commercial control applications, including:

• Industrial Automation Systems

• Machine Control Panels

• Motor Starter Circuits

• Building Automation

• Signal Switching and Interfacing with PLCs

• Lighting and HVAC Systems

• Pumps and Compressors Control

• Alarm and Monitoring Circuits

Thanks to its 12 A contact rating, it is especially useful in applications that demand higher current capacity in a compact form.

4. Key Features

• High Current Rating: Supports up to 12 A, ideal for heavier loads.

• Compact and Modular Design: Saves space in control panels.

• Fast Switching Response: Quick operate and release times.

• Reliable and Durable: Long electrical and mechanical lifespan.

• Flexible Mounting: DIN rail compatibility with plug-in socket options.

• Wide Operating Temperature: Suitable for harsh industrial environments.

• LED Indicator (optional socket): Allows status visualization when used with suitable socket.
