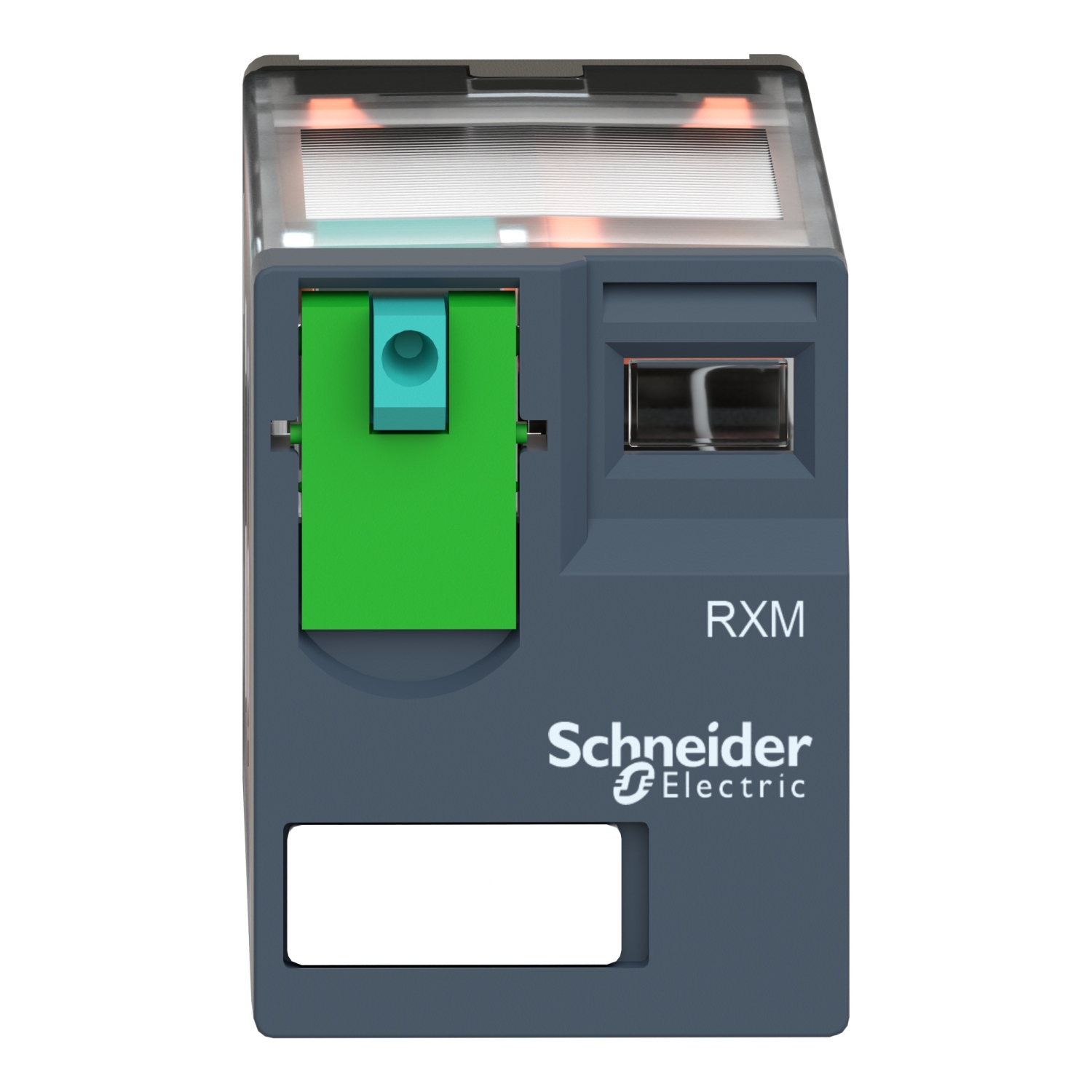

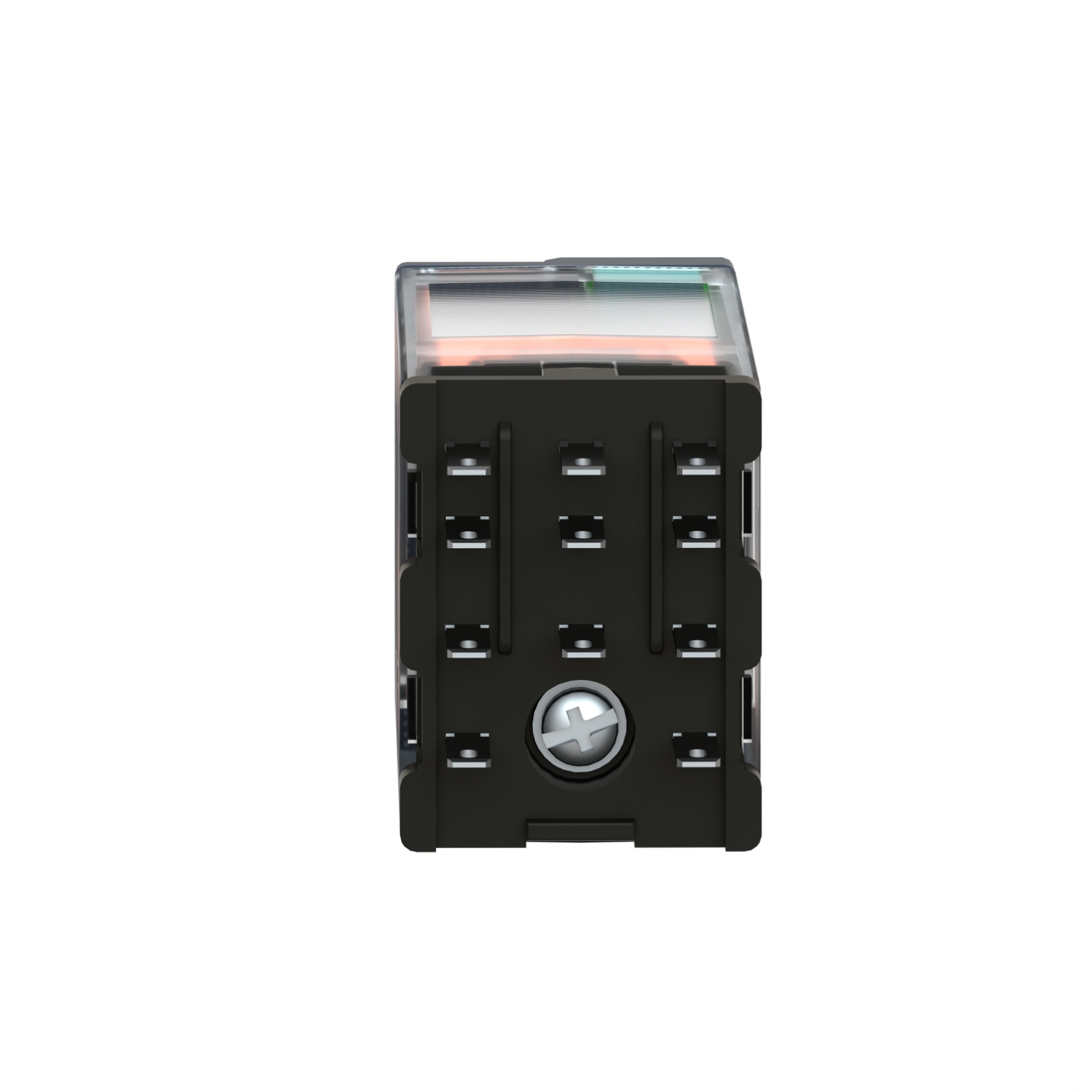

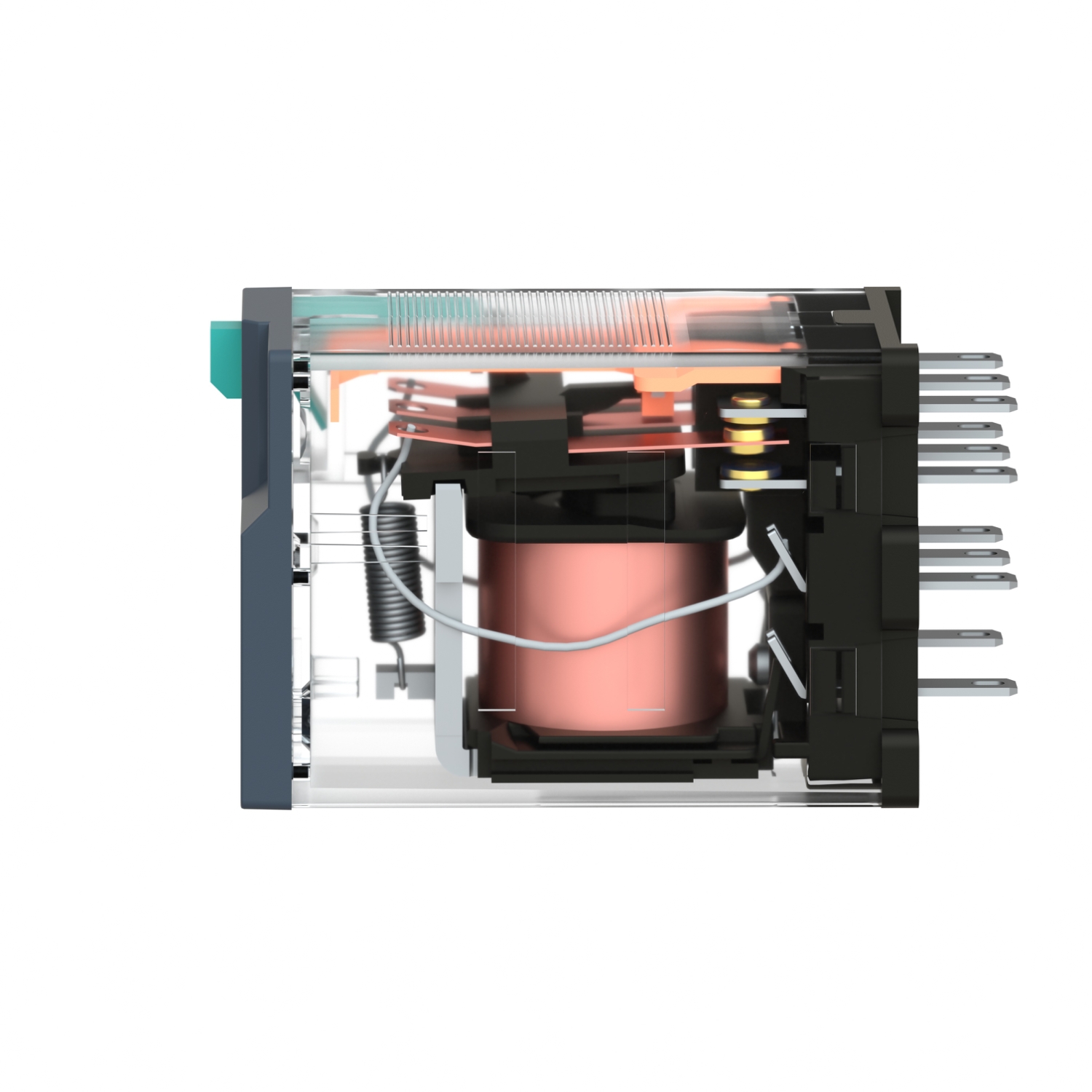

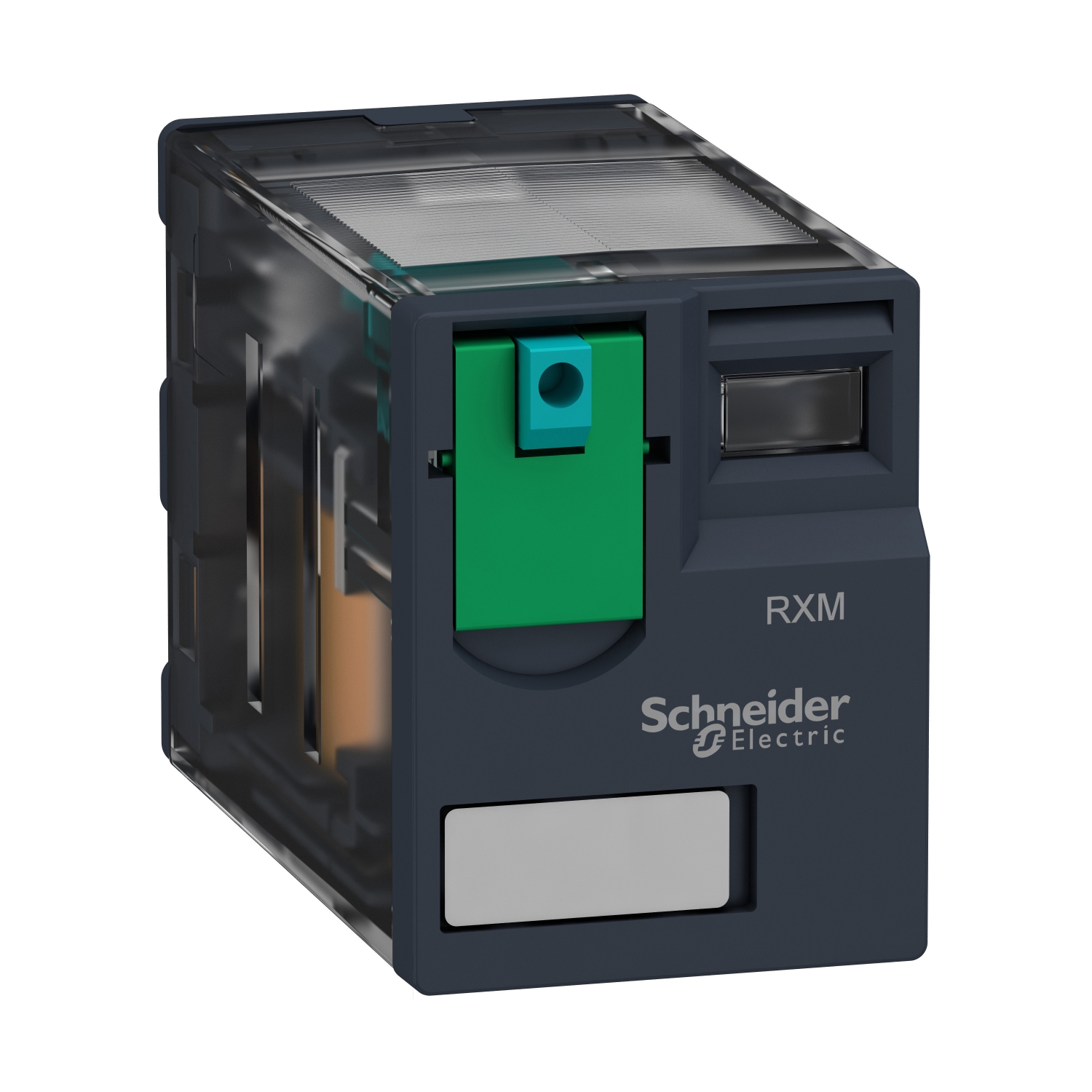

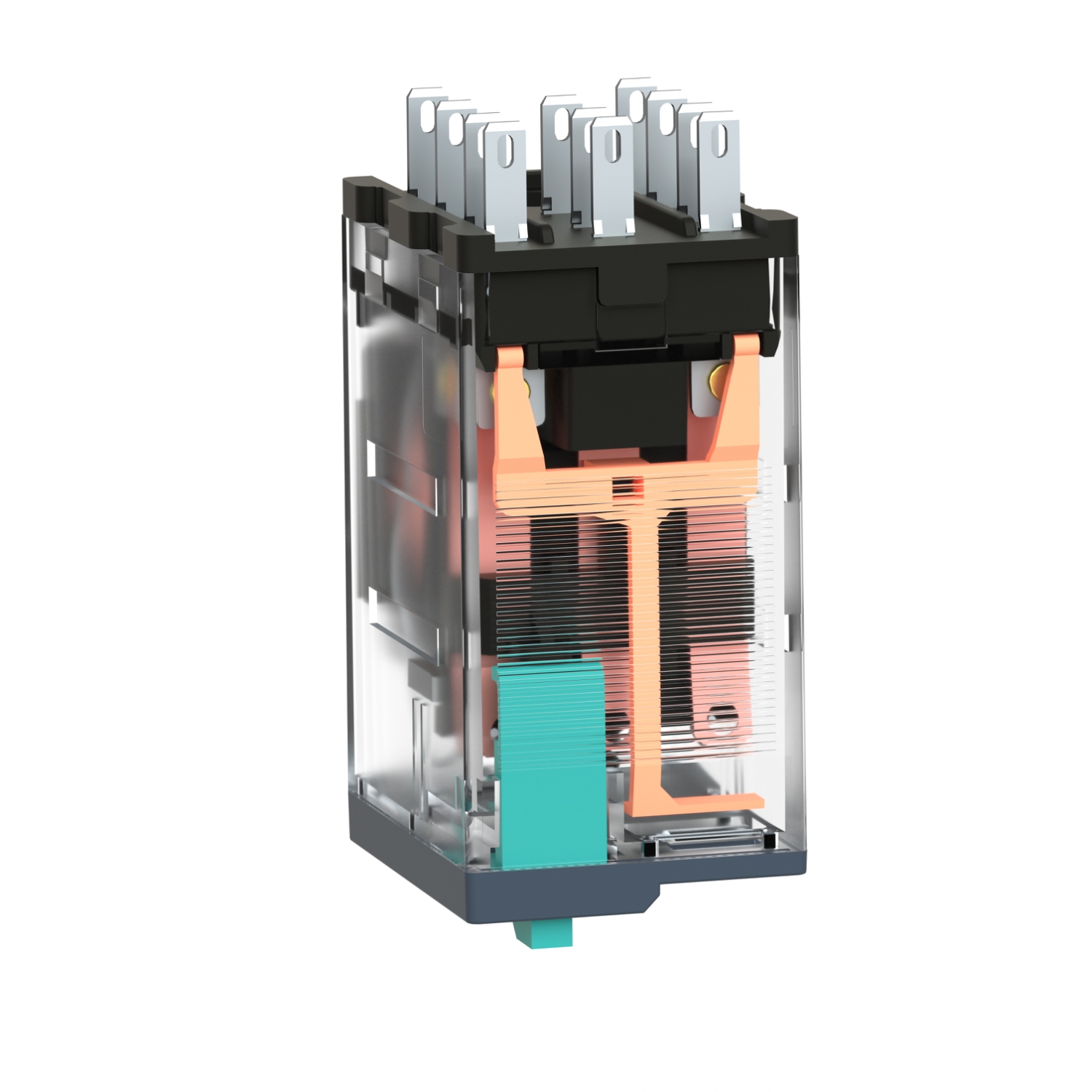

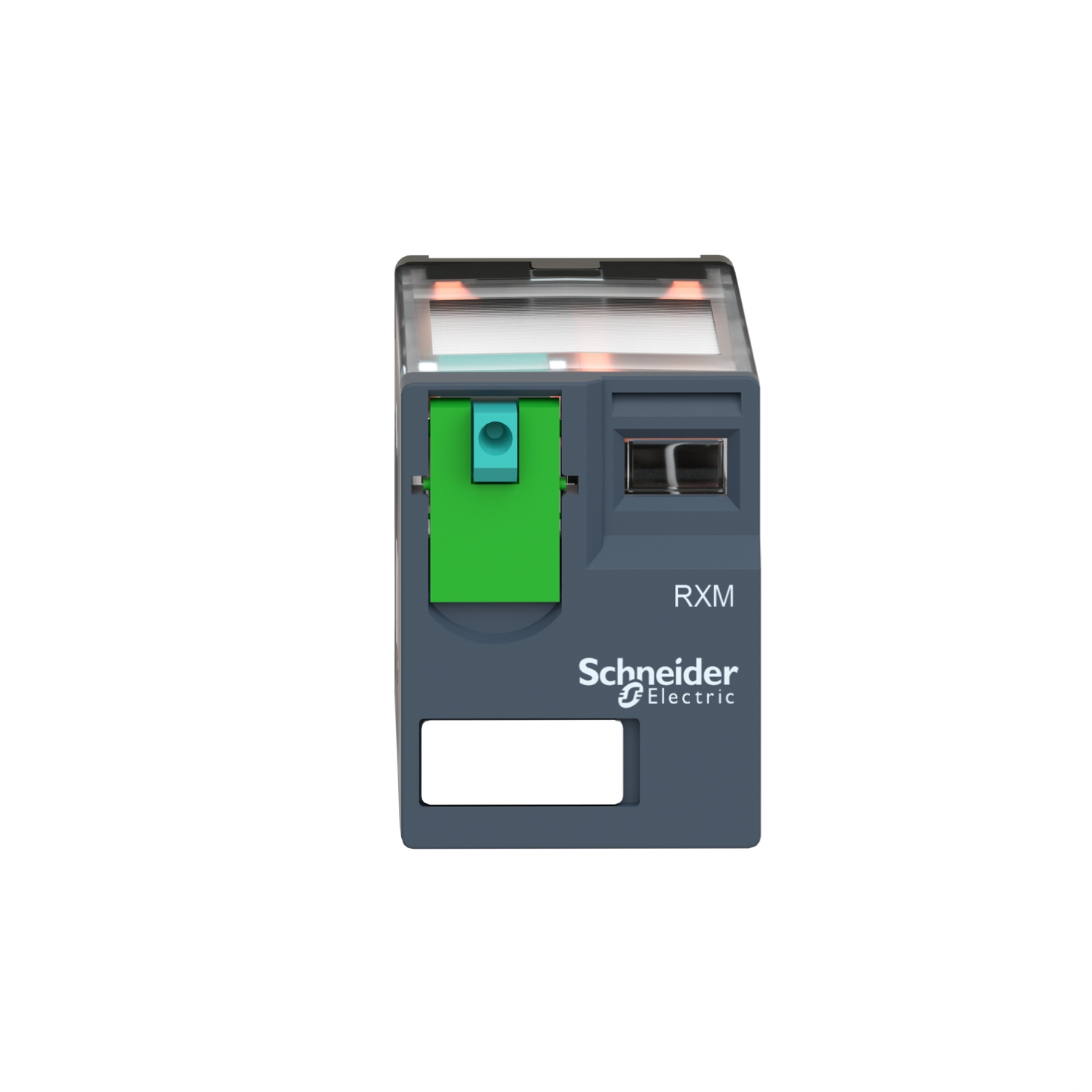

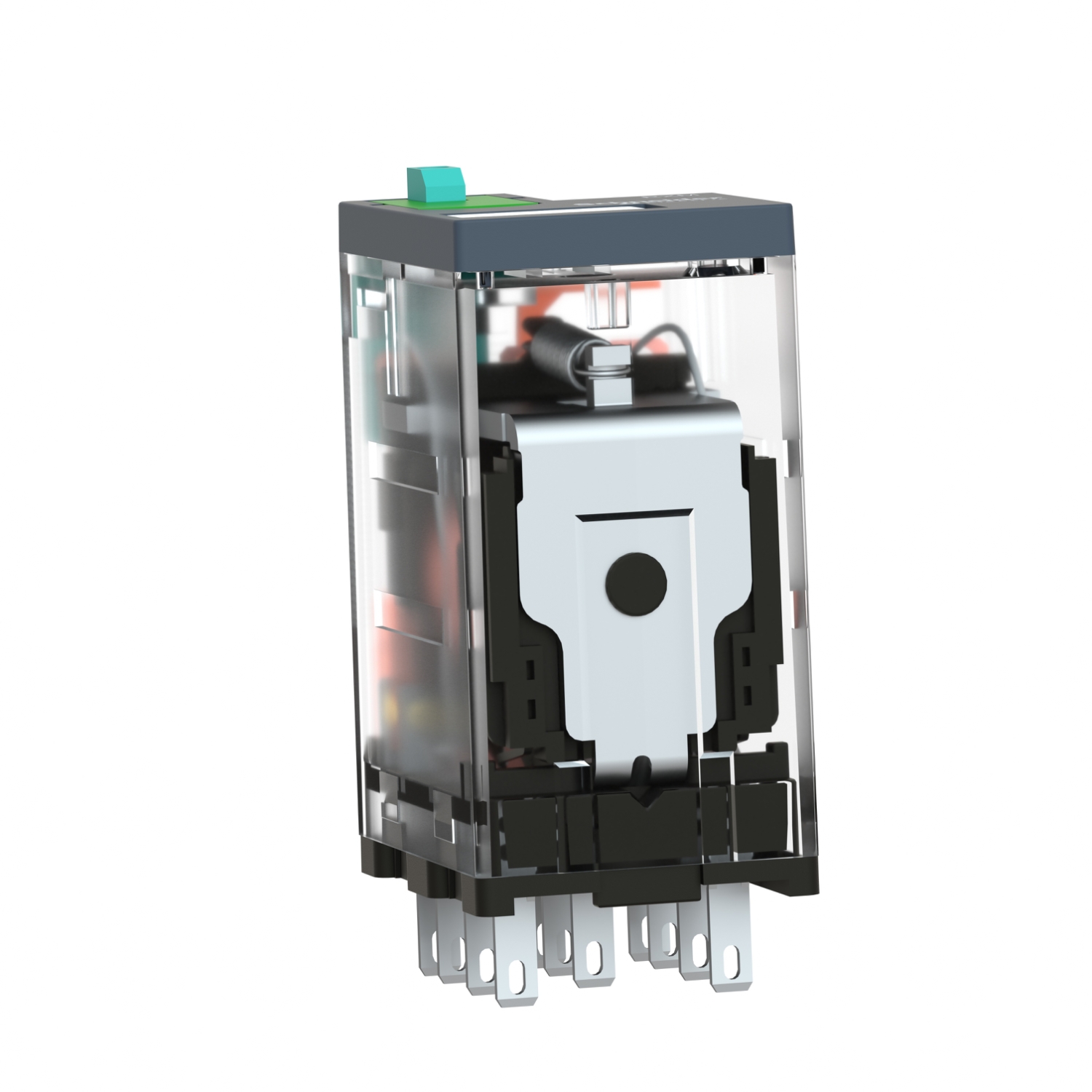

Schneider RXM3AB1FD Relay: Revolutionizing Electrical Control Systems
Relays are indispensable components in electrical engineering, serving as essential switches that control circuits by opening or closing contacts. Among the myriad of relays available in the market, it stands out for its exceptional performance and versatility.
Understanding the Purpose of Relays
Relays act as electromechanical switches, allowing low-voltage signals to control high-voltage circuits. They are pivotal in applications where automatic control is required, ensuring safety, efficiency, and reliability in electrical systems.
Features of Schneider RXM3AB1FD Relay
it boasts a plethora of features designed to meet the demands of various industrial and commercial applications. With its compact design and robust construction, this relay offers:
- High switching capacity
- Wide operating voltage range
- DIN rail mounting for easy installation
- LED indicators for status monitoring
- AC and DC coil options for compatibility with different power sources
Applications of Schneider RXM3AB1FD Relay
From industrial automation to building management systems, the Schneider RXM3AB1FD Relay finds its utility across diverse sectors. Some common applications include:
- Motor control
- Lighting control
- HVAC systems
- Power distribution
- Process automation
Advantages of Using Schneider RXM3AB1FD Relay
- Enhanced reliability: With its durable construction and advanced features, the Schneider RXM3AB1FD Relay ensures uninterrupted operation in critical environments.
- Easy installation: The DIN rail mounting option and user-friendly design simplify the installation process, reducing downtime and labor costs.
- Versatility: This relay is compatible with a wide range of control systems, offering flexibility and scalability in diverse applications.
Installation Process of Schneider RXM3AB1FD Relay
Installing the Schneider RXM3AB1FD Relay is straightforward, thanks to its DIN rail mounting feature. Follow these steps for a hassle-free installation:
- Identify the appropriate location on the DIN rail for mounting the relay.
- Snap the relay onto the DIN rail securely.
- Connect the control wires to the designated terminals on the relay.
- Ensure proper grounding to prevent electrical hazards.
- Verify the connections and power up the system to test the relay.
Maintenance and Troubleshooting Tips
To ensure optimal performance and longevity of the Schneider RXM3AB1FD Relay, regular maintenance is essential. Here are some maintenance tips and troubleshooting guidelines:
- Periodically inspect the relay for signs of wear or damage.
- Clean the contacts and terminals to prevent corrosion.
- Check for loose connections and tighten them if necessary.
- Monitor the LED indicators for any abnormal behavior.
- Refer to the user manual for troubleshooting steps in case of malfunction.
Comparison with Other Relay Models
While there are several relays available in the market, the Schneider RXM3AB1FD Relay sets itself apart with its superior features, reliability, and performance. A comparative analysis highlights its advantages over competing models, making it the preferred choice for discerning professionals.
Customer Reviews and Testimonials
Customers who have used the Schneider RXM3AB1FD Relay attest to its exceptional quality, reliability, and value for money. Their testimonials serve as a testament to the superior performance and versatility of this relay in real-world applications.
Conclusion
The Schneider RXM3AB1FD Relay emerges as a game-changer in the realm of electrical control systems, offering unmatched reliability, performance, and versatility. With its advanced features, easy installation, and wide-ranging applications, this relay is poised to revolutionize the way we control electrical circuits.
