Description

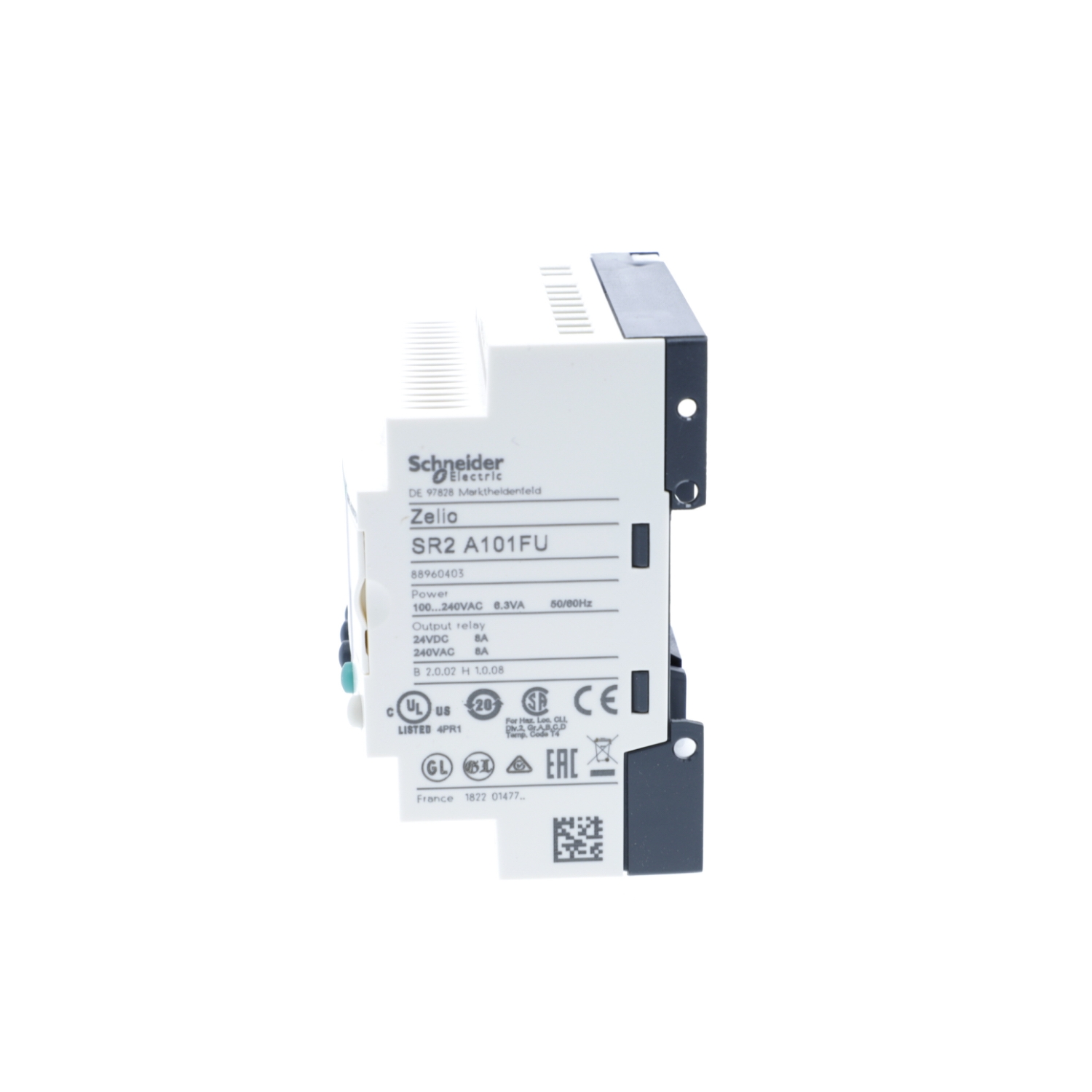

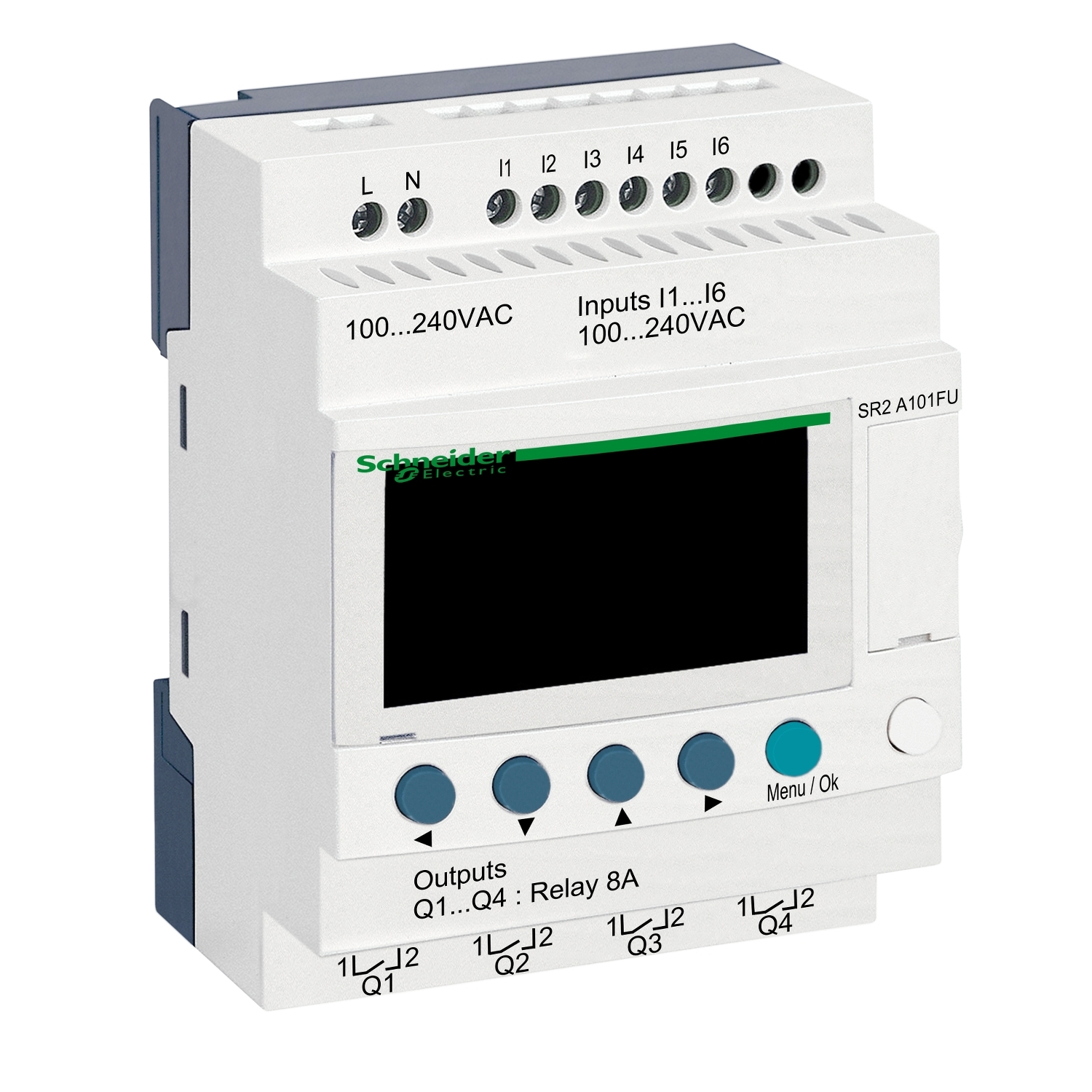

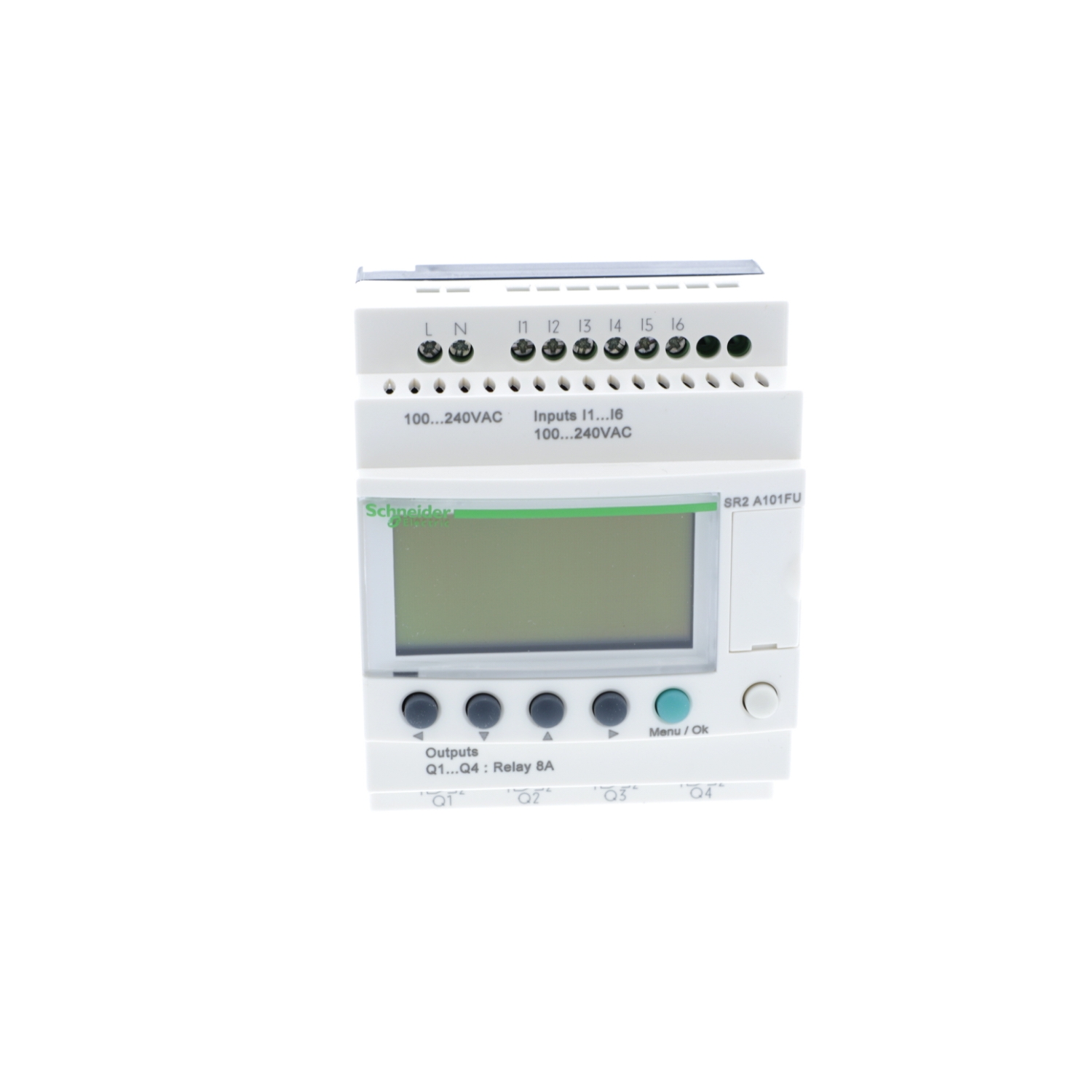

Schneider SR2A101FU | compact smart relay Zelio Logic – 10 I O – 100..240 V AC – no clock – display
Technical Specifications
- Model: SR2A101FU
- Series: Zelio Logic
- Type: Compact Smart Relay
- I/O Configuration: 10 I/O (6 digital inputs, 4 relay outputs)
- Power Supply: 100–240V AC
- Clock: No clock (ideal for systems not requiring real-time clock management)
- Display: Integrated display for easy diagnostics and monitoring
- Programming: Zelio Soft software for easy programming and configuration

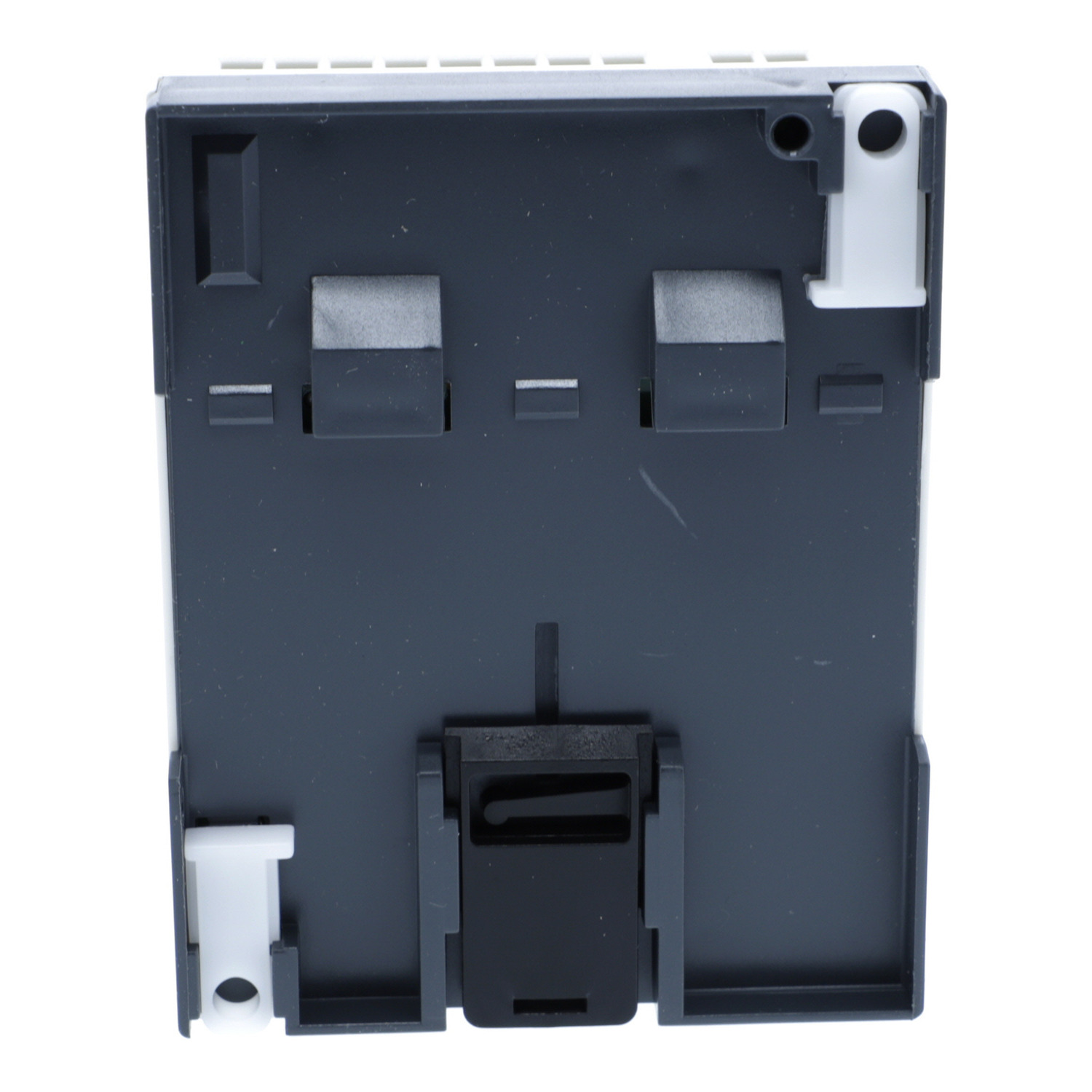

- Mounting: DIN rail or surface mount
- Applications: Small-scale automation, machinery control, lighting, and process control
Key Features
1. Versatile I/O Configuration
- With 10 I/O points (6 digital inputs and 4 relay outputs), the SR2A101FU is suitable for a wide range of control tasks in automation systems, lighting control, and simple process management.
- The digital inputs support signal acquisition, while the relay outputs provide control for electrical components.
2. Wide Power Supply Range
- Designed to operate within the 100–240V AC power supply range, the SR2A101FU ensures compatibility with a variety of electrical systems, making it a flexible choice for global applications.
3. Integrated Display for Monitoring and Diagnostics
- The built-in display allows users to monitor system status and diagnostics, simplifying the configuration and troubleshooting process.
- Clear visual feedback enables quick identification of operational issues and reduces the time spent on maintenance.
4. Easy Programming with Zelio Soft Software
- The Zelio Soft programming software makes it easy to configure and program the relay for different automation tasks.
- Graphical programming through the software allows for quick setup and customization without requiring extensive programming knowledge.
5. Compact and Reliable Design
- The compact design of the SR2A101FU allows it to be installed in tight spaces, while the rugged construction ensures reliable performance in various industrial and commercial environments.
- DIN rail or surface mount options provide flexible installation based on the system’s requirements.
Applications
The Schneider SR2A101FU compact smart relay is ideal for use in a variety of applications, including:
Automation Systems – Controls small machines, conveyors, or other automated processes.
Lighting Control – Manages the switching of lighting in buildings, street lighting, or industrial areas.
Small Process Control – Can be used in applications that do not require a complex control system, such as controlling pumps or fans.
Machinery Control – Suitable for controlling simple industrial machines or devices.
Building Automation – Used in building management systems for tasks like controlling HVAC systems, alarms, or access control systems.
