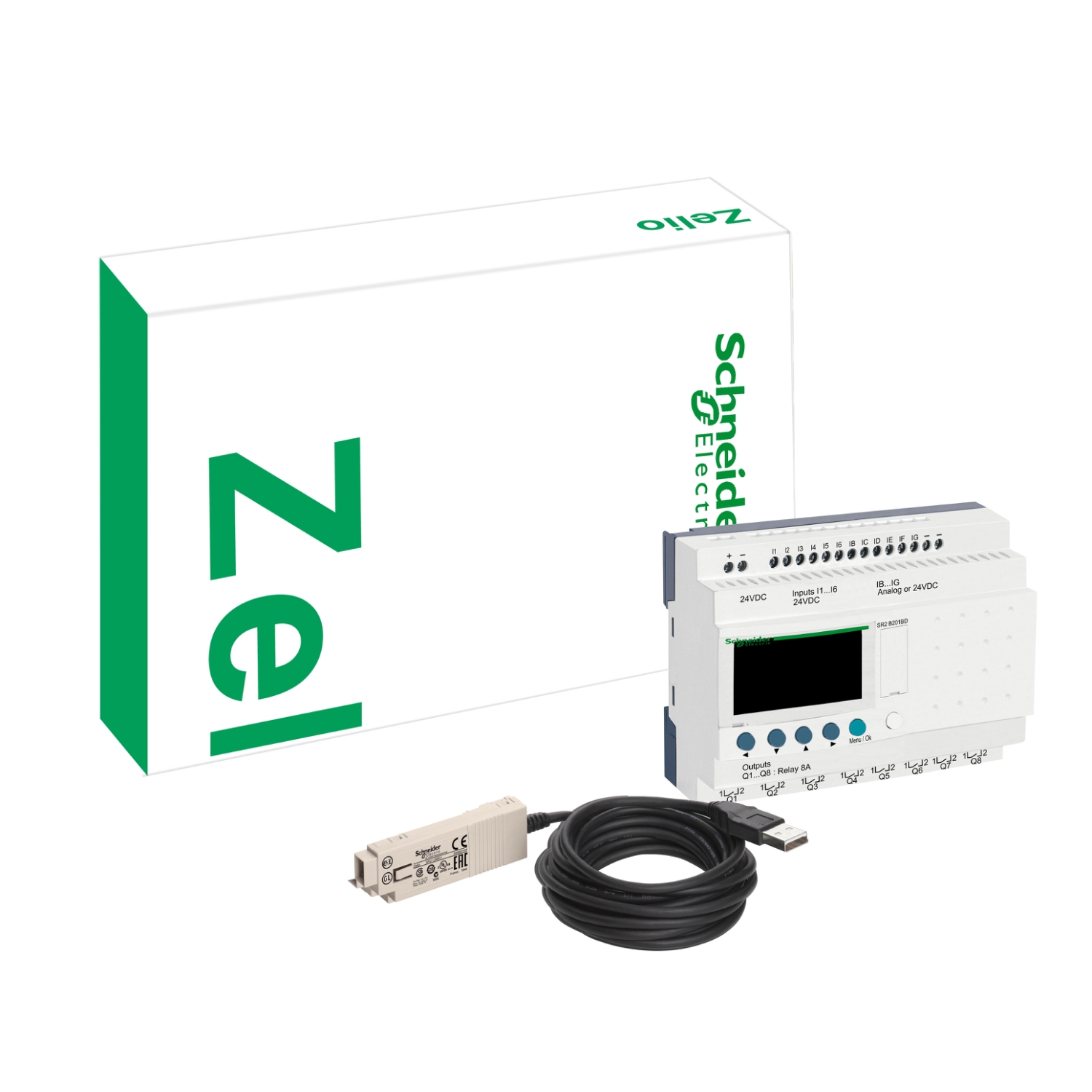

Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC

Description

Schneider SR3PACKFU | modular smart relay Zelio Logic – “discovery” pack – 10 I O – 100..240V AC

The Schneider Electric SR3PACKFU is a modular smart relay from the Zelio Logic series, offered as part of the “Discovery” pack. Designed for users who are exploring automation or looking for a compact solution for basic control tasks, this relay provides 10 I/O (inputs/outputs) and operates on 100-240V AC. The pack is ideal for educational purposes, training, or small automation systems.

Key Features

• Product Type: Modular smart relay

• Series: Zelio Logic

• Pack Type: Discovery pack, designed for learning and small-scale applications

• Number of I/O: 10 I/O (6 digital inputs, 4 digital outputs)

• Voltage: 100-240V AC

• Modular Design: Supports expansion with additional modules as the complexity of the task grows

• User Interface: Easy-to-use interface for programming and monitoring

• Programming: Programmable using Zelio Soft 2 software

• Mounting: DIN rail compatible

Electrical Specifications

• Power Supply: 100-240V AC

• Digital Inputs: 6 digital inputs, ideal for receiving ON/OFF signals

• Digital Outputs: 4 digital outputs for controlling devices like relays, motors, or lights

• Relay Contacts: Normally open (NO) contacts for outputs

• Output Current: 0.5 A per output channel (maximum)

• Modular Expansion: Additional I/O modules can be added as needed for more complex tasks

Mechanical & Environmental Specifications

• Housing: Compact plastic housing for easy integration into control panels

• Mounting: DIN rail mounting for straightforward installation

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +70°C

• Protection Rating: IP20 (module body)

• Dimensions: Compact design, saving valuable space

Applications Schneider SR3PACKFU

• Learning and Training: Ideal for individuals or teams learning about automation systems and relay controls

• Small Automation Systems: Suitable for controlling small machines, lighting, HVAC systems, or other basic automation tasks

• Process Control: Can be used for simple process control applications requiring limited I/O

• Home Automation: Effective for basic home automation systems like controlling lighting, HVAC, and other devices

• Energy Management: Useful in small-scale energy control applications for monitoring and switching devices based on demand

Advantages Schneider SR3PACKFU

• Beginner-Friendly: The “Discovery” pack offers an accessible and easy-to-understand solution for users who are new to automation, providing simple programming and a straightforward user interface

• Modular Design: The modular design allows for easy expansion, making it scalable as the requirements grow

• Flexible Voltage Range: Operates across a wide voltage range (100-240V AC), making it versatile for various environments

• Space-Saving: Compact and easy to integrate into control panels or small spaces

• Cost-Effective: A budget-friendly solution for basic control tasks without the need for advanced systems

• Reliable Performance: Designed for long-lasting operation, even in challenging industrial environments
