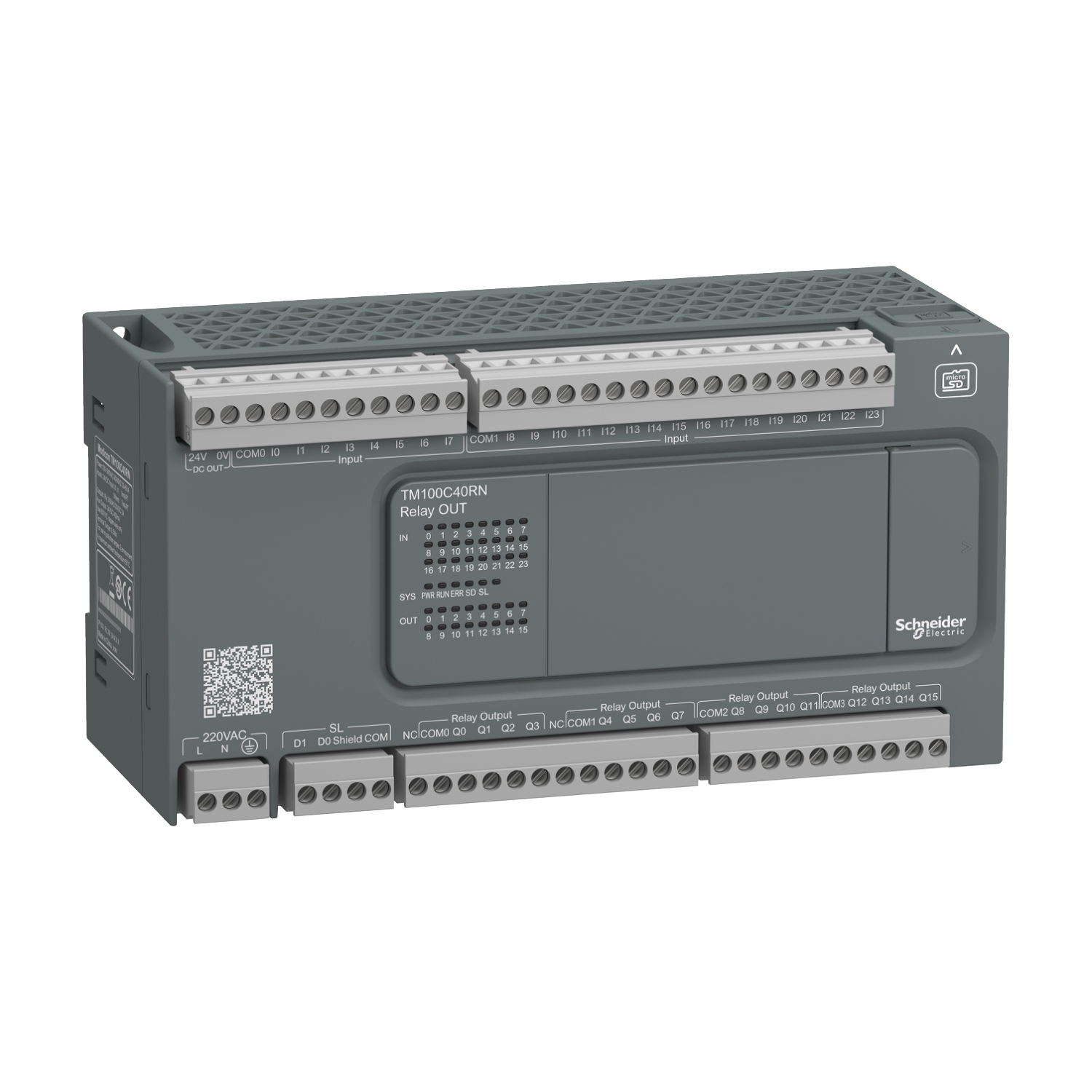

Schneider TM100C40RN | Controller M100 – 24I/16O relay – 220VAC

Description

Schneider TM100C40RN | Controller M100 – 24I/16O relay – 220VAC

The Schneider TM100C40RN is a programmable logic controller (PLC) from the Modicon M100 series, designed for more complex and demanding automation tasks. With 24 digital inputs and 16 relay outputs, this controller offers a higher degree of flexibility and control, making it suitable for a wide range of industrial applications. It operates with a 220V AC input power supply, ensuring compatibility with a variety of AC-powered devices.

Key Features

• Product Type: Programmable Logic Controller (PLC)

• Series: Modicon M100

• I/O Configuration:

  • Inputs: 24 digital inputs

  • Outputs: 16 relay outputs (normally open)

• Input Voltage: 220V AC

• Output Voltage: 220V AC (relay-based)

• Programming Software: Compatible with SoMachine or other Schneider Electric programming tools for easy configuration.

• Relay Outputs: Provides control for AC devices, offering flexibility for various applications requiring relay-based switching.

• Mounting: Compact and modular design for easy installation in control panels.

• Protection Rating: IP20, making it suitable for installation in industrial control environments.

• Operating Temperature: 0°C to 55°C

• Dimensions: Designed to fit standard control panel sizes, optimizing space utilization.

Applications

The TM100C40RN is suitable for a wide range of applications, particularly in industries where multiple inputs and outputs are required for controlling devices. Key applications include:

• Industrial Automation: Managing machines, conveyors, and automated equipment.

• HVAC Systems: Control of heating, ventilation, and air conditioning in large buildings or industrial plants.

• Water Treatment: Managing pumps, valves, and other equipment in water and waste management systems.

• Manufacturing and Production Lines: Overseeing processes that require more complex control with multiple inputs and outputs.

• Lighting and Energy Management: Controlling lighting systems, energy distribution, and optimization in industrial or commercial settings.

• Elevator Systems: Managing the operation of lifts, escalators, and other elevator systems.

• Pump Stations: Automating the operation of pumps and fluid management systems.

Advantages

• High I/O Capacity: With 24 digital inputs and 16 relay outputs, the TM100C40RN can handle more complex automation tasks and control multiple devices simultaneously.

• Flexibility: The relay outputs provide the ability to control various AC-powered devices, offering versatility in different applications.

• Compact Design: The small footprint makes it ideal for integration into existing control panels without requiring excessive space.

• Robust Performance: It’s built to work in demanding industrial environments, ensuring reliability and long-term operation.

• Easy Programming: Schneider Electric’s SoMachine software simplifies the configuration and programming process, making it easier to set up and maintain the controller.

• Wide Voltage Range: The 220V AC operation ensures that this PLC can directly control devices that run on standard AC power, reducing the need for additional converters or adapters.
