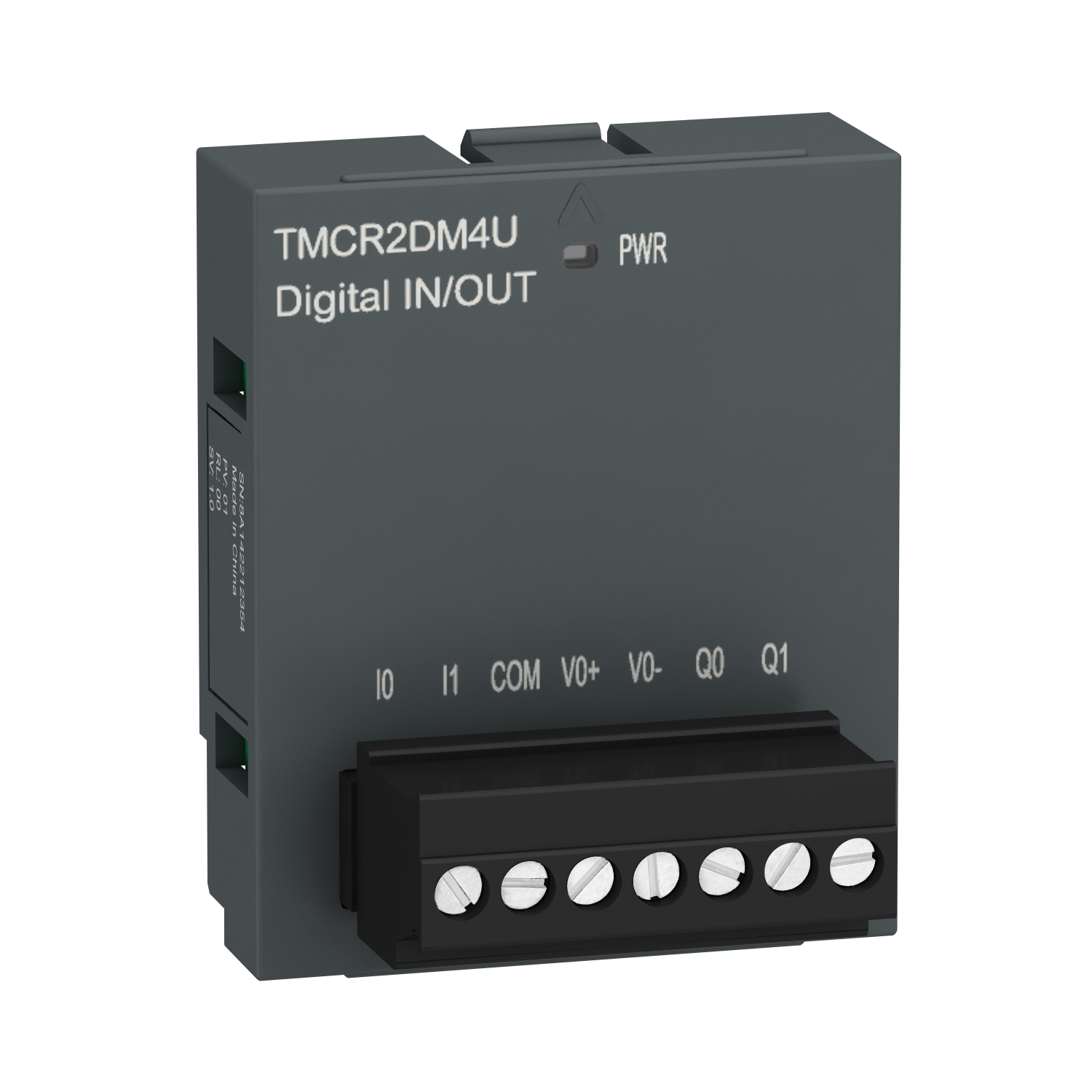

Schneider TMCR2DM4U | cartridge M200 – 2 Digital inputs and 2 Transistor sink outputs

Description

Schneider TMCR2DM4U | cartridge M200 – 2 Digital inputs and 2 Transistor sink outputs

Technical Specifications TMCR2DM4U

• Product Reference: TMCR2DM4U

• Series: Modicon M200

• Device Type: Expansion I/O Cartridge

• Digital Inputs:

  • Quantity: 2

  • Type: Discrete input (sink or source depending on wiring)

  • Voltage: 24V DC

  • Input impedance: Approx. 3.5 kΩ

  • Filtering: Configurable via software

• Digital Outputs:

  • Quantity: 2

  • Type: Transistor outputs (sink type)

  • Voltage: 24V DC

  • Max Output Current: 0.5 A per output

  • Protection: Short-circuit and overload protection

• Mounting Method: Directly plugs into the right side of the M200 controller

• Dimensions: Compact and modular for DIN rail environments

• Certifications: CE, RoHS compliant

• Ambient Operating Temperature: 0°C to +55°C

• Protection Index: IP20

Key Features

• Compact Design: Saves space in control panels while providing additional I/O capabilities.

• Plug-and-Play Expansion: Easily connects to the right side of a Modicon M200 controller without complex wiring or configuration.

• Fast Response Time: Suitable for high-speed digital control applications.

• Integrated Diagnostics: Allows for status monitoring and troubleshooting through the M200 software interface.

• Flexible Configuration: Inputs and outputs can be programmed using Schneider’s EcoStruxure Machine Expert – Basic or related tools.

Applications

The TMCR2DM4U cartridge is ideal for applications such as:

Industrial Automation

• Machine control (start/stop buttons, sensors, solenoid valves)

• Packaging machines, small conveyor systems

Building Automation

• Door access systems, ventilation control

• Lighting control with feedback inputs

OEM and Custom Equipment

• Custom-built panels with expandable I/O needs

• Compact equipment where space is limited
