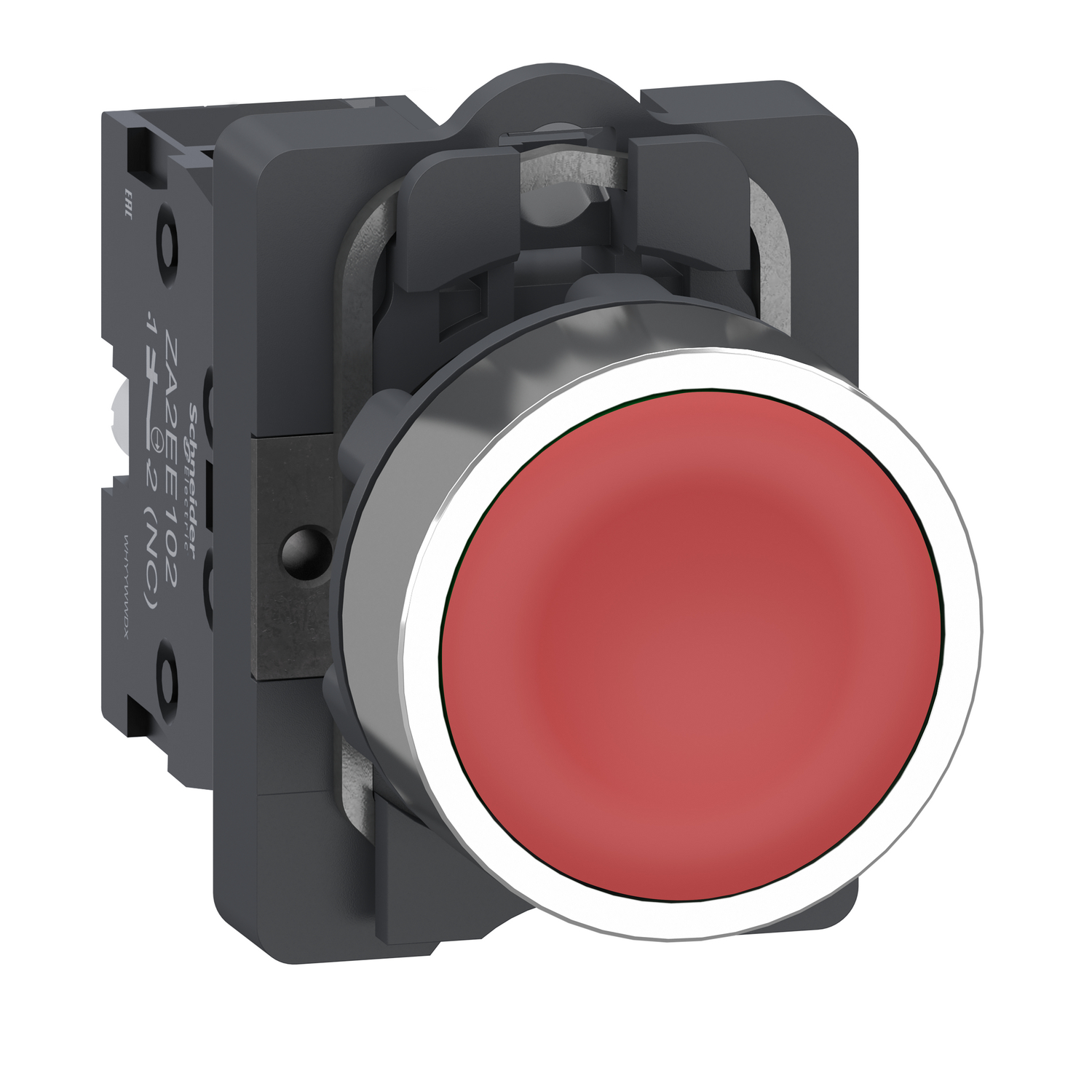

Schneider XA2AA42 | Complete push button, Easy Harmony XA2, plastic head, 22mm, red, 1NC, spring return, unmarked

Name: Schneider XA2AA42 | Complete push button, Easy Harmony XA2, plastic head, 22mm, red, 1NC, spring return, unmarked
SKU: XA2AA42
Availability: InStock

Original price was: 181.93 EGP.Current price is: 120.29 EGP.

Cost-effective plastic pushbutton with metal clip fix base

Modular design allows flexible and simple setup for compatible product

Wide availability throughout an extensive distribution network

Robust design for reliable performance even in harsh environments

Full function solution fit to customer needs

SKU: XA2AA42 Categories: 22 mm Pushbuttons, switches, pilots lights, Industrial Automation and Control, Push buttons, Switches, Pilot Lights, Control stations & Joysticks Brand: Schneider Electric

Description

Schneider XA2AA42 | Complete push button, Easy Harmony XA2, plastic head, 22mm, red, 1NC, spring return, unmarked

The XA2AA42 by Schneider Electric is a robust and efficient push button designed for seamless integration into your industrial automation systems. This complete push button features a vibrant red plastic head and is part of the Easy Harmony XA2 series, ensuring both functionality and aesthetic appeal in any control environment.

Key Features

Size: 22mm diameter for easy installation.
Type: 1NC (Normally Closed) configuration for reliable performance.
Return Mechanism: Spring return for quick reset action.
Unmarked Design: Offers flexibility in labeling for versatile applications.

This unit is ideal for various industrial applications, providing user-friendly operation and durability. The push button is engineered to withstand the rigors of daily use, making it a vital component in

Additional information

brands	Schneider Electric

Brand

Schneider Electric

leading the digital transformation of energy management and automation. From energy and sustainability consulting to optimizing the lifecycle of your assets, we provide services to meet your needs. Our technologies help you become more efficient, reduce costs, and meet your sustainability goals.

data sheet

Specifications

Main
Range of product	Harmony XA2
Device short name	XA2
Product or component type	Complete push-button
Device presentation	Complete product
Component name	XA2A
Bezel material	Plastic
Fixing collar material	Plastic

Complementary
Mounting diameter	22.5 mm
Sale per indivisible quantity	1
Protective treatment	TC
Operating position	Any position
Fixing center	>= 30 x 40 mm (panel) – thickness: 1…5 mm
Fixing mode	Fixing nut: 2…2.4 N.m
Shape of signaling unit head	Round
Operator profile	Red flush, unmarked
Contacts type and composition	1 NC
Contact operation	Slow-break
Mechanical durability	1500000 cycles
Connections – terminals	Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm
Tightening torque	0.8…1.2 N.m
Short-circuit protection	10 A gL fuse conforming to IEC 60269-1
[Ith] conventional free air thermal current	10 A
[Ui] rated insulation voltage	600 V conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
[Ie] rated operational current	3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600
Electrical durability	500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Electrical reliability	Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Width	30 mm
Height	43 mm
Depth	55 mm
Net weight	0.032 kg
Cap/operator or lens colour	Red
Type of operator	Spring return

Environment
Ambient air temperature for storage	-40…70 °C
Ambient air temperature for operation	-25…55 °C
Overvoltage category	Class I conforming to IEC 536
IP degree of protection	IP65 conforming to IEC 60529
IK degree of protection	IK03 conforming to IEC 60529
Standards	GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1
Product certifications	CCC CE UKCA
Vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.5 cm
Package 1 Width	3 cm
Package 1 Length	4.3 cm
Package 1 Weight	32 g
Unit Type of Package 2	BB1
Number of Units in Package 2	5
Package 2 Height	3 cm
Package 2 Width	12 cm
Package 2 Length	60 cm
Package 2 Weight	165 g
Unit Type of Package 3	S02
Number of Units in Package 3	100
Package 3 Height	15 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	3.75 kg

Contractual warranty
Warranty (in months)	18
