Schneider XA2ES542 Harmony | Red Ø40 Emergency swtiching off push-button Ø22 non trigger – turn release 1NC

Description

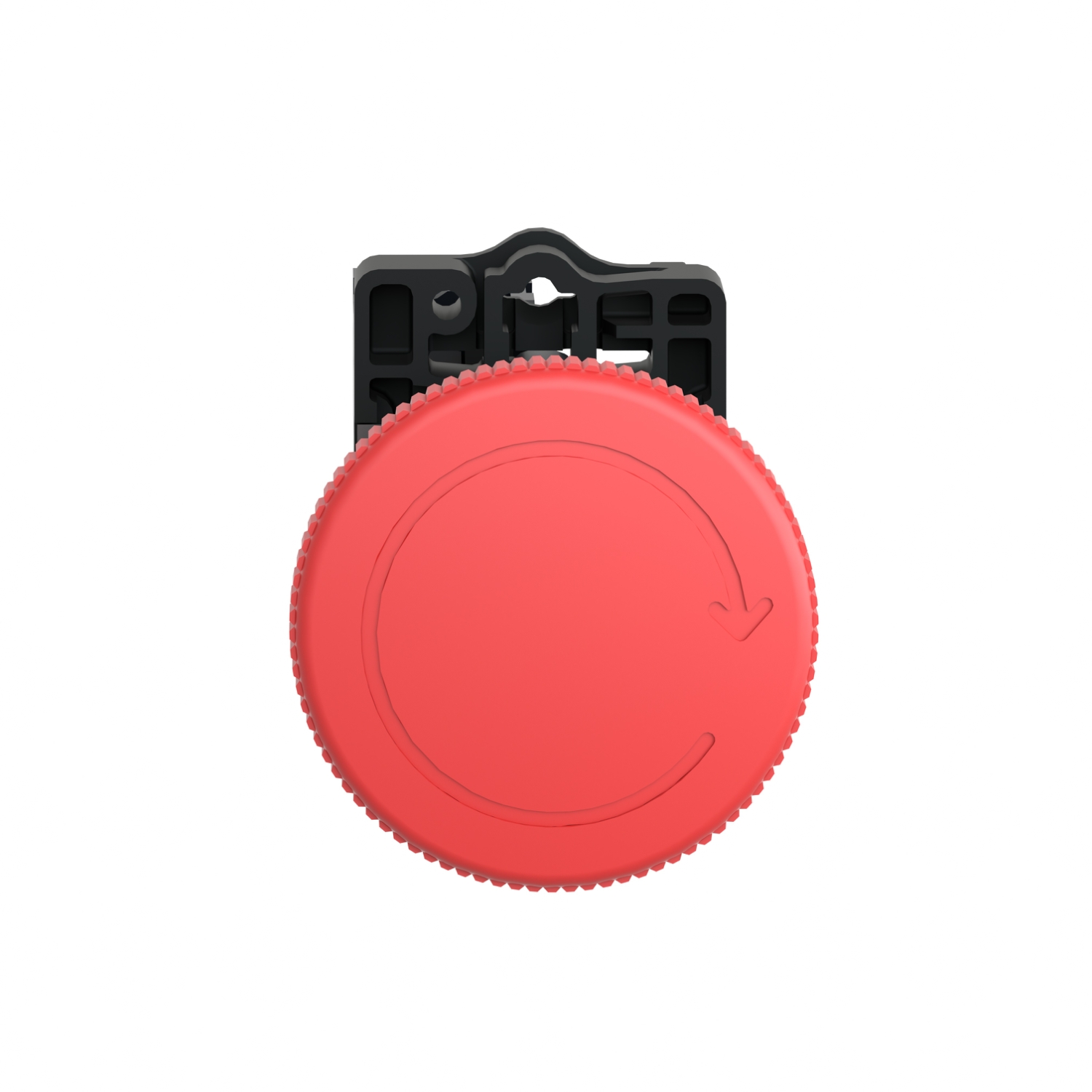

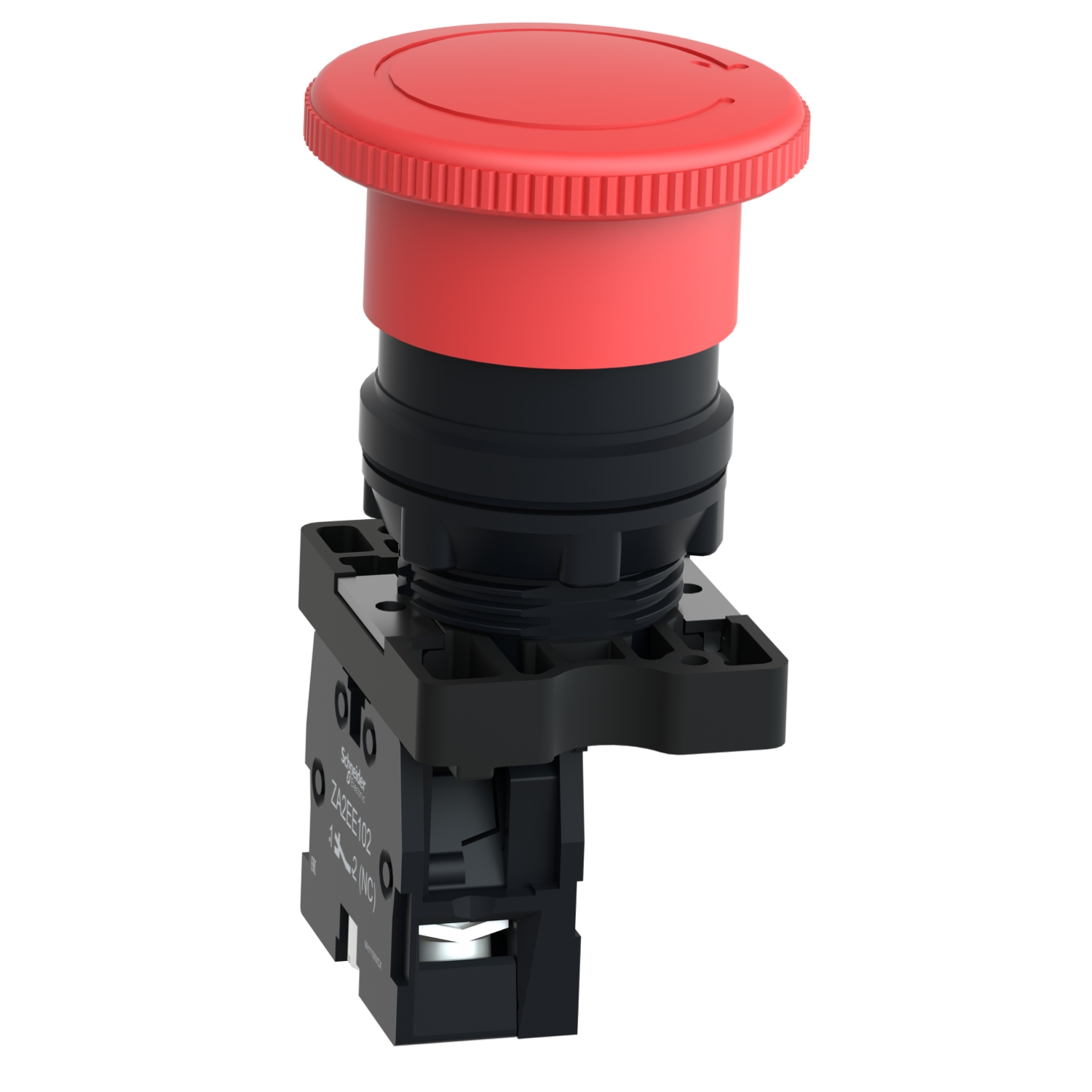

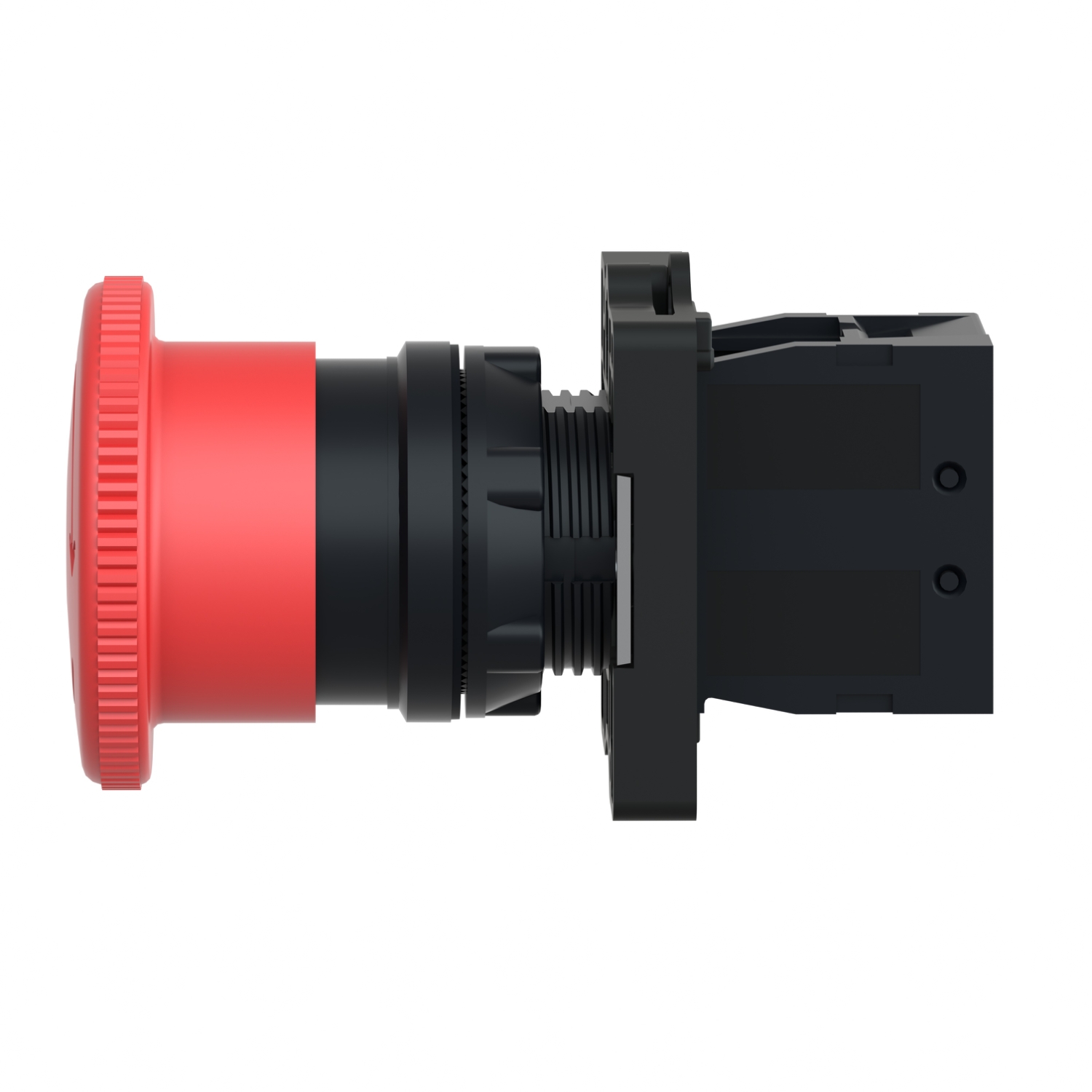

Schneider XA2ES542 Harmony | Red Ø40 Emergency Switching Off Push-Button – Ø22 – Non-Trigger – Turn Release – 1NC

1. Overview

The Schneider XA2ES542 is a 40mm emergency switching off push-button from the Harmony XA2 series, designed for industrial safety applications. It features a non-trigger emergency stop mechanism, a turn-release function, and a 1NC (normally closed) contact. With a 22mm mounting diameter, it provides reliable performance in emergency stop applications.

2. Key Features

• Model: XA2ES542
• Series: Harmony XA2
• Color: Red
• Button Type: Emergency switching off push-button
• Head Size: Ø40mm for high visibility
• Mechanism: Turn-release for reset
• Trigger Type: Non-trigger action

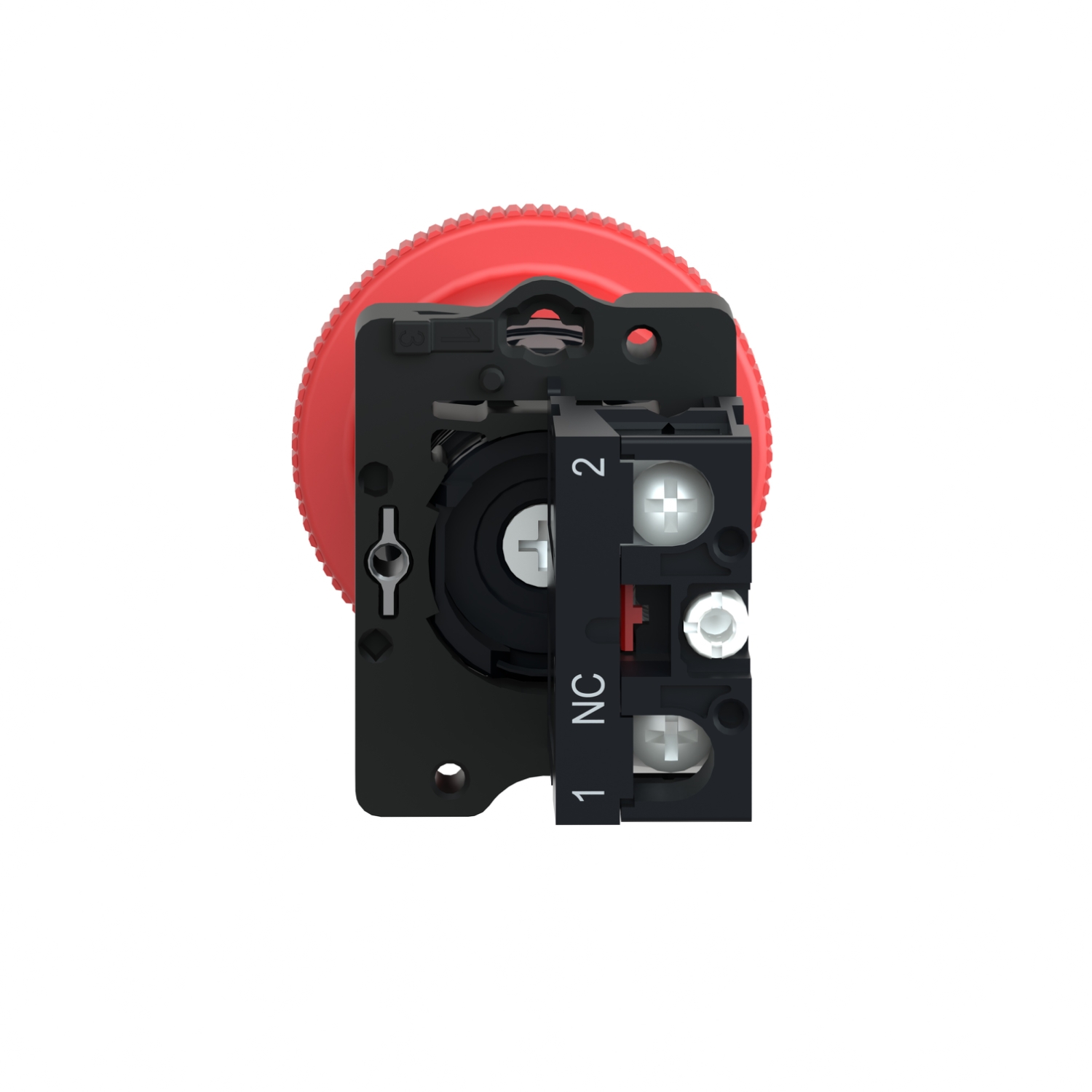

• Contact Type: 1NC (Normally Closed)
• Mounting Diameter: 22mm
• Material: Durable plastic and metal construction

3. Technical Specifications

• Voltage Rating: Suitable for industrial control circuits
• Electrical Lifespan: Designed for long operational cycles
• Mechanical Durability: High mechanical endurance
• Protection Rating: IP65 (Dust and water-resistant)
• Operating Temperature Range: -25°C to +70°C
• Certifications & Compliance: CE, RoHS, IEC safety standards

4. Applications

• Industrial machinery emergency stop functions
• Safety control systems in automation setups
• Process control panels requiring emergency shutdown capabilities
• Operator consoles in high-risk environments
• Electrical control stations for critical safety operations

5. Benefits

• Enhanced Safety: Large Ø40mm red button ensures clear visibility and accessibility in emergencies
• Reliable Performance: Industrial-grade design ensures long-term functionality
• User-Friendly Reset: Turn-release mechanism allows quick system recovery
• Easy Installation: Standard 22mm mounting for compatibility with various control panels
• Standards Compliance: Meets international safety requirements for industrial environments

6. Conclusion

The Schneider XA2ES542 Harmony emergency switching off push-button is a critical safety component for industrial applications. Its large Ø40mm head, turn-release mechanism, and 1NC contact configuration make it a reliable solution for emergency stop functions, ensuring workplace safety and system protection.
