Description

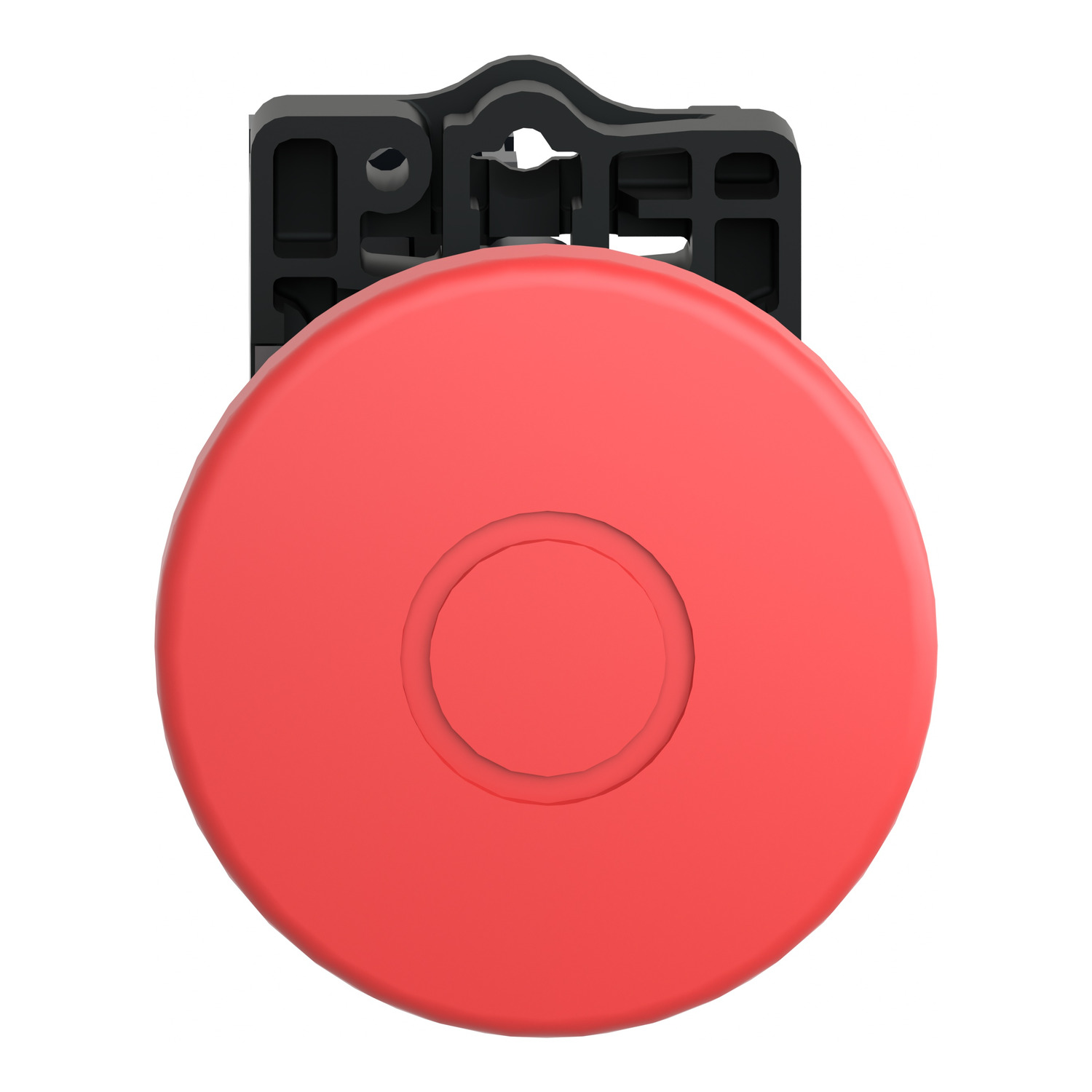

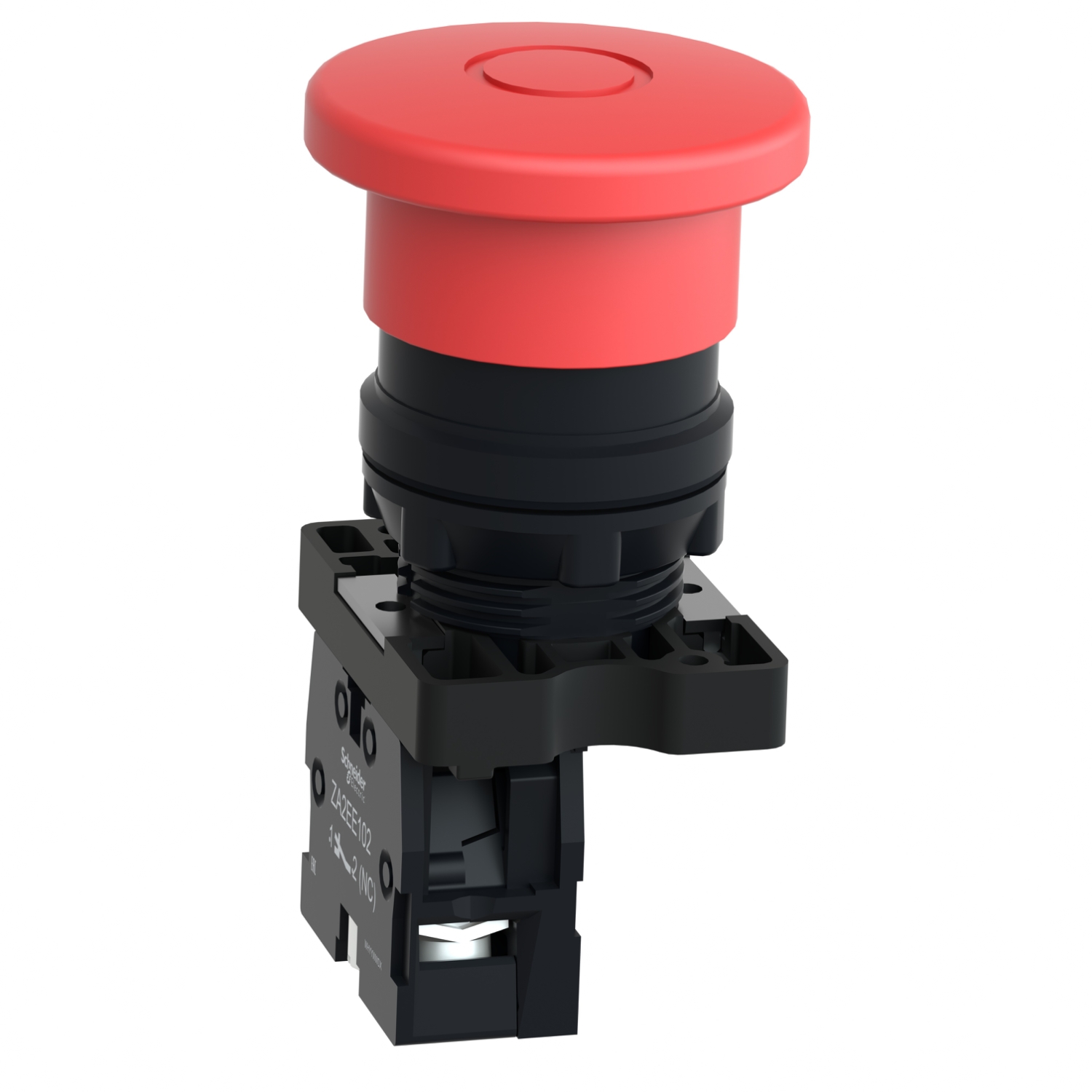

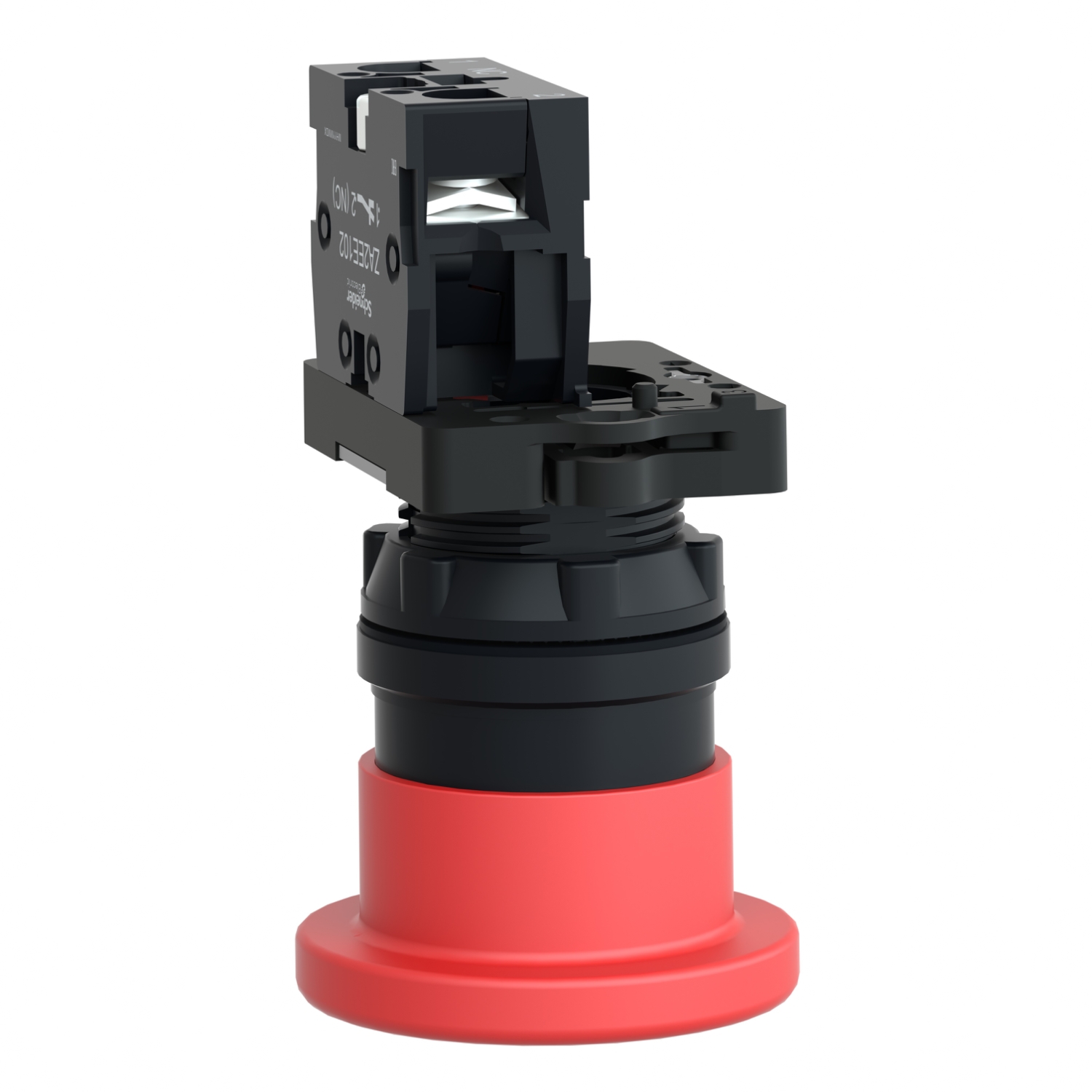

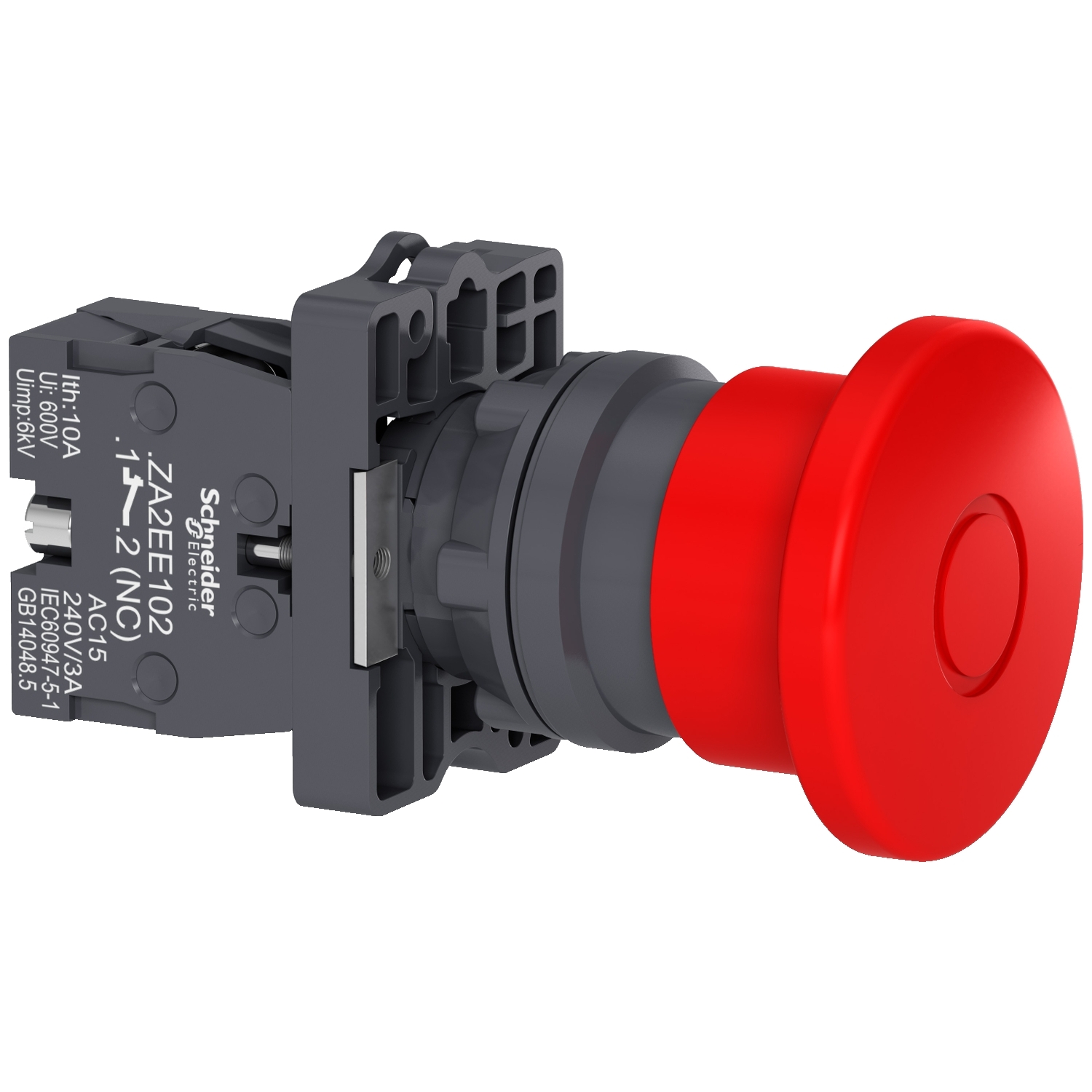

Schneider XA2ET42 | Red Ø40 Emergency swtiching off push-button Ø22 non trigger – push-pull 1NC

Schneider XA2ET42: Red Ø40 Emergency Switching Off Push-Button Ø22 – Non-Trigger – Push-Pull – 1NC

1. Overview

The Schneider XA2ET42 is a red emergency switching off push-button designed for industrial safety applications. It features a 40 mm mushroom head, a push-pull mechanism, and a 1 Normally Closed (1NC) contact. This switch is essential for emergency stop operations, ensuring safety and compliance with industry standards.

2. Technical Specifications

• Model: XA2ET42

• Product Type: Emergency switching off push-button

• Button Color: Red

• Head Diameter: Ø40 mm

• Mounting Diameter: Ø22 mm

• Contact Type: 1 Normally Closed (1NC)

• Operation Mode: Push-pull (push to stop, pull to reset)

• Trigger Action: Non-triggering

• Mechanical Durability: Up to 300,000 operations

• Electrical Durability: Up to 50,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

• Connection Type: Screw terminals

• Standards Compliance: IEC 60947-5-1, EN/IEC 60204-1

3. Applications

The Schneider XA2ET42 emergency push-button is designed for various safety and industrial applications, including:

• Machine Emergency Stop Systems: Provides a quick and reliable method to stop machinery.

• Industrial Automation Safety: Ensures compliance with safety regulations in automated systems.

• Conveyor and Production Lines: Used for stopping conveyor belts and production equipment during emergencies.

• Electrical Panels and Enclosures: Installed in control cabinets for emergency power shutdown.

• Cranes and Hoists: Acts as an emergency stop switch for heavy equipment.

• Manufacturing Plants: Ensures worker safety in high-risk environments.

4. Features

• Large Ø40 mm mushroom head for quick emergency activation.

• Push-pull operation for reliable reset functionality.

• Compact design for Ø22 mm panel mounting.

• Durable construction for industrial use.

• IP65 protection for dust and water resistance.

• Compliant with international safety standards.
