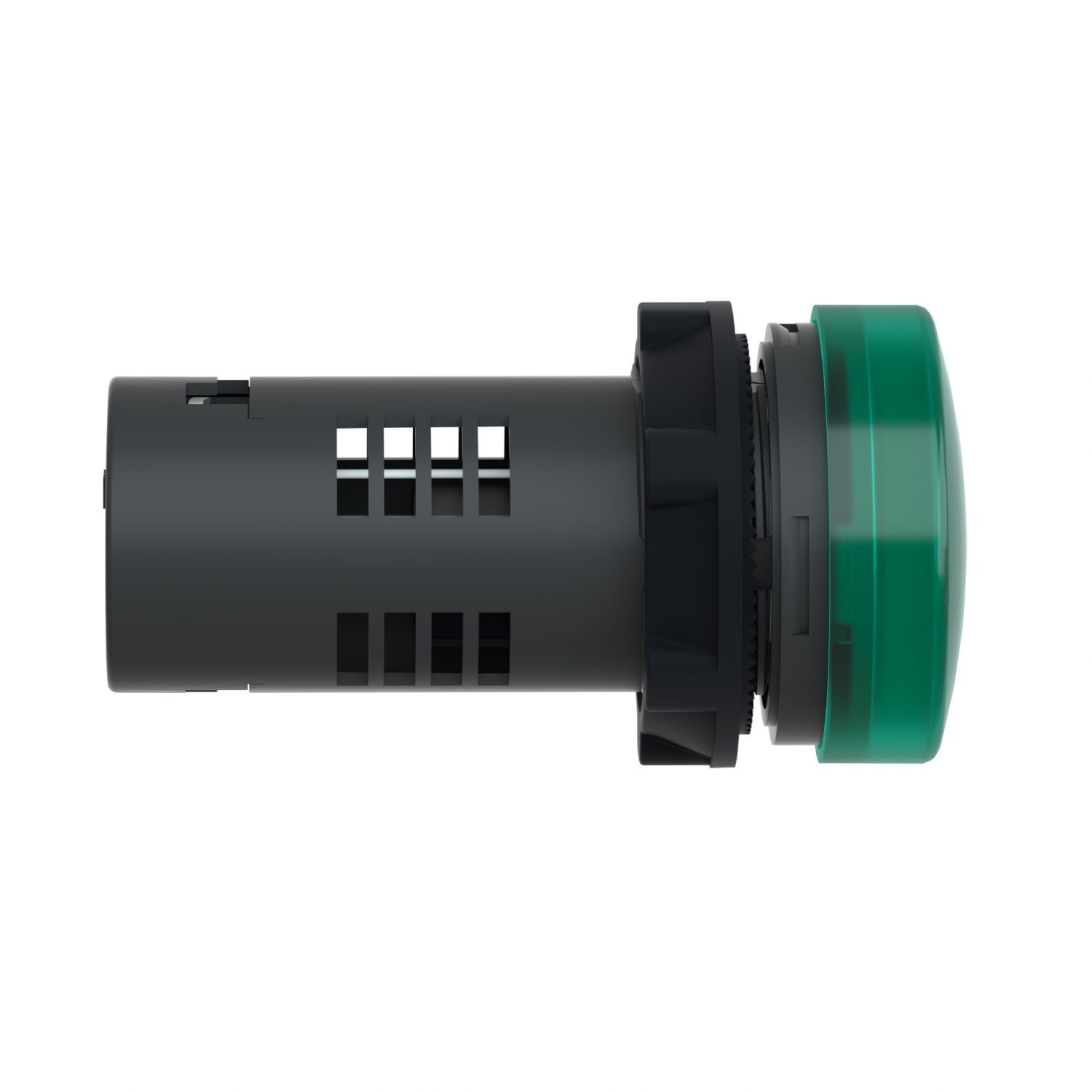

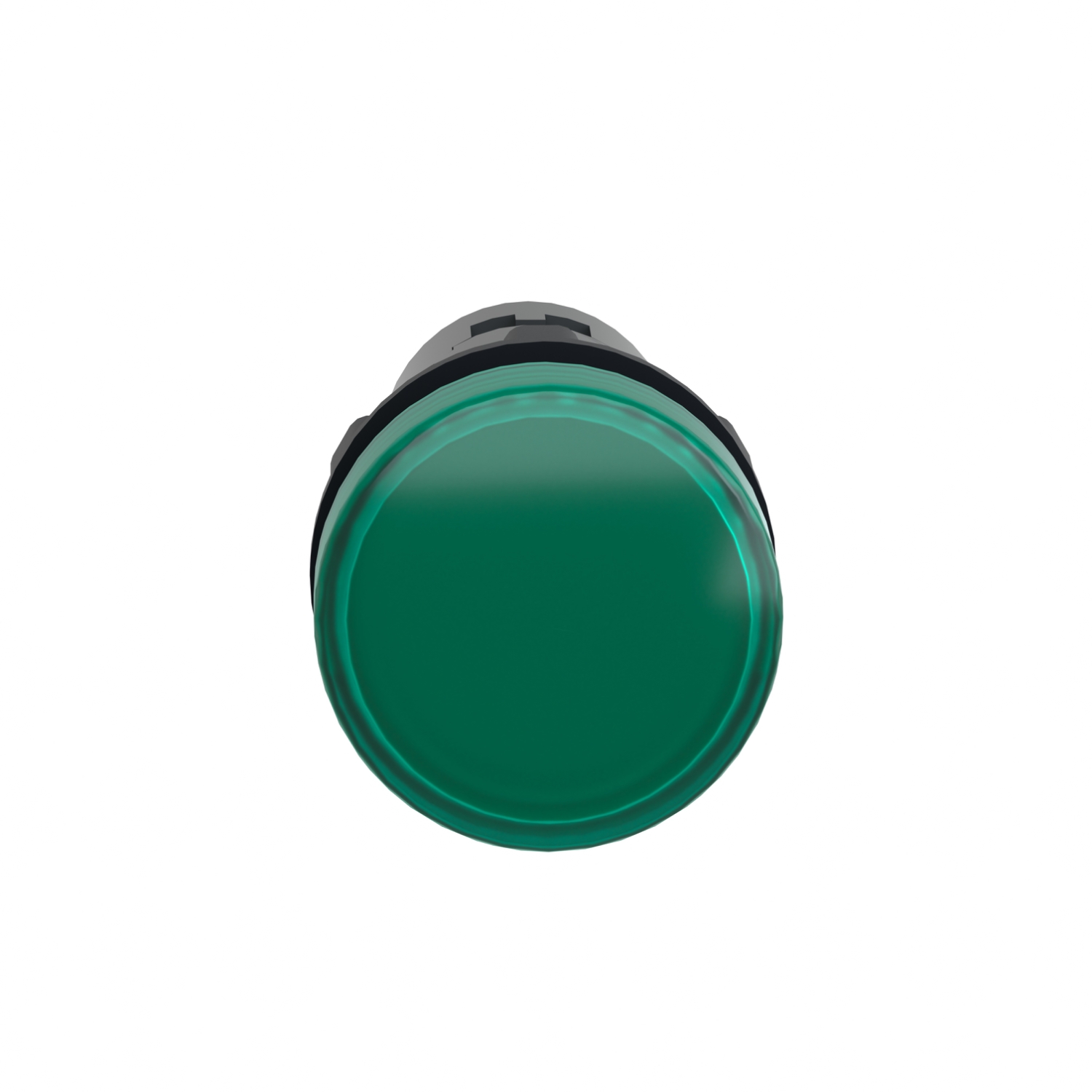

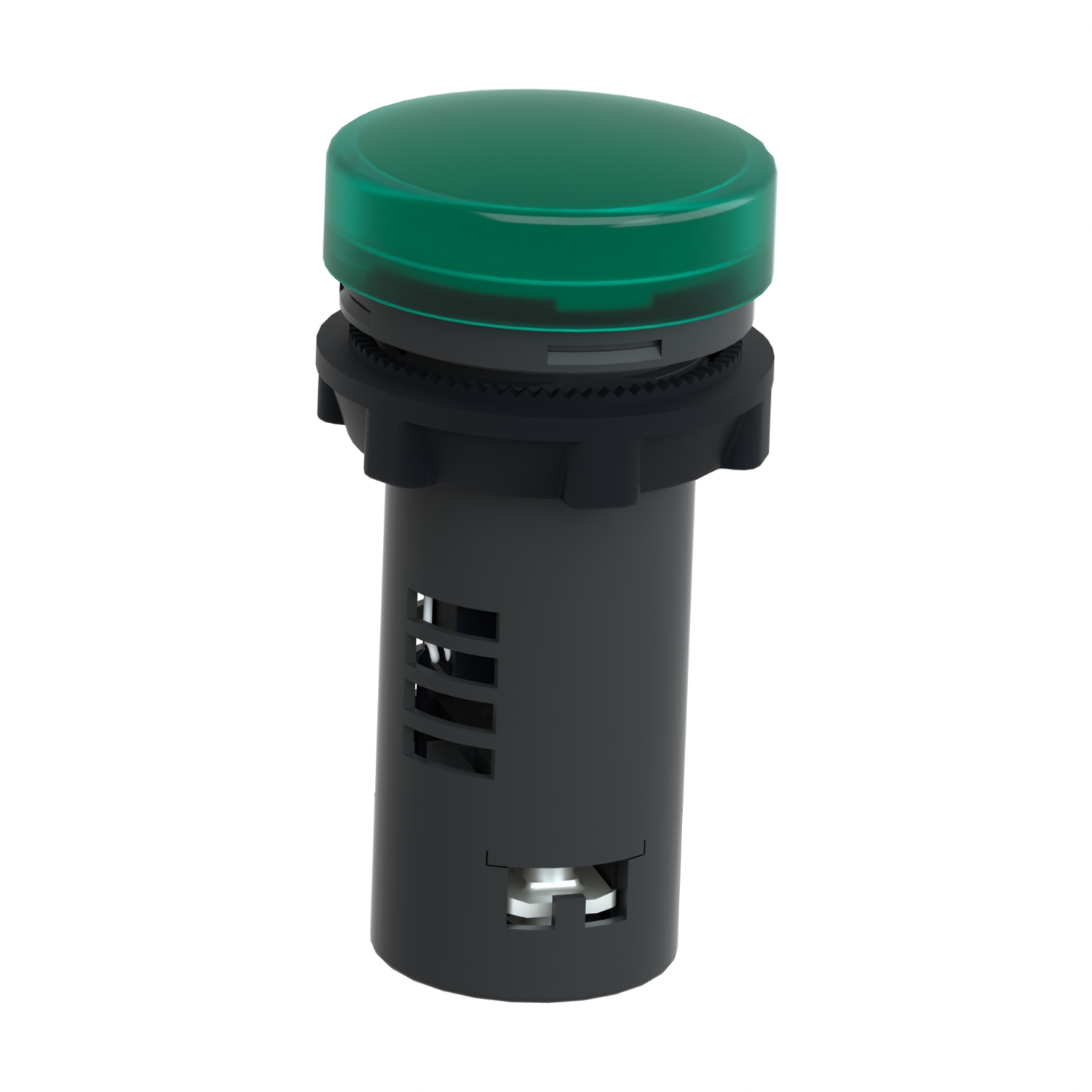

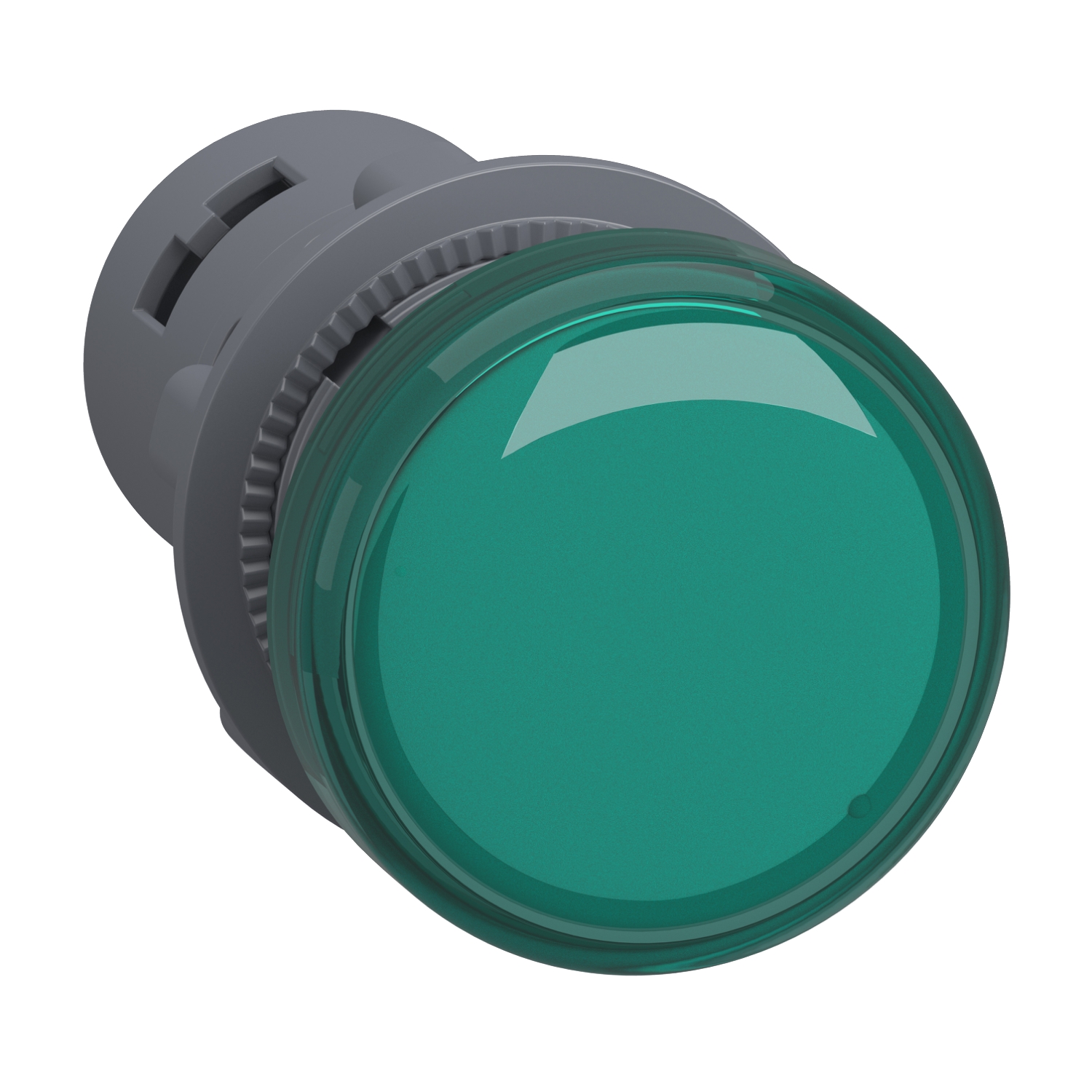

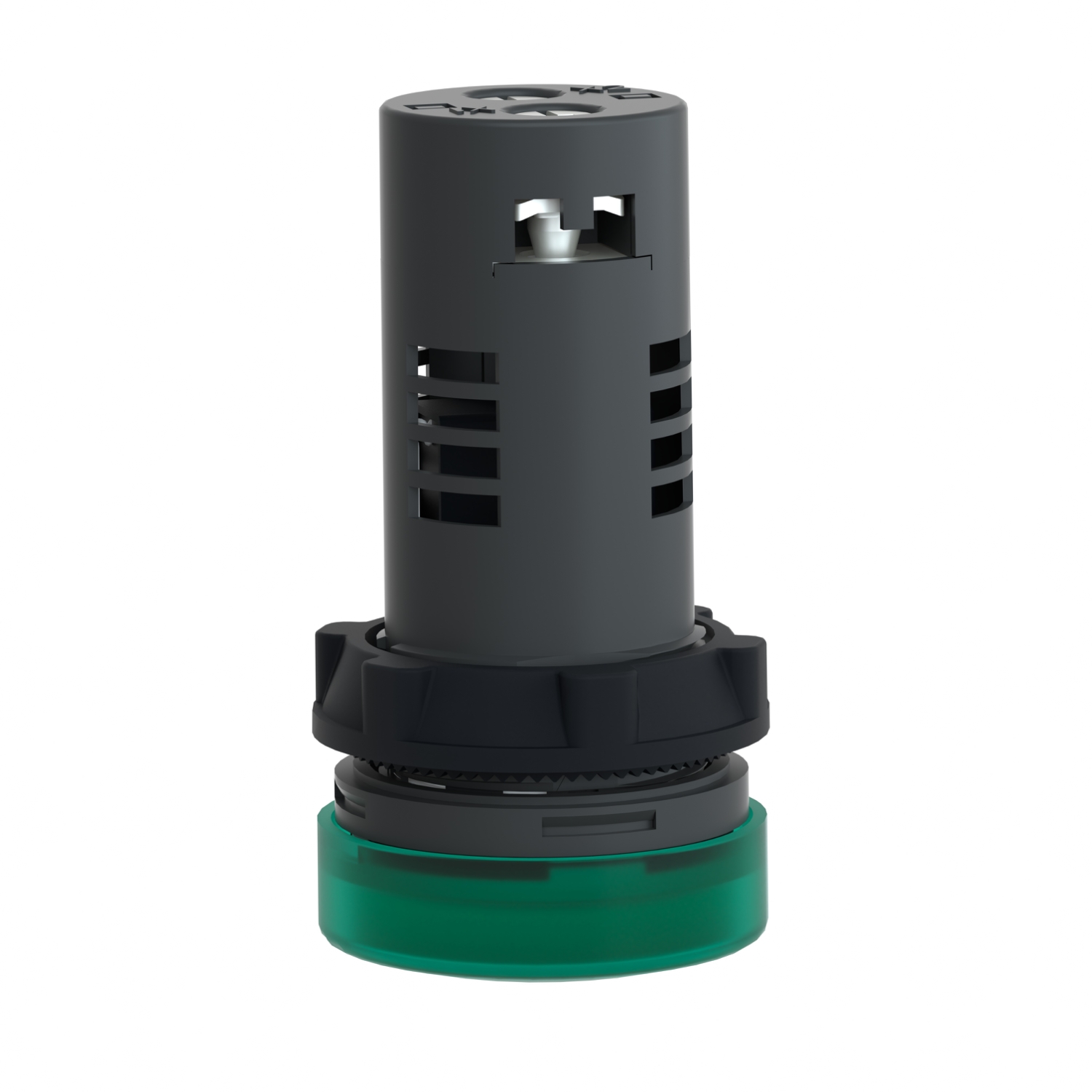

Schneider XA2EVF3LC | Round pilot light Ø 22 – green – integral LED – 110 V AC – screw clamp terminals

Schneider XA2EVF3LC: Round Pilot Light – Ø22 mm – Green – Integral LED – 110V AC – Screw Clamp Terminals

1. Overview

The Schneider XA2EVF3LC is a green pilot light designed for industrial and commercial applications. It features a 22 mm mounting diameter, an integral LED, and operates at 110V AC. This pilot light provides reliable visual indication and uses screw clamp terminals for secure connections.

2. Technical Specifications

• Model: XA2EVF3LC

• Product Type: Pilot light

• Color: Green

• Mounting Diameter: Ø22 mm

• Illumination Type: Integral LED

• Voltage Rating: 110V AC

• Luminous Intensity: High visibility in different lighting conditions

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

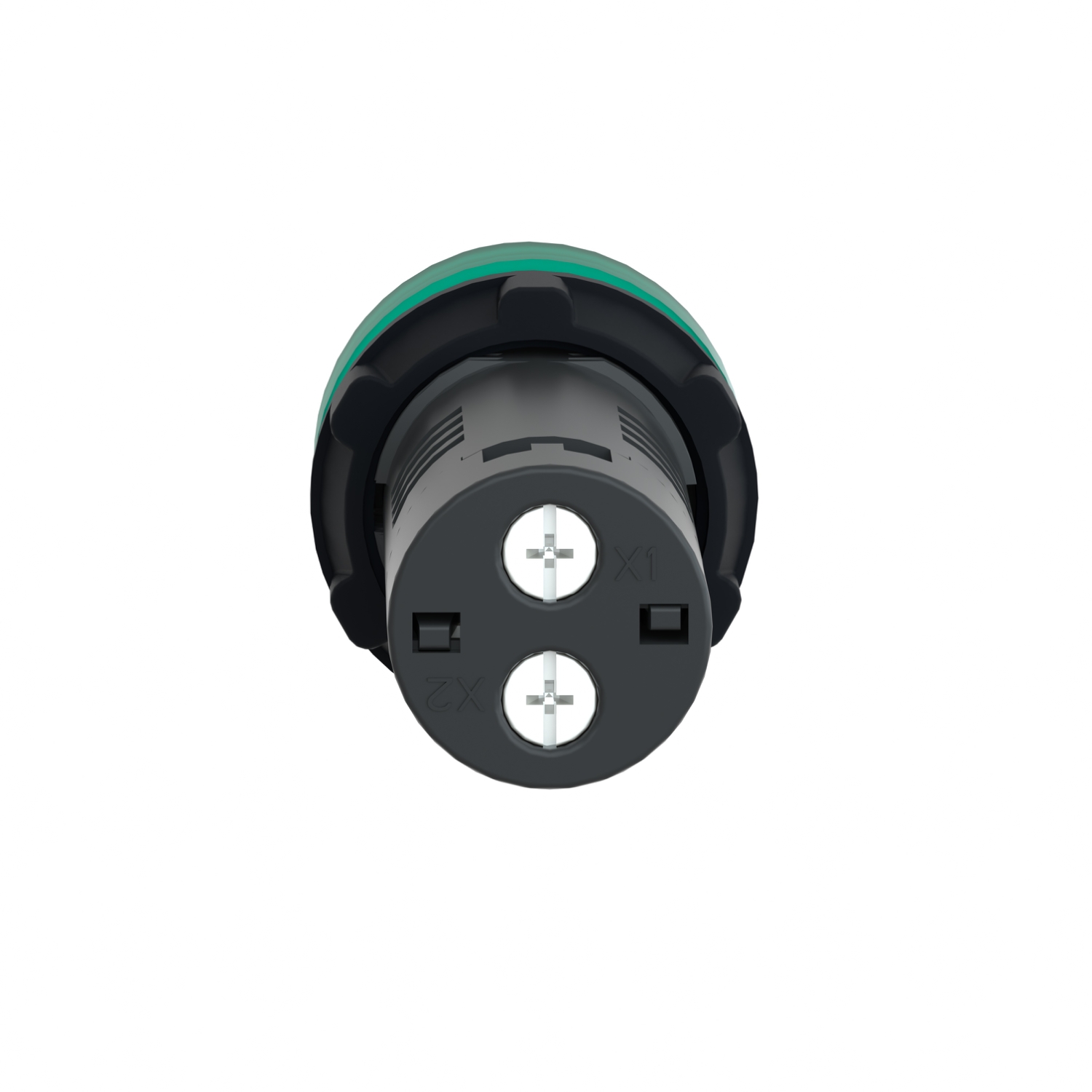

• Connection Type: Screw clamp terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

The Schneider XA2EVF3LC pilot light is widely used in various industrial and commercial applications, including:

• Control Panels: Provides status indication for electrical circuits.

• Industrial Machinery: Signals machine states such as power on, standby, or operational status.

• Automation Systems: Used for visual feedback in automated control processes.

• Power Distribution Boards: Indicates circuit activity and system status.

• Safety Systems: Alerts operators to equipment status or safety conditions.

• Building Management Systems: Integrated into electrical systems for monitoring.

4. Features

• Bright green LED for clear visibility.

• Integral LED for long-lasting performance.

• Compact design for Ø22 mm panel mounting.

• Durable construction for industrial environments.

• IP65 protection for dust and water resistance.

• Screw clamp terminals for secure wiring connections.

• Easy integration with Schneider Electric control components.
