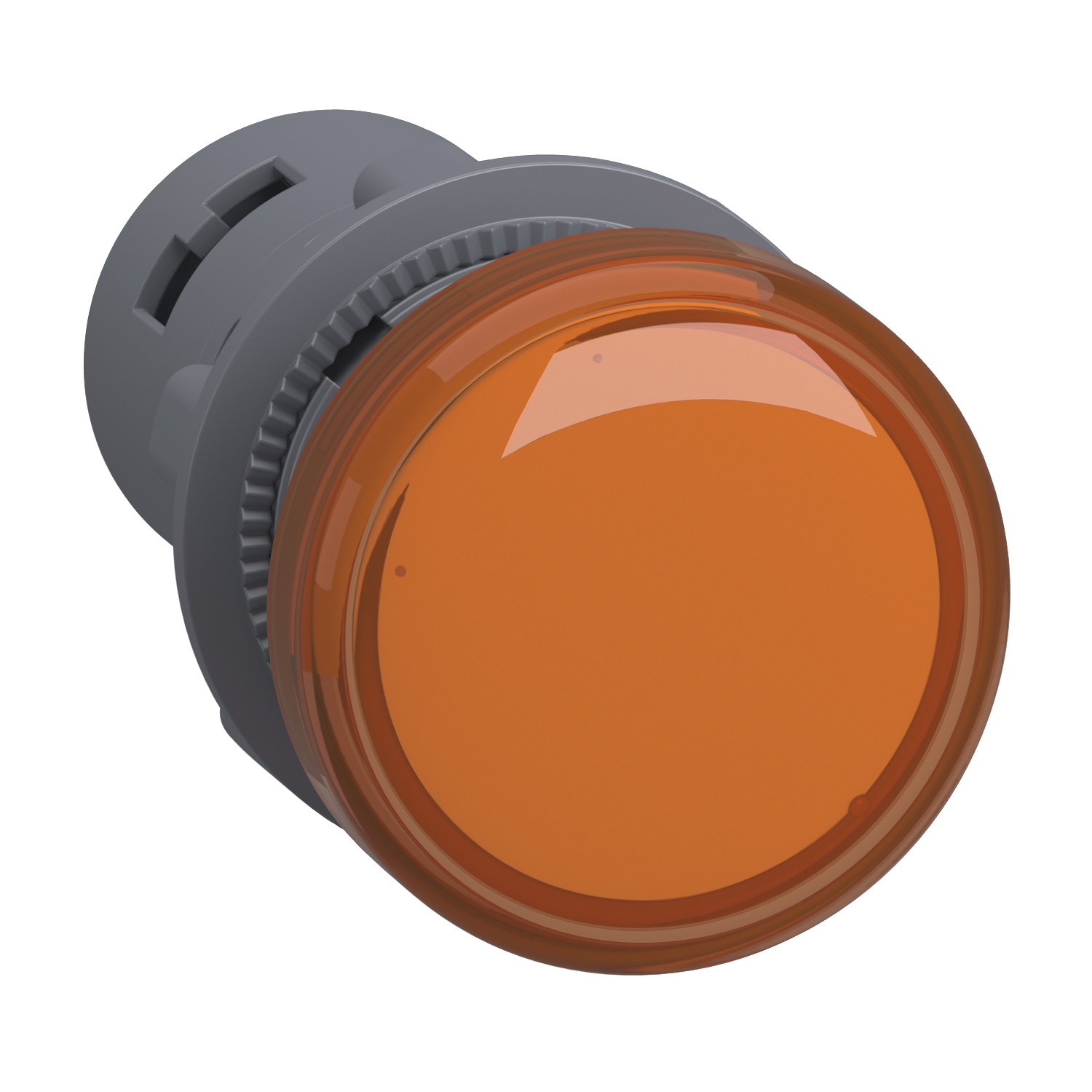

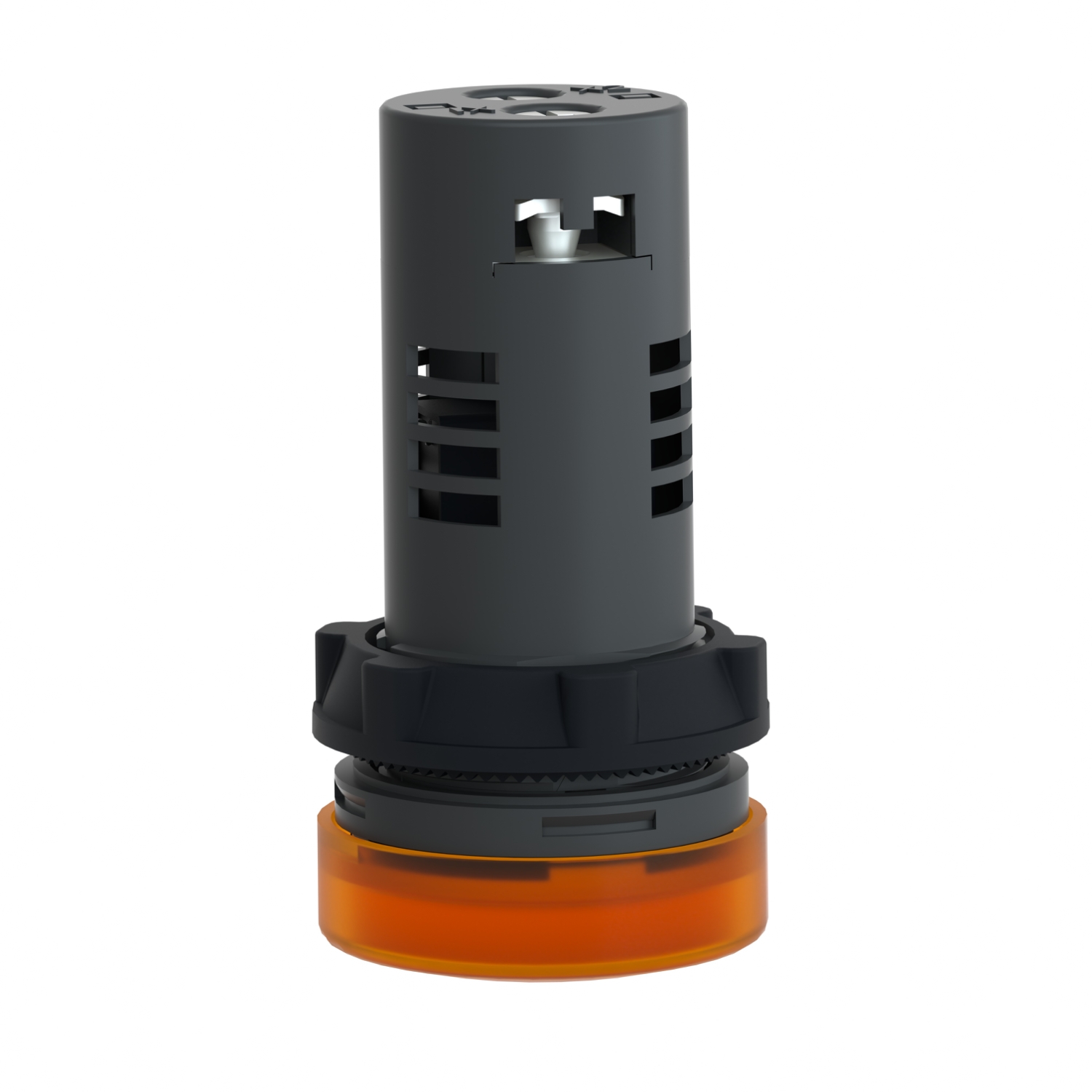

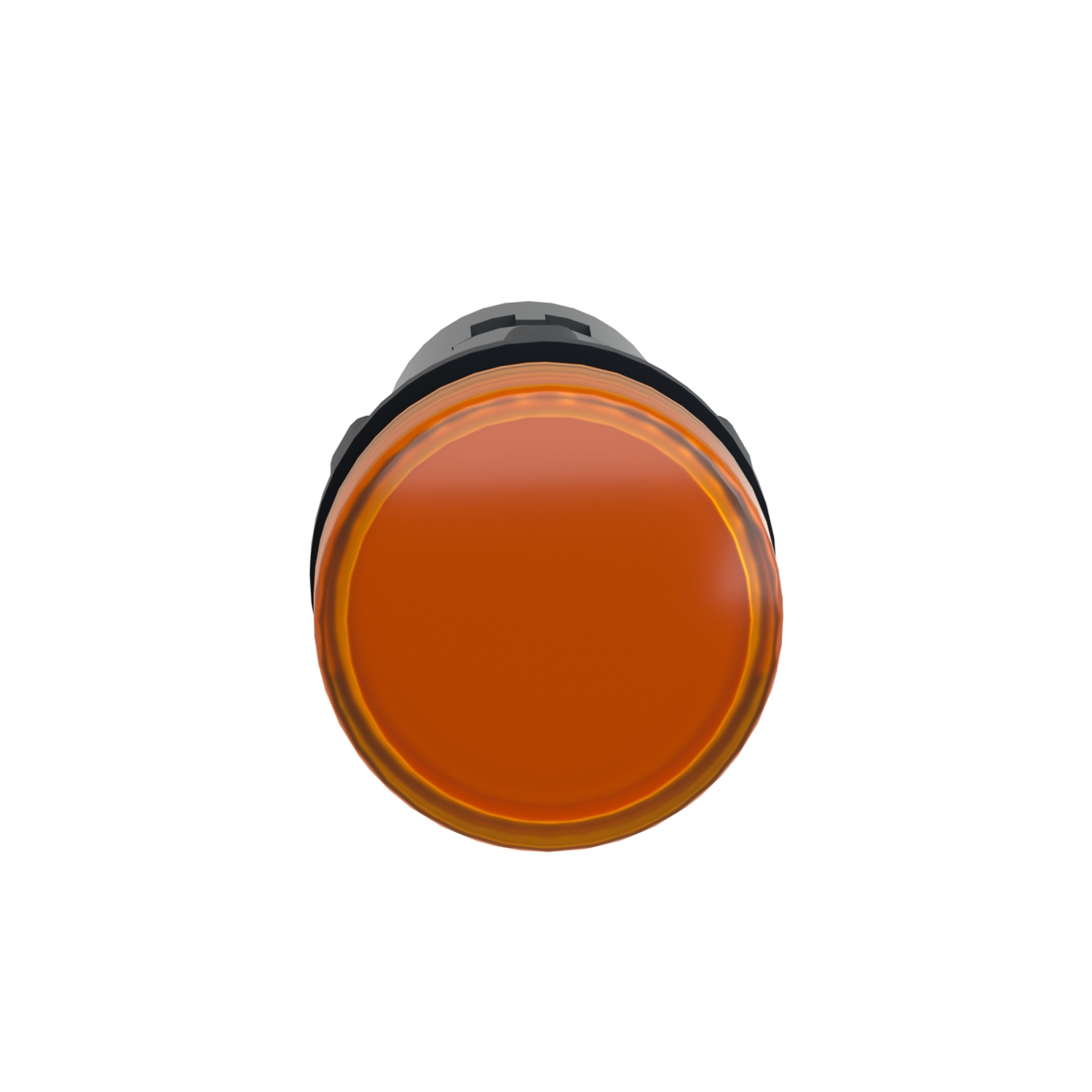

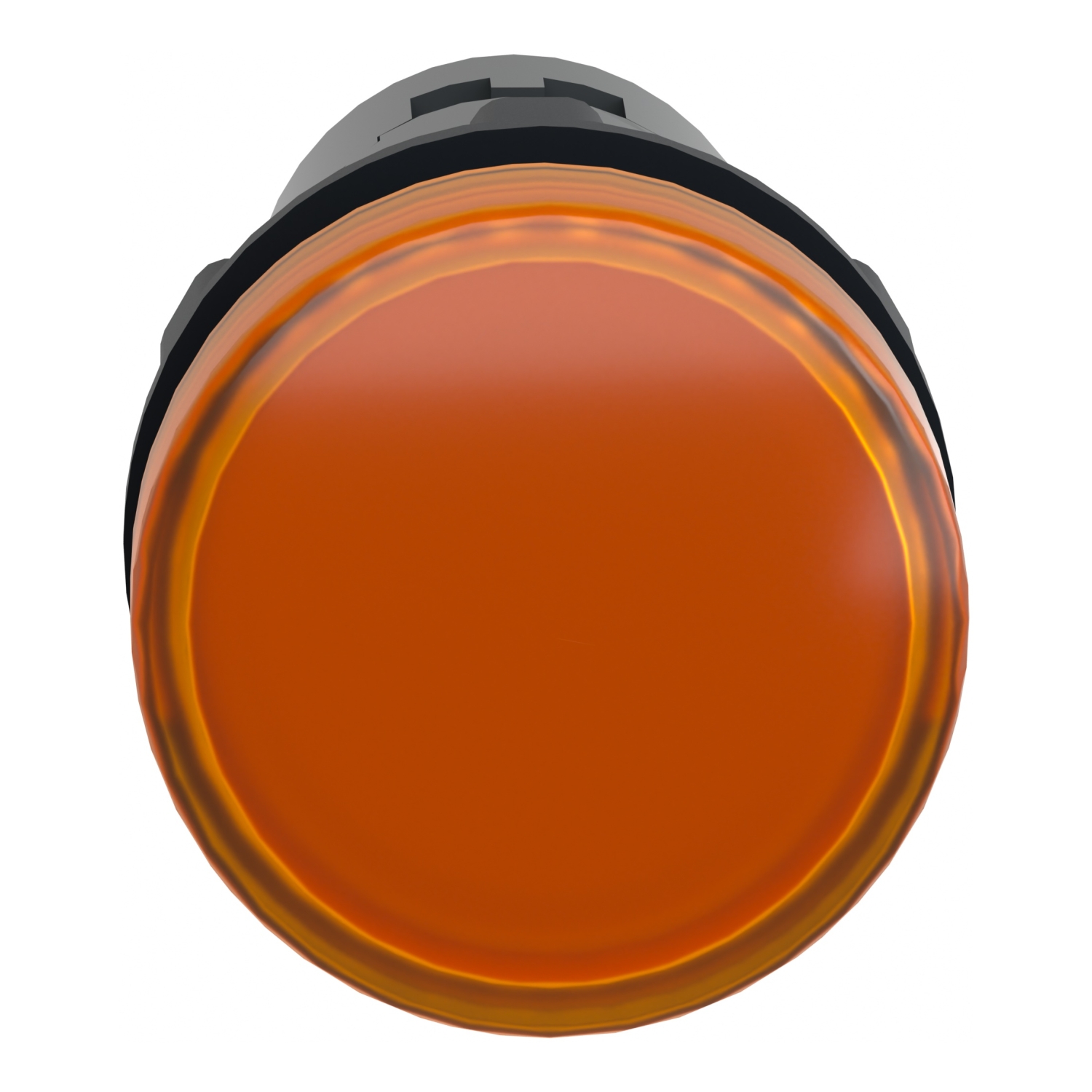

Schneider XA2EVQ5LC | Easy Harmony XA2E, Monolithic pilot light, plastic, amber, Ø22, integral LED, screw clamp terminals, 380…400 V AC, anti interference

1. Overview

The Schneider XA2EVQ5LC is a monolithic pilot light from the Easy Harmony XA2 series, designed for providing clear visual status indicators in industrial applications. This amber-colored LED pilot light operates with 380-400V AC power, making it suitable for high-voltage environments. The pilot light is equipped with integral LED technology for long-lasting, energy-efficient operation, and features screw clamp terminals for secure wiring connections. Additionally, it is designed with anti-interference capabilities to ensure reliable performance even in environments with electrical noise or disturbances.

2. Key Features

• Type: Monolithic pilot light for reliable status indication.

• Color: Amber, ideal for signaling intermediate or cautionary states, such as warnings or transitional operations.

• Material: Constructed from plastic for durability and ease of installation.

• Voltage Range: Operates within 380-400V AC, making it suitable for use in higher voltage applications.

• Integral LED: Built-in LED ensures energy efficiency, longevity, and minimal maintenance.

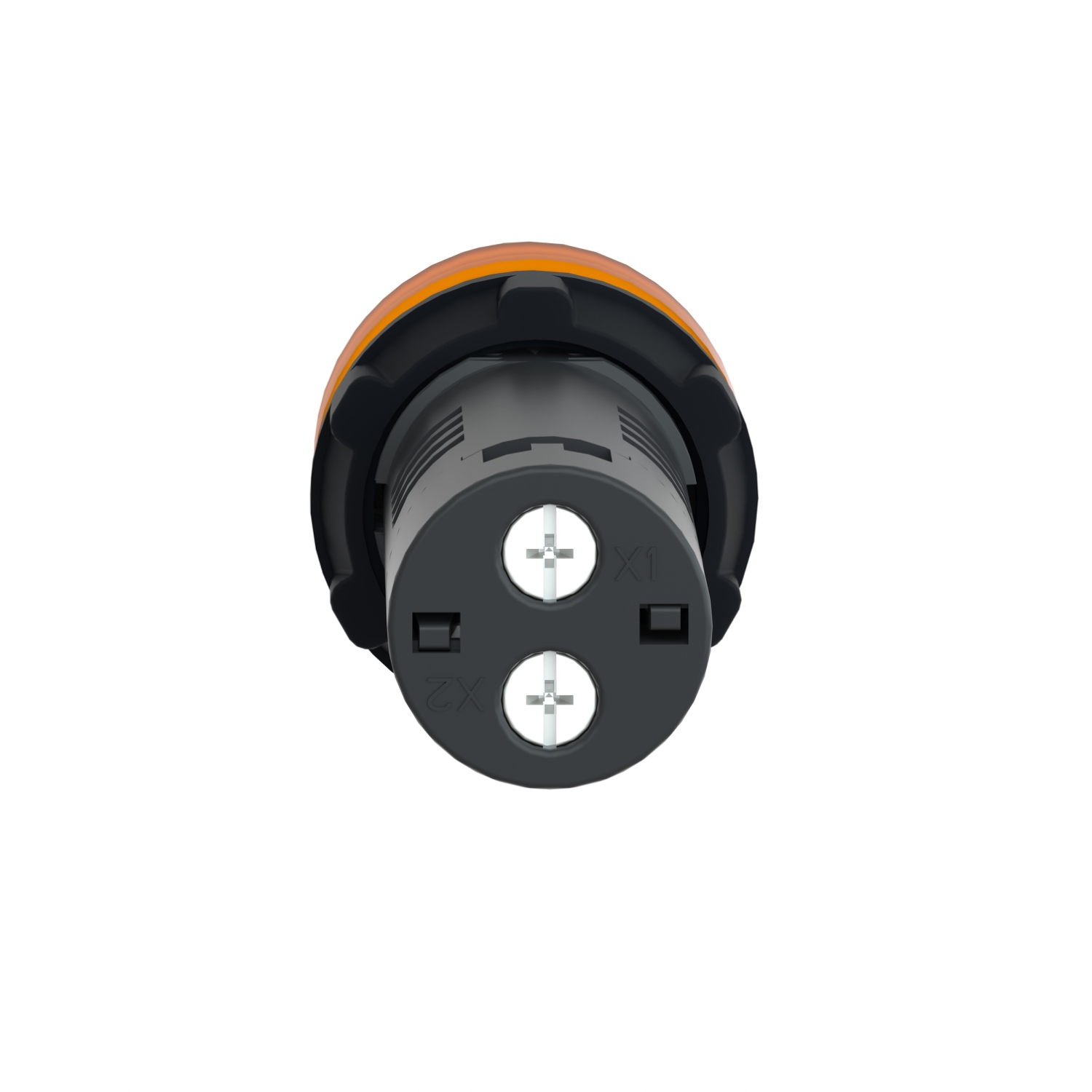

• Terminals: Screw clamp terminals for secure and easy wiring connections.

• Anti-Interference: Features anti-interference technology to prevent disruptions from electrical noise and maintain reliable signaling.

• Size: Ø22 mm mounting diameter, compatible with standard control panel cutouts.

3. Applications

• Industrial Control Panels: Used to indicate various system statuses or alerts in control panels for machinery or processes.

• Automation Systems: Ideal for use in automated processes where clear, visible indicators of system status are necessary for efficient operation.

• Machinery Monitoring: Can be employed to signal operational states, such as power-on or warning conditions, in machinery and production lines.

• Process Control: Provides visual feedback in process control systems to communicate status changes or fault conditions.

4. Benefits

• Energy Efficiency: The integral LED technology provides low energy consumption, extending the life of the pilot light while reducing operating costs.

• Clear Status Indication: The amber color ensures clear signaling of specific operational states, such as warnings or intermediate processes.

• Reliable Performance: The anti-interference feature ensures that the pilot light continues to function properly even in electrically noisy environments.

• Durability: Constructed from high-quality plastic, this pilot light is built to withstand the rigors of industrial environments, offering long-term reliability.

• Easy Installation: The screw clamp terminals make for straightforward and secure wiring, ensuring easy integration into control systems.

• High Voltage Compatibility: The 380-400V AC range ensures compatibility with high-voltage industrial systems, expanding its use in various industrial applications.

5. Conclusion

The Schneider XA2EVQ5LC monolithic pilot light is a robust and energy-efficient solution for indicating system status in industrial environments. With its amber LED illumination, 380-400V AC power rating, and anti-interference technology, it provides clear, reliable signaling even in electrically noisy environments. Its plastic construction, integral LED, and screw clamp terminals make it both durable and easy to integrate into a wide range of industrial control panels and automation systems. This pilot light is an essential tool for enhancing operator awareness and ensuring smooth operations in high-voltage settings.
