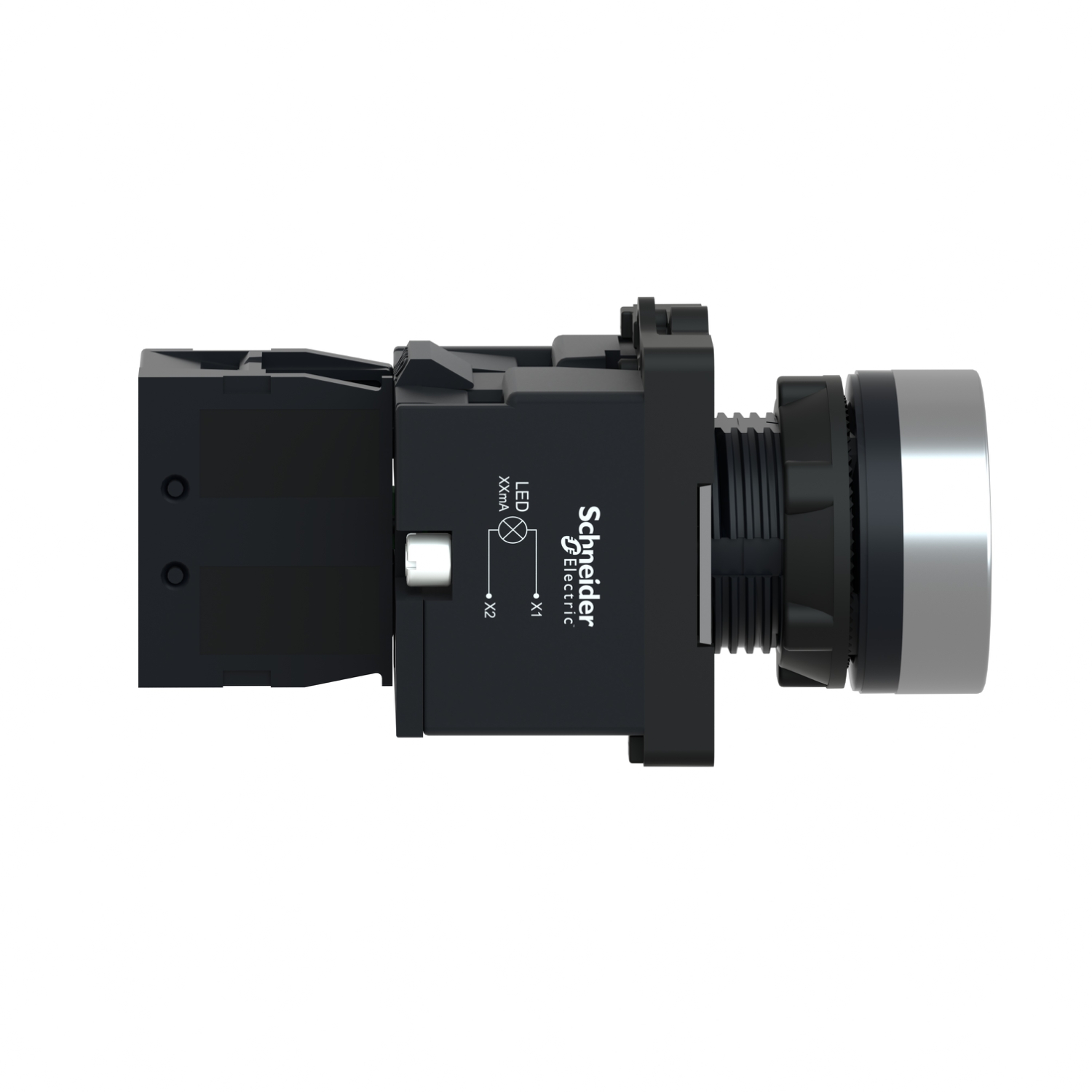

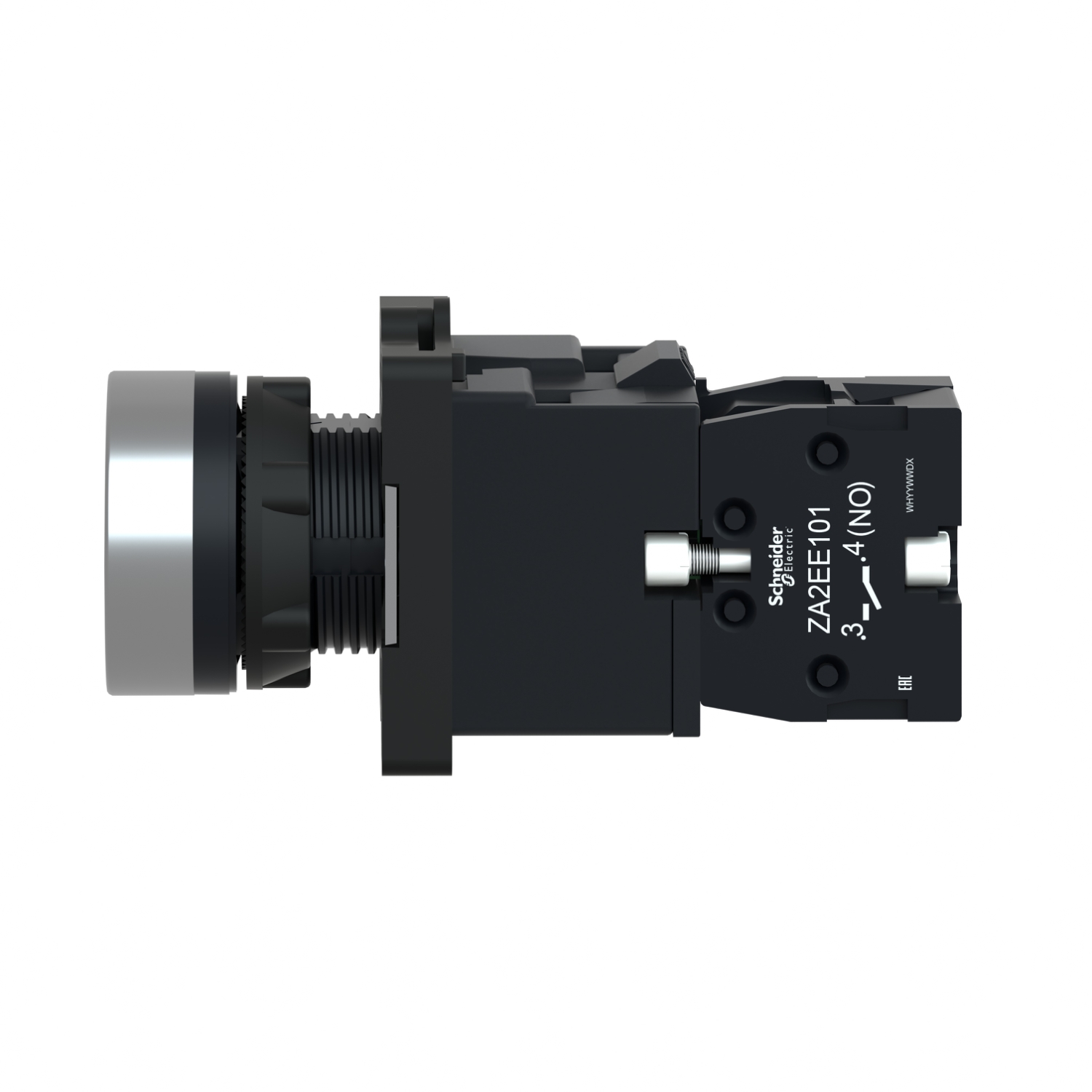

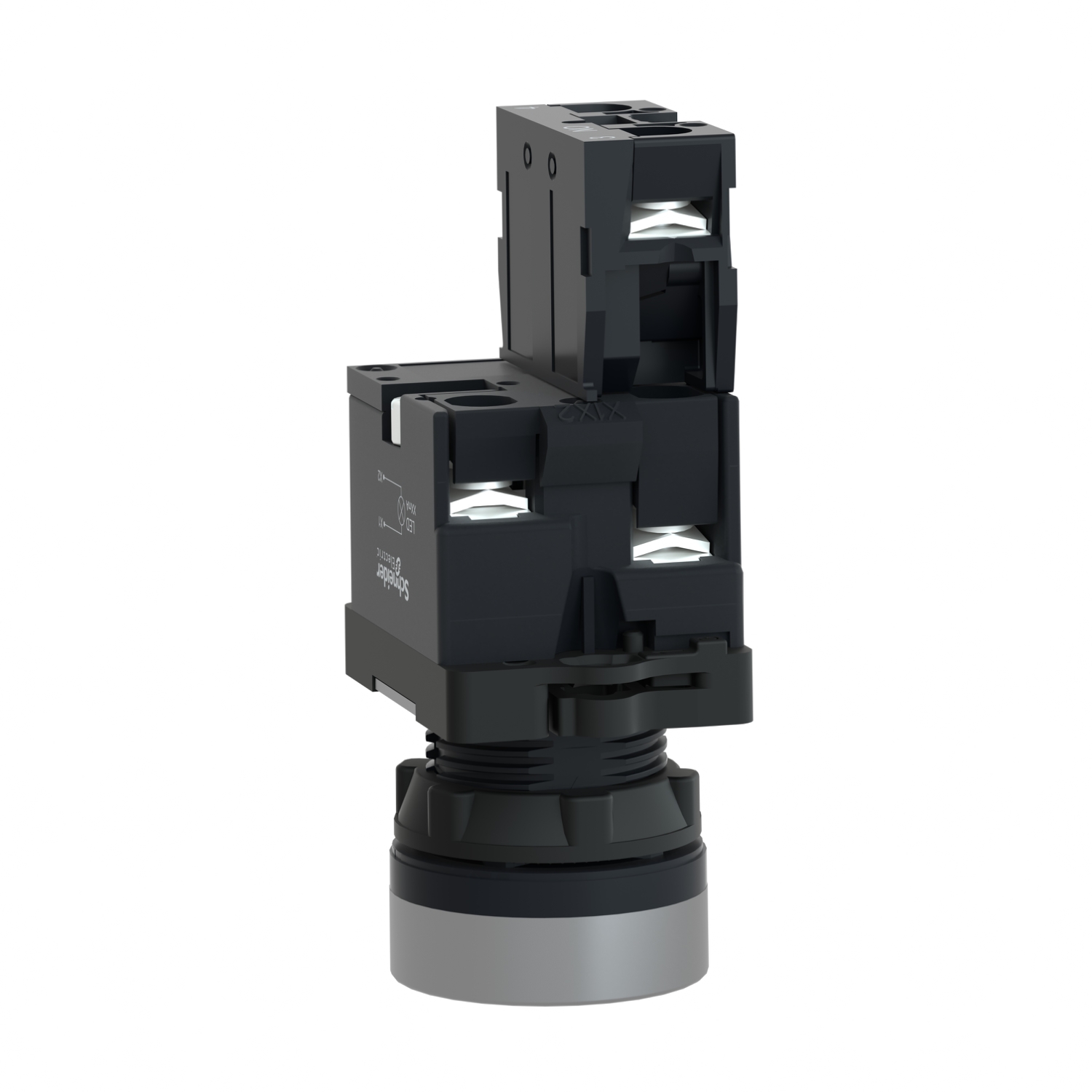

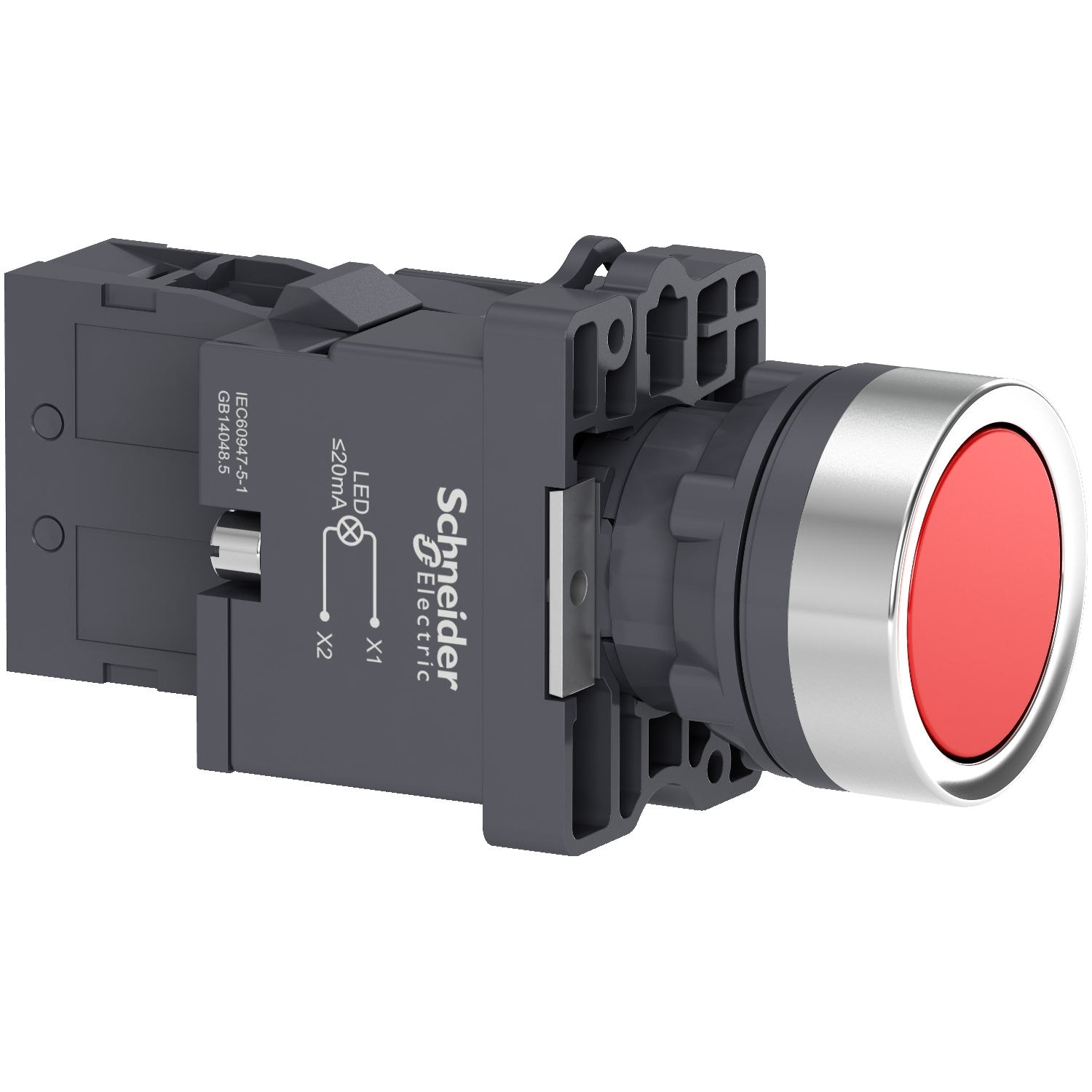

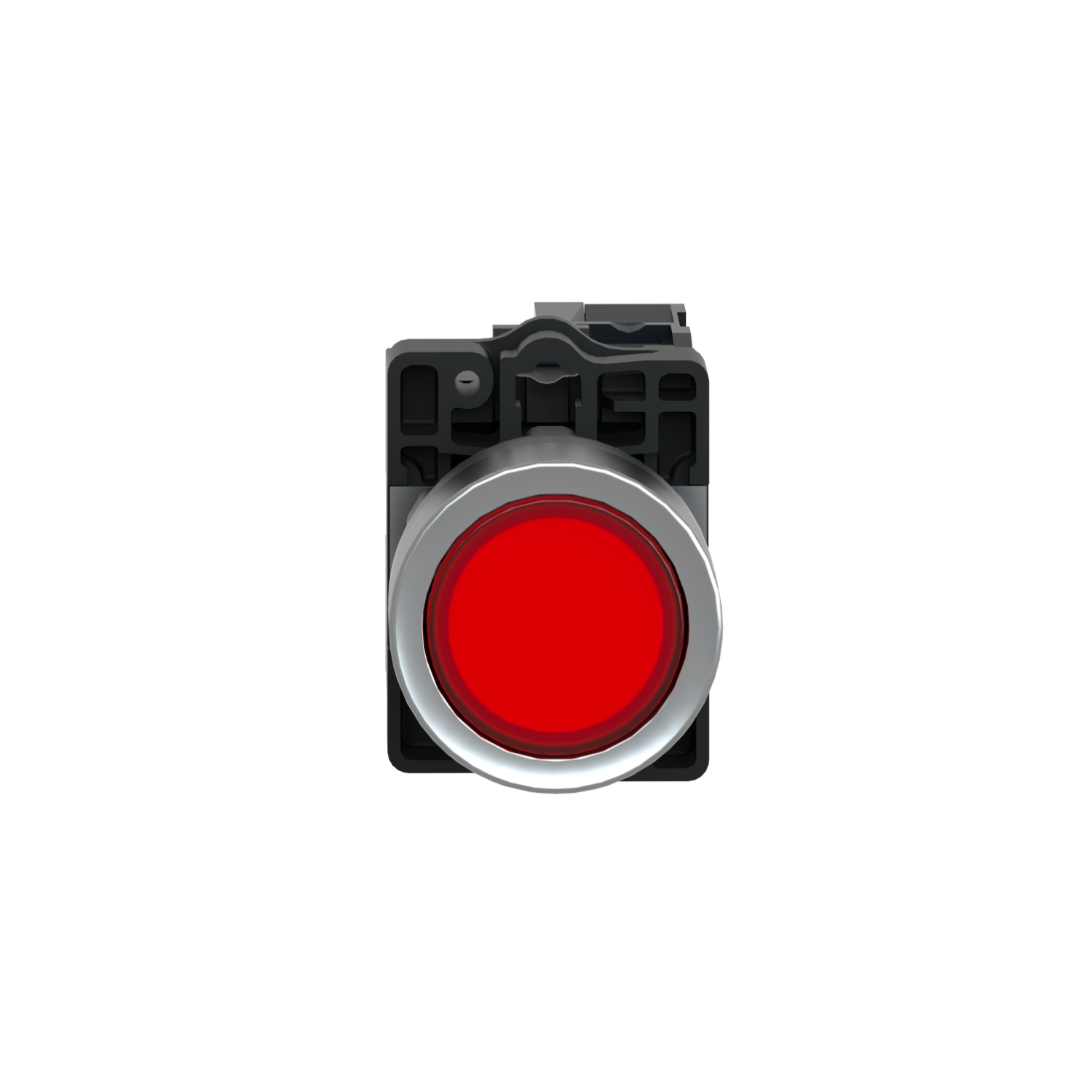

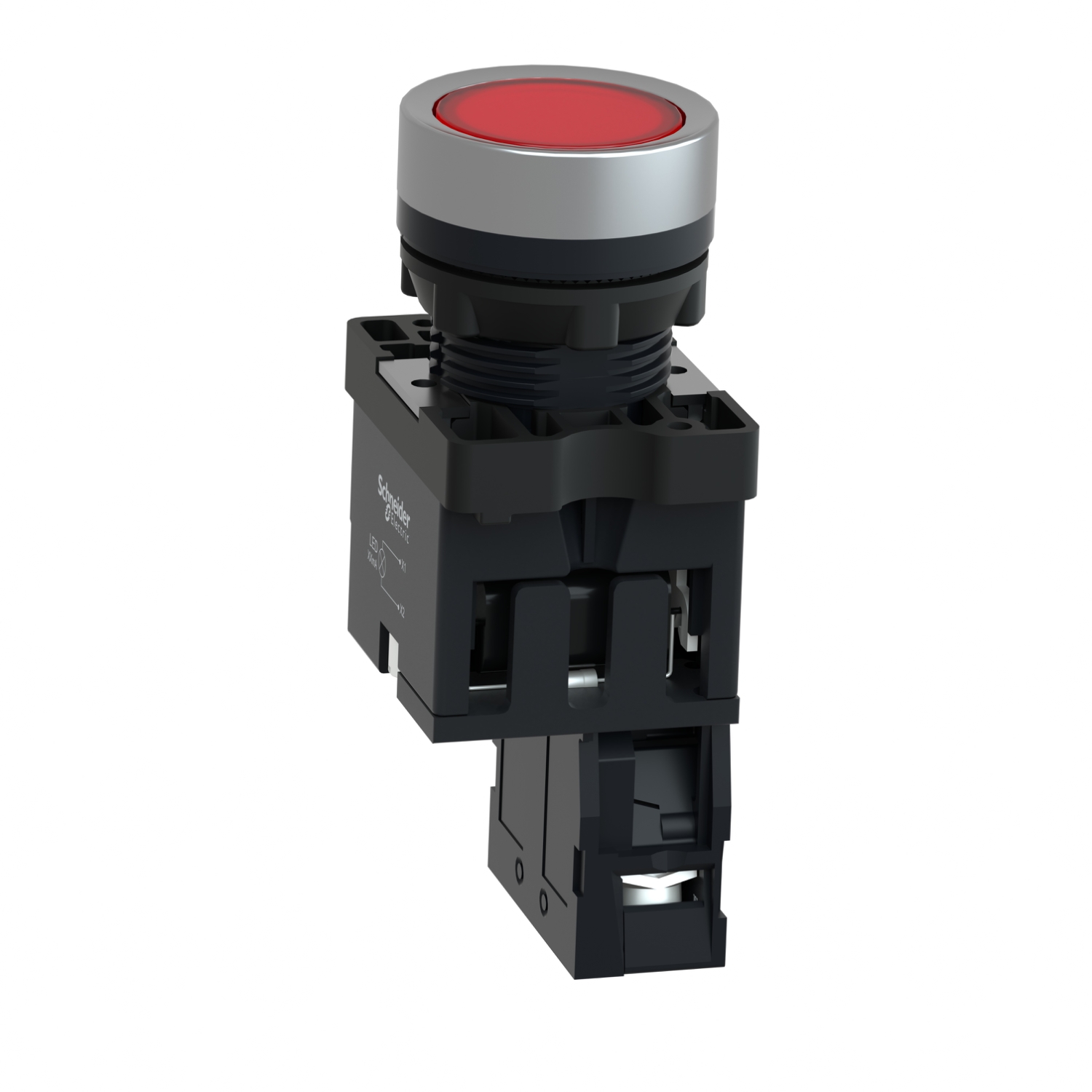

Schneider XA2EW34M1 | Red flush complete illum push-button – Ø22 – flush – 220V AC – 1NO

Schneider XA2EW34M1: Red Flush Complete Illuminated Push-Button – Ø22 – Flush – 220V AC – 1NO

1. Overview

The Schneider XA2EW34M1 is an illuminated push-button designed for industrial and commercial applications. It features a red flush button with built-in illumination, ensuring clear visibility in various environments. This push-button operates at 220V AC and includes a 1 Normally Open (1NO) contact.

2. Technical Specifications

• Model: XA2EW34M1

• Product Type: Complete illuminated push-button

• Button Color: Red

• Mounting Diameter: Ø22 mm

• Button Shape: Flush

• Illumination Type: Built-in LED

• Rated Voltage: 220V AC

• Contact Type: 1 Normally Open (1NO)

• Mechanical Durability: Up to 1,000,000 operations

• Electrical Durability: Up to 100,000 operations at full load

• Operating Temperature: -25°C to +55°C

• Storage Temperature: -40°C to +70°C

• Ingress Protection (IP Rating): IP65 (dust-tight and water-resistant)

• Front Material: High-strength plastic

• Base Material: Metal

• Mounting Type: Panel mounting

• Connection Type: Screw terminals

• Standards Compliance: IEC 60947-5-1

3. Applications

• Industrial control panels

• Machinery start and stop operations

• Factory automation systems

• Electrical enclosures and cabinets

4. Features

• Illuminated push-button for enhanced visibility

• Compact design suitable for 22 mm panel cutouts

• Flush-mounted for a sleek and modern appearance

• Durable construction for industrial environments

• Easy integration into electrical control circuits
