Description

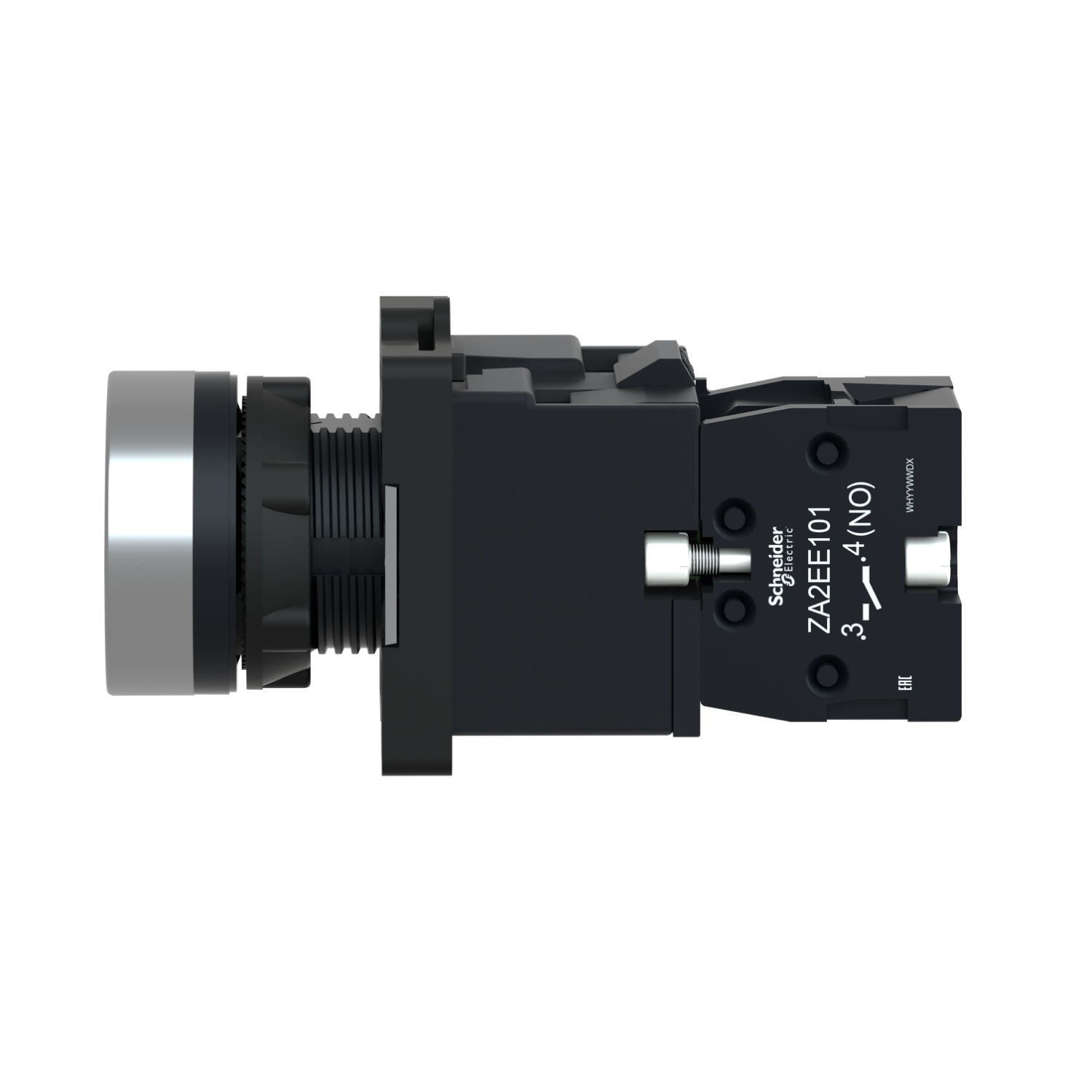

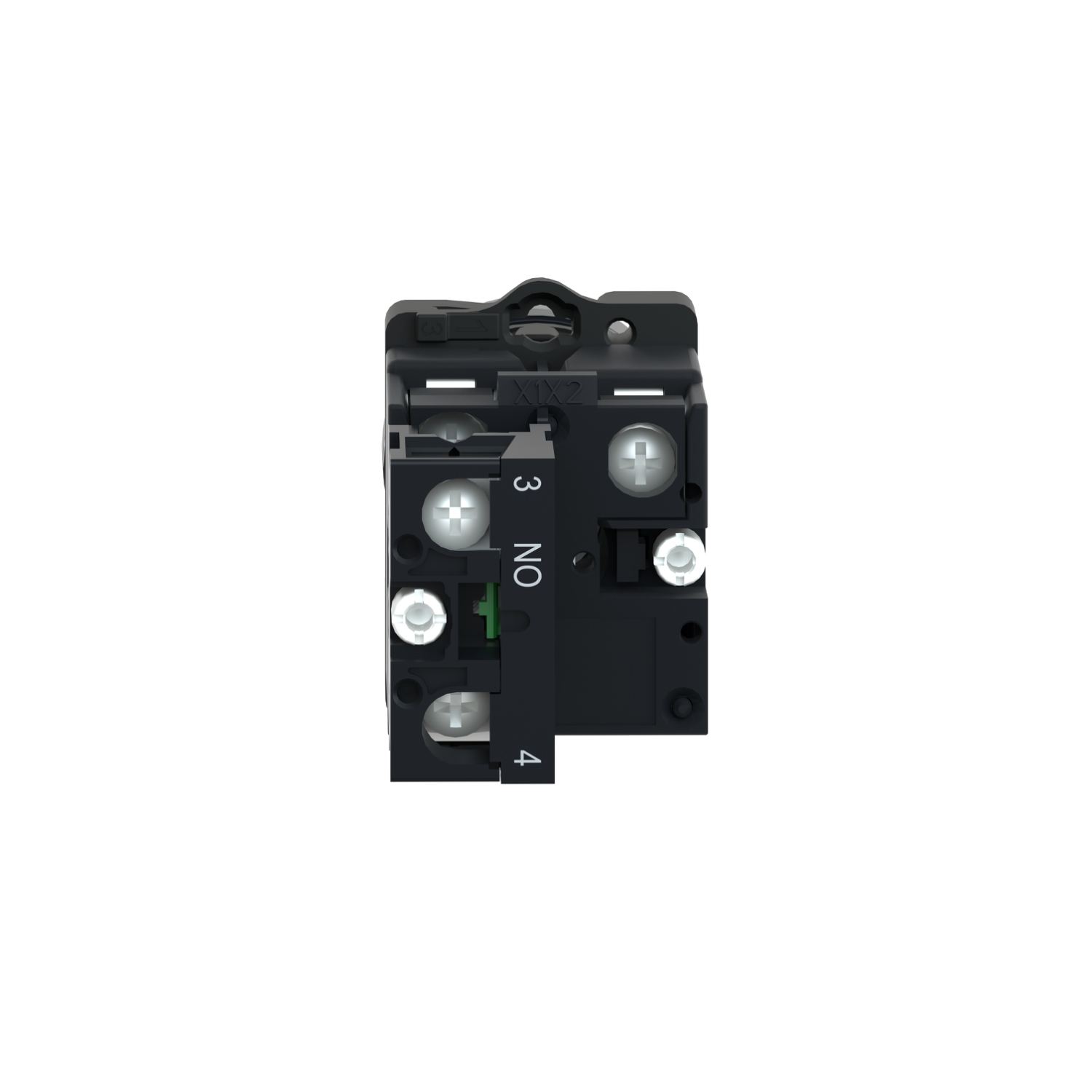

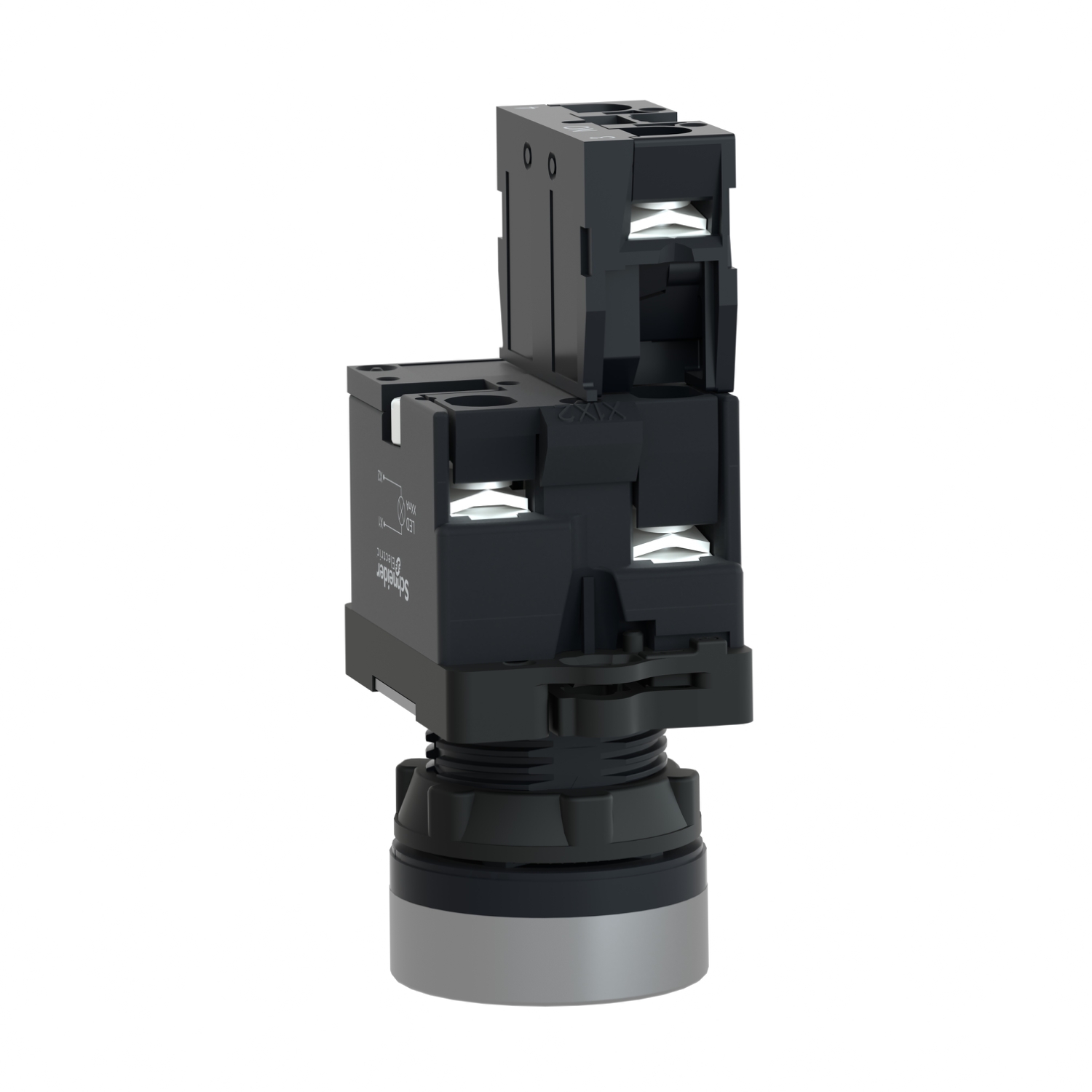

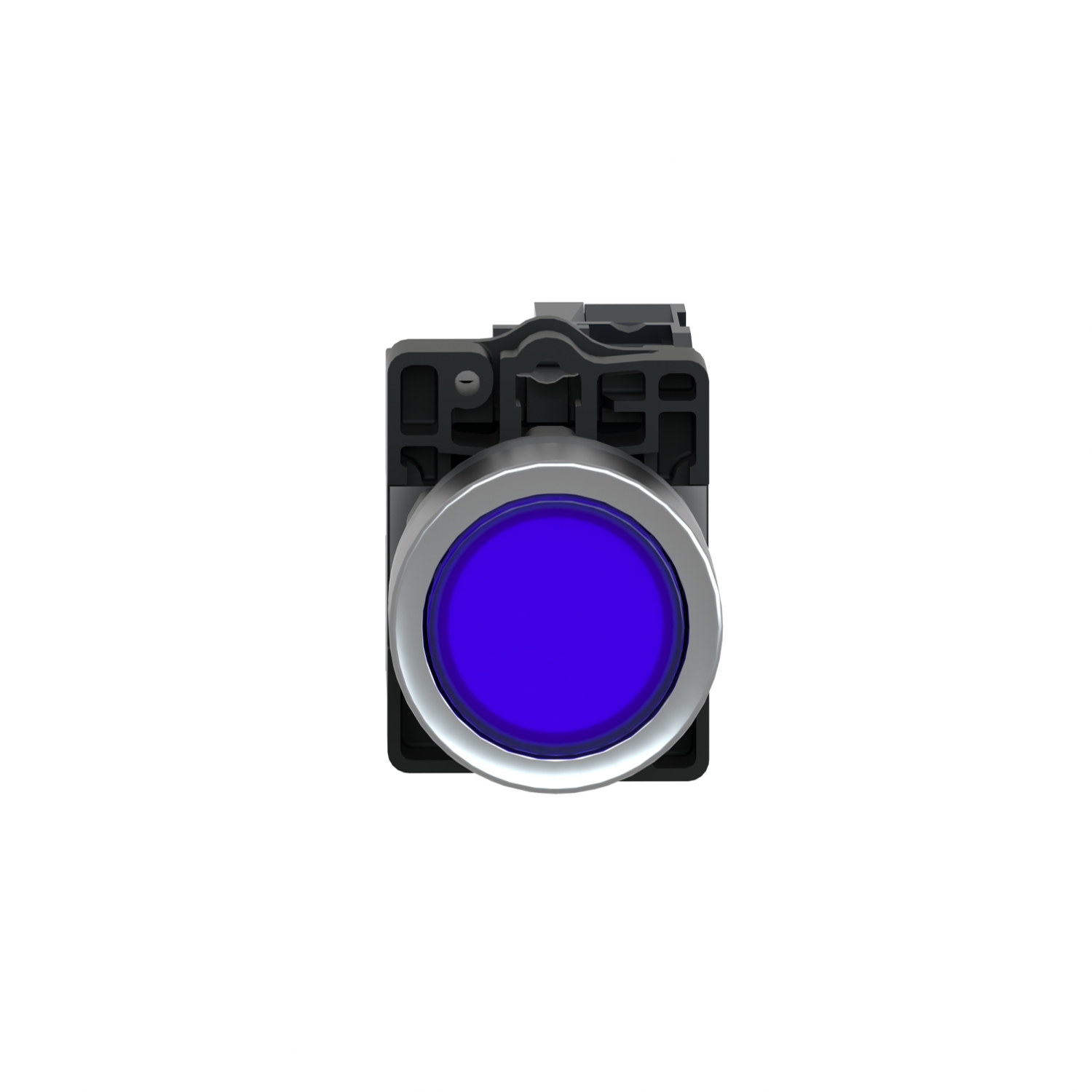

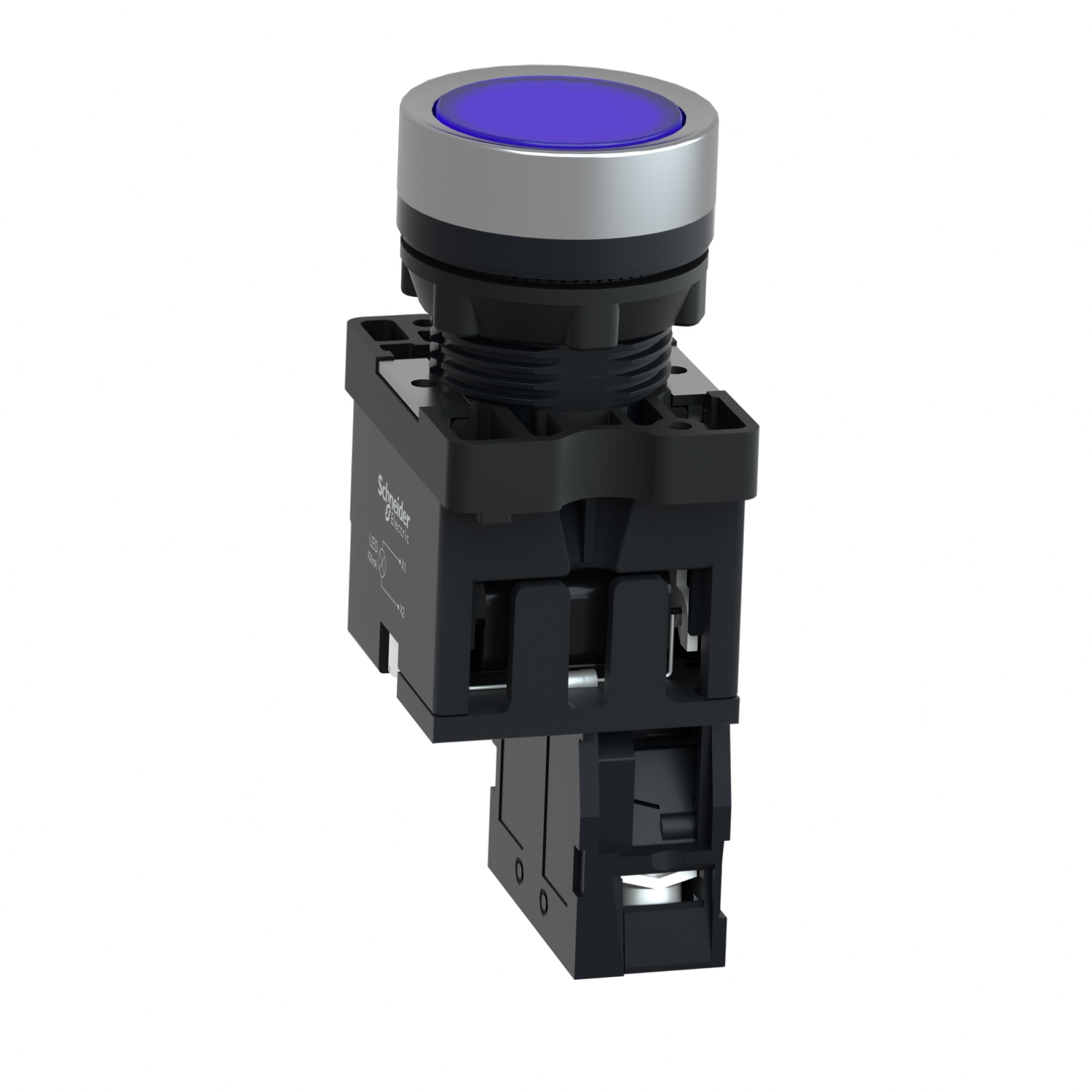

Schneider XA2EW36B1 Harmony | Complete Illuminated Push-Button – Ø22mm – Blue – Spring Return – 24V AC/DC – 1NO
1. Overview
The Schneider XA2EW36B1 is a complete illuminated push-button from the Harmony XA2 series, designed for industrial control applications. It features a blue flush button, operates at 24V AC/DC, and includes a spring return mechanism with a 1NO (normally open) contact. With a 22mm mounting diameter, it ensures easy integration into control panels.
2. Key Features
- Model: XA2EW36B1
- Series: Harmony XA2
- Color: Blue
- Button Type: Flush illuminated push-button
- Mechanism: Spring return (momentary action)
- Contact Type: 1NO (Normally Open)
- Operating Voltage: 24V AC/DC
- Illumination Type: LED for clear status indication
- Mounting Diameter: 22mm
- Material: High-quality plastic construction
3. Technical Specifications
- Voltage Rating: 24V AC/DC
- Electrical Durability: Long operational lifespan
- Mechanical Lifespan: High durability for industrial use
- Protection Rating: IP65 (Dust and water-resistant)
- Operating Temperature Range: -25°C to +70°C
- Certifications & Compliance: CE, RoHS, IEC standards
4. Applications
- Industrial control panels
- Machinery start/stop functions
- Process automation systems
- Operator control stations requiring illuminated status feedback
- Electrical control applications in manufacturing and production lines
5. Benefits
- High Visibility: LED illumination ensures clear operational feedback
- Reliable & Durable: Industrial-grade construction for extended use
- Energy Efficient: LED technology reduces power consumption
- Easy Installation: Standard 22mm mounting for compatibility with various control panels
- Compliance with Safety Standards: Ensures secure operation in industrial environments
6. Conclusion
The Schneider XA2EW36B1 Harmony illuminated blue push-button is a high-quality control device, offering LED illumination, a flush design, and a 1NO contact for efficient industrial applications. It is an ideal solution for automation, process control, and machinery operations requiring illuminated feedback.
