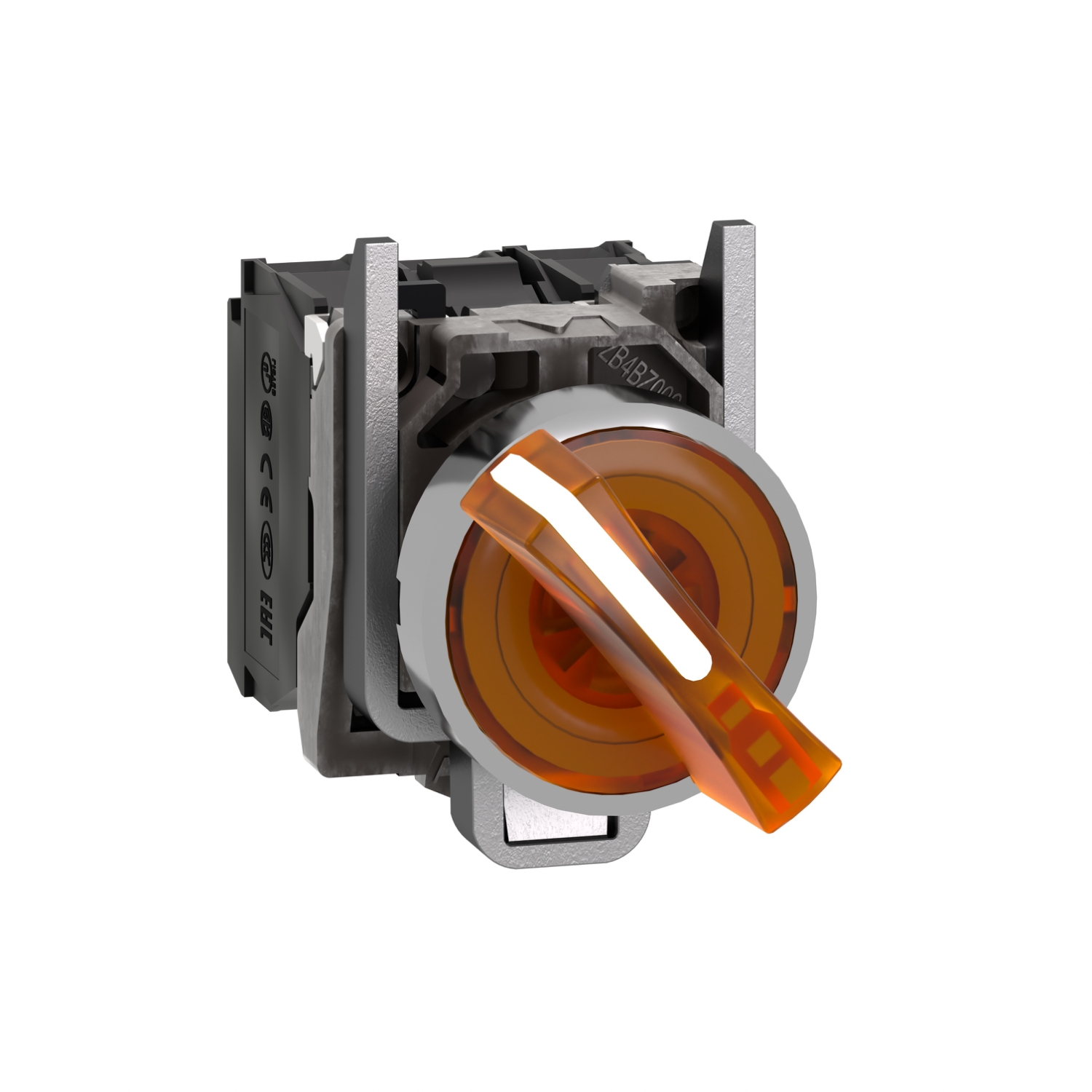

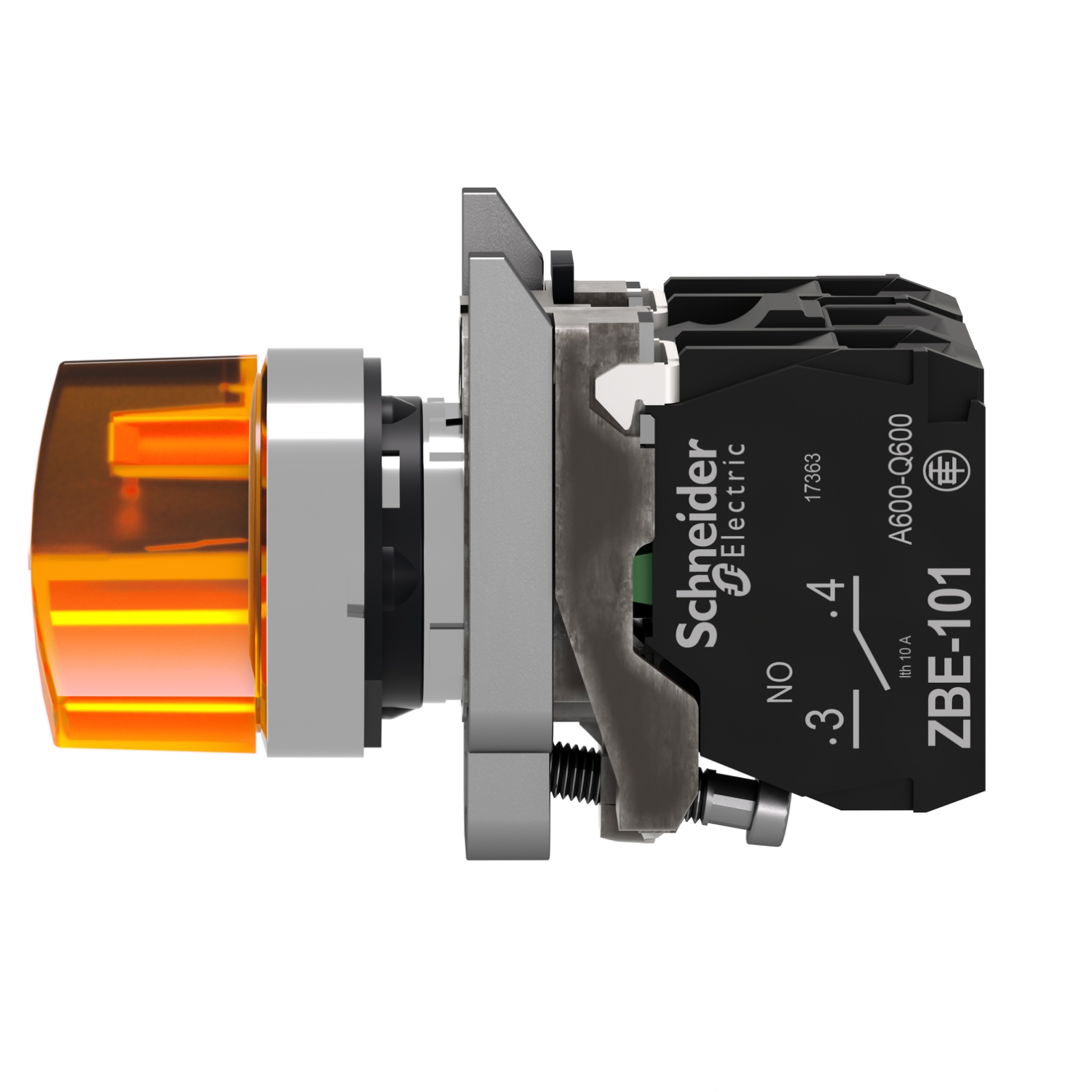

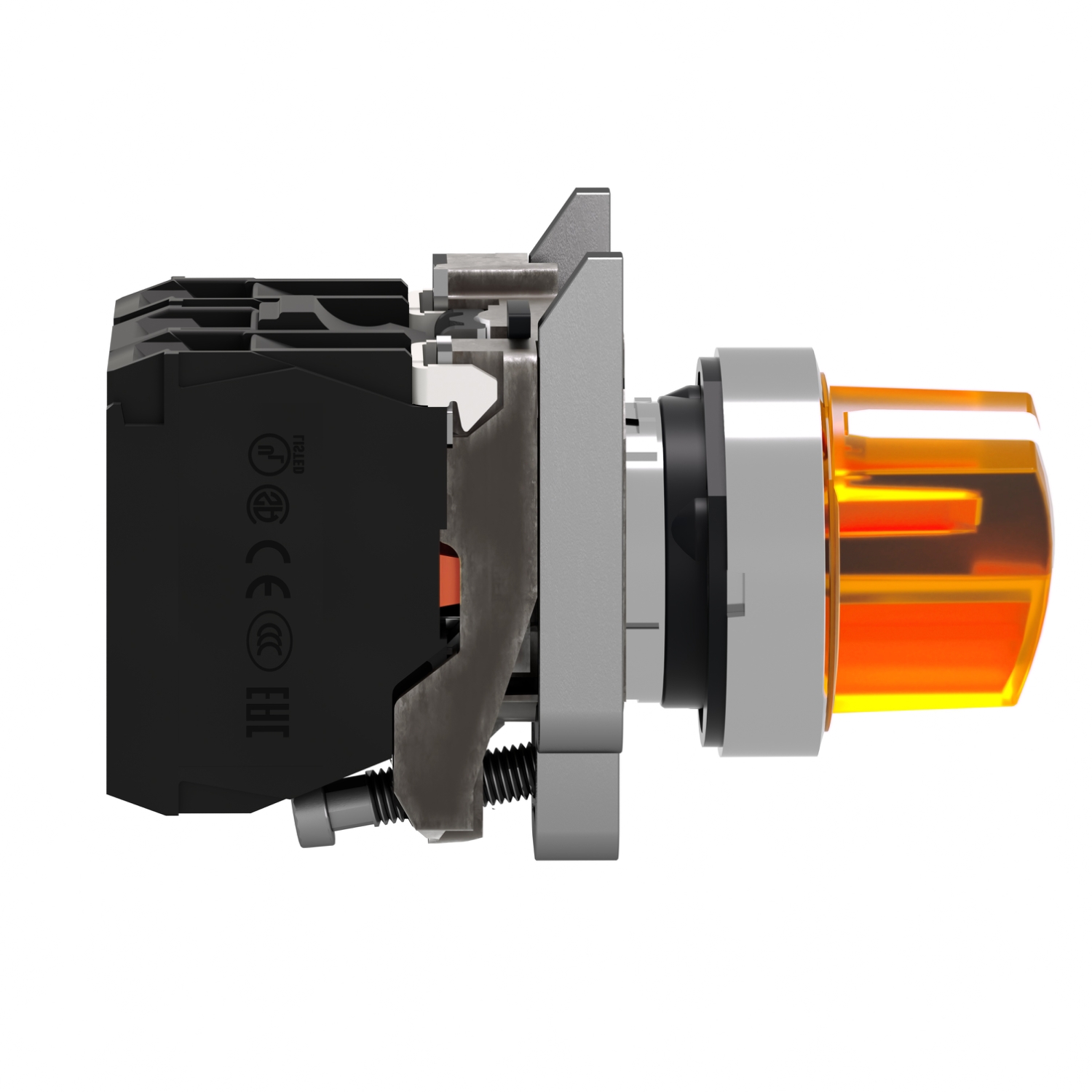

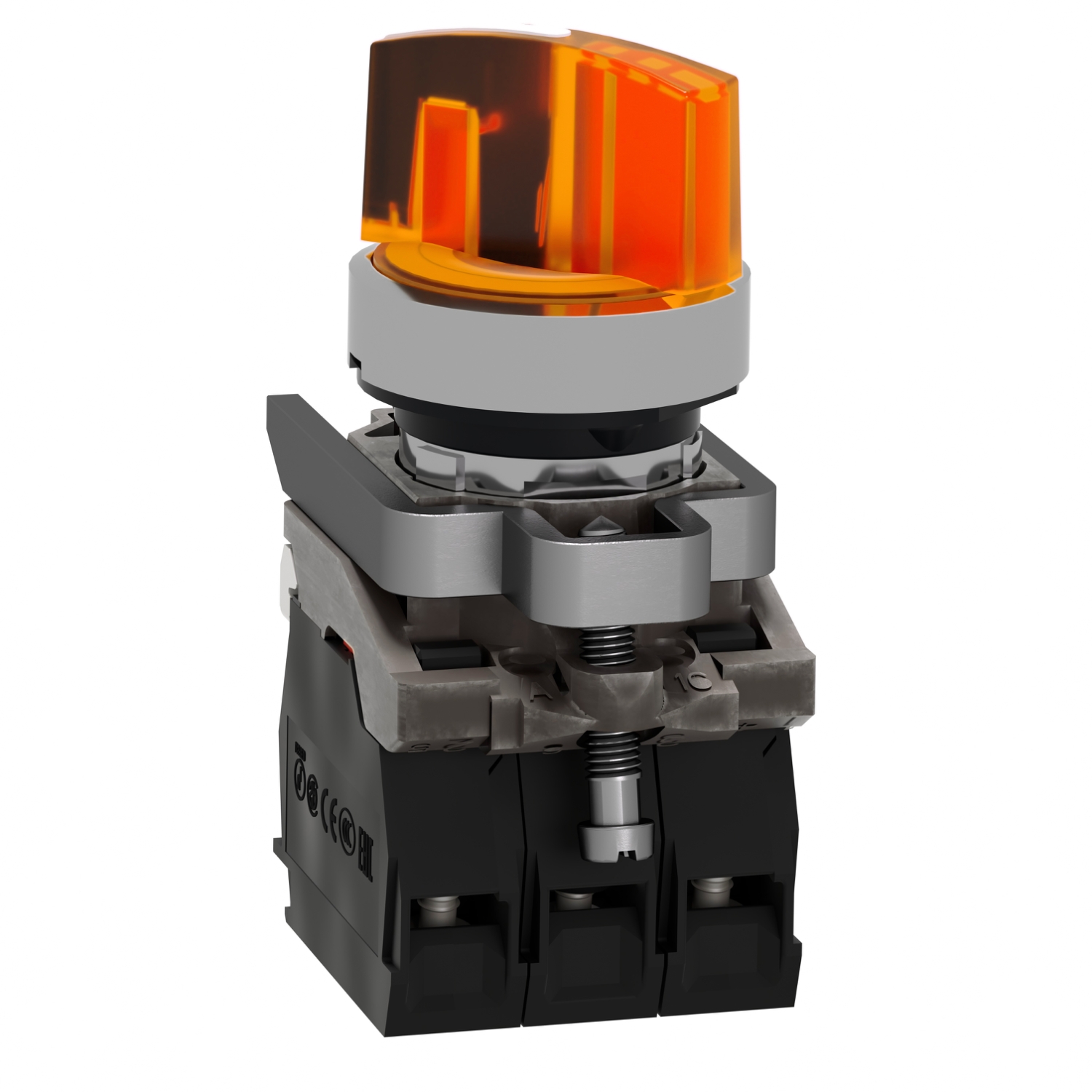

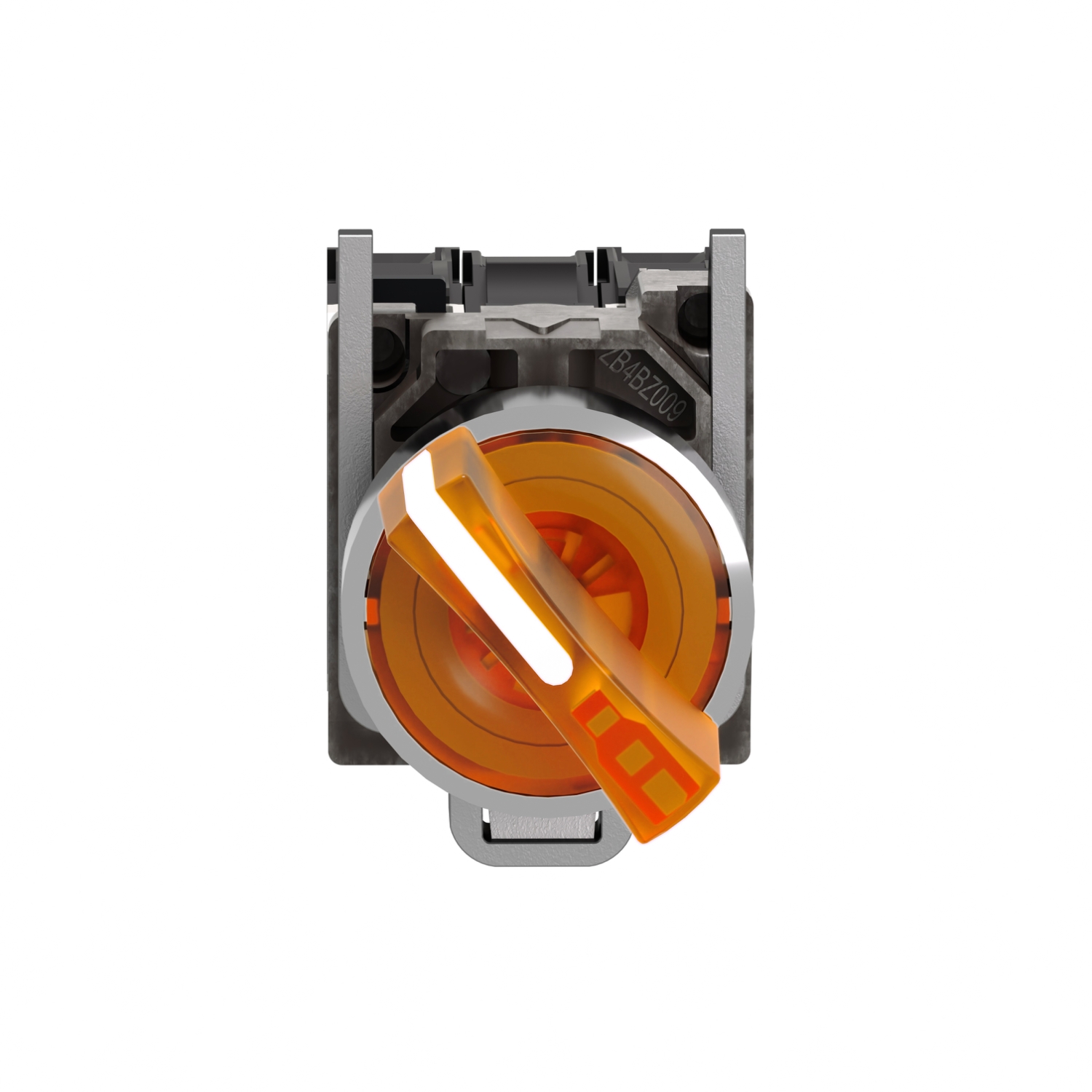

Schneider XB4BK125M5 | Illuminated Selector Switch

1. Overview

The Schneider XB4BK125M5 is a metal illuminated selector switch from the Harmony XB4 series, designed for Ø22mm panel mounting. It features an orange lens, two-position stay-put mechanism, and operates on 230-240V AC with 1 NO + 1 NC contacts. This device is ideal for industrial control applications, offering a durable and highly visible interface for machine and system operations.

2. Key Features

• Type: Illuminated selector switch, providing visual feedback.

• Color: Orange, ensuring high visibility in control environments.

• Lens Type: Plain lens, designed for clear illumination.

• Positions: 2 positions (stay-put), allowing manual selection of operational states.

• Mounting Size: Ø22mm, fitting standard industrial panels.

• Voltage Rating: 230-240V AC, suitable for common electrical control circuits.

• Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC), offering flexible wiring options.

• Material: Metal construction, ensuring durability and robustness.

3. Applications

• Industrial machinery, for selecting operating modes.

• Automation control systems, enabling manual input in automated processes.

• Power distribution panels, providing status indication and control.

• Safety and emergency systems, ensuring reliable switching operations.

4. Benefits

• High durability, thanks to its metal build for industrial environments.

• Illuminated design, providing instant visual feedback.

• Stay-put mechanism, ensuring the switch remains in the selected position.

• Standard Ø22mm mounting, allowing quick and easy installation.

• Reliable performance, reducing maintenance needs and ensuring system efficiency.

5. Conclusion

The Schneider XB4BK125M5 illuminated selector switch is an efficient, durable, and user-friendly control device for industrial and automation applications. With its orange illumination, two-position stay-put operation, and metal construction, it enhances both visual indication and functional control, making it an essential component for various industrial setups.
