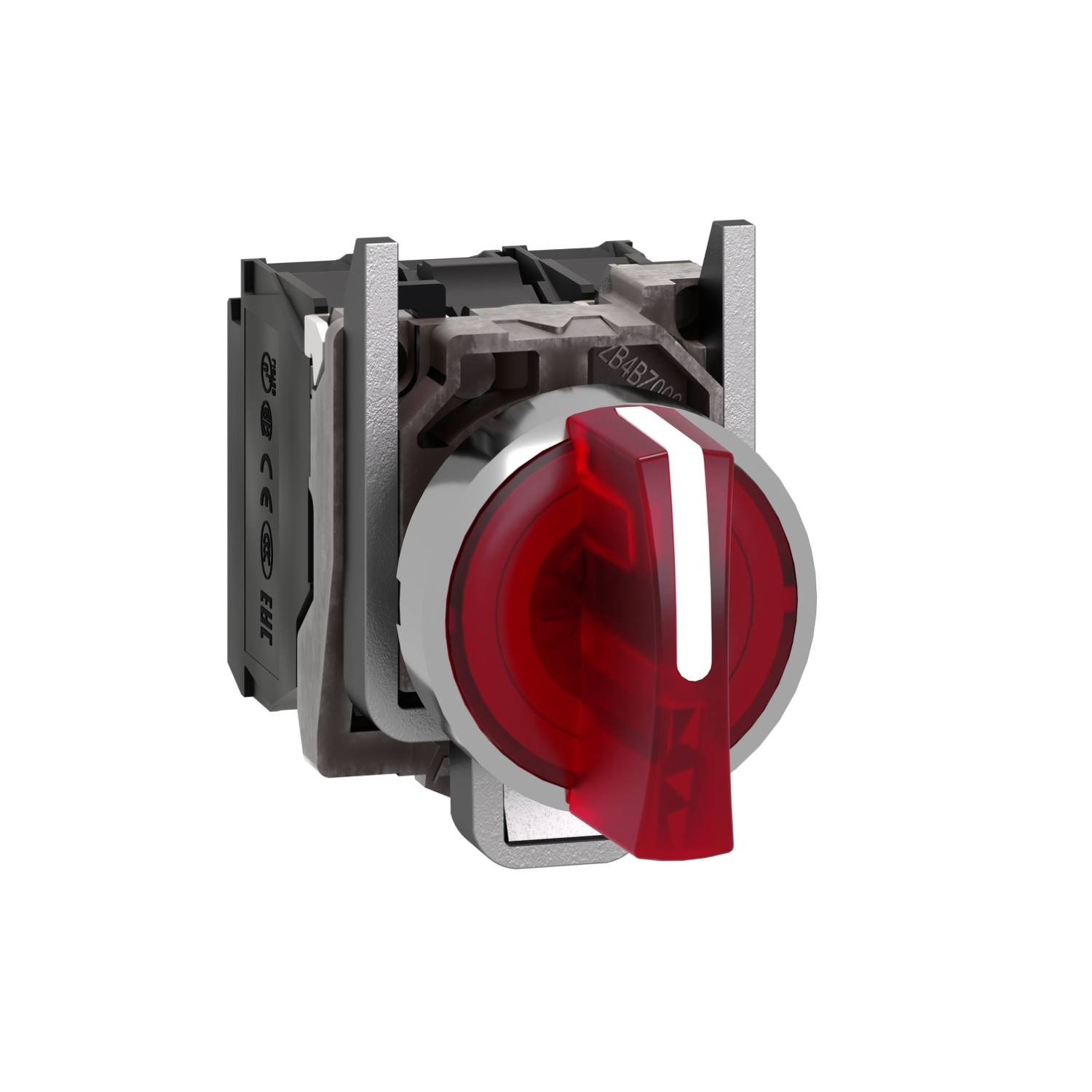

Schneider XB4BK134B5 | Illuminated Selector Switch

1. Overview

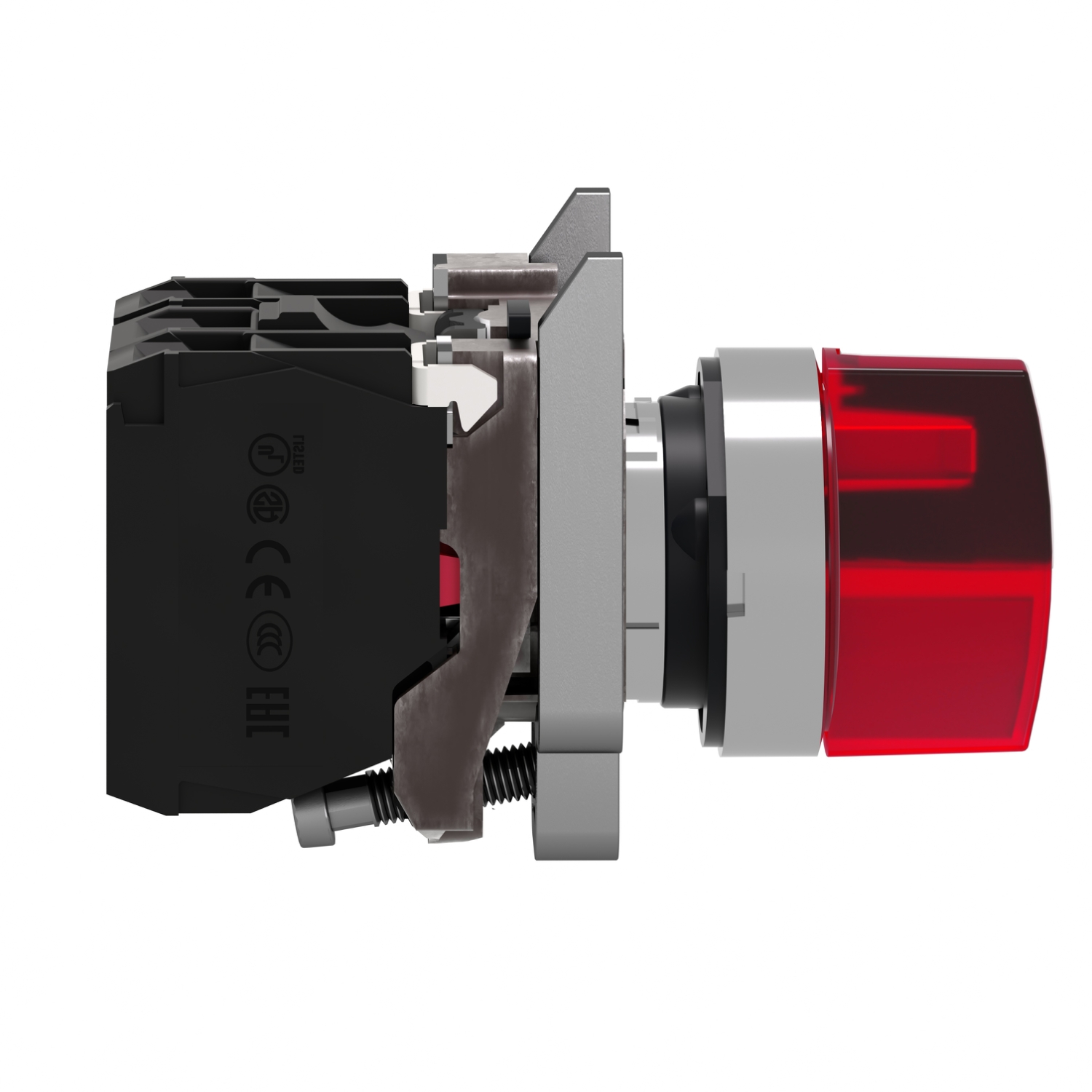

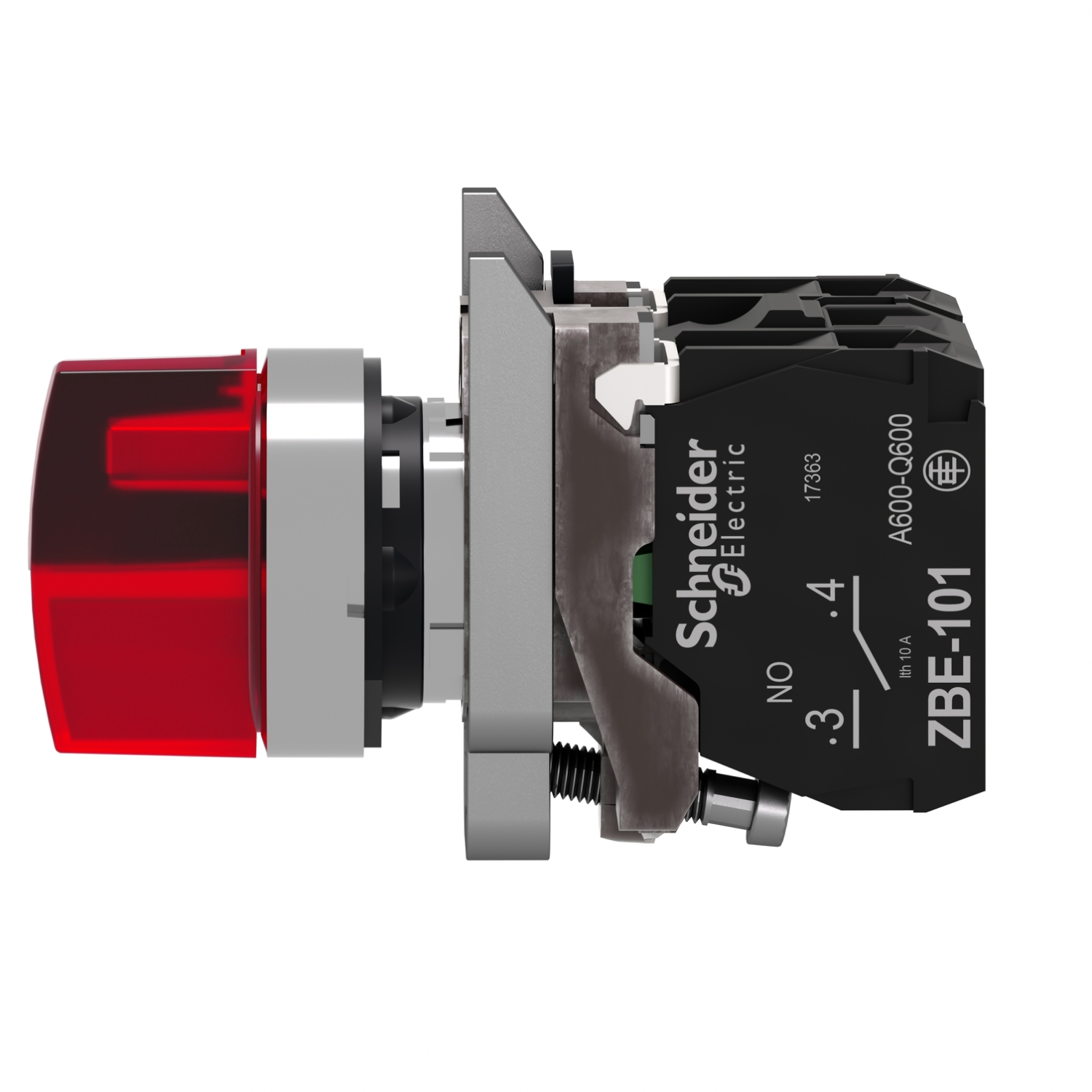

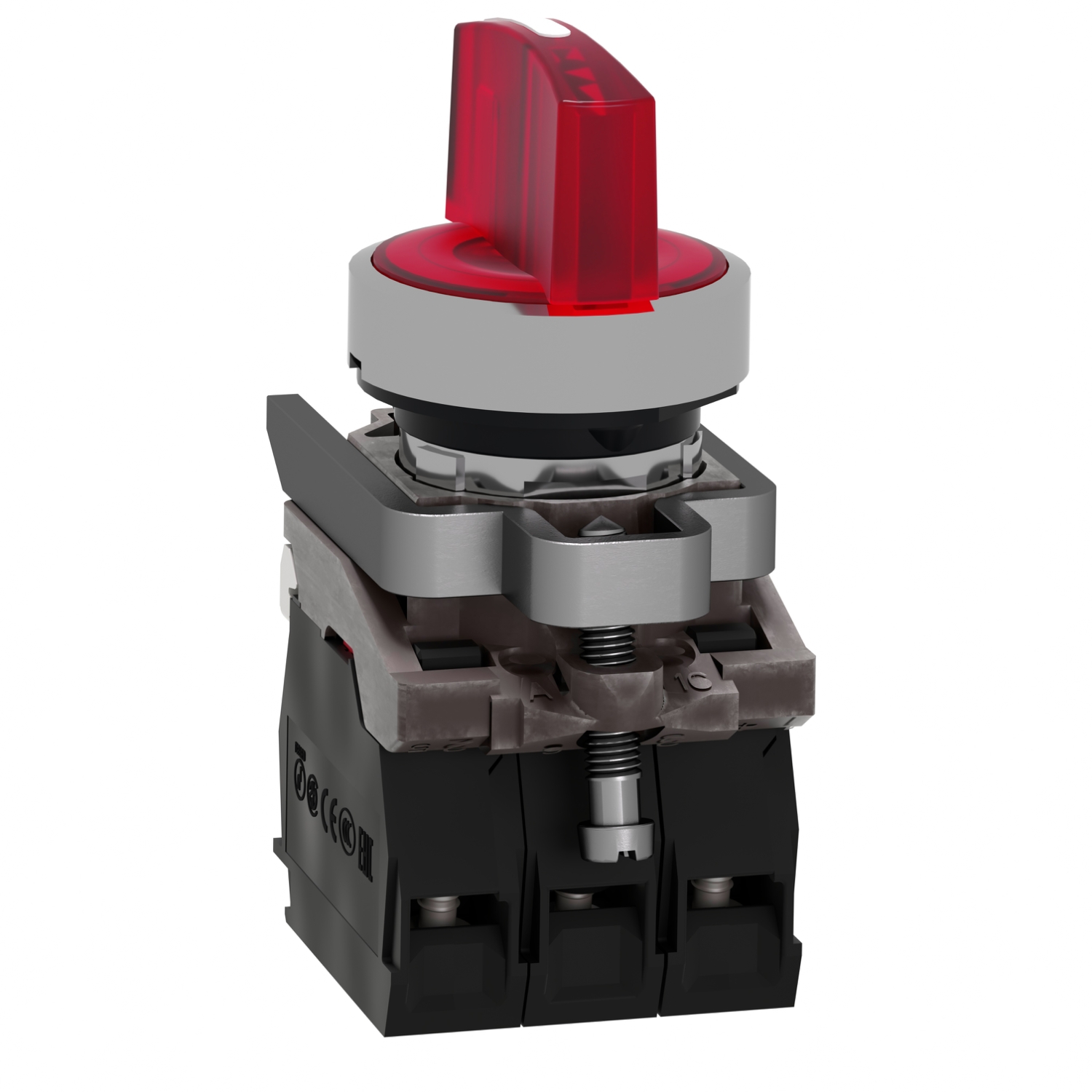

The Schneider XB4BK134B5 is a metallic, illuminated selector switch designed for industrial control applications. It features a red, 3-position stay-put switch with 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) contacts. The built-in 24V AC/DC LED illumination enhances visibility in low-light environments, ensuring clear operation status.

2. Key Features

• Type: Illuminated selector switch for industrial control.

• Number of Positions: 3 positions, stay-put (maintained).

• Color: Red, enhancing safety and visibility.

• Contact Configuration:

  • 1 NO (Normally Open).

  • 1 NC (Normally Closed).

• Illumination: 24V AC/DC LED, providing clear indication.

• Material: Durable metal construction, ensuring long-lasting performance.

• Mounting Diameter: Ø22mm, standard for control panels.

3. Applications

• Machine and process control, for selecting operational modes.

• Power distribution panels, for switching between different power sources.

• Industrial automation, allowing control over multiple system states.

• Manufacturing lines, where operators need a visual indication of selection.

• Control stations, for adjusting settings in electrical and mechanical systems.

4. Benefits

• Enhanced visibility, thanks to built-in LED illumination.

• Reliable control, with a stay-put mechanism ensuring mode retention.

• Durable metal housing, designed for harsh industrial environments.

• Compact Ø22mm mounting, making it compatible with standard panels.

• Clear switching feedback, reducing errors in industrial operations.

5. Conclusion

The Schneider XB4BK134B5 illuminated selector switch offers precision, durability, and visibility, making it an excellent choice for industrial control applications. Its three-position design, stay-put function, and integrated LED ensure efficient and safe operation in demanding environments.
