Schneider XB4BVG4 | Pilot Light

1. Overview

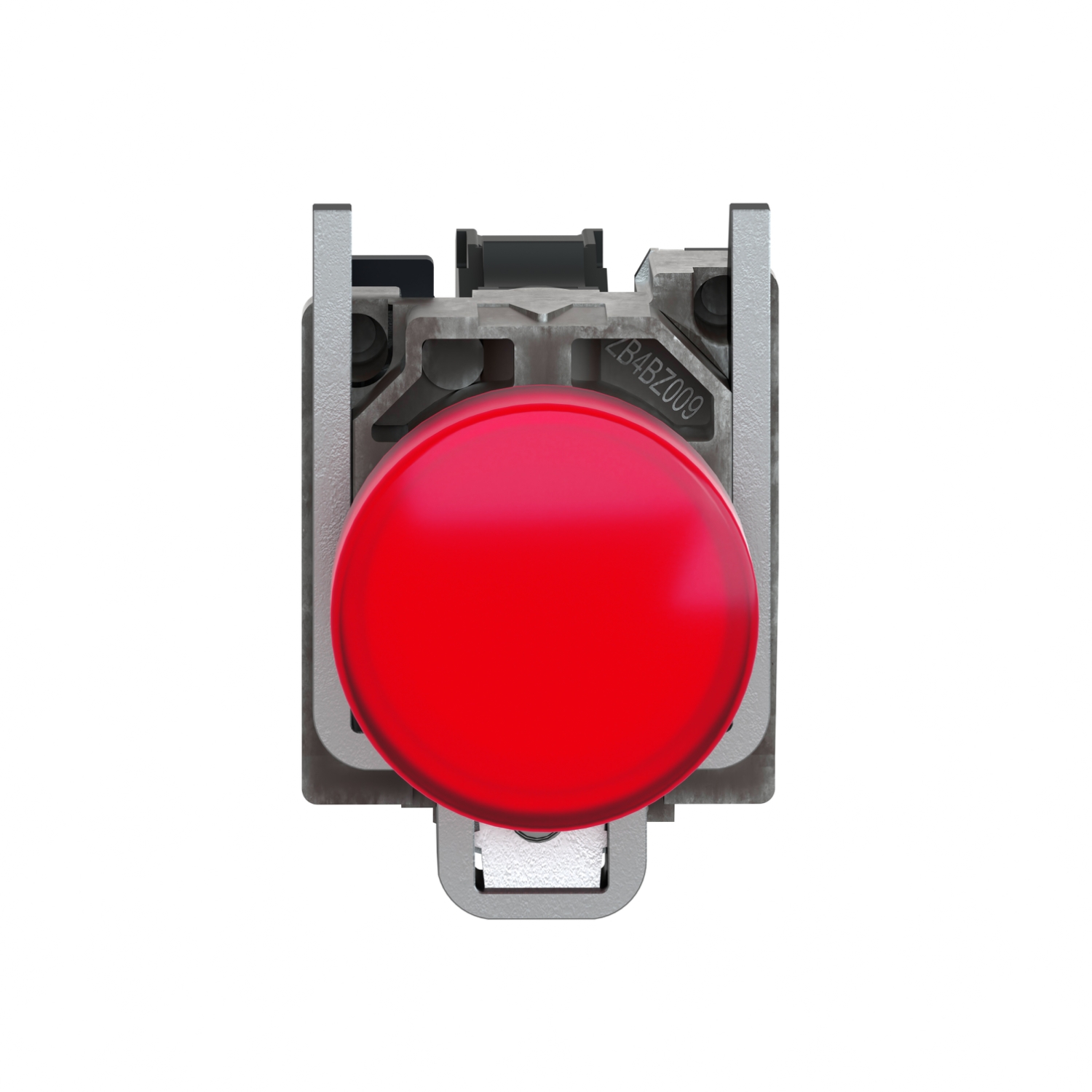

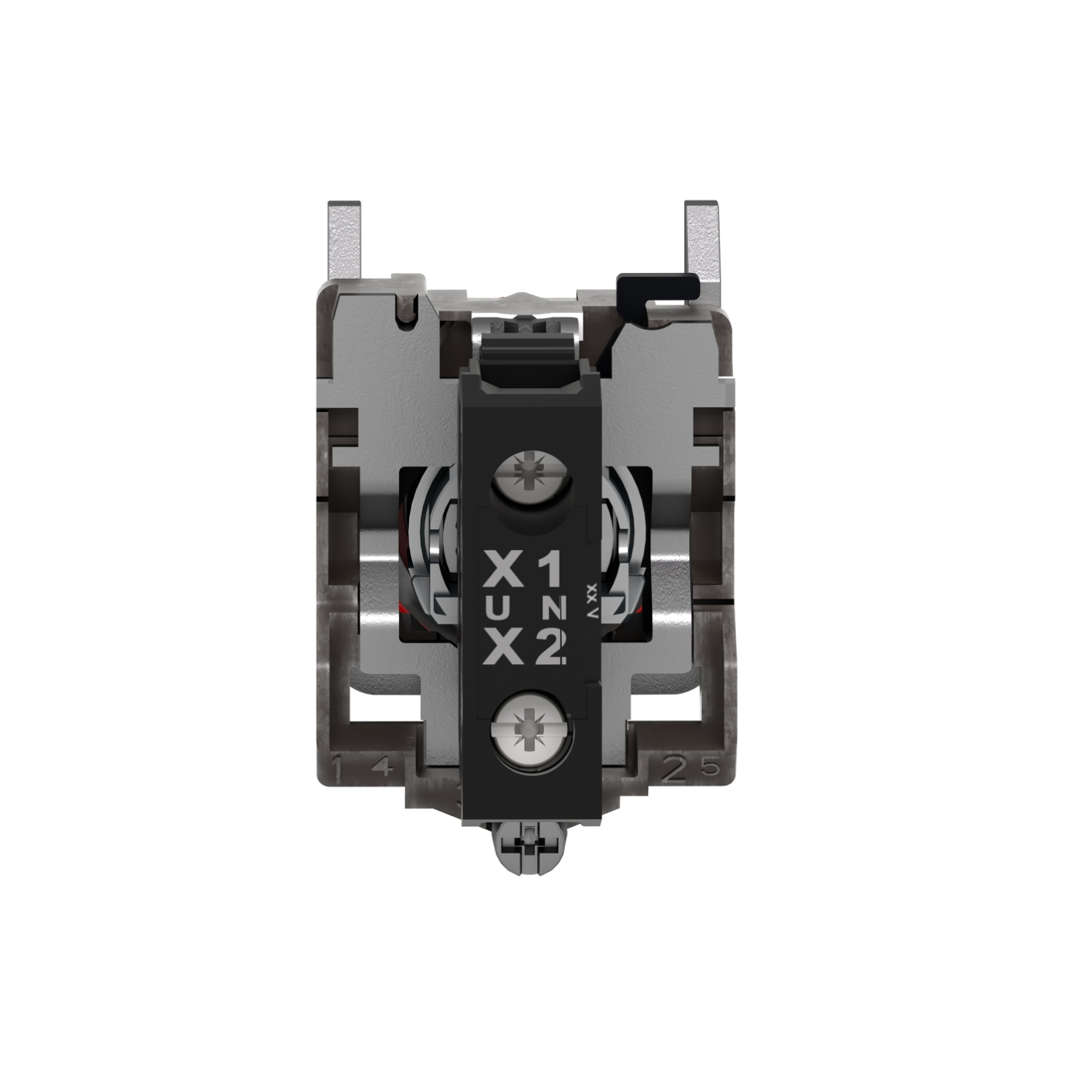

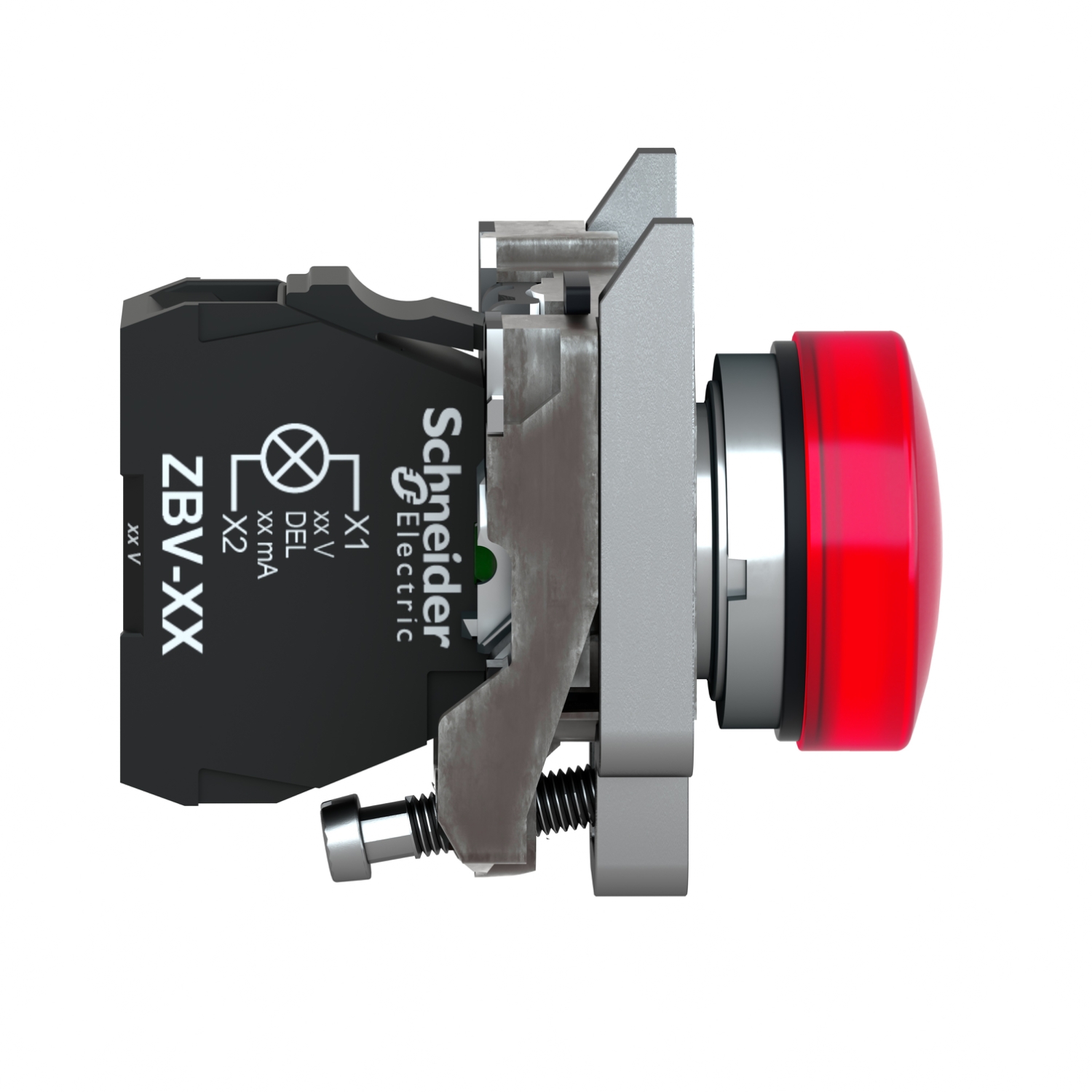

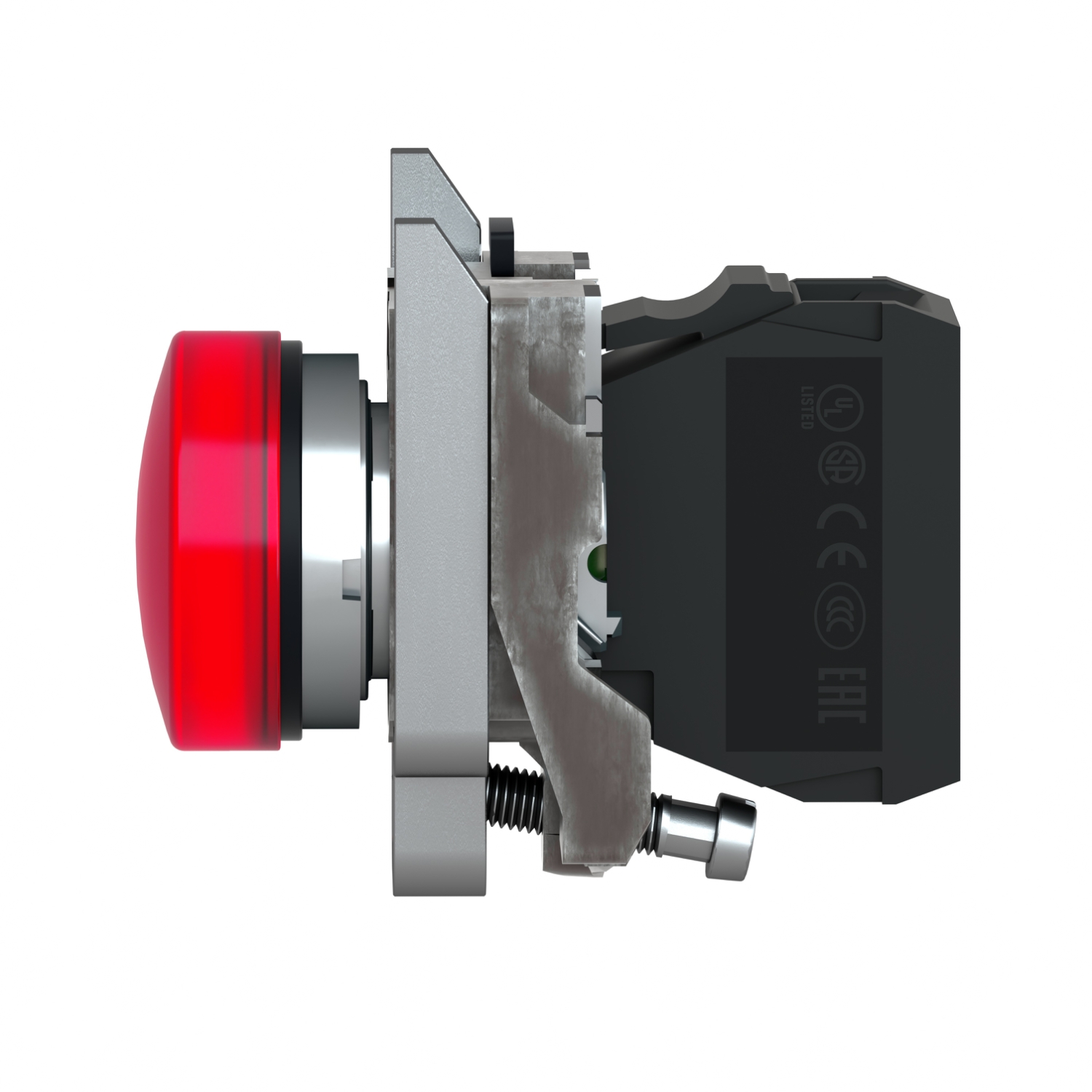

The Schneider XB4BVG4 is a metal pilot light from the Harmony XB4 series, designed for Ø22mm panel mounting. It features a red plain lens with an integral LED, operating on 110-120V AC. This pilot light provides a durable and efficient status indication solution for industrial control systems.

2. Key Features

• Type: Pilot light with integral LED.

• Color: Red, commonly used for stop, fault, or emergency signals.

• Lens Type: Plain lens, ensuring uniform light distribution.

• Mounting Size: Ø22mm, suitable for standard industrial control panels.

• Voltage Rating: 110-120V AC, making it compatible with various electrical systems.

• Material: Metal construction, providing durability and resistance to harsh environments.

3. Applications

• Industrial control panels, for indicating machine status.

• Safety systems, as a warning or emergency indicator.

• Power distribution boards, for monitoring electrical conditions.

• Automation systems, ensuring clear operator communication.

4. Benefits

• Robust metal housing, ensuring high mechanical and environmental resistance.

• Integral LED technology, offering long life, low power consumption, and high brightness.

• Standard Ø22mm mounting, allowing easy installation.

• Reliable performance, reducing maintenance needs.

5. Conclusion

The Schneider XB4BVG4 pilot light is a highly reliable and durable signaling device designed for industrial and automation applications. With its red plain lens, integral LED, and sturdy metal construction, it ensures clear and efficient status indication, making it an essential component in control panels and safety systems.
