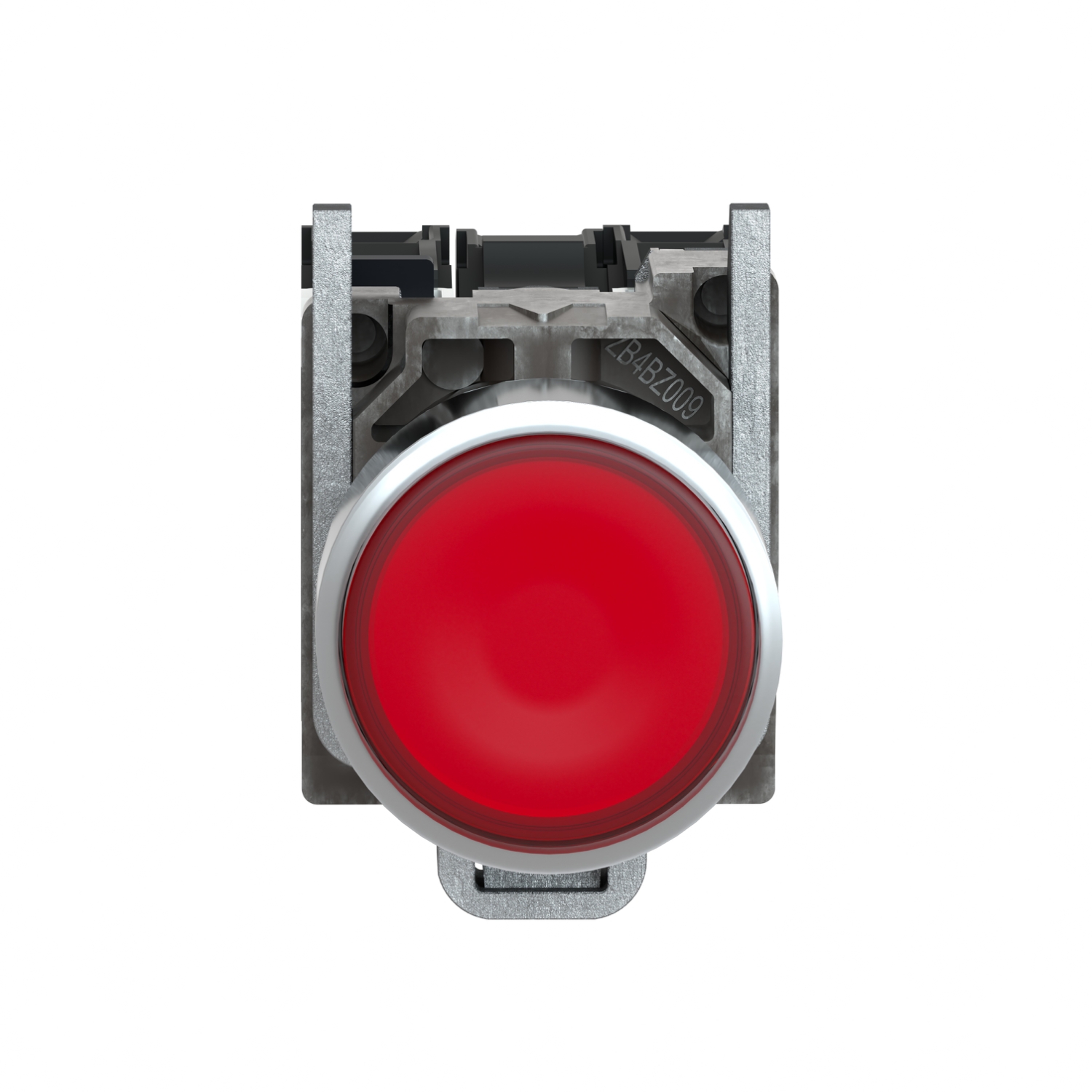

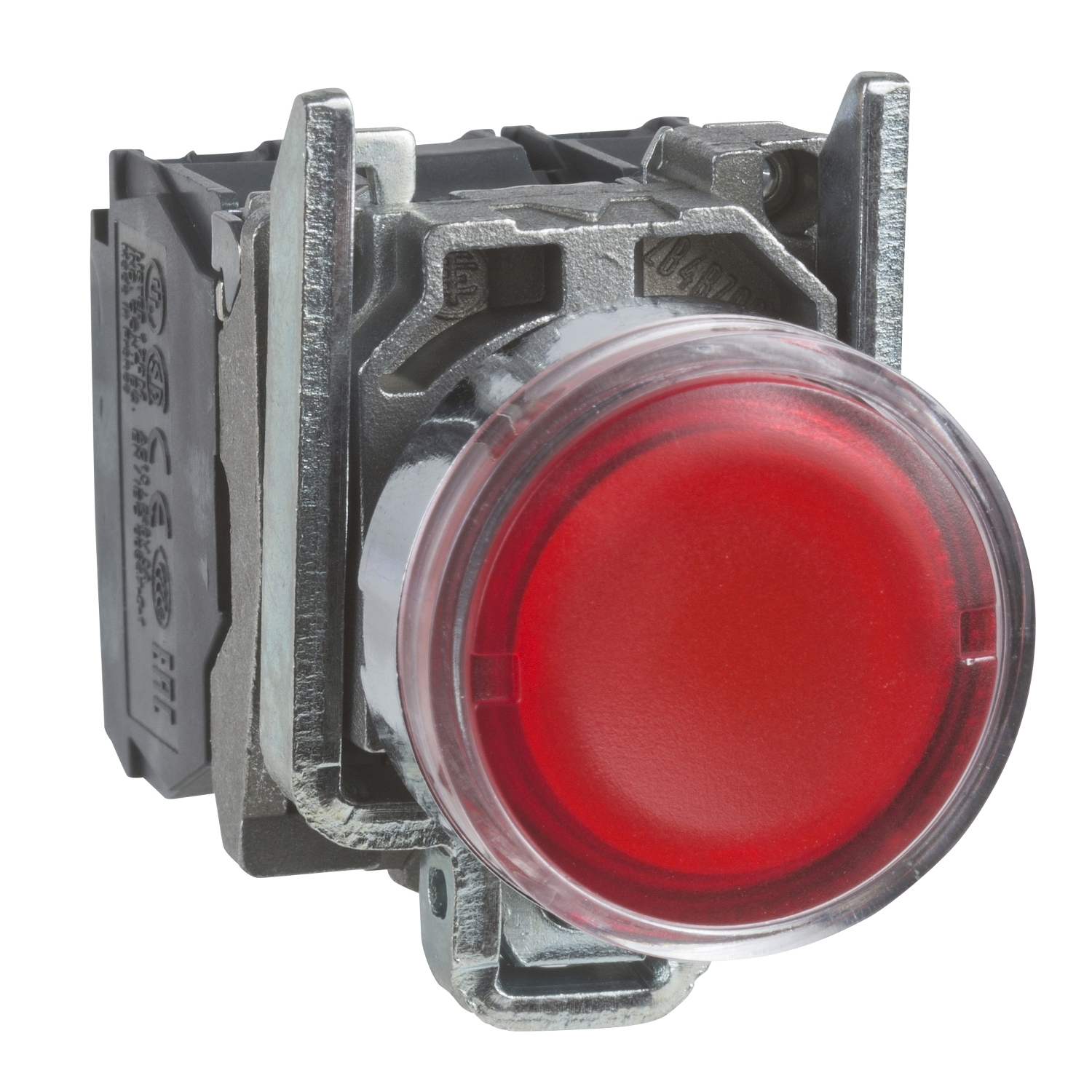

Schneider XB4BW3465 | Harmony Illuminated Push Button
1. Overview
The Schneider XB4BW3465 Harmony is a high-quality illuminated push button designed for industrial control and automation applications. It features a durable metal construction, a flush red actuator, and a spring return mechanism for momentary operation. With 1 Normally Open (NO) and 1 Normally Closed (NC) contact, it offers versatile switching functionality. This push button operates at ≤ 250V, making it suitable for a wide range of control circuits.
2. Key Features
- Robust Metal Housing: Ensures durability in industrial environments.
- Illuminated Red Actuator: Provides clear visibility for easy operation.
- Flush Design: Offers a sleek and professional appearance.
- Spring Return Mechanism: Ensures momentary operation for reliable control.
- 22mm Mounting Diameter: Standard size for easy integration into control panels.

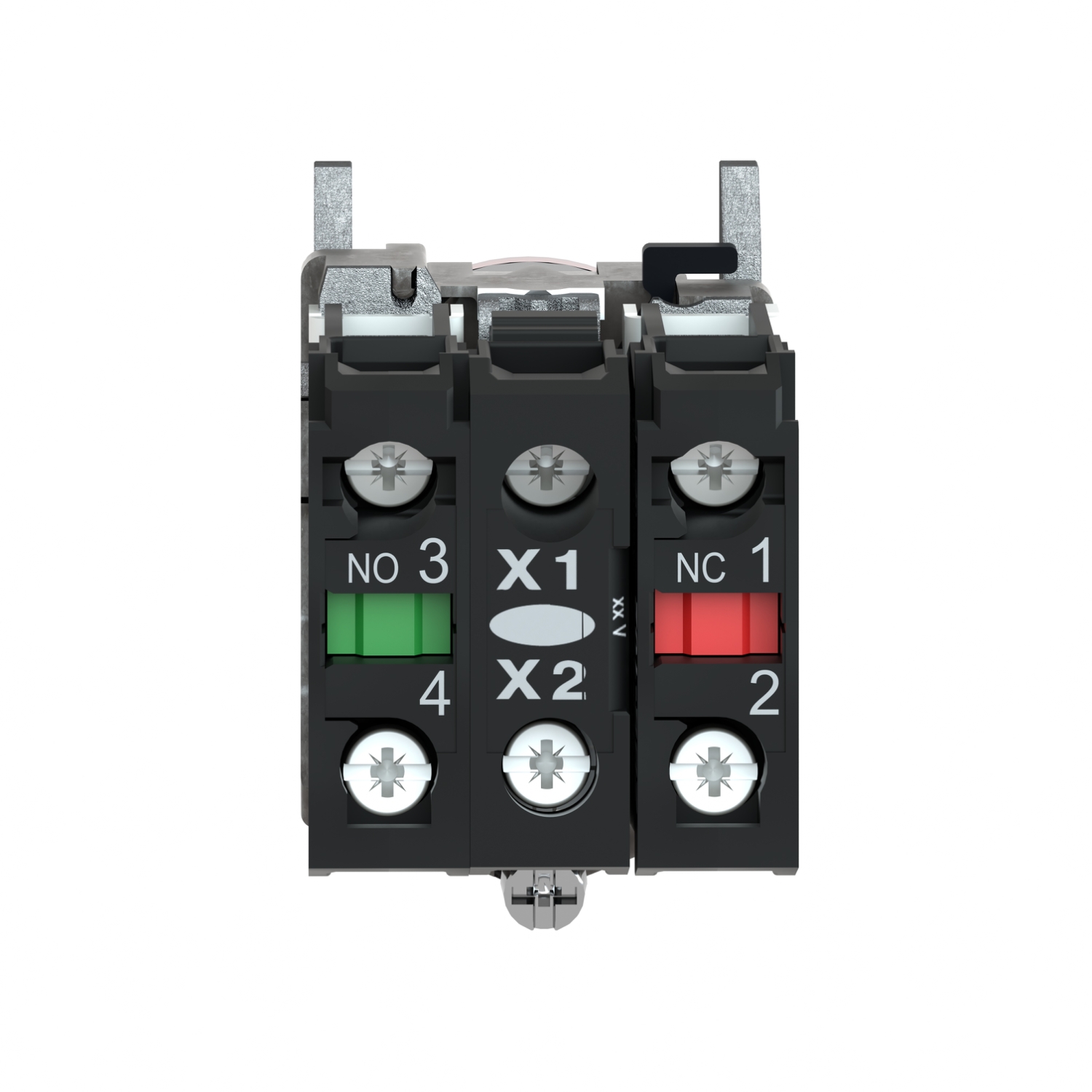

- 1 NO + 1 NC Contact Configuration: Supports flexible electrical connections.
- Voltage Rating: Operates at ≤ 250V.
3. Technical Specifications
- Product Series: Harmony XB4
- Material: Metal
- Mounting Diameter: Ø22mm
- Actuation Type: Flush push button
- Operation Type: Spring return (momentary)
- Illumination: Red LED (integrated)
- Operating Voltage: ≤ 250V
- Contact Type: 1 NO + 1 NC
- Compliance: Meets IEC & UL standards for industrial use
4. Benefits
- Enhanced Visibility and Safety: Red LED illumination ensures clear indication.
- Reliable and Secure Control: Spring return provides momentary operation for safe switching.
- Industrial-Grade Durability: Metal construction withstands demanding environments.
- Versatile Application: Suitable for automation, machine control, and electrical circuits.
- Easy Installation: Standard 22mm mounting size for quick panel integration.
5. Applications
- Industrial control panels
- Machinery operation and automation
- Electrical switching and signaling
- Emergency stop and safety controls
6. Conclusion
The Schneider XB4BW3465 Harmony Illuminated Push Button is an efficient and durable control solution for industrial automation and control systems. With its sturdy metal construction, bright red LED illumination, and reliable spring return mechanism, it is an ideal choice for ensuring safe and effective operation in control panels and machinery.
