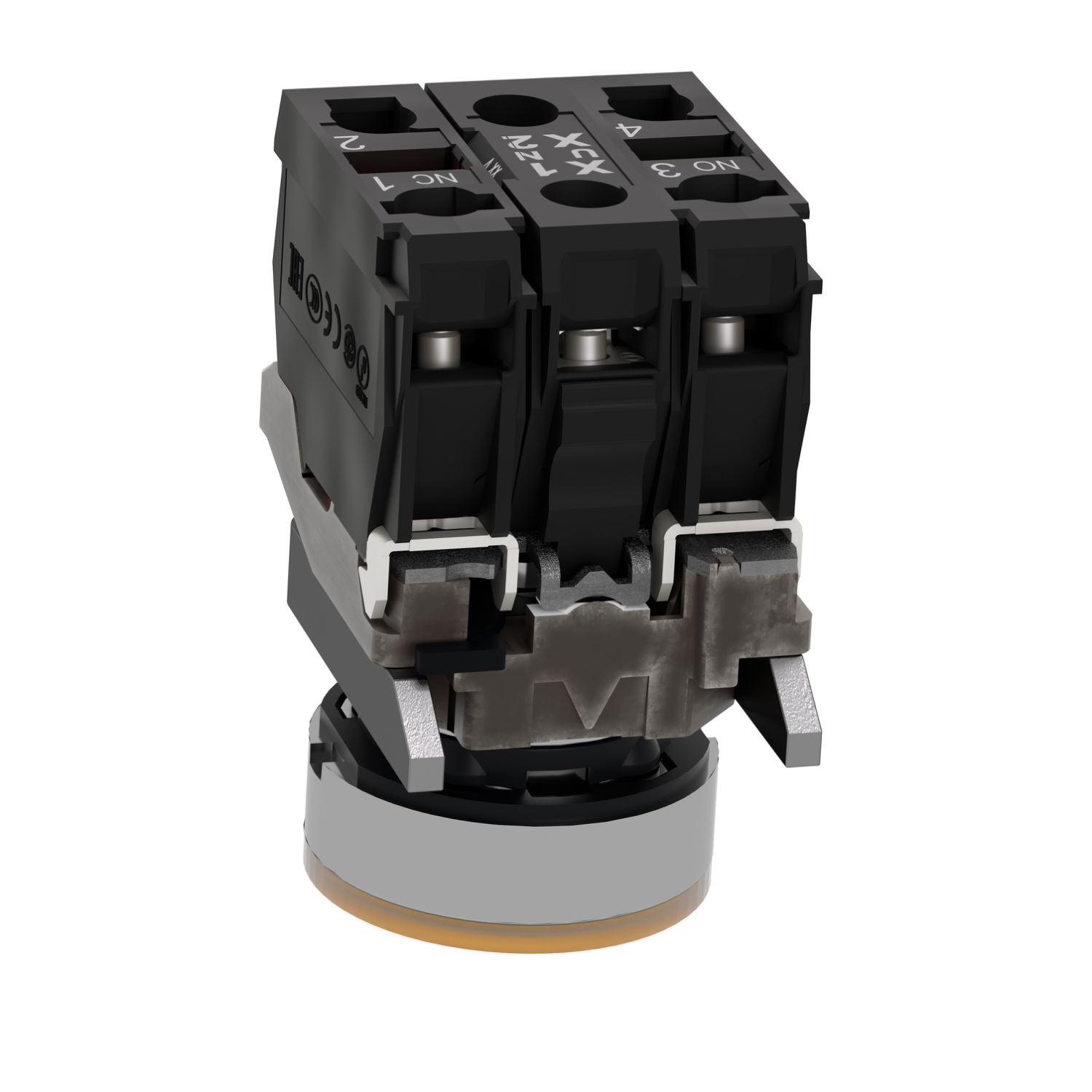

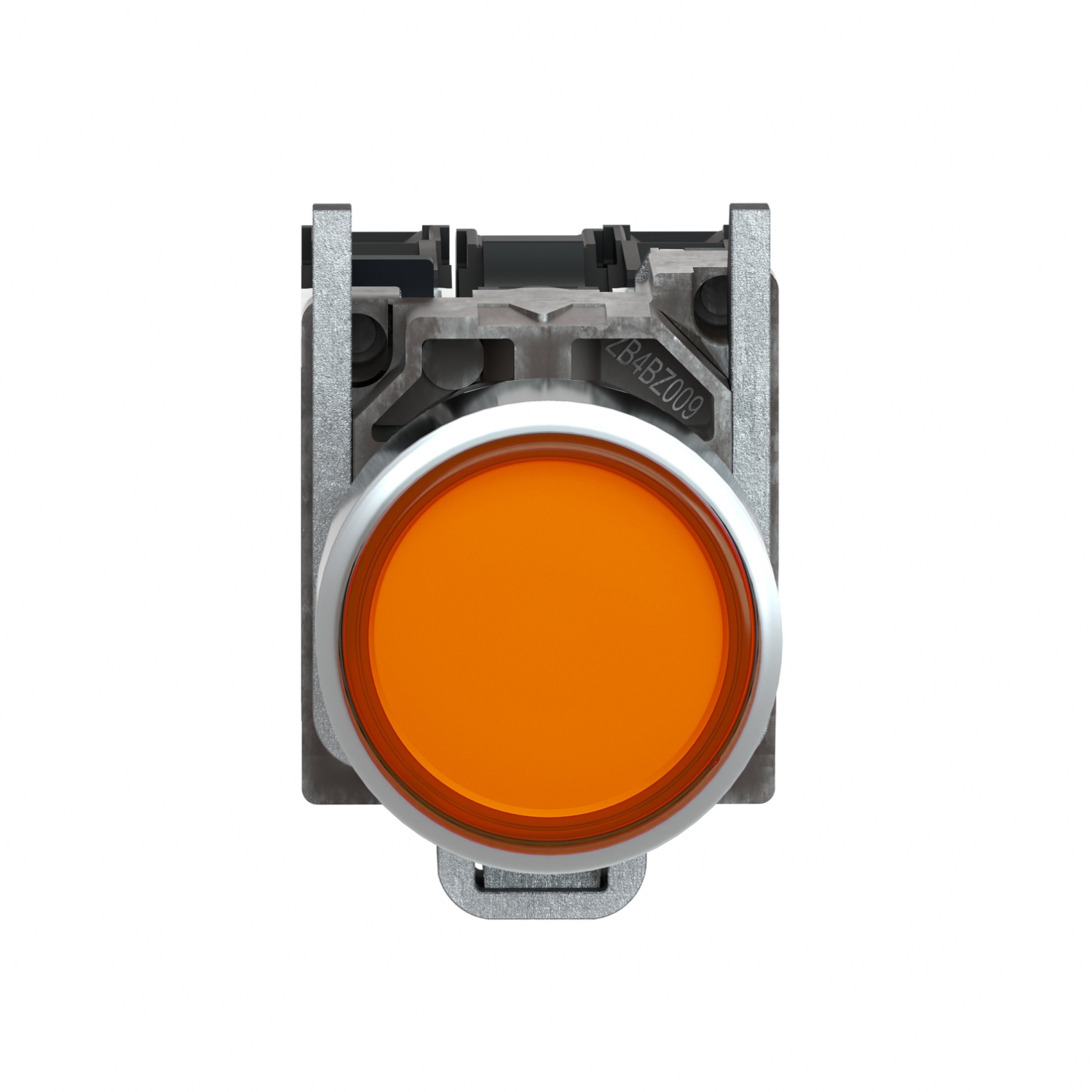

Schneider XB4BW35B5 | Illuminated push button, metal, flush, orange, Ø22, spring return, 1 NO + 1 NC 24 V AC/DC

Schneider XB4BW35B5 | Illuminated Push Button, Metal, Flush, Orange, Ø22, Spring Return, 1 NO + 1 NC 24 V AC/DC Description

it is an illuminated push button designed with precision to meet the needs of various industrial and commercial applications. Its metal construction ensures durability and reliability, making it a preferred choice for control panels and machinery interfaces.

Introduction to Schneider XB4BW35B5

it is part of Schneider Electric’s range of industrial control products known for their quality and performance. This illuminated push button combines functionality with aesthetics, featuring a flush design and an orange color that enhances visibility in control environments.

Specifications of the Illuminated Push Button

The key specifications of it include:

• Material: Metal construction for robustness.
• Operation: Flush design for seamless integration.
• Color: Vibrant orange for clear visibility.
• Diameter: Ø22, ensuring compatibility with standard panel cutouts.
• Action: Spring return for reliable operation.
• Contacts: 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatility.
• Voltage: Supports 24 V AC/DC, suitable for various power systems.

Features and Benefits

• Enhanced Visibility: The orange illumination makes it easy to identify the button’s status.
• Durable Construction: Metal housing ensures longevity in demanding environments.
• Versatile Contacts: Offers flexibility in wiring and circuit configurations.
• Easy Integration: Flush mounting design facilitates installation in control panels.
• Reliable Operation: Spring return action ensures consistent performance over time.

Applications and Uses

The Schneider XB4BW35B5 is suitable for a wide range of applications, including:

• Industrial machinery control panels
• Process automation systems
• Control rooms and operator interfaces
• Commercial equipment with push-button controls

Installation and Maintenance Tips

For optimal performance and longevity:

• Follow manufacturer guidelines for wiring and installation.
• Regularly inspect and clean the push button to prevent dust accumulation.
• Check electrical connections periodically for secure operation.
• Replace worn-out buttons promptly to avoid operational disruptions.

Comparison with Similar Products

When compared to similar illuminated push buttons, it stands out due to its:

• Robust metal construction
• Enhanced visibility with orange illumination
• Versatile contact configuration
• Reliable spring return action

Conclusion

The Schneider XB4BW35B5 illuminated push button combines quality construction, visibility, and reliability, making it an excellent choice for industrial and commercial applications where control precision is paramount.
