Schneider ZB4BV063 | Pilot Light Head

1. Overview

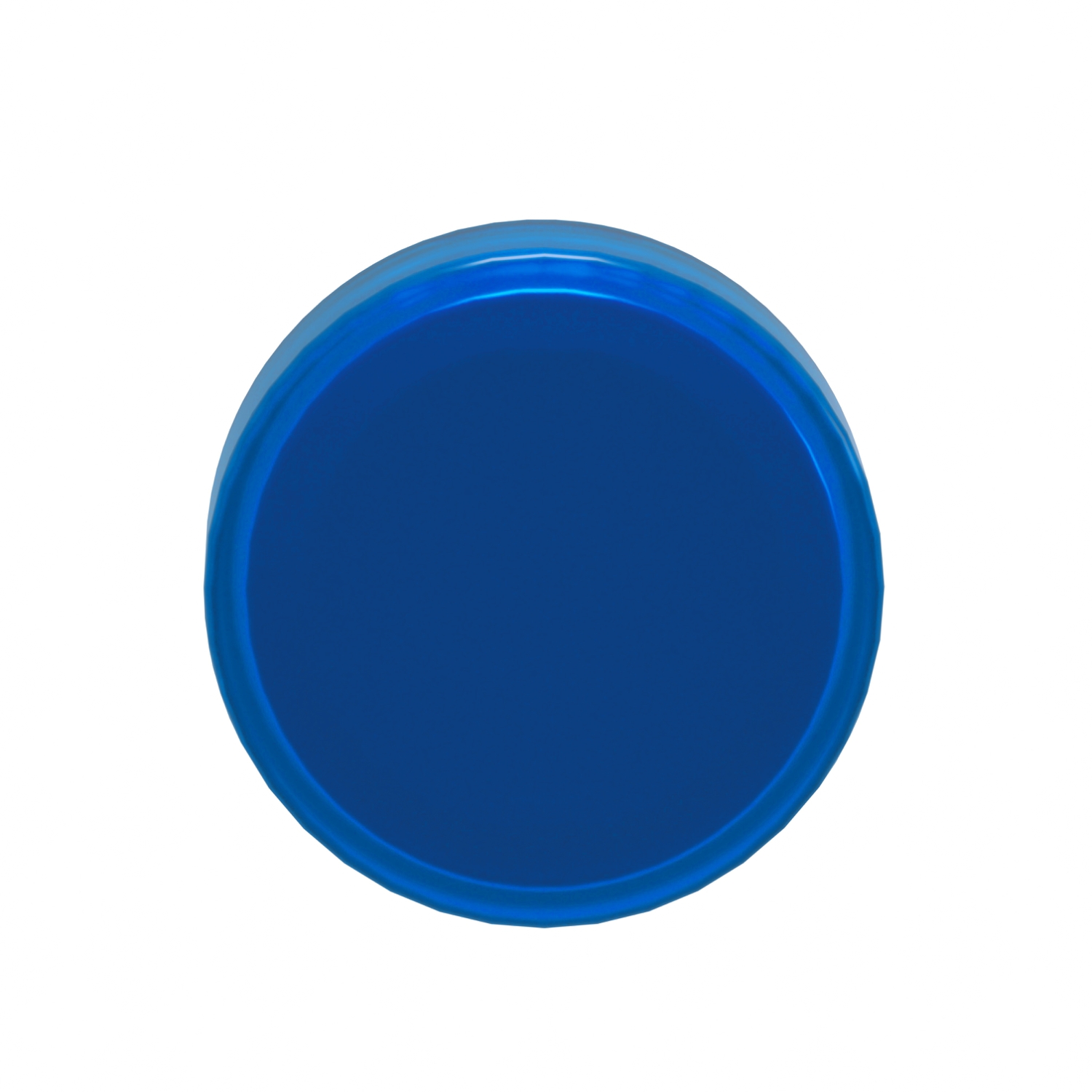

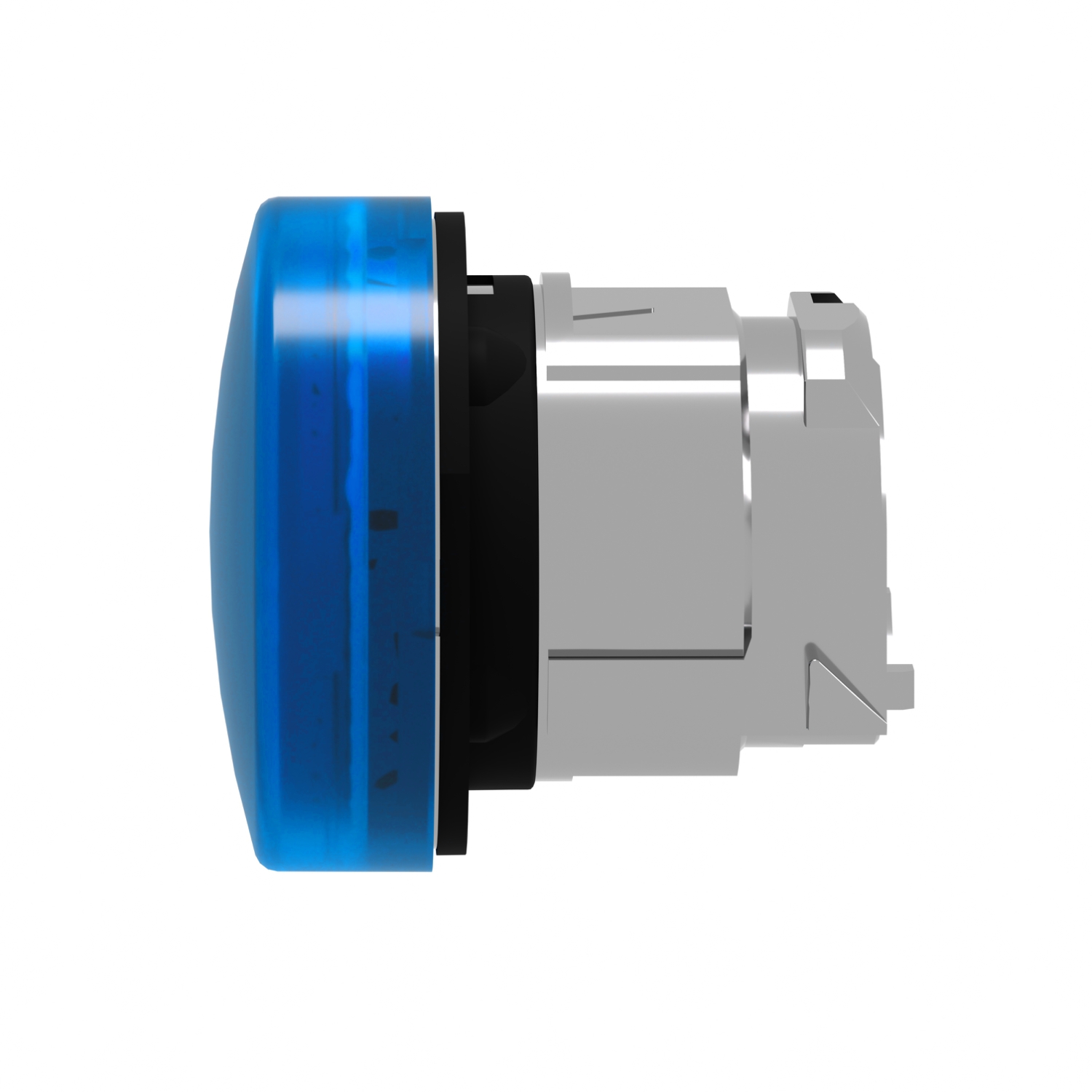

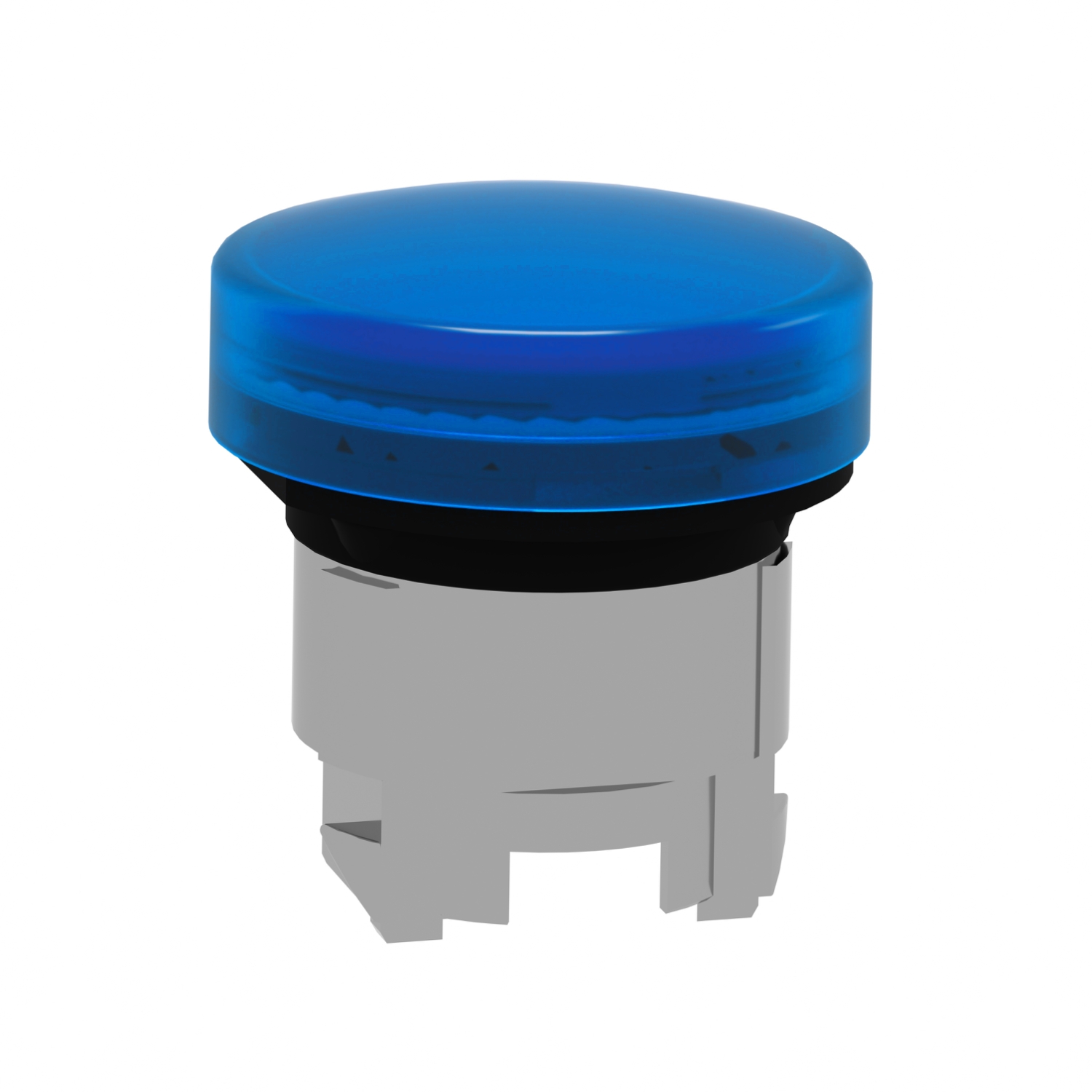

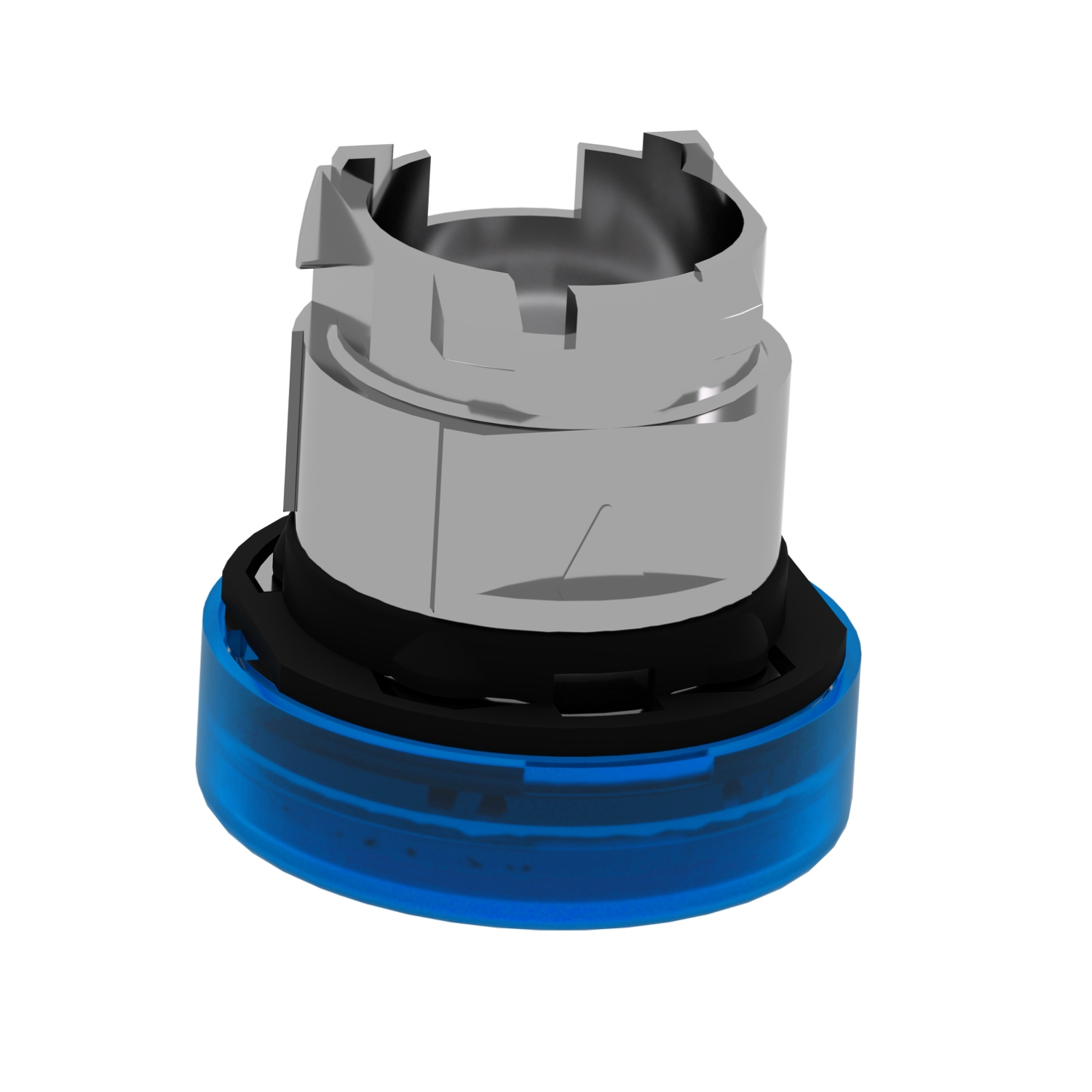

The Schneider ZB4BV063 is a metal pilot light head from the Harmony XB4 series, designed for Ø22mm panel mounting. It features a blue plain lens and is compatible with an integral LED. This component provides clear visual indication for industrial and automation systems, making it suitable for applications where status indication is necessary.

2. Key Features

• Type: Pilot light head (requires a compatible LED or light source).

• Material: Metal, ensuring durability and a long service life in harsh environments.

• Color: Blue, ideal for indicating specific statuses such as “operational,” “cooling,” or other applications requiring blue signals.

• Lens Type: Plain lens, providing a simple and clear light output.

• Mounting Size: Ø22mm, compatible with standard control panel cutouts.

• Compatibility: Designed to work with integral LED light sources, simplifying installation and maintenance.

3. Applications

• Control panels, for signaling and status indication.

• Industrial machinery, to show operational statuses such as “running” or “idle.”

• Automation systems, to visually indicate different machine or process states.

• Safety and emergency systems, where distinct status lights are required for quick identification.

4. Benefits

• Durable metal construction, perfect for industrial environments.

• Blue color for clear, distinct status indication.

• Plain lens design, offering bright and consistent illumination.

• Easy integration with integral LEDs, reducing installation time and simplifying maintenance.

• Standard Ø22mm mounting, ensuring compatibility with common industrial panel configurations.

5. Conclusion

The Schneider ZB4BV063 pilot light head is an efficient and reliable signaling device for industrial and automation applications. Its blue plain lens, metal construction, and compatibility with integral LEDs make it a versatile choice for clear, visible status indication in various operational environments.
