Telemecanique XS230BLPBL2 Description

Introduction

Telemecanique, a prominent brand under Schneider Electric, continues to lead the industrial automation market with its advanced range of sensors. The Telemecanique XS230BLPBL2 is an inductive proximity sensor designed for precise and reliable detection of metal objects. This article explores the features, specifications, and applications of the XS230BLPBL2, providing an in-depth understanding of its capabilities and advantages.

What is the Telemecanique XS230BLPBL2?

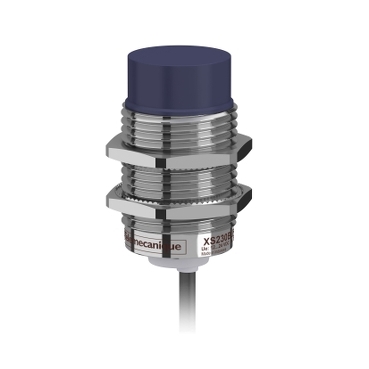

The Telemecanique XS230BLPBL2 is an inductive proximity sensor that detects metal objects without physical contact, ensuring high precision and reliability in various industrial applications.

Basic Description

The XS230BLPBL2 is part of Telemecanique’s extensive lineup of proximity sensors, known for their non-contact detection capabilities and robust performance.

Key Features

• Non-Contact Detection: Reduces wear and tear by eliminating physical contact.
• High Precision: Ensures accurate metal detection.
• Robust Construction: Built to withstand harsh industrial environments.
• Versatile Application: Suitable for a wide range of industrial settings.
• Consistent Performance: Reliable operation under various environmental conditions.

Technical Specifications

To fully understand the capabilities of the XS230BLPBL2, it’s essential to review its technical specifications.

Electrical Ratings

• Supply Voltage: 12 to 24 VDC
• Output Type: PNP
• Output Function: Normally open (NO)

Sensing Characteristics

• Sensing Distance: 30 mm
• Detection Range: 0 to 30 mm
• Hysteresis: 1 to 15% of sensing distance

Mechanical Characteristics

• Housing Material: Nickel-plated brass
• Degree of Protection: IP67
• Connection Type: 2-meter pre-wired cable

Dimensions and Weight

• Length: 90 mm
• Diameter: 30 mm
• Weight: Approximately 120 grams

Design and Build

The design of the Telemecanique XS230BLPBL2 emphasizes durability and precision, using high-quality materials for reliable performance in demanding environments.

Materials Used

• Housing: Nickel-plated brass for enhanced durability and resistance to corrosion.
• Sensing Face: High-strength plastic to resist wear.

Durability and Longevity

The XS230BLPBL2 is designed to offer a long service life, making it a cost-effective choice for industrial applications due to its robust construction and high-quality materials.

Functionality and Performance

The XS230BLPBL2 operates by generating an electromagnetic field and detecting changes when a metal object enters this field. This non-contact method ensures accurate and reliable detection.

How It Works

• Electromagnetic Field Generation: The sensor generates an electromagnetic field.
• Detection: Metal objects entering the field disrupt the electromagnetic field.
• Signal Transmission: The sensor detects this disruption and sends a signal to the connected system.

Performance Under Different Conditions

The XS230BLPBL2 performs reliably under various environmental conditions, including exposure to dust, moisture, and temperature fluctuations, ensuring consistent operation.

Applications of Telemecanique XS230BLPBL2

The versatility of the Telemecanique XS230BLPBL2 makes it suitable for a wide range of applications across different industries.

Industrial Automation

Ideal for use in manufacturing plants, assembly lines, and machinery where precise metal detection is crucial.

Material Handling Systems

Used in conveyor systems to detect metal objects, ensuring smooth operation and preventing damage.

Automotive Industry

Widely used in automotive manufacturing for detecting metal components and ensuring quality control.

Installation Process

Installing the Telemecanique XS230BLPBL2 is straightforward, but following proper procedures ensures safety and functionality.

Step-by-Step Guide

1. Turn Off Power: Ensure the main power supply is turned off.
2. Mount the Sensor: Securely mount the proximity sensor in the desired location.
3. Connect Wires: Connect the sensor to the power supply and control system using the pre-wired cable.
4. Test the Installation: Turn the power back on and test the sensor to ensure it functions correctly.

Safety Precautions

• Always wear appropriate safety gear.
• Follow local electrical codes and regulations.
• Double-check connections before turning the power back on.

Compatibility

The Telemecanique XS230BLPBL2 is compatible with various systems and can be easily integrated with other Telemecanique products.

Common Praises

• Easy to install and use
• Reliable performance
• High accuracy

Common Criticisms

• Some users find the sensing distance to be limited for certain applications
• Availability in some regions may be limited

Comparison with Other Proximity Sensors

To understand the value of the Telemecanique XS230BLPBL2, it helps to compare it with other proximity sensors on the market.

Comparison with Other Telemecanique Models

• XS230BLPAM12: Similar features but with a different output type (NPN).
• XS630B1PAL2: Offers a longer sensing distance but at a higher price point.

Comparison with Competitor Products

• Omron E2E-X30ME1: Similar performance but at a slightly higher cost.
• Pepperl+Fuchs NBB30-L2-E2: Offers similar features but with a larger housing.

Maintenance and Troubleshooting

Maintaining the Telemecanique XS230BLPBL2 is straightforward, but knowing how to troubleshoot common issues can save time and effort.

• Common Issues and Solutions

• Sensor Not Detecting Objects: Check for proper installation and ensure the object is within the sensing range.
• False Alarms: Could indicate interference from nearby metal objects; ensure proper sensor placement.

Environmental Impact

Telemecanique, under Schneider Electric, is committed to sustainability, and the XS230BLPBL2 reflects this commitment.

Eco-Friendly Features

• Made from recyclable materials
• Energy-efficient operation

Schneider Electric’s Sustainability Initiatives

• Commitment to reducing carbon footprint
• Implementation of eco-friendly manufacturing processes
