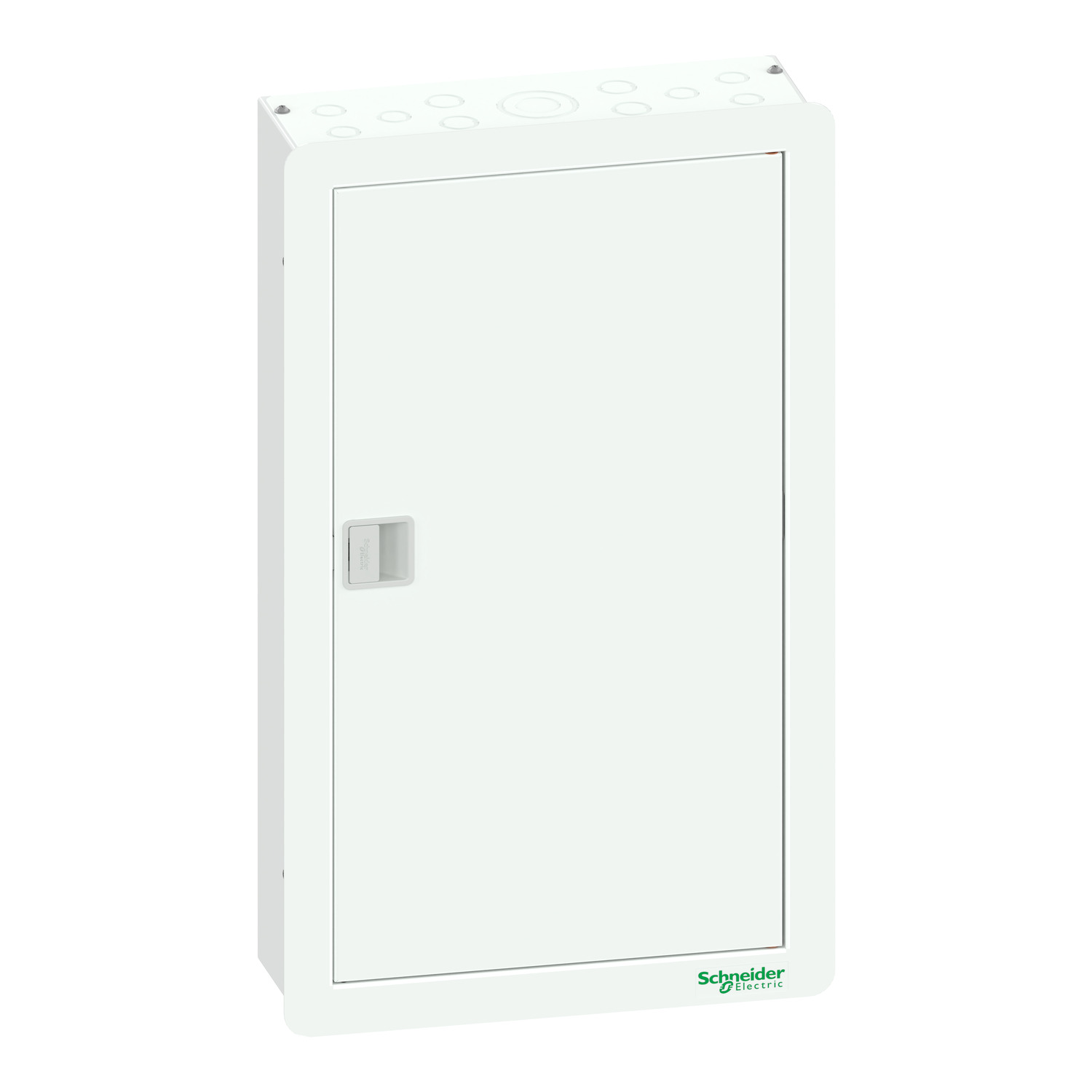

Schneider A9HV318XI125 | Acti 9 Vertical TPN 18-Way Distribution Board with 125A 3-Pole Isolator Incomer Provision
Description
The Schneider Electric A9HV318XI125 is a low-voltage vertical TPN (Three Phase + Neutral) distribution board designed for safe and efficient electrical power distribution in commercial, industrial, and residential applications. It provides 18 outgoing ways and is configured for a 125A 3-pole isolator incomer, making it suitable for installations requiring reliable three-phase power management and circuit protection.
Technical Specifications
- Product Range: Acti 9 Disbo
- Catalog Number: A9HV318XI125
- Product Type: Vertical TPN Distribution Board
- Number of Outgoing Ways: 18
- Electrical System: Three Phase + Neutral (TPN)
- Rated Current: 125 A
- Incomer Type: 3-Pole Isolator Provision
- Mounting Method: Flush Mounted
- Enclosure Material: Powder-Coated Sheet Steel
- Enclosure Color: White (RAL 9003)
- Degree of Protection: IP41
- Short-Time Withstand Current (Icw): 17 kA for 0.25 seconds
- Peak Withstand Current (Ipk): 34 kA
- Dimensions:
- Width: 425 mm
- Height: 555 mm
- Depth: 125 mm
- Operating Temperature Range: -5°C to +50°C
- Standard Compliance: IEC 61439-3
- Supplied with Earth and Neutral Terminal Blocks
Key Features
- Compact vertical design for space-efficient installation.
- Accommodates up to 18 outgoing circuits.
- Robust steel enclosure for enhanced durability and corrosion resistance.
- Designed for use with Acti 9 modular protection devices.
- High short-circuit withstand capability.
- Improved safety through touch-safe construction.
- Easy wiring access and maintenance.
- Suitable for modern electrical distribution systems.
Applications
- Commercial buildings and office facilities.
- Industrial plants and manufacturing units.
- Hotels and hospitality projects.
- Hospitals and healthcare facilities.
- Educational institutions.
- Residential compounds and apartment buildings.
- Infrastructure and utility installations.
- Three-phase electrical distribution systems requiring multiple outgoing protected circuits.
Benefits
- Reliable and safe power distribution.
- Flexible circuit arrangement and future expansion capability.
- Compliance with international electrical standards.
- Long service life with minimal maintenance requirements.
- Compatibility with a wide range of Schneider Electric Acti 9 protective devices.
