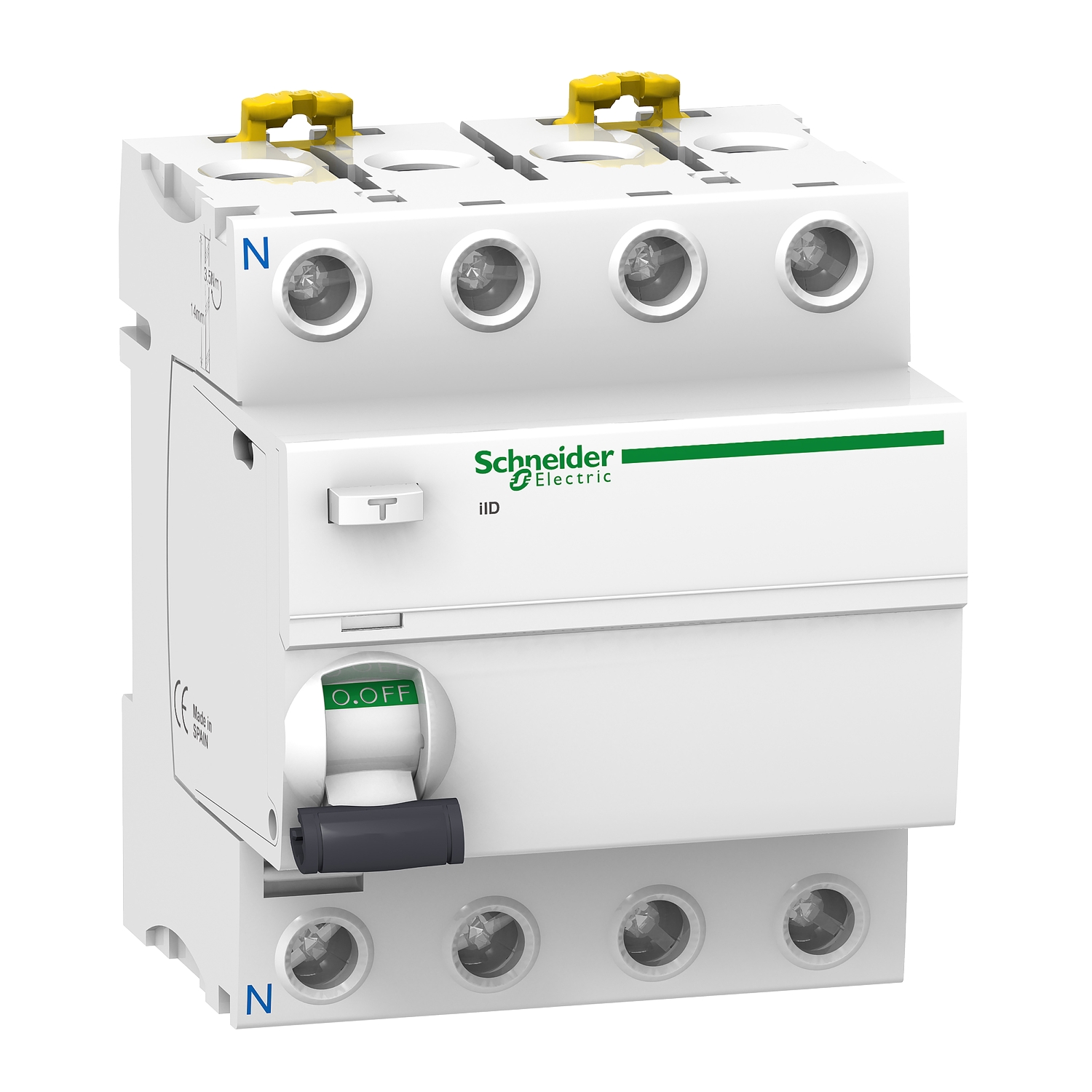

Schneider A9R44425 | Acti 9 iID – RCCB – 4P – 25A – 300mA – type AC
Technical Specifications A9R44425
-
Product Code: A9R44425
-
Product Range: Acti 9 iID
-
Device Type: Residual Current Circuit Breaker (RCCB)
-
Number of Poles: 4 (Three-phase + Neutral)
-
Rated Current (In): 25 A
-
Rated Residual Operating Current (IΔn): 300 mA
-
Type: Type AC (detects sinusoidal alternating residual currents)
-
Rated Voltage: 400V AC (for three-phase systems)
-
Rated Frequency: 50/60 Hz
-
Tripping Characteristic: Instantaneous
-
Mounting Type: DIN rail
-
Degree of Protection: IP20 (protection against accidental contact)
-
Standards Compliance: IEC 61008-1
-
Test Button: Yes (for manual testing)
-
Mechanical Durability: > 5000 operations
-
Electrical Durability: > 2000 operations at rated load
Key Features
-
25A Rated Current: Suitable for low-power circuits that require protection against earth leakage currents.
-
300mA Sensitivity: Designed for fire protection, it detects larger residual currents that may not present an immediate shock risk but could lead to overheating or fire in electrical systems.
-
Type AC Detection: Capable of detecting sinusoidal AC leakage currents, making it suitable for typical residential and commercial installations.
-
4-Pole Protection: Provides complete protection for all conductors in three-phase systems, ensuring that all phases and neutral are disconnected in the event of a fault.
-
Instantaneous Tripping: The RCCB reacts immediately when the leakage current exceeds the rated threshold, minimizing the risk of damage or fire.
-
Test Button: Allows easy testing of the RCCB to verify its operation, ensuring the system remains safe and functional.
-
DIN Rail Mounting: Designed for easy integration into electrical distribution panels, saving space and simplifying installation.
-
Compliance with IEC Standards: Conforms to IEC 61008-1, ensuring global safety and performance standards.
Applications
The A9R44425 RCCB is intended for use in applications where fire protection is a primary concern due to earth leakage currents, especially in three-phase systems. It is suitable for:
Industrial Installations
-
Protects circuits in factories, manufacturing plants, and other industrial facilities that use three-phase electrical systems.
Commercial Buildings
-
Provides protection for electrical circuits in offices, shops, and warehouses, where extended leakage currents could present fire risks, especially in older or poorly maintained systems.
Residential Applications (Three-Phase Systems)
-
Suitable for large residential complexes or buildings with three-phase power systems, offering protection against potential fire risks due to earth leakage currents.
Electrical Distribution Panels
-
Ideal for installation in distribution boards or control panels, offering protection to circuits in larger or more complex electrical installations.
