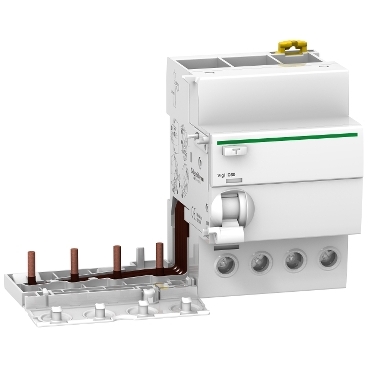

Schneider A9V41463 | Vigi iC60 – earth leakage add-on block – 4P – 63A – 30mA – AC type
Technical Specifications A9V41463
-
Product Code: A9V41463
-
Product Range: Vigi iC60
-
Device Type: Earth Leakage Add-on Block
-
Number of Poles: 4 (Three-phase systems with neutral)
-
Rated Current (In): 63 A
-
Rated Residual Operating Current (IΔn): 30 mA
-
Type: Type AC (detects sinusoidal alternating residual currents)
-
Rated Voltage: 400V AC
-
Rated Frequency: 50/60 Hz
-
Tripping Characteristic: Instantaneous
-
Mounting Type: Mounts directly on iC60 circuit breakers
-
Degree of Protection: IP20 (protection against accidental contact)
-
Standards Compliance: IEC 61008-1, IEC 60947-2
-
Test Button: Yes (for manual testing)
-
Mechanical Durability: > 5000 operations
-
Electrical Durability: > 2000 operations at rated load
Key Features
-
63A Rated Current: This add-on block is rated for 63A circuits, making it suitable for medium-power installations.
-
30mA Sensitivity: Designed for human safety, it will disconnect the circuit if leakage current exceeds 30mA, protecting against electrocution.
-
Type AC Detection: It is capable of detecting sinusoidal alternating currents, which are typical in most residential and commercial electrical systems.
-
Instantaneous Tripping: Provides instantaneous disconnection to prevent electrical hazards as soon as leakage currents are detected above the set threshold.
-
4-Pole Configuration: This device protects all phases and neutral in a three-phase system, providing full protection for multi-phase installations.
-
Easy Installation: The add-on block integrates seamlessly with iC60 circuit breakers, allowing quick and easy installation on DIN rails in electrical distribution panels.
-
Test Button: Ensures that the RCCB is functional and ready to protect, making regular maintenance checks easier.
-
Compact Design: The device is designed to be compact, optimizing space in the electrical panel and allowing for neat, efficient installations.
Applications
The A9V41463 earth leakage add-on block is suitable for use in various applications, including residential, commercial, and industrial environments. It is ideal for:
Residential Installations
-
Protects circuits in homes and apartment complexes, ensuring the safety of residents from electrical shock risks and fire hazards due to leakage currents.
Commercial Installations
-
Used in office buildings, retail spaces, and workshops, where electrical leakage could pose significant safety risks to people and property.
Industrial Installations
-
Provides leakage protection for three-phase systems in factories, manufacturing plants, and large industrial sites where high-power electrical equipment is in use.
Electrical Distribution Panels
-
Enhances the protection of distribution boards or control panels by adding earth leakage protection for three-phase circuits.
