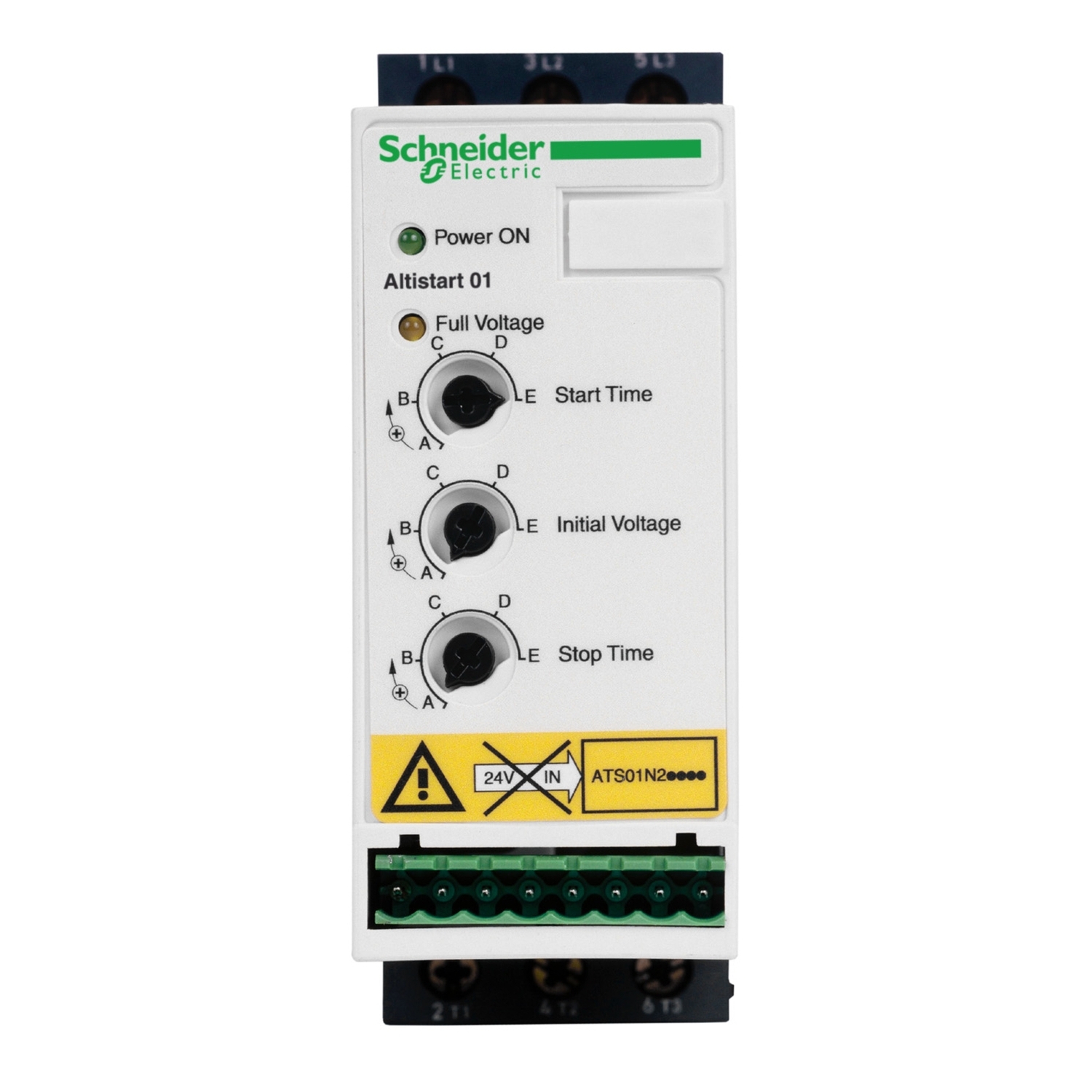

Schneider ATS01N206QN | Soft starter for asynchronous motor, Altistart 01, ATS01, 6A, 380 to 415V, 1.5 to 3kW

Schneider ATS01N206QN | Soft Starter Overview

The Schneider ATS01N206QN is a soft starter from the Altistart 01 series, designed for small asynchronous motors. It provides a smooth start and stop, reducing mechanical stress and increasing motor lifespan. This compact soft starter is ideal for low-power industrial applications where efficient and reliable motor control is required.

1. General Specifications

• Product Name: Schneider ATS01N206QN

• Series: Altistart 01 (ATS01)

• Type: Soft Starter for Asynchronous Motors

• Rated Current: 6A

• Power Rating: 1.5 to 3 kW

• Operating Voltage: 380V to 415V AC

• Control Type: Voltage Ramp Control

• Motor Compatibility: Three-phase asynchronous motors

2. Key Features & Benefits

Controlled Motor Start & Stop – Prevents sudden torque surges.
Compact & Space-Saving Design – Ideal for small panels and machines.
Energy Efficiency – Reduces power surges and mechanical wear.
Built-in Motor Protection – Overload and overheating prevention.
Simple Wiring & Installation – No programming required.

3. Applications

🔹 Pumps & Small Compressors – Reduces pressure surges and water hammer effects.
🔹 Fans & Blowers – Provides gradual speed increase for smooth airflow.
🔹 Conveyor Systems – Ensures controlled acceleration for efficient operation.
🔹 Small Industrial Machines – Ideal for automation and light-duty applications.

4. Protection & Safety Features

Overload & Overtemperature Protection – Prevents motor damage.
Phase Loss Detection – Enhances safety and reliability.
Voltage Ramp Control – Ensures stable and gradual motor startup.
Built-in Diagnostics & Alerts – Simplifies troubleshooting and maintenance.

5. Installation & Maintenance

Flexible Mounting Options – Suitable for DIN rail or panel mounting.
Quick & Easy Wiring – Reduces installation time.
Low Maintenance – Designed for durability and long-term use.
