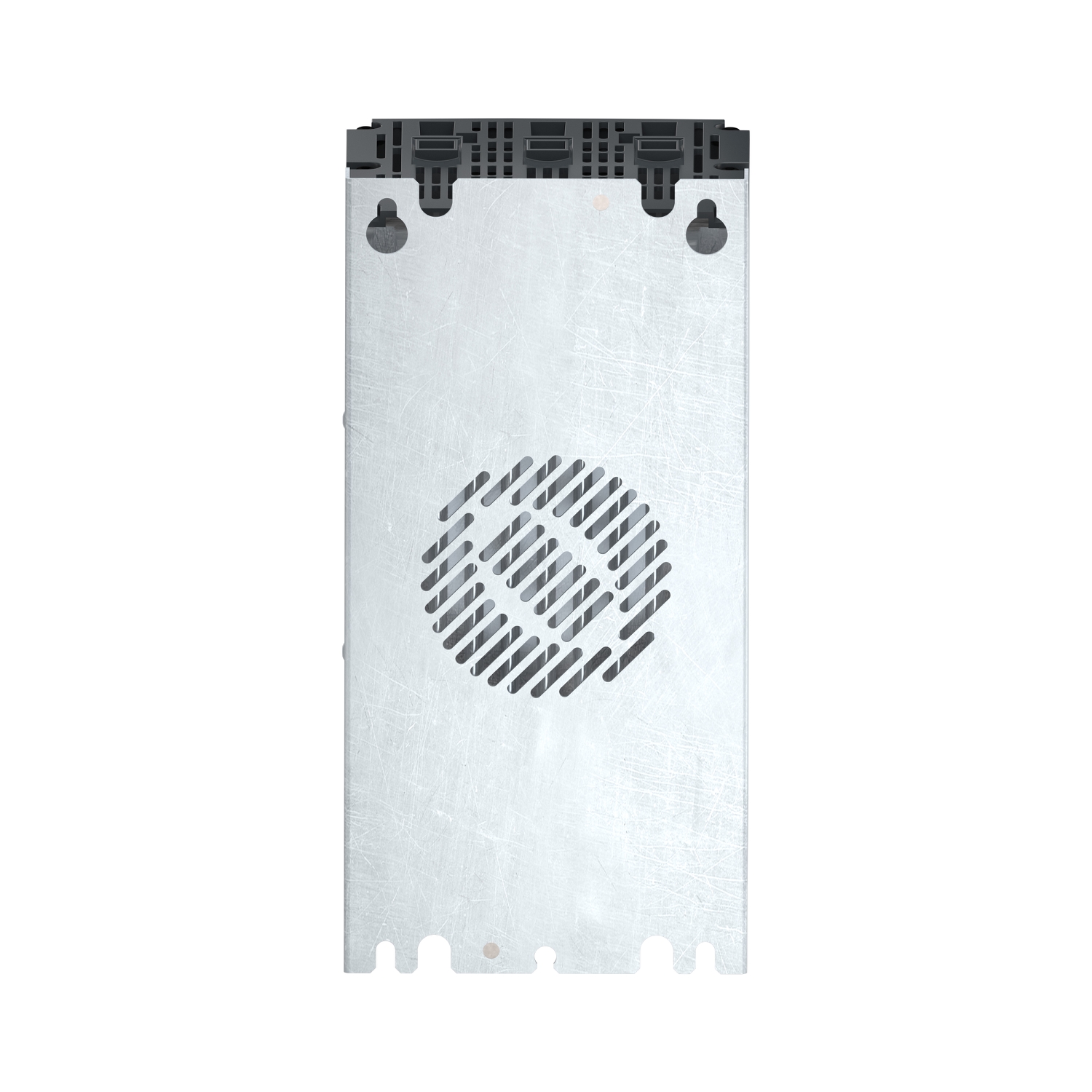

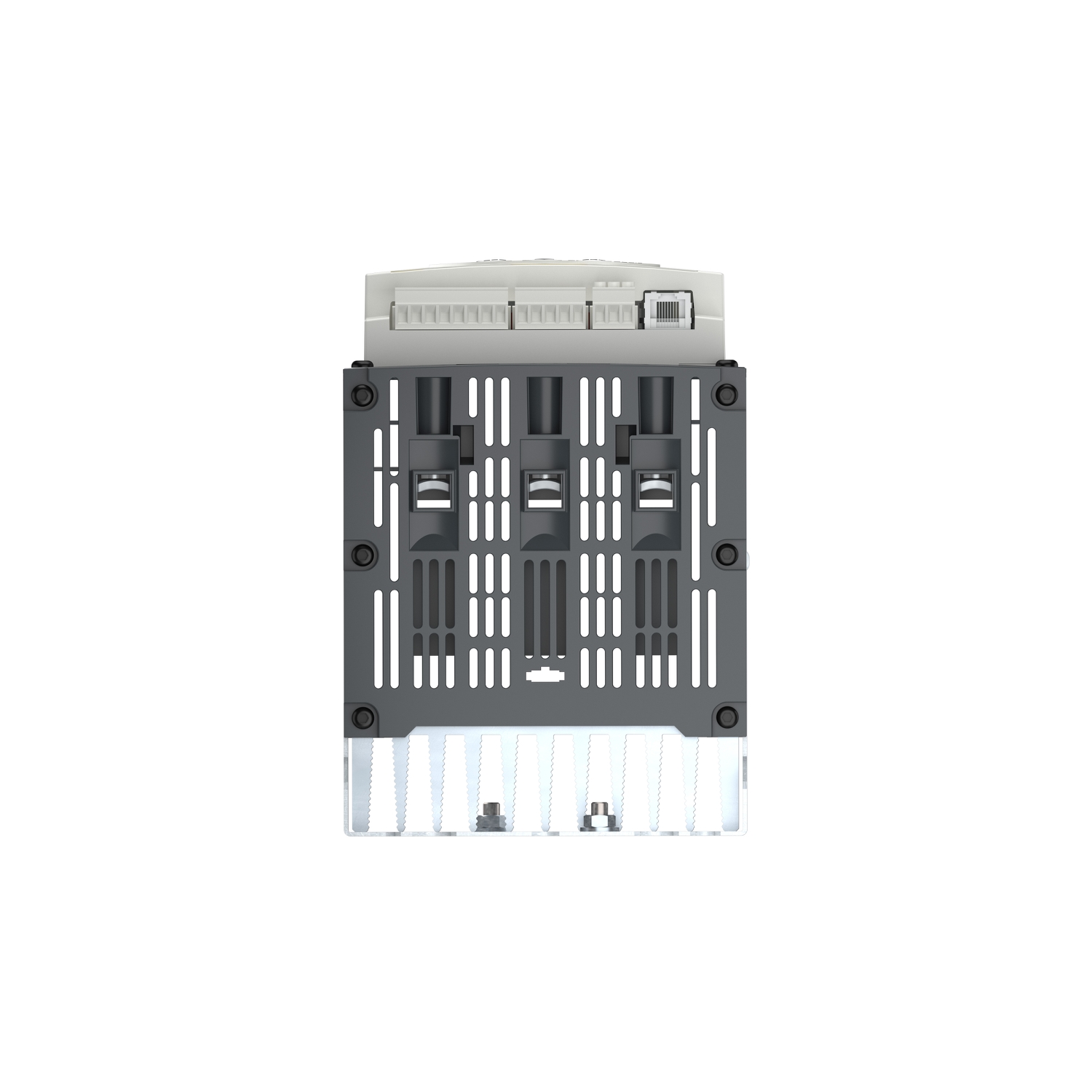

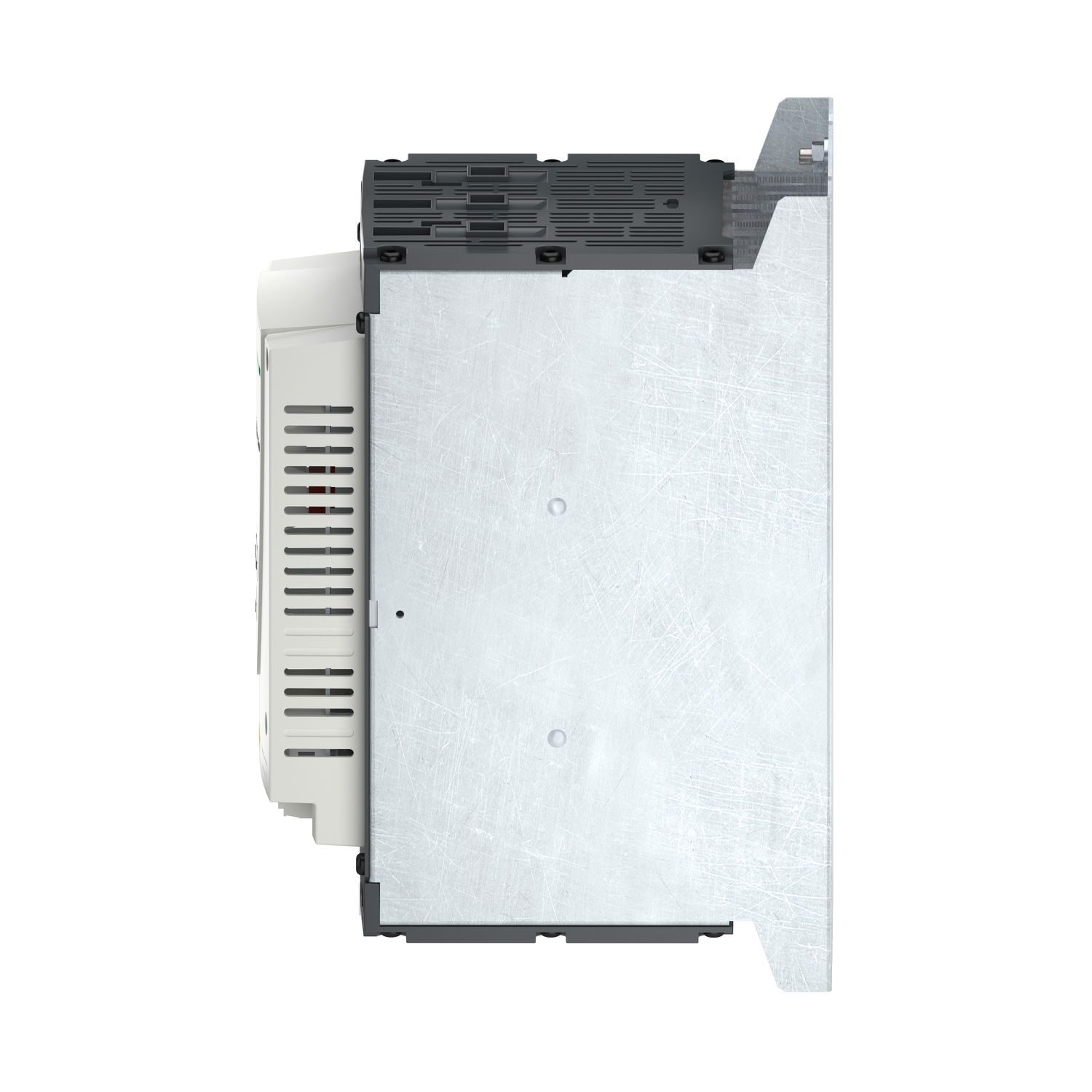

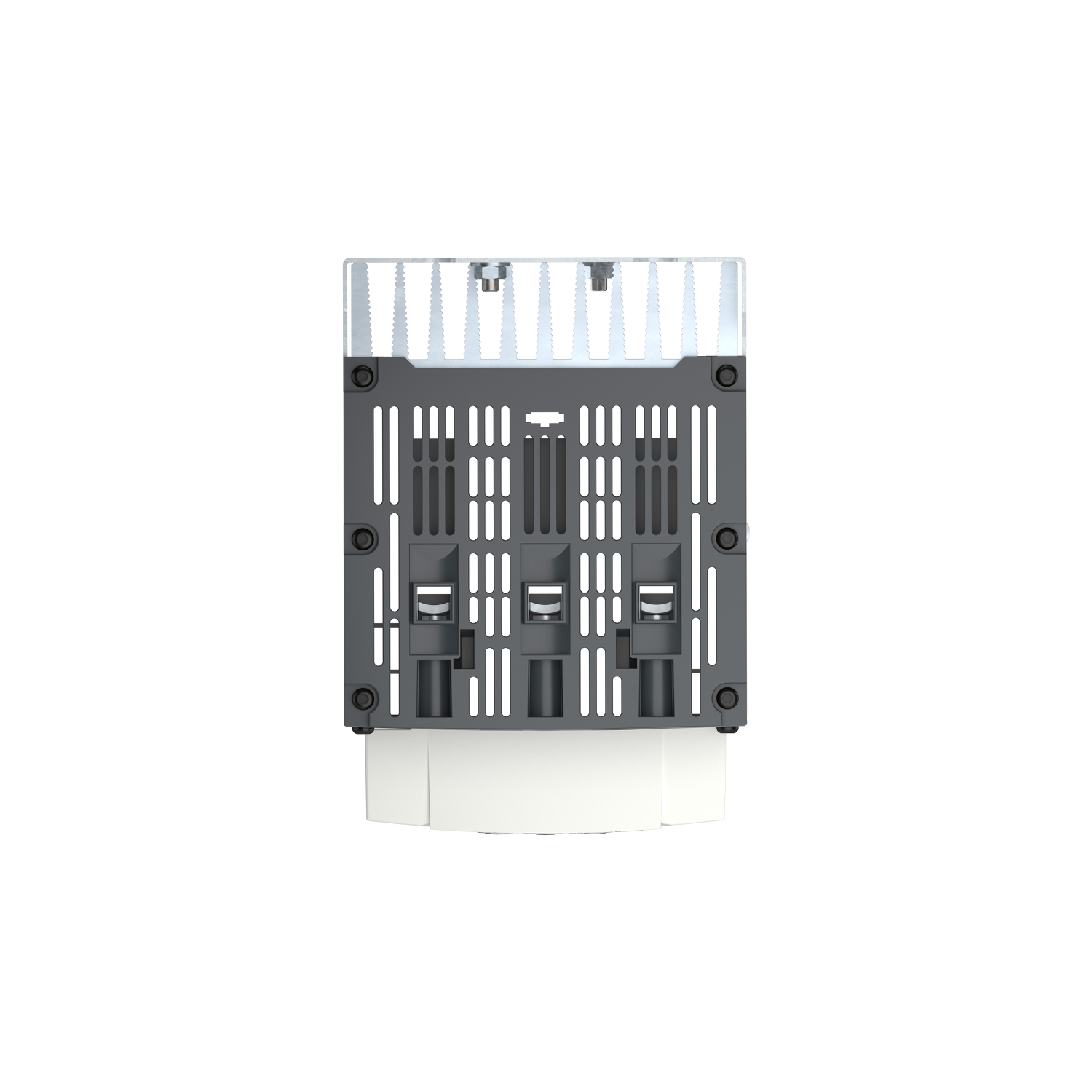

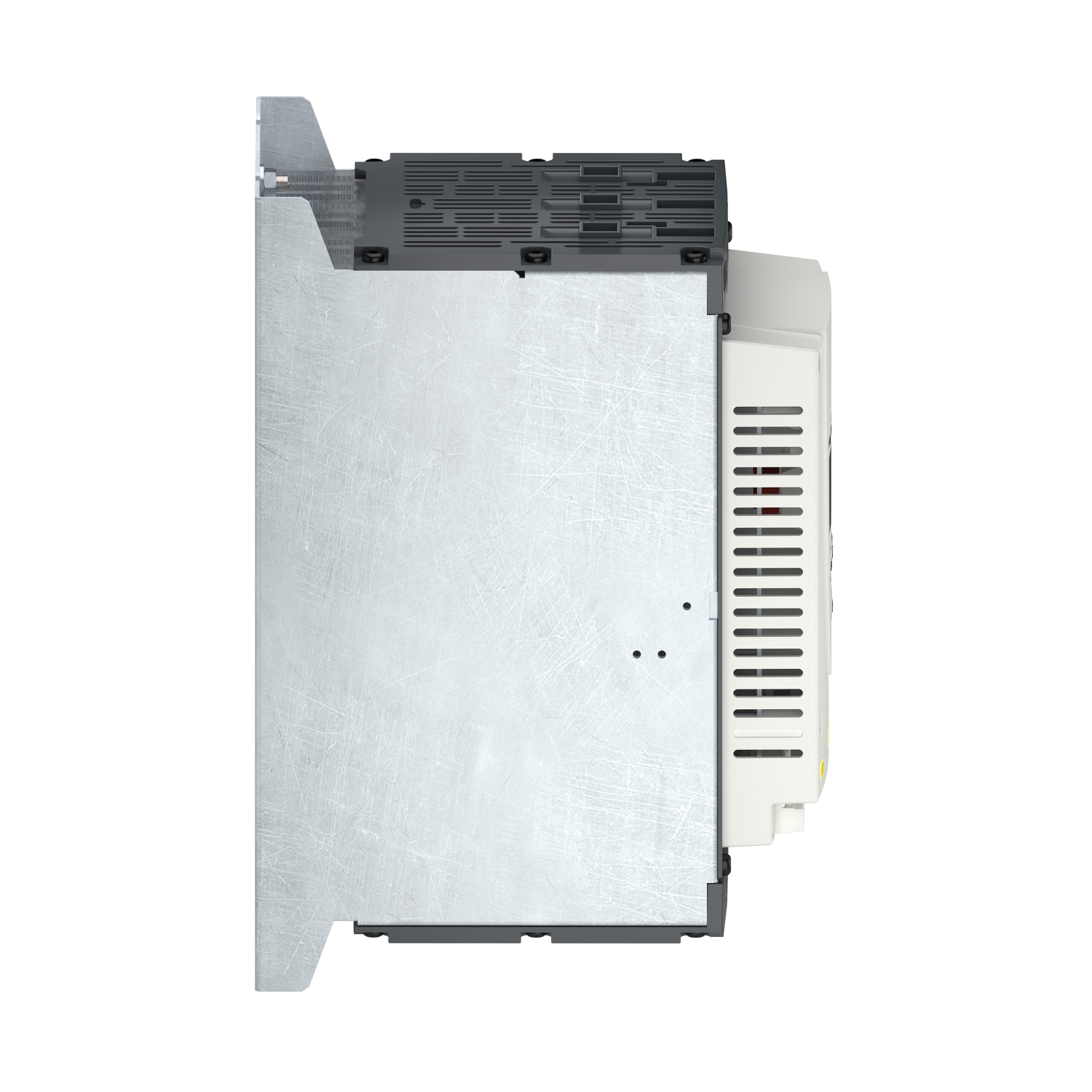

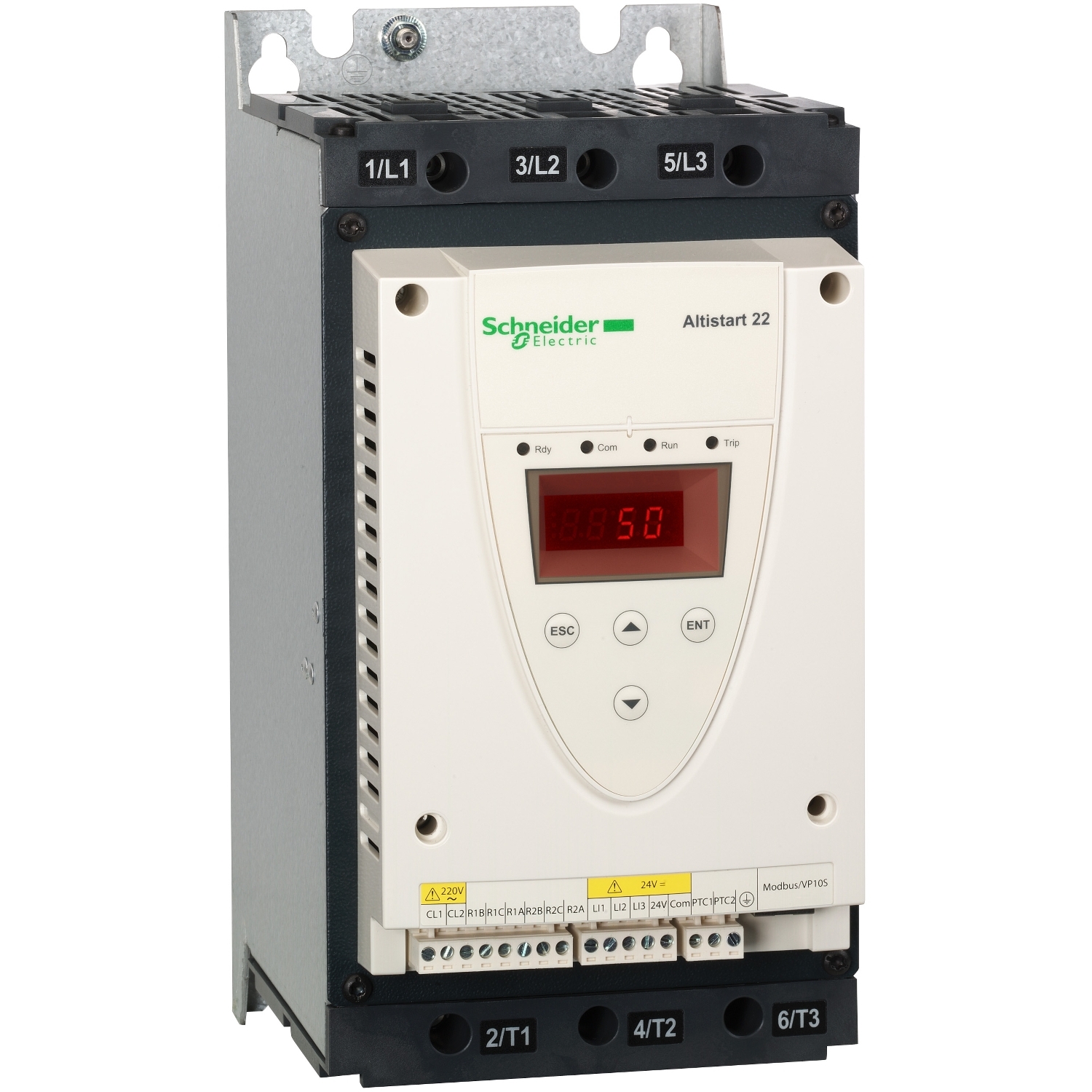

Schneider ATS22D88Q| Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 22 to 45kW

Schneider ATS22D88Q | Soft Starter Overview

The Schneider ATS22D88Q is a soft starter from the Altistart 22 series, designed to provide smooth and controlled startup for asynchronous motors. With a power rating of 22 to 45kW, this soft starter reduces mechanical and electrical stress, improving motor longevity and energy efficiency.

1. General Specifications

• Product Name: Schneider ATS22D88Q

• Series: Altistart 22

• Function: Soft Starter for Asynchronous Motors

• Power Rating: 22 to 45kW

• Operating Voltage: 230V to 440V AC

• Control Supply Voltage: 230V AC

• Application: Industrial motor control for pumps, conveyors, fans, and compressors

2. Key Features & Benefits

Smooth Motor Start & Stop: Reduces mechanical shocks and electrical surges.
Wide Power Range: Supports motors from 22kW to 45kW, making it versatile for various industries.
Advanced Motor Protection: Includes overload, overtemperature, and short-circuit protection.
Energy Efficiency: Minimizes power consumption by controlling the acceleration phase.
User-Friendly Interface: Digital display with programmable settings for customized operation.
Compact & Space-Saving Design: Fits easily into control panels and industrial setups.

3. Applications

🔹 Pumps & Compressors – Reduces hydraulic surges and extends motor lifespan.
🔹 HVAC Systems & Fans – Ensures stable air circulation and prevents electrical spikes.
🔹 Conveyors & Material Handling – Provides smooth operation and prevents jerky movements.
🔹 Industrial Machines & Crushers – Supports high-load operations with reliable motor control.
🔹 Water Treatment Plants – Ideal for efficient and controlled water pumping applications.

4. Protection & Safety Features

• Overload Protection – Prevents motor overheating and excessive current draw.

• Short Circuit Protection – Enhances safety and prevents damage to electrical components.

• Overtemperature Protection – Maintains safe operating conditions.

• Phase Loss & Imbalance Detection – Ensures reliable and stable motor operation.

• Built-in Bypass Contactors – Improves efficiency and reduces power dissipation.

5. Installation & Maintenance

Simple Installation & Wiring – Designed for quick integration into motor control systems.
Real-Time Monitoring & Diagnostics – Enables fault detection and predictive maintenance.
Durable & Robust Design – Suitable for harsh industrial environments.
