SKU: GV2E454 Categories: , , , Brand:

Description

Schneider | GV2E454 GV2;GV2G;TeSys GV;upstream busbar;3 phases;paralleling starters;4 tap-offs;power circuit wiring

Description

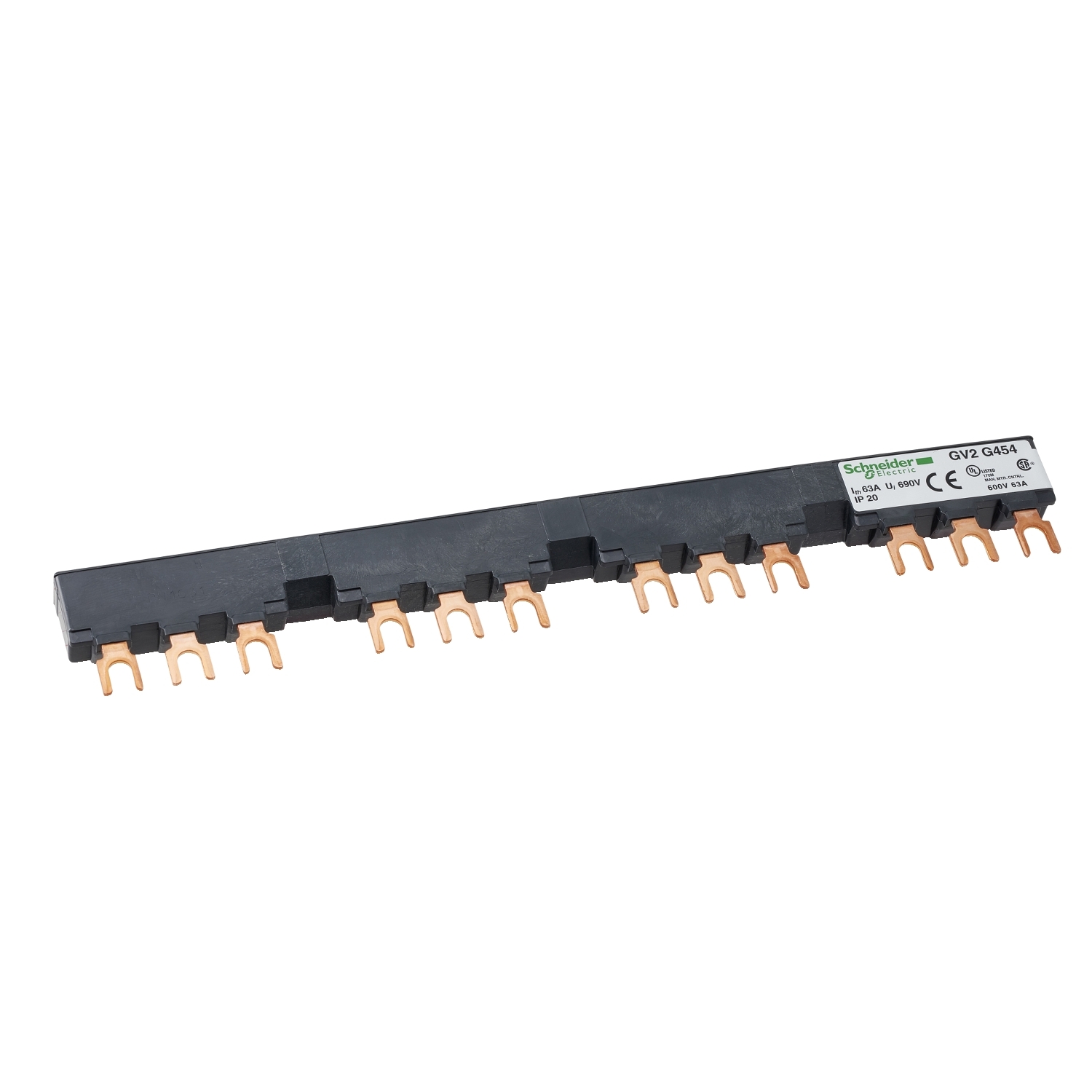

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).

Additional information

brands

Schneider Electric

Brand

Schneider Electric

leading the digital transformation of energy management and automation. From energy and sustainability consulting to optimizing the lifecycle of your assets, we provide services to meet your needs. Our technologies help you become more efficient, reduce costs, and meet your sustainability goals.

data sheet

data sheet

Specifications

Main
Range Linergy
Product name FT
Device short name GV2G
Product or component type Comb busbar
Accessory / separate part category Connection accessory
Poles description 3P
Range compatibility TeSys Deca
TeSys GV2
TeSys K
TeSys U
Fixing mode Terminals:
Number of tap-offs 4
[Ith] conventional free air thermal current 63 A
Complementary
Product certifications CE
cULus
[Ui] rated insulation voltage 690 V
Connection pitch 54 mm
Width 206 mm
Net weight 0.085 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 1.900 cm
Package 1 Width 3.700 cm
Package 1 Length 21.600 cm
Package 1 Weight 88.000 g
Unit Type of Package 2 S01
Number of Units in Package 2 50
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.550 kg
Unit Type of Package 3 P06
Number of Units in Package 3 1600
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 156.500 kg
Contractual warranty
Warranty (in months) 18
