Description

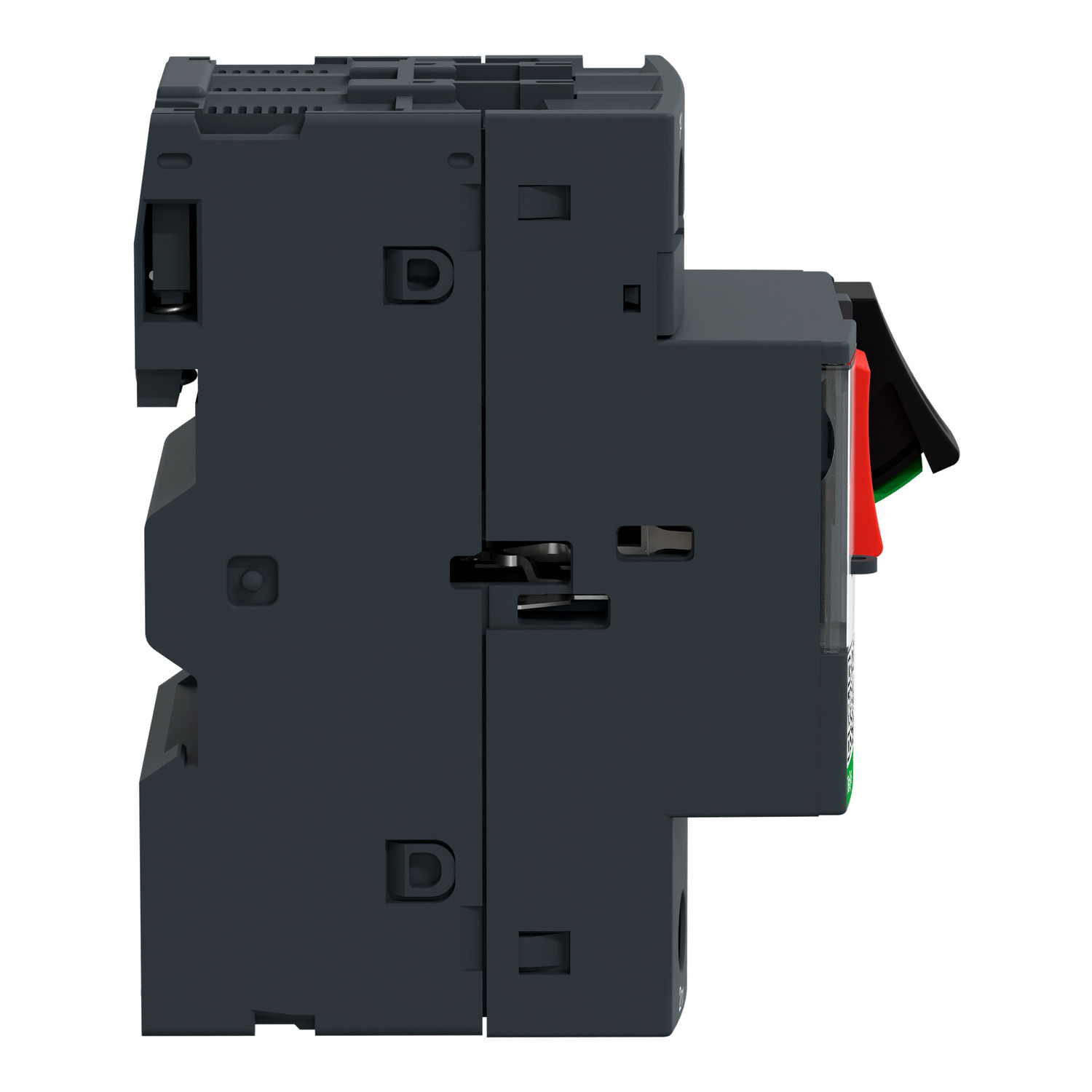

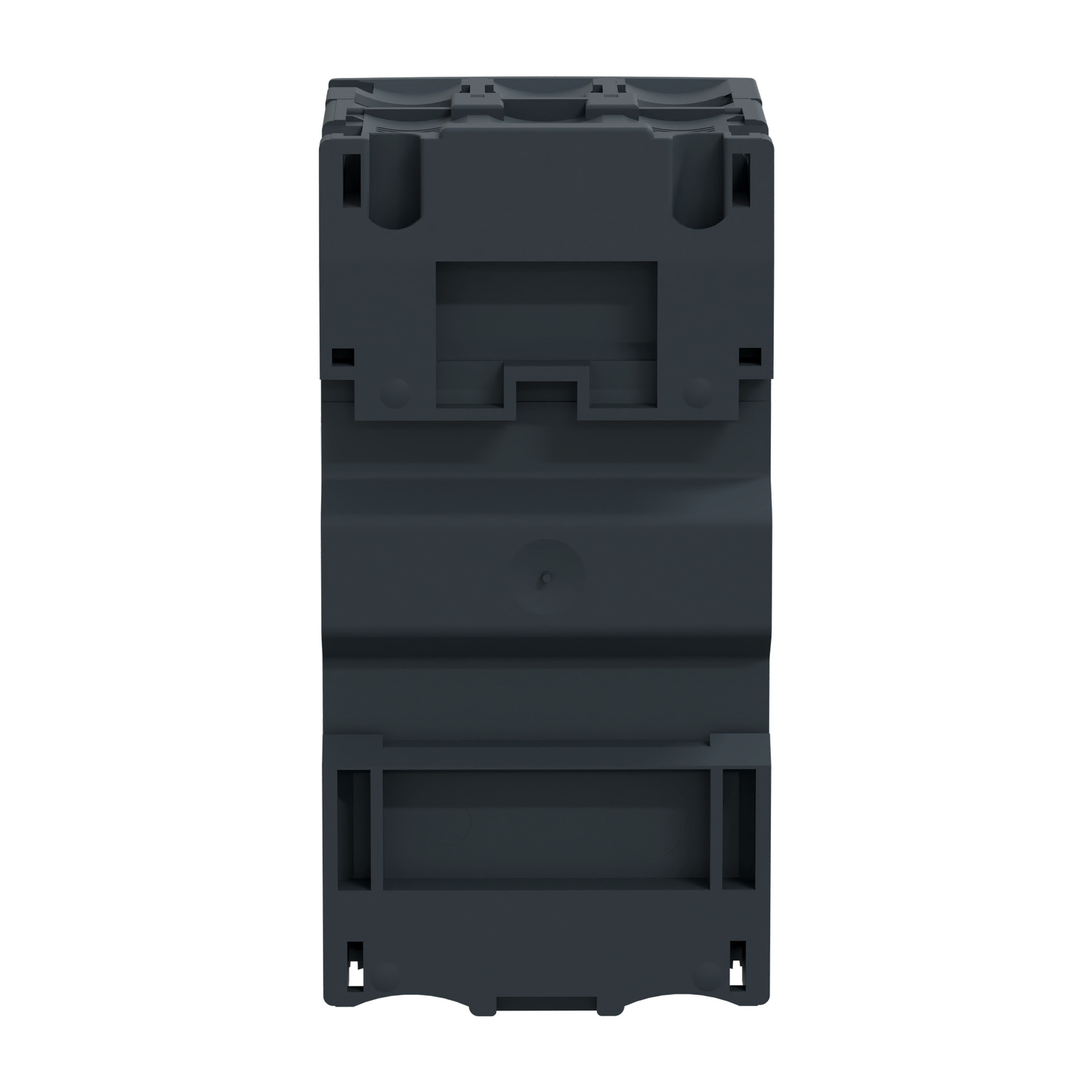

Schneider GV2ME04 | Motor circuit breaker, TeSys GV2, 3P, 0.4-0.63 A, thermal magnetic, screw clamp terminals

Technical Specifications

• Model Number: GV2ME04
• Series: TeSys GV2
• Breaker Type: Motor Circuit Breaker (MCB)
• Number of Poles: 3P (Three-Pole)
• Rated Current Range: 0.4 – 0.63A (Adjustable)
• Tripping Mechanism: Thermal Magnetic Protection
• Breaking Capacity: 100 kA at 400V AC
• Voltage Rating: 690V AC (Maximum Operating Voltage)
• Frequency: 50/60 Hz
• Connection Type: Screw Clamp Terminals
• Mounting Type: DIN Rail or Panel Mounting
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP20 (IP65 with enclosure)
• Certifications & Standards: IEC 60947-2, IEC 60947-4-1, UL, CSA

Key Features

1. Reliable Motor Protection

   • Provides thermal protection against overloads and magnetic protection against short circuits, ensuring motor safety.

2. Adjustable Current Range (0.4-0.63A)

   • Allows precise setting to match motor specifications, preventing unnecessary tripping.

3. High Breaking Capacity (100 kA at 400V AC)

   • Ensures safe operation in high-fault conditions, making it suitable for industrial environments.

4. Compact and Space-Saving Design

   • Fits easily into motor control panels and switchboards, optimizing space utilization.

5. Manual ON/OFF Control with Trip Indication

   • Features a built-in switch for easy manual control and a visual trip indicator for quick fault identification.

6. Screw Clamp Terminals for Secure Connections

   • Ensures strong and reliable wiring, reducing the risk of loose connections.

7. Compatible with TeSys Accessories

   • Works with auxiliary contacts, shunt trips, and undervoltage releases for enhanced control and monitoring.

8. Meets Global Standards for Safety & Performance

   • Certified under IEC 60947-2 and IEC 60947-4-1, ensuring compliance with international regulations.

Applications

• Motor Control and Protection
  • Ideal for small three-phase motors in industrial machinery, conveyor belts, pumps, and fans.
• Industrial Automation
  • Used in motor control centers (MCCs) and automation systems for efficient motor protection.
• HVAC Systems
  • Ensures reliable protection for compressors and ventilation systems.
• Water Pumping Stations
  • Provides secure motor protection in irrigation and water treatment plants.
• Manufacturing & Processing Plants
  • Used in assembly lines, material handling systems, and automated production equipment.
