Description

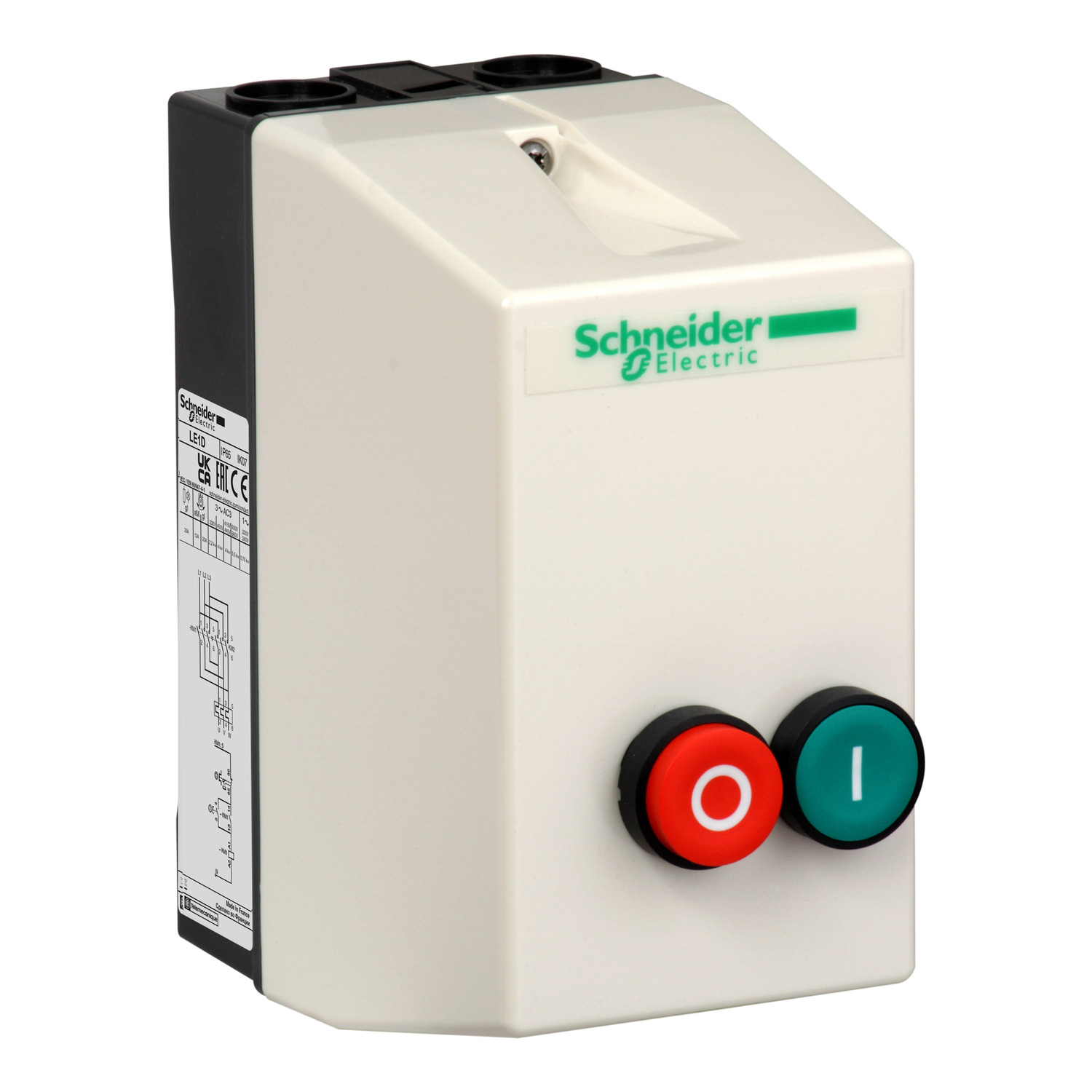

Schneider LE1D25Q7 | Enclosed DOL starter,TeSys LE,25A,380V AC coil,including 1 LC1D,2 pushbuttons
. Technical Specifications LE1D25Q7
-
Brand: Schneider Electric
-
Series: TeSys LE
-
Model Number: LE1D25Q7
-
Type: Enclosed Direct-On-Line (DOL) Starter
-
Contactor Model Included: LC1D25
-
Rated Operational Current (Ie): 25 A (AC-3 duty at 400 V)
-
Motor Power Rating (AC-3 at 400 V): Up to 11 kW (15 hp)
-
Control Coil Voltage: 380 V AC, 50/60 Hz
-
Enclosure Type: IP55 rated plastic enclosure
-
Pushbuttons Included:
-
1 x Green “Start” button
-
1 x Red “Stop” button
-
-
Mounting Type: Surface-mounted
-
Ambient Temperature Range: –5°C to +40°C (without derating)
-
Standards Compliance: IEC 60947-4-1 / EN 60947-4-1 / UL / CSA
. Key Features
-
Pre-wired and enclosed for quick installation and safe operation
-
Includes LC1D25 power contactor rated for standard 3-phase motors
-
High durability under frequent motor start/stop operations
-
Integrated Start and Stop pushbuttons for basic manual control
-
Compact IP55 enclosure offers protection against dust and water spray
-
Suitable for wall mounting in industrial and workshop environments
-
Quick access to terminals for simplified wiring and maintenance
. Typical Applications
The LE1D25Q7 DOL starter is ideal for controlling motors in the following use cases:
-
Small industrial machinery
-
HVAC equipment (fans, blowers, pumps)
-
Compressors and conveyor systems
-
Agricultural equipment
-
Workshops and processing lines
-
Building service motors (e.g., lifts, water pumps)
Advantages
-
Plug-and-play motor starter – saves installation time
-
Reliable Schneider quality with long service life
-
User-friendly control interface with built-in pushbuttons
-
Electrical and mechanical protection housed in a single unit
-
Designed for safety with a sealed, touch-safe enclosure
-
Cost-effective solution for DOL motor starting up to 11 kW
