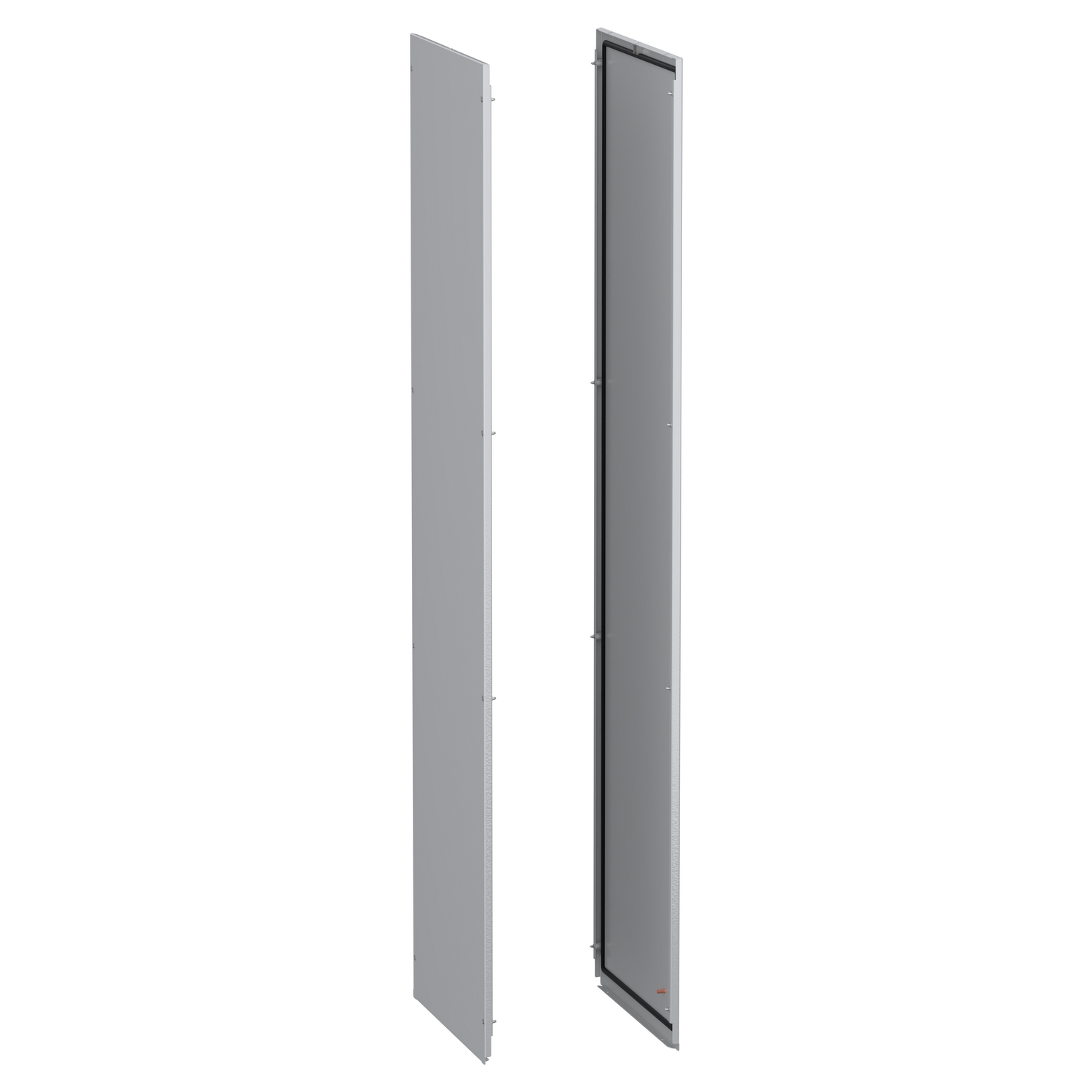

Schneider NSY2SPN206 PanelSeT SFN Steel Side Panels H2000 D600mm RAL 7035 Set of 2

Schneider NSY2SPN206 | Side panels, PanelSeT SFN, for electrical enclosure H2000 D600mm, external fixing, set of 2

Designed specifically for PanelSeT SFN enclosures

2000 × 600mm enclosure compatibility

Strong steel construction for durable protection

External fixing with captive screws for easier installation

RAL 7035 epoxy-polyester powder-coated finish

SKU: NSY2SPN206 Categories: , , Brand:

Description

Schneider NSY2SPN206 | Side panels, PanelSeT SFN, for electrical enclosure H2000 D600mm, external fixing, set of 2

Schneider NSY2SPN206 PanelSeT SFN Steel Side Panels H2000 D600mm RAL 7035 Set of 2
Schneider NSY2SPN206 PanelSeT SFN Steel Side Panels H2000 D600mm RAL 7035 Set of 2
These two steel side panels are purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. They have a nominal height and depth of 2000 mm and 600 mm, respectively. The panels are made of steel sheet. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color.

Additional information

brands

Schneider Electric

Brand

Schneider Electric

leading the digital transformation of energy management and automation. From energy and sustainability consulting to optimizing the lifecycle of your assets, we provide services to meet your needs. Our technologies help you become more efficient, reduce costs, and meet your sustainability goals.

data sheet

data sheet

Specifications

Main
Range PanelSeT
Accessory / separate part category Enclosure accessory
Product or Component Type Side panel
Application Compartmentalised application
Prisma application
Multi-purpose
For enclosure nominal dimensions – H: 78.7 in (2000 mm) D: 23.6 in (600 mm)
Mounting Location Sides of enclosure
Complementary
Range compatibility PanelSeT SFN
Device composition fixing elements
2 side panel
Material steel
Net Weight 213.0 lb(US) (96.6 kg)
color Gray RAL 7035)
Surface Finish Epoxy-polyester powder
Fixing mode By screws captive – from the outside of enclosure
Height Nominal: 78.7 in (2000 mm)
Width Nominal: 23.6 in (600 mm)
Ordering and shipping details
Category US10ES180035
Discount Schedule 0ES1
GTIN 3606486104453
Returnability Yes
Country of origin ES
Packing Units
Unit Type of Package 1 PCE
Nbr. of units in pkg. 1
Package 1 Height 2.559 in (6.500 cm)
Package 1 Width 23.228 in (59.000 cm)
Package 1 Length 79.921 in (203.000 cm)
Package weight(Lbs) 70.548 lb(US) (32.000 kg)
Unit Type of Package 2 PAL
Number of Units in Package 2 20
Package 2 Height 31.890 in (81.000 cm)
Package 2 Width 47.244 in (120.000 cm)
Package 2 Length 79.921 in (203.000 cm)
Package 2 Weight 1496.940 lb(US) (679.000 kg)
Contractual warranty
Warranty (in months) 18
