Description

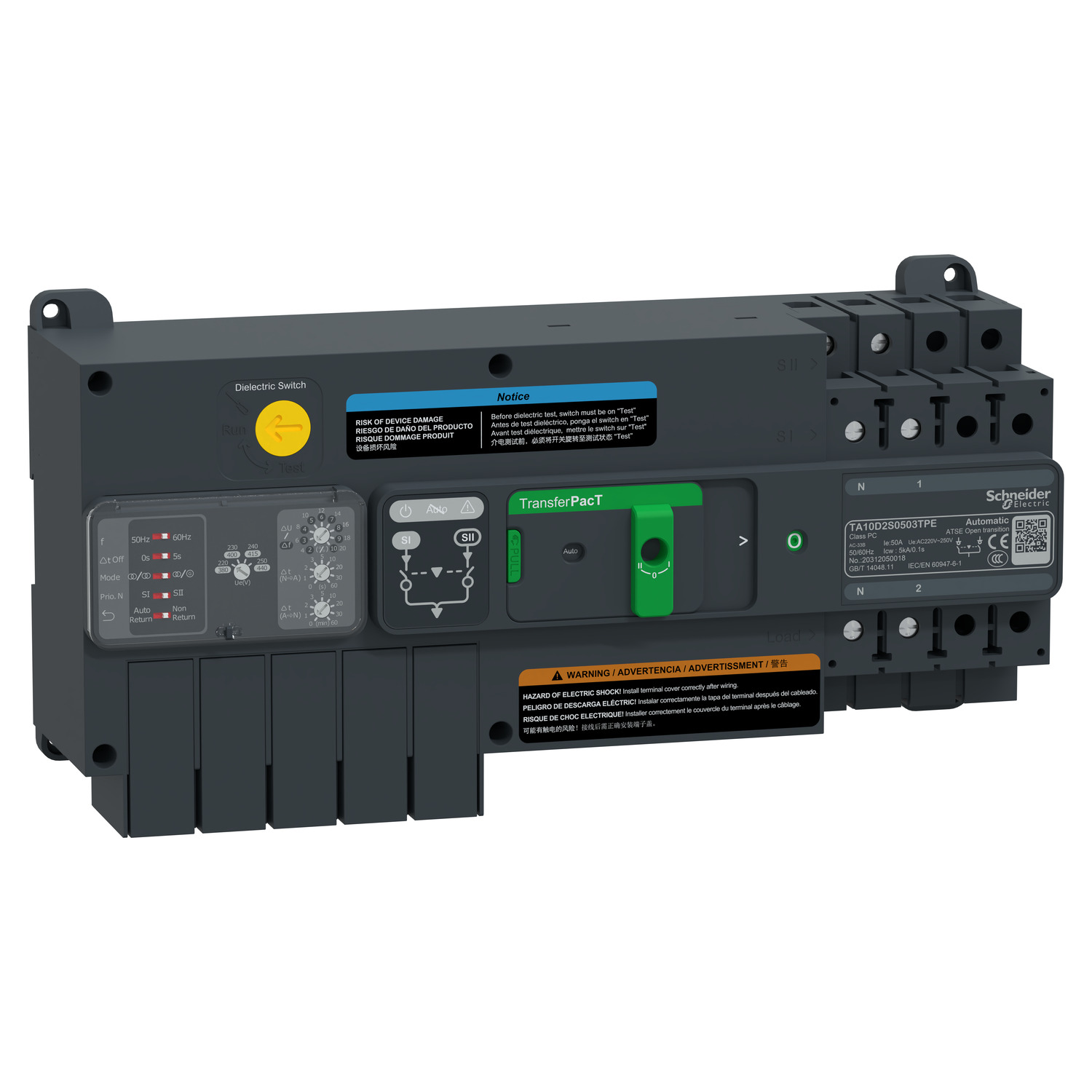

Schneider TA10D2S0503TPE | automatic transfer switch, TransferPacT automatic, 50A, 2P, rotary, frame 100A
Technical Specifications:
-
Product Type: Automatic Transfer Switch (ATS)
-
Series: TransferPacT
-
Model: TA10D2S0503TPE
-
Rated Current: 50 Amps
-
Number of Poles: 2 Poles (2P), designed for single-phase systems.
-
Voltage: Typically used for 230V systems (specific voltage may depend on installation).
-
Frame Size: 100A, allowing flexibility to accommodate future power requirements.
-
Switching Mechanism: Rotary switch for smooth and reliable power transfer.
-
Switch Type: Automatic Transfer Switch (ATS) with automatic source switching.
-
Control Interface: Easy-to-use controls for switching and monitoring the ATS.
-
Protection: Includes basic protection features like overload protection and short-circuit protection.
. Features:
-
50A Current Rating: With a 50A rating, the TA10D2S0503TPE is designed for moderate power systems, suitable for small to medium commercial applications or larger residential installations.
-
2-Pole (2P) Configuration: The 2-pole configuration is ideal for single-phase systems, commonly used in 230V setups.
-
Rotary Switch Mechanism: The rotary switch provides smooth and reliable operation, ensuring uninterrupted switching between power sources.
-
Automatic Switching: The automatic transfer switch guarantees that when the primary power source fails, the ATS automatically switches to the backup power source, ensuring minimal downtime.
-
100A Frame Size: The 100A frame allows flexibility, enabling the switch to handle future increases in power demands, making it adaptable to expanding power needs.
-
Protection: Equipped with protection features such as overload protection and short-circuit protection, ensuring safe operation and protecting the system from damage due to electrical faults.
-
Compact and Efficient Design: Designed for easy installation, the TA10D2S0503TPE offers a compact and efficient solution for smaller electrical systems, providing reliable power transfer in tight spaces.
. Applications:
-
Residential Use: Ideal for homes or small residential buildings that need a reliable solution for backup power or dual-source power systems. The 50A rating is suitable for essential household appliances, including HVAC systems, lighting, and electrical devices.
-
Commercial Use: This ATS is perfect for small commercial spaces, such as offices, retail stores, or restaurants, where reliable backup power is necessary for systems like point-of-sale systems, lighting, and security systems.
-
Backup Power Systems: The automatic transfer switch is commonly used in backup power applications to ensure that critical systems such as computers, servers, and medical equipment continue to operate during power failures.
-
Light Industrial Applications: The TA10D2S0503TPE can also be used in small industrial applications, such as workshops or manufacturing facilities, where reliable power supply is crucial for machines and equipment operation.
