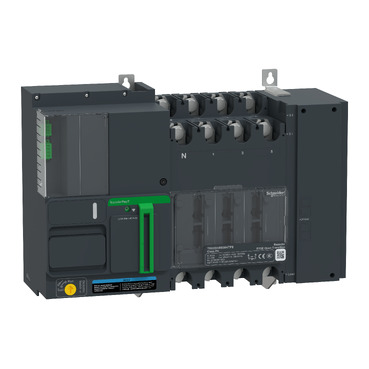

Schneider TR63D4R5004TPE | TransferPacT Remote, 500A, 400V, 4P, Remote, frame 630A

Description

Schneider TR63D4R5004TPE | TransferPacT Remote, 500A, 400V, 4P, Remote, frame 630A

Technical Specifications Schneider TR63D4R5004TPE

• Manufacturer: Schneider Electric

• Model Number: TR63D4R5004TPE

• Product Series: TransferPacT Remote

• Rated Current (In): 500 Amps

• Rated Operational Voltage (Ue): 400V AC

• Number of Poles: 4 Poles (Three-phase + Neutral)

• Frame Size: 630A

• Frequency: 50/60 Hz

• Transfer Type: Electrically and mechanically interlocked remote transfer

• Control Mode: Remote Automatic Operation

• Mounting Style: Panel mount / enclosure integration

• Operating Temperature Range: -5°C to +40°C

• Ingress Protection (IP Rating): IP30–IP54 (depending on installation)

• Standards: IEC 60947-6-1, IEC 60947-3

• Communication Options: Modbus, Ethernet (with optional modules)

Key Features

1. High Rated Current – 500A
   Supports substantial electrical loads, making it suitable for large installations requiring high-current transfer switching.

2. 4-Pole Switching
   Ensures complete isolation of all live conductors, including neutral, which enhances safety in systems that demand full disconnection during source transfer.

3. Remote Operation Capability
   Enables monitoring and control through building management systems (BMS), SCADA, or standalone automation systems. Integrates easily using optional communication modules.

4. Fast and Safe Transfer Mechanism
   Rapidly switches between power sources with mechanical interlocking and smart electronic logic to minimize downtime and avoid backfeeding or overlapping.

5. Scalable Frame (630A)
   Designed to allow future upgrades or system expansions without replacing the transfer switch, adding flexibility for evolving project demands.

6. Built-In Diagnostics and Protection
   Includes fault detection features such as over/undervoltage, phase loss, and neutral faults, supporting early diagnostics and reducing risk.

7. Compact and Flexible Installation
   Designed to fit modern control panels, with modular accessories and auxiliary options available for tailored configurations.

Applications

• Industrial Facilities
  Ideal for maintaining continuous operation of production lines, control systems, and machinery in large industrial environments.

• Healthcare and Hospitals
  Supports critical systems such as emergency lighting, ICU equipment, and life-saving devices with uninterrupted power switching.

• Data Centers
  Ensures seamless operation of servers, network infrastructure, and backup systems during utility power outages or transitions.

• Commercial Buildings
  Maintains continuous service of HVAC, lighting, elevators, and IT systems in office complexes, shopping centers, and hospitality facilities.

• Critical Infrastructure and Utilities
  Suitable for airports, water treatment plants, energy facilities, and telecom systems requiring constant power availability.
